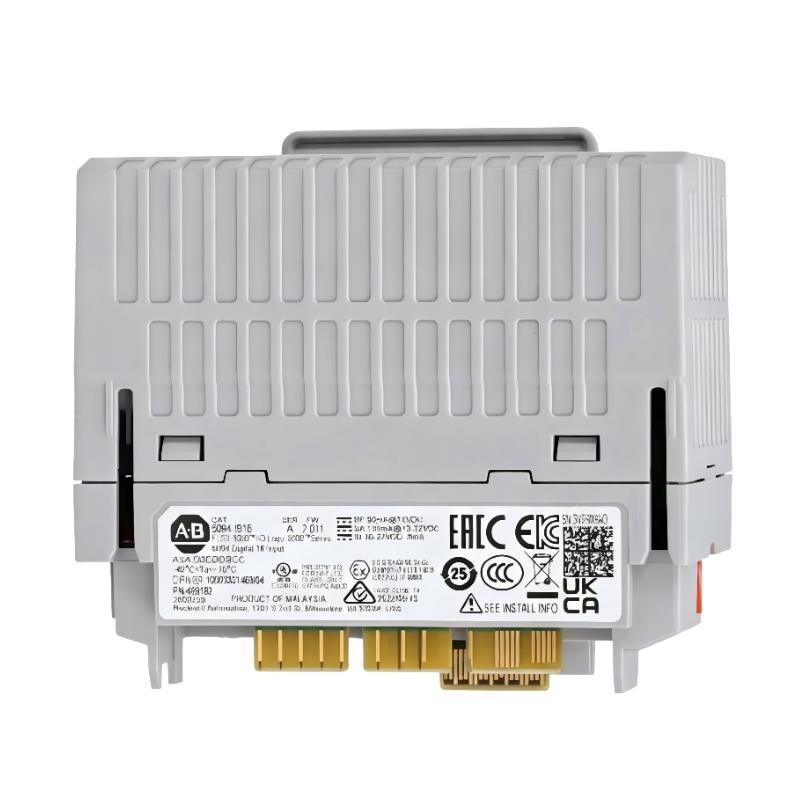

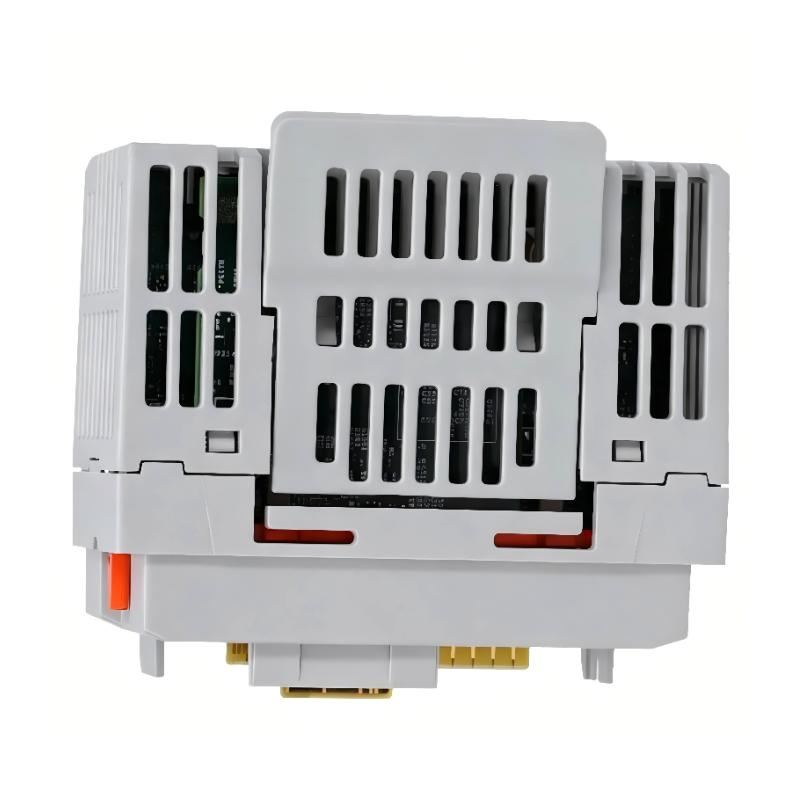

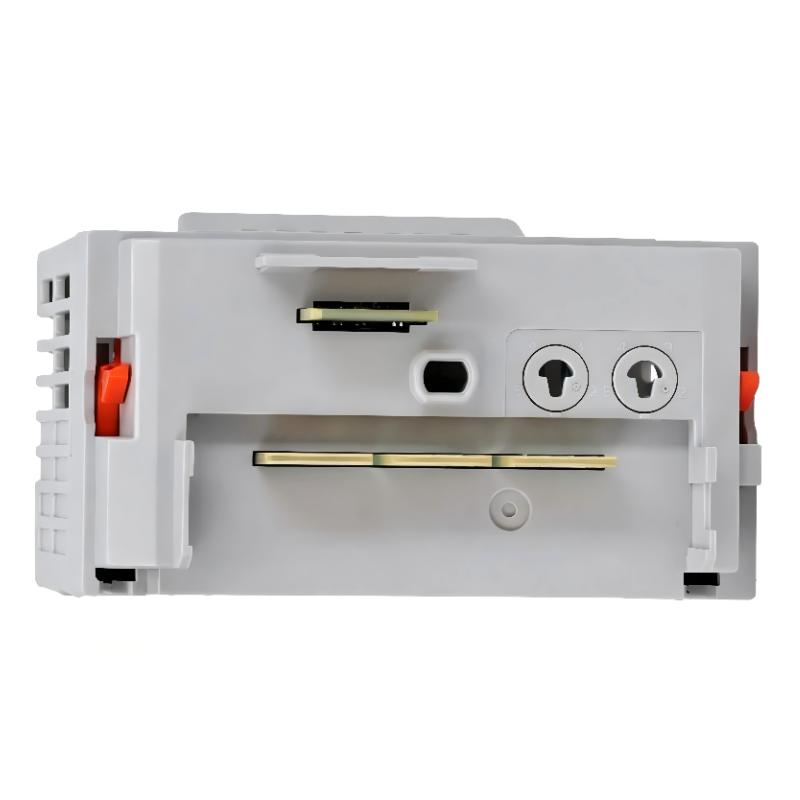

Allen-Bradley 5094-IA16 Digital Input Module — Technical Specifications, Applications, Advantages, and Related Models

1. Product Overview

The Allen-Bradley 5094-IA16 is a digital input module in the FLEX 5000 I/O product family. Digital input modules allow an industrial controller to monitor the on/off states of connected field devices, such as limit switches, push buttons, auxiliary contacts, and compatible sensors.

In an automation system, field devices generate signals that indicate whether a machine component is in position, a door is open, a device is running, or a process condition has been reached. The input module receives those signals and makes their states available to the controller, which can then execute the programmed logic.

The 5094-IA16 designation is associated with a 16-point AC digital input function. Because AC input modules differ electrically from 24 V DC input modules, it is important to confirm the exact input-voltage range, frequency range, channel grouping, and wiring requirements before connecting field equipment.

The module is intended for use in a compatible FLEX 5000 I/O assembly. The complete installation may require a compatible I/O adapter, mounting base, terminal assembly, field power, and appropriate controller configuration.

Specification note: The tables below identify the product’s general role and distinguish model-specific values that must be confirmed against the exact catalog variant. Dimensions and weight should be verified from the relevant mechanical drawing before panel design, shipping calculations, or purchasing.

2. Product Parameters

3. Detailed Electrical Specifications

The 5094-IA16 is a 16-channel, 120 V AC digital input module. Its primary function is to detect AC input signals and pass their states to the control system. It is designed for industrial applications where the field signals are AC rather than the 24 V DC signals commonly handled by DC input modules.

The specified input voltage range is important when selecting the module. The nominal operating voltage is 120 V AC, and the published range is 74–132 V AC. Operation above 120 V AC, particularly at elevated temperatures, may require channel derating. Do not assume all 16 channels can remain available at every voltage and temperature combination.

The input delay and filter settings also affect how quickly a signal change is reflected in the control system. Longer filtering can help reject brief electrical disturbances, but it also delays the recognition of genuine input transitions. The correct setting depends on the switching speed and behavior of the field device.

4. Product Introduction

The 5094-IA16 provides a dedicated interface for monitoring 120 V AC discrete signals in a FLEX 5000 I/O system. It is useful when a machine or facility uses AC-powered control contacts, switches, or other compatible AC signal devices and those states must be incorporated into controller logic.

A typical input sequence works as follows:

1. A field device changes state, such as a limit switch closing or an auxiliary contact indicating that a device has started.

2. The AC signal is connected to the appropriate input channel according to the module wiring diagram.

3. The input circuitry detects the signal and applies the specified switching thresholds and input filtering.

4. The input state is made available to the controller through the compatible I/O architecture.

5. The control program uses the state to decide whether to continue a sequence, issue an alarm, update an indicator, or change another output.

Because the module is designed for AC inputs, it should not be treated as a substitute for a 24 V DC digital input module. The signal voltage, frequency, input thresholds, and electrical isolation requirements must all match the application.

The module also provides individual channel status indication, which can help maintenance personnel identify whether a field signal is being detected. Correct interpretation of these indicators still requires checking the field wiring, supply condition, configuration, and controller status.

5. Main Applications

5.1 Industrial machinery

The 5094-IA16 can monitor AC control signals from compatible machine switches, auxiliary contacts, and operator devices. The controller can use these states to manage operating sequences, equipment status, and fault detection.

5.2 Manufacturing and assembly lines

Assembly equipment often needs to detect whether a station is ready, a mechanism has reached its end position, or a device has completed an operation. Where the available field signal is compatible 120 V AC, the module can provide the required discrete input interface.

5.3 Packaging systems

Packaging machinery may use discrete signals to indicate machine-ready conditions, access-door status, conveyor states, or the completion of mechanical movements. These signals can be incorporated into the control program to coordinate machine stages.

5.4 Pump and motor auxiliary monitoring

Compatible AC auxiliary contacts can be used to indicate a contactor state or another equipment condition. The input module reads the status signal; it does not directly measure motor current or replace dedicated motor-protection equipment.

5.5 Process skids and utility equipment

A process skid may include switches, equipment-status contacts, and other discrete AC signals. The 5094-IA16 can collect these signals for sequencing, status display, and alarm logic when the input electrical characteristics are suitable.

5.6 Equipment status and alarm systems

The module can monitor compatible AC contacts used to indicate equipment conditions. The controller can then activate alarms, record status changes, or display messages on an operator interface.

Important application limitation: The 5094-IA16 is a standard digital input module, not a safety-rated input module. Emergency-stop circuits, personnel-protection functions, and other safety-related functions must use an appropriately designed and certified safety system.

6. Product Advantages

6.1 Sixteen input channels in one module

The 16-channel arrangement allows multiple discrete signals to be monitored within one module. This can simplify I/O allocation in systems with a moderate number of AC field signals.

6.2 Designed for 120 V AC signals

The module provides an input interface specifically suited to its rated AC voltage range. This can be useful when existing field devices provide 120 V AC control signals and the system design calls for AC input hardware.

6.3 Configurable input filtering

Input filtering can help reduce the effect of brief signal fluctuations. Filter settings should be chosen carefully because additional filtering also increases the time required to recognize a state change.

6.4 Individual channel indicators

Channel indicators can assist with commissioning and maintenance. By comparing the field device’s actual state with the corresponding channel indication and controller tag, technicians can narrow down potential wiring, device, or configuration problems.

6.5 Integration with distributed I/O

The FLEX 5000 architecture supports distributed I/O installations. This can help organize signals by machine or process area and reduce the need to route every field signal back to a central I/O location.

6.6 Defined electrical isolation

The specified system-to-field isolation helps separate the module’s system electronics from field circuitry. However, the individual input channels are not isolated from one another, so the wiring design must account for the common electrical arrangement.

6.7 Multiple mounting orientations

The specified mounting options provide flexibility when arranging the I/O assembly in a control cabinet. The installation must still comply with the applicable spacing, temperature, wiring, and enclosure requirements.

7. Brand and Product Series

8. Five Related FLEX 5000 Models

These models are relevant when building out an I/O system or comparing alternatives. Input and output modules perform different functions, so they should be selected according to the signal type and the electrical requirements of the connected equipment.

Model selection notes

– 5094-IA16XT: Consider when the standard IA16’s input function is appropriate but the installation requires the XT variant’s specified environmental characteristics. Check the exact operating conditions and certifications for the intended site.

– 5094-IM8: Consider when the field signal is 240 V AC and the channel count and electrical requirements are suitable. Do not connect a 240 V AC signal to the IA16 simply because both modules are AC input products.

– 5094-IB16: Consider when the field devices provide compatible DC signals. Confirm the input voltage range and wiring configuration before selecting it.

– 5094-IB32: Consider when the system needs a larger number of compatible DC input channels in a single module.

– 5094-OB16: Consider when the controller needs to operate field devices. It is an output module, so it cannot replace the IA16’s input-monitoring function.

9. Five Common Allen-Bradley Models from Other Product Families

These models cover controller, communication, and I/O functions commonly encountered in industrial automation. They are not direct substitutes for the 5094-IA16, and their dimensions and weights depend on the precise hardware variant and included accessories.

Choosing among the broader range

5069-L320ER is relevant when the project is based on a CompactLogix controller architecture. It performs control processing rather than directly replacing a 16-channel AC input module.

1756-L83E is intended for compatible ControlLogix applications. Select it according to system capacity, controller requirements, network architecture, and I/O compatibility.

1756-EN2TR provides communication functionality for a compatible ControlLogix system. It is not a field input module.

1734-AENTR is associated with the POINT I/O family. POINT I/O and FLEX 5000 use different hardware families, so mounting bases, terminal components, and module compatibility must not be assumed interchangeable.

1756-IB16 provides DC digital input functionality in the ControlLogix family. It may be relevant when designing a separate DC input system, but it is not a direct electrical replacement for the 120 V AC 5094-IA16.

10. Installation and Maintenance Considerations

AC voltage verification

Confirm that the field signal is within the module’s specified AC voltage and frequency range. Check the source voltage under actual operating conditions, not just its nominal label. High voltage and elevated temperature may affect the number of channels available under the specified derating conditions.

Wiring and terminal selection

Use the wiring diagram for the exact module and compatible terminal assembly. Check conductor size, insulation rating, terminal tightening requirements, grounding arrangements, and separation between signal and power wiring.

Input filtering and response time

The input’s hardware response time and selected filter setting both influence the time at which a transition appears in the controller. For fast or time-critical sequences, verify that the total response time is suitable for the application.

Isolation and common wiring

The module provides system-to-field isolation, but its individual input channels are not isolated from one another. Ensure that the common wiring and field-supply arrangement match the module’s documented circuit design.

Cabinet temperature and spacing

Consider cabinet temperature, airflow, neighboring heat-producing devices, and the specified mounting orientation. Where the field voltage approaches the upper end of the range, review the applicable derating requirements.

Replacement and commissioning

When replacing a module, compare the full catalog number and variant. Check the terminal assembly, wiring, configuration, firmware compatibility, and controller tag mapping. A visually similar AC or DC input module may have different thresholds and electrical requirements.

11. Product Summary

The Allen-Bradley 5094-IA16 is a 16-channel, 120 V AC digital input module in the FLEX 5000 I/O family. It is designed to monitor compatible AC field signals and make their states available to a compatible control system.

Its main advantages include 16 input channels, configurable input filtering, channel-level status indication, distributed I/O integration, and specified system-to-field isolation. Typical uses include industrial machinery, packaging systems, equipment-status monitoring, process skids, and compatible AC control circuits.

The principal specifications are:

• Input channels: 16.

• Nominal input voltage: 120 V AC.

• Input voltage range: 74–132 V AC.

• Input frequency: 47–63 Hz.

• Maximum input current per channel: 15 mA at 120 V AC, 50/60 Hz.

• Backplane supply: 15 V DC, with a maximum current draw of 75 mA.

• Approximate dimensions: 54 × 94 × 87 mm (H × W × D).

• Approximate module-only weight: 0.151 kg.

For purchasing and engineering purposes, confirm the exact catalog variant, required mounting base and terminal block, field voltage, operating temperature, and channel derating requirements. The correct selection depends on the actual electrical signals and the wider control-system architecture.
