Allen-Bradley 5094-AENTR — FLEX 5000 EtherNet/IP Adapter

1. Product Introduction

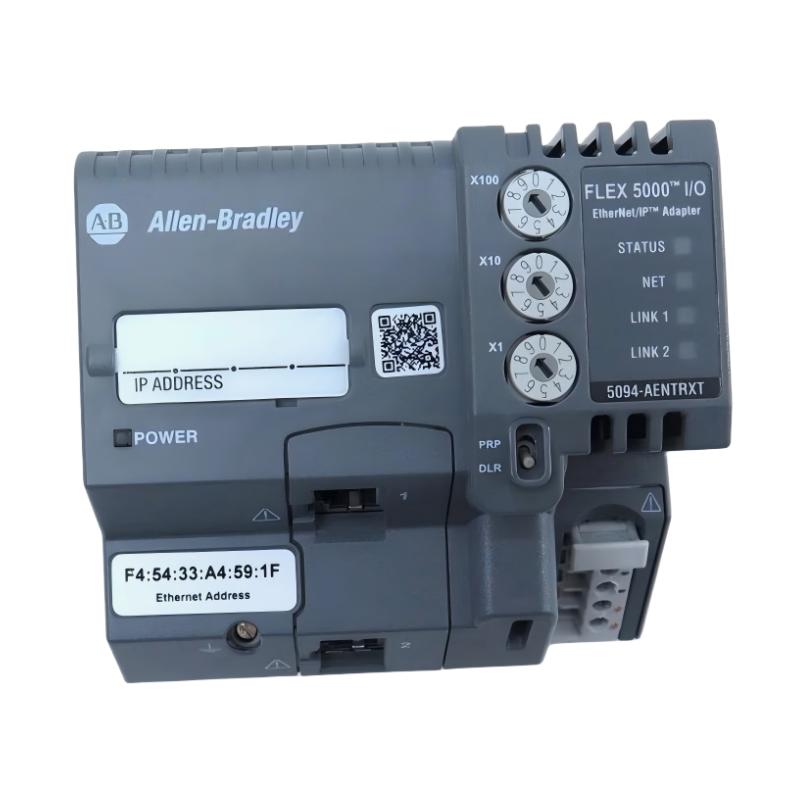

The Allen-Bradley 5094-AENTR is an EtherNet/IP adapter in the FLEX 5000 distributed I/O family. It provides the communication interface between a compatible industrial Ethernet network and FLEX 5000 I/O modules, allowing a controller to exchange input and output data with field devices installed at a remote location.

Rather than acting as a standalone programmable controller, the 5094-AENTR connects a FLEX 5000 I/O assembly to the control system. Sensors, switches, transmitters, actuators, and other field devices can be connected through compatible I/O modules, while the adapter manages the exchange of I/O data over EtherNet/IP.

The adapter is intended for distributed automation architectures in which I/O equipment is located close to the machinery or process being controlled. This can reduce the need to route every field signal back to a central control cabinet and can make large systems easier to organize, maintain, and expand.

The 5094-AENTR is particularly relevant to applications that require two Ethernet ports and support for a ring network topology. Its exact capabilities depend on the hardware revision, firmware, network configuration, and the FLEX 5000 modules installed alongside it.

2. Technical Specifications

The adapter’s power ratings should be distinguished from the power requirements of the complete I/O assembly. The adapter supplies the network interface and backplane power specified for its design; connected I/O modules and field devices may have additional power requirements.

3. Communication and Operating Functions

3.1 EtherNet/IP Communication

The 5094-AENTR connects a FLEX 5000 I/O assembly to an EtherNet/IP network. The adapter exchanges input and output data with a compatible controller, allowing field signals to be incorporated into the controller’s logic.

This arrangement is useful when the controller is installed in a central cabinet but the I/O is located close to a machine or process. The Ethernet connection carries the required control data between the controller and the remote I/O assembly.

3.2 Dual Ethernet Ports

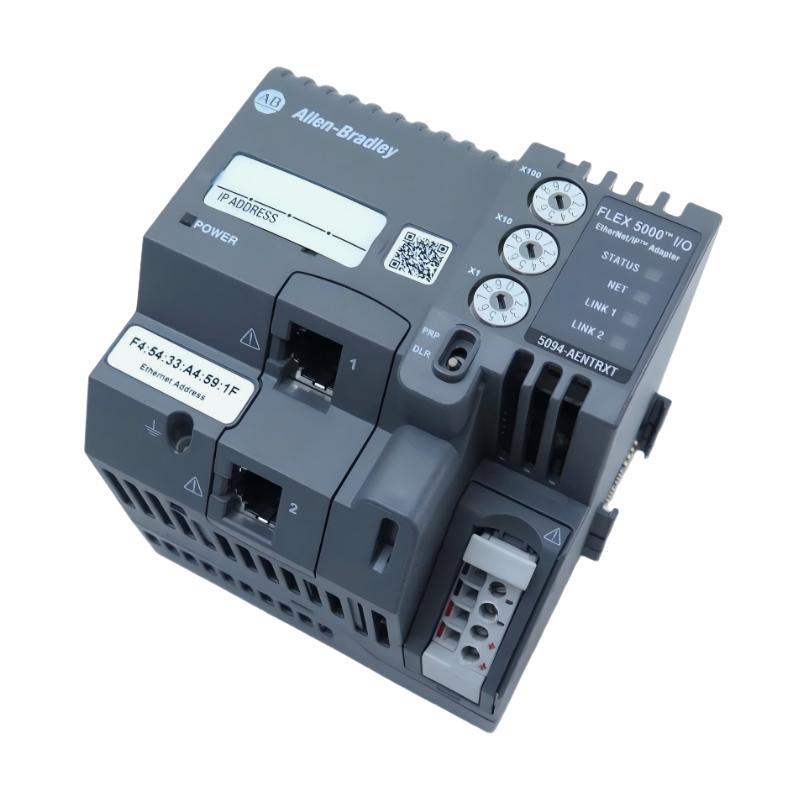

The adapter has two RJ45 Ethernet ports. These ports support network arrangements that can reduce cabling complexity and help connect distributed I/O within an industrial network.

The exact topology should be selected according to the network design, controller capabilities, and supported configuration. A two-port adapter should not be assumed to provide every form of network redundancy automatically.

3.3 Device Level Ring Support

Device Level Ring (DLR) is a network topology designed to support recovery from a single network-path fault when the ring is properly configured.

In a compatible DLR network, the adapter can participate in the ring arrangement. The resulting recovery behavior depends on the ring supervisor, connected devices, network configuration, and the nature of the fault.

3.4 Parallel Redundancy Protocol Support

Parallel Redundancy Protocol (PRP) can provide redundant network paths through two independent networks when the entire configuration supports it.

For installations using PRP, verify that the adapter firmware, controller, network infrastructure, and all required devices support the intended architecture. PRP requires a correctly designed network and should not be confused with ordinary Ethernet port redundancy.

3.5 Distributed I/O Integration

The 5094-AENTR acts as the network adapter for compatible FLEX 5000 I/O modules. The connected modules provide the specific digital, analog, or specialized I/O functions required by the application.

This modular arrangement lets engineers select the I/O types required for each remote location rather than installing all field connections in one central cabinet.

4. Typical Applications

4.1 Factory Automation

The adapter can connect remote I/O assemblies used in production lines, assembly machines, conveyors, and packaging equipment.

Sensors and actuators connected to the remote I/O modules can exchange data with the main controller over EtherNet/IP. This helps organize the control system into manageable sections and can reduce the amount of field wiring that must return to a central panel.

4.2 Distributed Machine Control

Large machines often contain several sections with separate sensors, motors, valves, and safety-related interfaces. A FLEX 5000 I/O assembly can be installed near a machine section, with the 5094-AENTR providing the network connection.

This can simplify cabinet layout and make it easier to isolate a particular machine section during maintenance. Actual installation requirements depend on the environmental rating of the complete assembly and the connected devices.

4.3 Material Handling and Conveyor Systems

Conveyor systems may contain many photoelectric sensors, limit switches, motor-control interfaces, and position signals spread across a large area.

Distributed I/O can bring these signals together locally and exchange them with the controller over Ethernet. The 5094-AENTR is useful where the network layout and the selected I/O modules meet the application’s performance and compatibility requirements.

4.4 Process Automation

In process installations, distributed I/O can be located near pumps, valves, tanks, and measurement equipment. Compatible analog and digital modules can collect process signals and provide control outputs, while the adapter communicates with the controller.

The required signal types, electrical isolation, environmental conditions, and controller update rates must be evaluated for the specific process.

4.5 Packaging and Production Equipment

Packaging machinery often combines high-speed sequencing, product detection, pneumatic control, and status monitoring. A distributed I/O arrangement can help organize field wiring around individual machine stations.

The 5094-AENTR provides the network interface for compatible FLEX 5000 modules, while the controller program determines how those signals are used in the machine sequence.

4.6 Remote I/O in Large Facilities

A large facility may have several remote I/O locations connected through an industrial Ethernet network. The adapter allows each compatible FLEX 5000 assembly to operate as a distributed I/O node.

This architecture can make expansion easier because additional I/O stations can be designed around local field requirements, subject to network capacity and controller limits.

5. Product Advantages

5.1 Flexible Distributed I/O Architecture

The 5094-AENTR allows compatible I/O modules to be located near the equipment they serve. This can reduce long field-wiring runs and improve the organization of control cabinets.

5.2 Dual-Port Ethernet Connectivity

Two Ethernet ports provide flexibility when designing network connections. Depending on the supported topology, they can be used in a line arrangement or a compatible ring or redundant-network design.

5.3 Supports Industrial Network Resilience

When correctly configured with compatible infrastructure, DLR or PRP can help maintain network communication following certain network-path failures.

The benefit depends on the complete network architecture. The adapter alone cannot guarantee continuous operation if the controller, power supply, field devices, or other critical components fail.

5.4 Modular I/O Expansion

The FLEX 5000 family offers a modular approach to building remote I/O assemblies. Engineers can choose compatible I/O modules for the required field signals and organize them according to the installation layout.

5.5 Compact DIN-Rail Installation

The adapter uses a compact DIN-rail form factor. This can help with panel layout and installation where a separate, full-size controller chassis would be unnecessary.

5.6 Easier Maintenance and Fault Isolation

Network status indicators and the adapter’s communication role can help maintenance personnel identify whether a problem relates to the network connection, adapter, power supply, or an attached I/O module.

Effective troubleshooting still requires checking the complete assembly, controller configuration, network diagnostics, and field wiring.

5.7 Suitable for Modern Industrial Ethernet Systems

EtherNet/IP provides a common communication framework for compatible industrial controllers and I/O equipment. The 5094-AENTR can therefore be used as part of a distributed architecture built around supported Ethernet-based control systems.

6. Brand and Product Series

The 5094-AENTR is a network adapter rather than a standalone programmable controller. It does not replace the controller’s logic-processing function. Instead, it provides the communication interface through which a compatible controller exchanges data with the remote I/O assembly.

7. Five Related FLEX 5000 Models

The following models are related to the 5094-AENTR by product family, communication function, or installation environment. The models with different communication interfaces or environmental ratings are not necessarily interchangeable.

Dimensions and weights for related models are approximate where indicated. Confirm the exact catalog number and hardware revision before using these figures for enclosure design or replacement planning.

How to choose:

• Choose 5094-AENTRXT when the installation requires the extended-temperature version and its certified operating range matches the environment.

• Consider 5094-AEN2TR when its specific communication and power characteristics match the system design.

• Consider 5094-AEN2TRXT when the AEN2TR configuration is required in an extended-temperature environment.

• Consider 5094-AENSFPR when a compatible SFP-based network interface is required.

• Consider 5094-AEN2SFPR when the intended architecture specifically calls for the corresponding SFP adapter configuration.

These models have different specifications. Verify firmware, controller support, module power requirements, and the intended network topology before replacing one model with another.

8. Five Popular Allen-Bradley Models for Broader Automation Applications

The following are examples of widely used products from the broader automation portfolio. They are not direct replacements for the 5094-AENTR because they serve different functions.

These products cover several common automation needs: controller logic processing, industrial Ethernet communication, and digital signal acquisition. They are included as broader options rather than equivalent replacements.

If the objective is to replace the 5094-AENTR, a compatible FLEX 5000 adapter is generally the more relevant starting point. If the objective is a system migration, the choice of controller and I/O platform should be made as part of a wider engineering assessment.

9. Installation and Compatibility Considerations

9.1 Power Supply Requirements

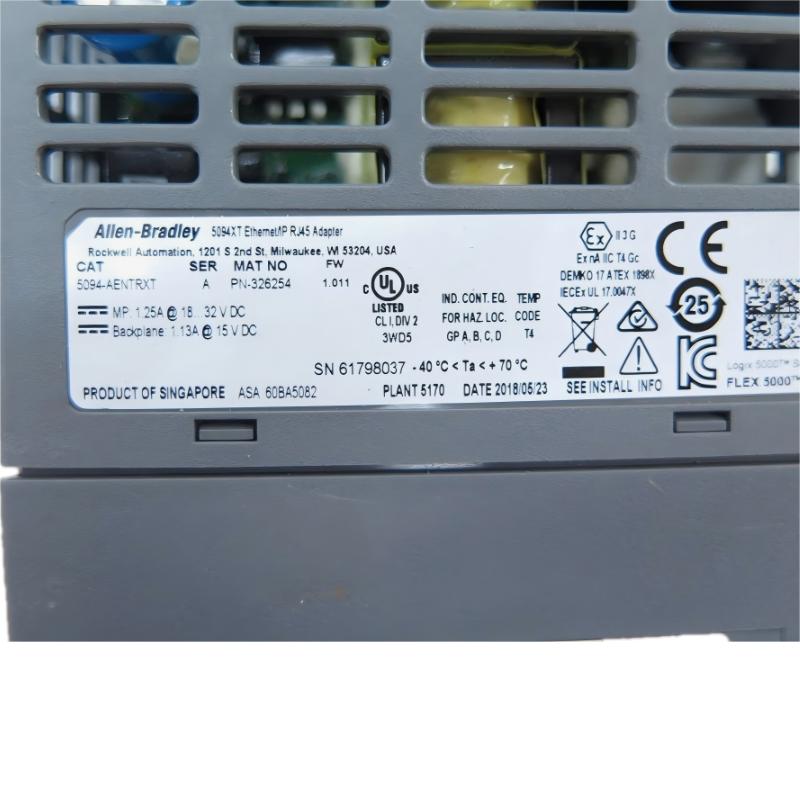

The adapter’s module power input is specified at 18–32 V DC. The power supply must be able to handle the module’s normal current demand and inrush requirements.

The connected FLEX 5000 modules may have additional power requirements. Calculate the total demand for the complete assembly instead of sizing the supply based only on the adapter.

9.2 DIN-Rail Mounting

The 5094-AENTR is designed for a compatible 35 × 7.5 mm DIN rail. Ensure that the rail is securely mounted and that the module is installed with the required clearances and grounding arrangement.

9.3 Ethernet Cable and Network Configuration

Use Ethernet cabling and connectors suitable for the industrial environment. Confirm the IP address, subnet, network configuration, controller connection, and any required ring or redundancy settings before commissioning.

Where DLR or PRP is used, verify the configuration of all participating devices. An incorrectly configured ring or redundant network may fail to provide the expected recovery behavior.

9.4 Firmware and Controller Compatibility

The adapter firmware must be compatible with the selected controller, engineering software, and connected FLEX 5000 modules. Verify the supported firmware and module profiles before making a replacement or upgrading an existing installation.

9.5 Environmental Conditions

The adapter is an open-style component intended for installation within a suitable enclosure. The enclosure, cooling, wiring, and environmental protection must meet the requirements of the installation.

For outdoor, high-temperature, or harsh industrial applications, verify whether the standard or extended-temperature variant is appropriate.

9.6 Commissioning and Diagnostics

After installation, verify the adapter’s power and network indicators, confirm communication with the controller, and check that all connected I/O modules are recognized correctly.

Test representative input and output points under controlled conditions before returning the equipment to normal operation. Where network redundancy is part of the design, validate the intended fault-recovery behavior using an approved commissioning procedure.

10. Purchasing Checklist

Before purchasing a 5094-AENTR, check the following items:

• Confirm the full catalog number and hardware revision.

• Verify that the controller supports the adapter and selected FLEX 5000 modules.

• Confirm the required firmware and engineering software compatibility.

• Check the available 24 V DC supply and its capacity for module power and inrush current.

• Verify the Ethernet port type and required network topology.

• Confirm whether DLR or PRP is required and supported by the complete installation.

• Inspect the Ethernet ports, terminals, housing, and DIN-rail mounting features.

• Confirm whether the required removable terminal block is included.

• Check the exact physical dimensions and weight for the specific revision and accessories.

• Request functional test information when purchasing used or refurbished equipment.

11. Summary

The Allen-Bradley 5094-AENTR is a FLEX 5000 EtherNet/IP adapter designed to connect compatible distributed I/O modules to an industrial Ethernet control network. It features two RJ45 Ethernet ports, an 18–32 V DC module power input, and support for compatible network topologies such as DLR and PRP.

Its main advantages are its compact DIN-rail installation, distributed I/O architecture, dual-port Ethernet connectivity, modular expansion options, and ability to participate in supported network-resilience designs.

For a direct replacement, the most important checks are the full catalog number, hardware revision, firmware compatibility, power requirements, connected I/O configuration, and network topology. Related FLEX 5000 models may offer different environmental or network-interface features, but their specifications should be compared carefully before substitution.

The approximate physical size of the 5094-AENTR is 9.40 × 9.27 × 9.65 cm (W × H × D), and its approximate weight is 0.40 kg. Use the exact mechanical drawing and product revision for final installation, shipping, and procurement calculations.
