Product Overview

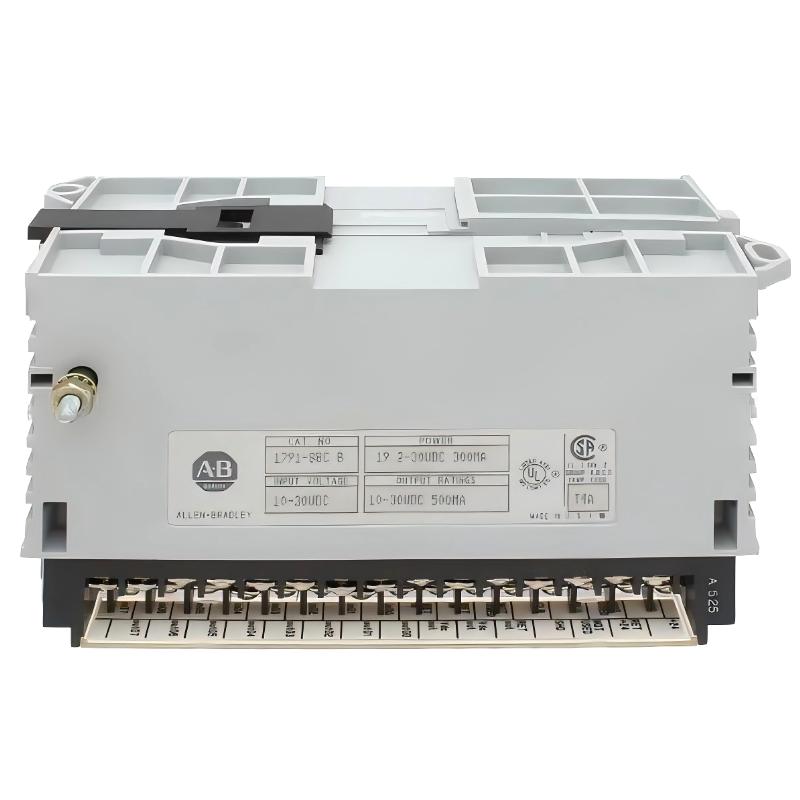

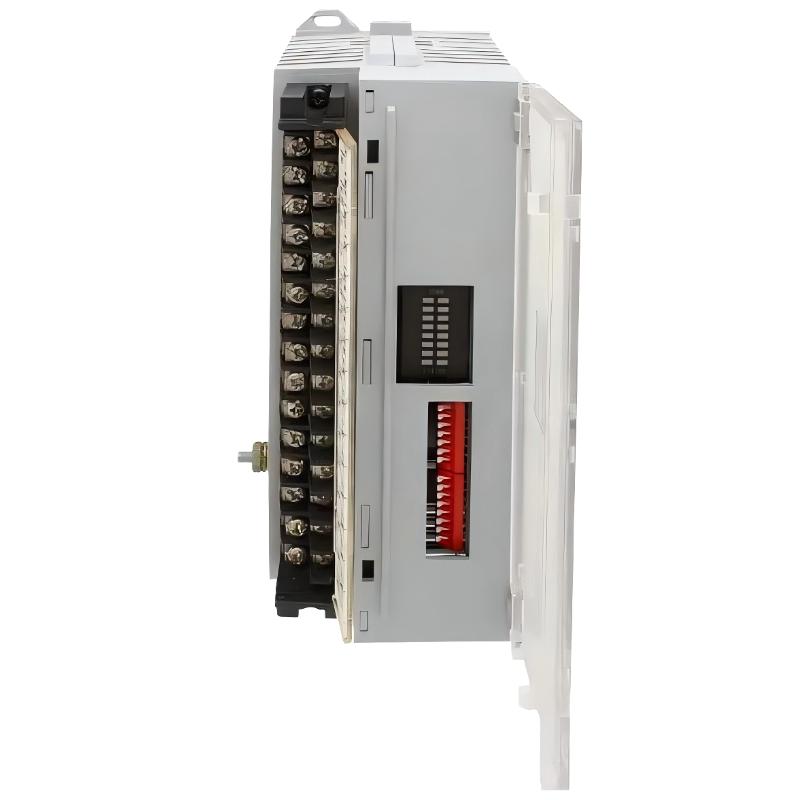

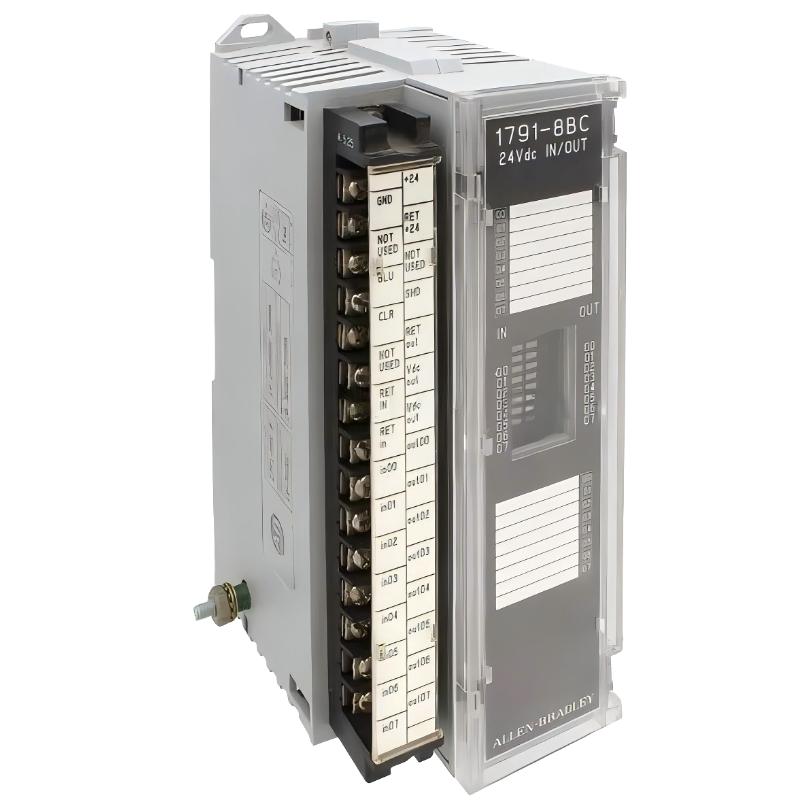

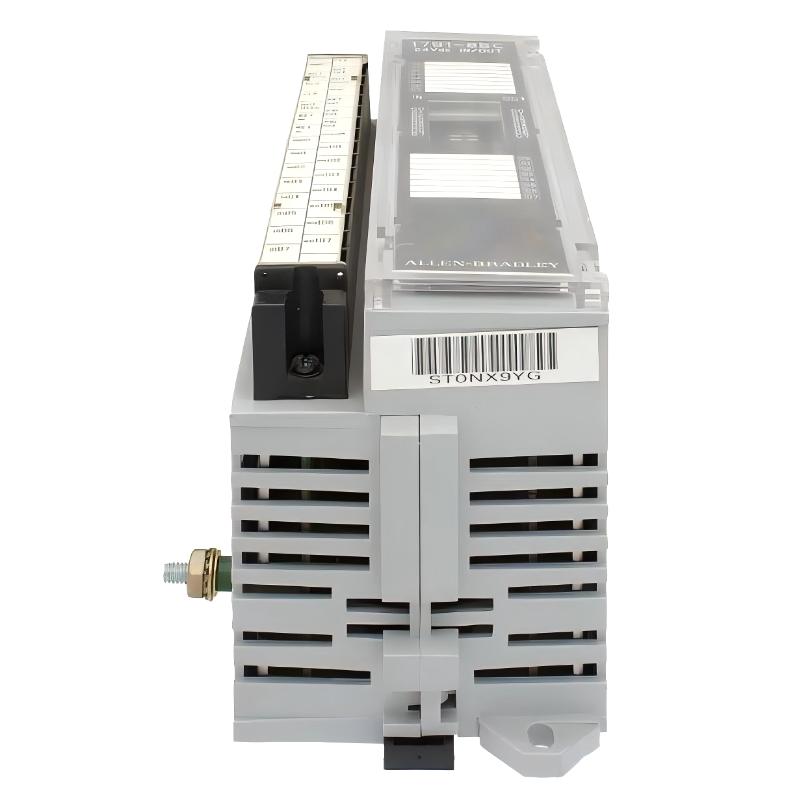

The Allen Bradley 1791-8BC is a Block I/O Module designed for digital input/output control in industrial automation systems. With dimensions of 176.5 × 68.8 × 98 mm and a weight of 2.72 kg, this module provides a robust and high-capacity solution for controlling field devices such as actuators, relays, and sensors. It is compatible with Allen Bradley Block I/O racks, offering a modular and scalable platform for distributed automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1791-8BC |
| Product Type | Block I/O Module |
| Dimensions | 176.5 × 68.8 × 98 mm |
| Weight | 2.72 kg |
| Module Type | Digital I/O (Input/Output) |
| Number of Channels | 8 channels |
| Input/Output Type | Sinking or sourcing, configurable |
| Mounting | Block I/O rack |
| Environmental Rating | Industrial-grade, suitable for harsh environments |
| Compatibility | Allen Bradley Block I/O racks and controllers |
Function and Working Principle
The 1791-8BC operates by:
- Receiving digital input signals from field devices
- Transmitting input status to the PLC/controller
- Executing output commands to control actuators, relays, or indicators
- Providing 8 discrete channels for combined input/output control
- Integrating into distributed Block I/O systems to expand networked control capacity
It serves as a key interface between field devices and the control system, ensuring accurate and reliable signal communication.
Role in Industrial Automation
The 1791-8BC is used to:
- Control and monitor field devices such as relays, actuators, and sensors
- Expand digital I/O capacity in distributed networks
- Support modular and scalable system architectures
- Ensure reliable operation under industrial conditions
Industrial Applications
- Factory automation and process control systems
- Distributed I/O networks for machinery and equipment
- Remote monitoring and control of industrial devices
- Integration into modular Allen Bradley Block I/O systems
Installation and Usage
- Mount the 1791-8BC in an Allen Bradley Block I/O rack
- Connect input/output wiring to sensors, actuators, or relays
- Configure the module through PLC or controller software
- Verify operation of all 8 channels
- Maintain proper power supply and environmental conditions for reliable performance
Its compact and modular design allows easy installation, maintenance, and future system expansion.
Compatible System Components
- Allen Bradley Block I/O racks
- Allen Bradley PLCs and controllers
- Field devices such as actuators, sensors, and relays
- Other Block I/O input/output modules
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1791-8BC | Block I/O Module | 8 digital channels | Compact high-reliability I/O control |
| 1791-16B0 | Block I/O Module | 16 channels | Moderate-capacity input monitoring |
| 1791-32B0 | Block I/O Module | 32 channels | High-capacity digital input/output applications |
Key Advantages
- 8 digital channels for flexible control and monitoring
- Compact 176.5 × 68.8 × 98 mm design
- High industrial-grade weight of 2.72 kg, indicating robust construction
- Modular design allows scalable network expansion
- Compatible with distributed Block I/O systems
Technical FAQs
What is the primary function?
To monitor digital inputs and control outputs on 8 channels for field devices in industrial automation systems.
Which systems is it compatible with?
Compatible with Allen Bradley Block I/O racks and PLC controllers.
Can it operate in harsh industrial environments?
Yes, it is industrial-grade, designed to withstand vibration, dust, and temperature extremes.
How many channels does it provide?
It provides 8 digital input/output channels.
Conclusion
The Allen Bradley 1791-8BC Block I/O Module is a robust, reliable, and compact solution for digital input/output control in industrial automation systems. Its 8-channel capability, modular design, and industrial-grade construction make it ideal for scalable, dependable, and flexible control networks.
