Product Overview

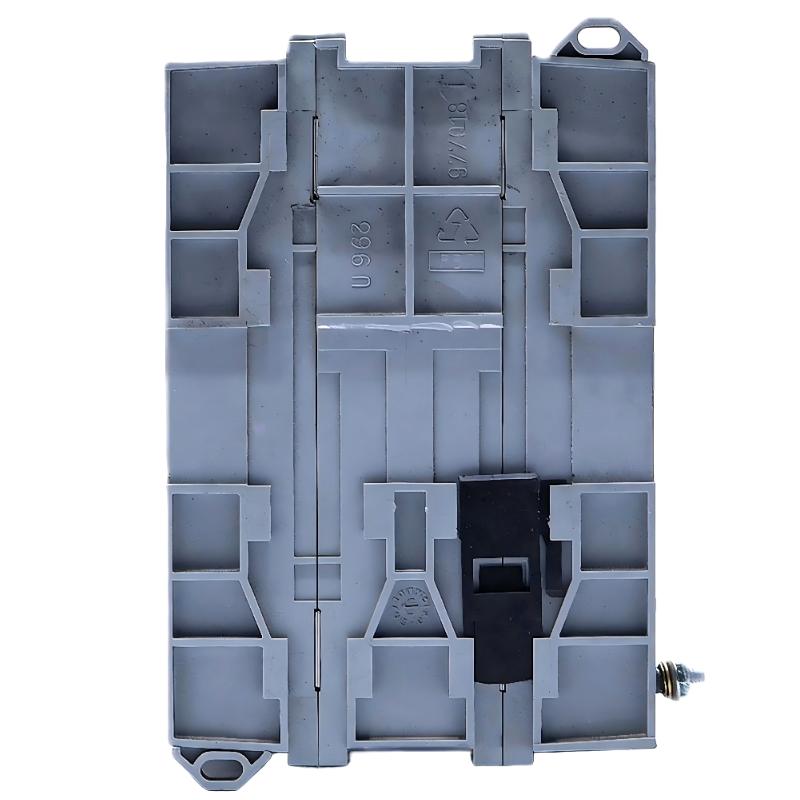

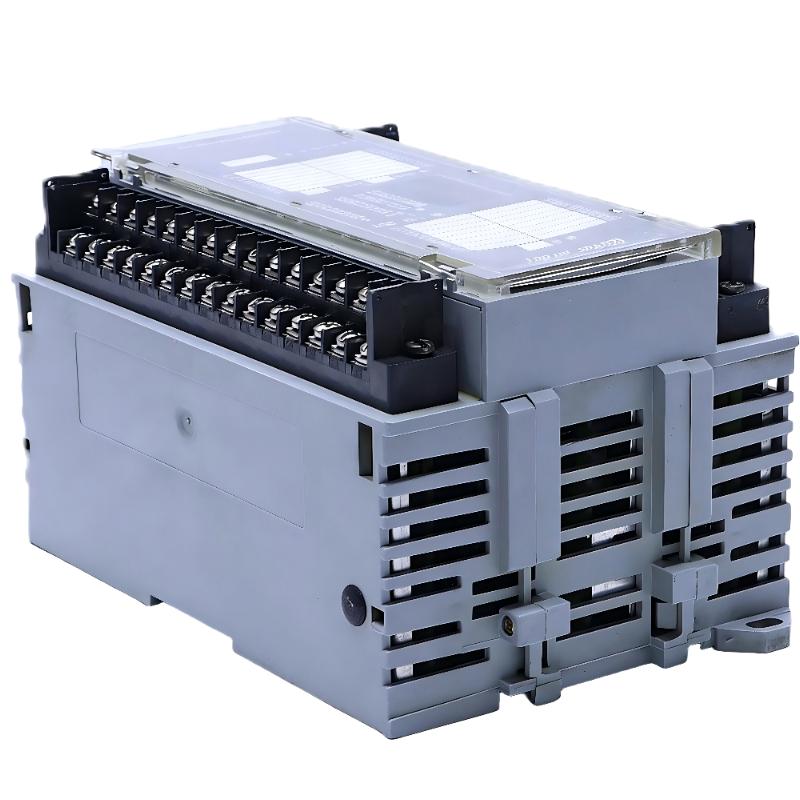

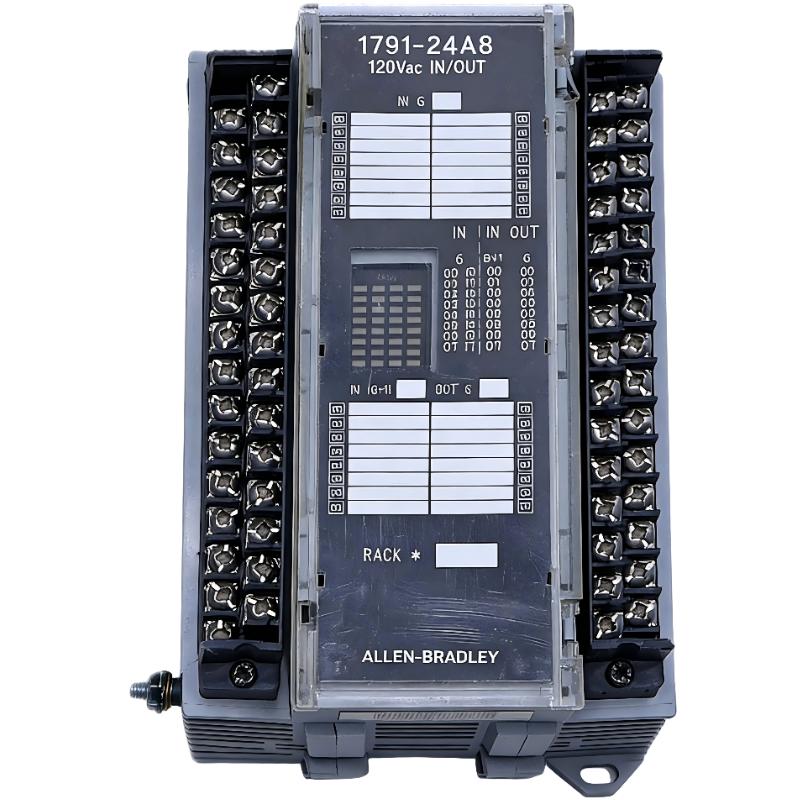

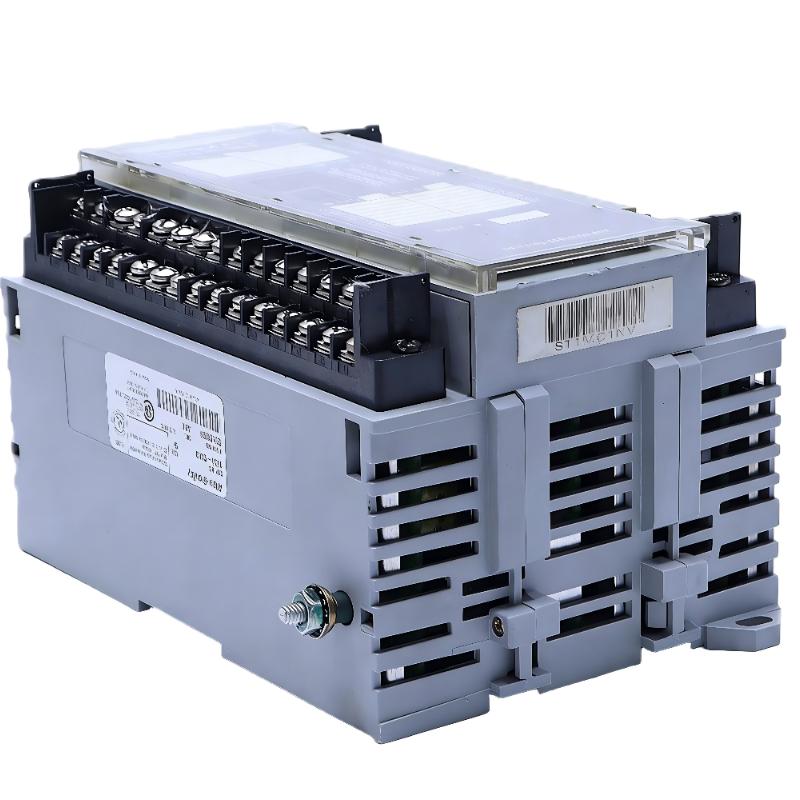

The Allen Bradley 1791-24A8 is a Block I/O Module designed for distributed digital I/O control in industrial automation systems. With dimensions of 176.5 × 98 × 110.5 mm and a weight of 0.85 kg, it provides a robust, high-capacity solution for managing both input and output signals from field devices. This module is compatible with Allen Bradley Block I/O racks and enables modular, scalable automation architectures, supporting reliable control and monitoring of industrial processes.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1791-24A8 |
| Product Type | Block I/O Module |
| Dimensions | 176.5 × 98 × 110.5 mm |
| Weight | 0.85 kg |
| Module Type | Digital I/O (Input/Output) |
| Number of Channels | 24 channels (digital) |
| Output/Input Type | Sinking or sourcing (depending on configuration) |
| Mounting | Block I/O rack |
| Environmental Rating | Industrial-grade, suitable for harsh conditions |
| Compatibility | Allen Bradley Block I/O racks and controllers |
Function and Working Principle
The 1791-24A8 functions by:
- Receiving digital input and output signals from field devices
- Transmitting input status to the PLC/controller and executing output commands
- Providing 24 digital channels for precise control and monitoring
- Integrating into distributed Block I/O systems to expand I/O capacity
It acts as a critical interface for field devices, ensuring accurate and reliable communication between sensors, actuators, and the control system.
Role in Industrial Automation
This module is used to:
- Control and monitor field devices such as relays, actuators, and sensors
- Expand digital I/O capacity within distributed automation networks
- Support modular and scalable system design
- Ensure reliable operation under industrial conditions
Industrial Applications
- Factory and process automation
- Distributed I/O networks for large machinery
- Remote monitoring and control of industrial equipment
- Integration into modular Allen Bradley Block I/O systems
Installation and Usage
- Mount the 1791-24A8 in an Allen Bradley Block I/O rack
- Connect the input and output wiring to sensors, actuators, or relays
- Configure the module using PLC or controller software
- Test all channels to verify correct signal operation
- Ensure proper power supply and environmental conditions for stable performance
Its modular design allows easy installation, maintenance, and future expansion.
Compatible System Components
- Allen Bradley Block I/O racks
- Allen Bradley PLCs and controllers
- Field devices such as sensors, actuators, relays, and indicators
- Other Block I/O input/output modules
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1791-24A8 | Block I/O Module | 24 digital channels | Standard high-capacity I/O control |
| 1791-16BC | Block I/O Module | 16 channels | Robust industrial digital output module |
| 1791-32B0 | Block I/O Module | 32 channels | Higher-capacity digital input/output applications |
Key Advantages
- 24 digital channels for flexible control and monitoring
- Robust 176.5 × 98 × 110.5 mm design
- Moderate weight (0.85 kg) for easy handling
- Industrial-grade durability for harsh environments
- Modular construction allows scalable system expansion
Technical FAQs
What is the primary function?
To control and monitor 24 digital channels for actuators, relays, and sensors in distributed Block I/O systems.
Which systems is it compatible with?
Compatible with Allen Bradley Block I/O racks and PLC controllers.
Can it operate in harsh industrial environments?
Yes, it is industrial-grade, suitable for dust, vibration, and temperature extremes.
How many channels does it provide?
It provides 24 digital channels for input and/or output.
Conclusion
The Allen Bradley 1791-24A8 Block I/O Module is a reliable, high-capacity solution for distributed digital I/O control in industrial automation systems. Its 24-channel capability, modular design, and industrial-grade construction make it ideal for scalable, flexible, and dependable control and monitoring of industrial processes.
