Product Overview

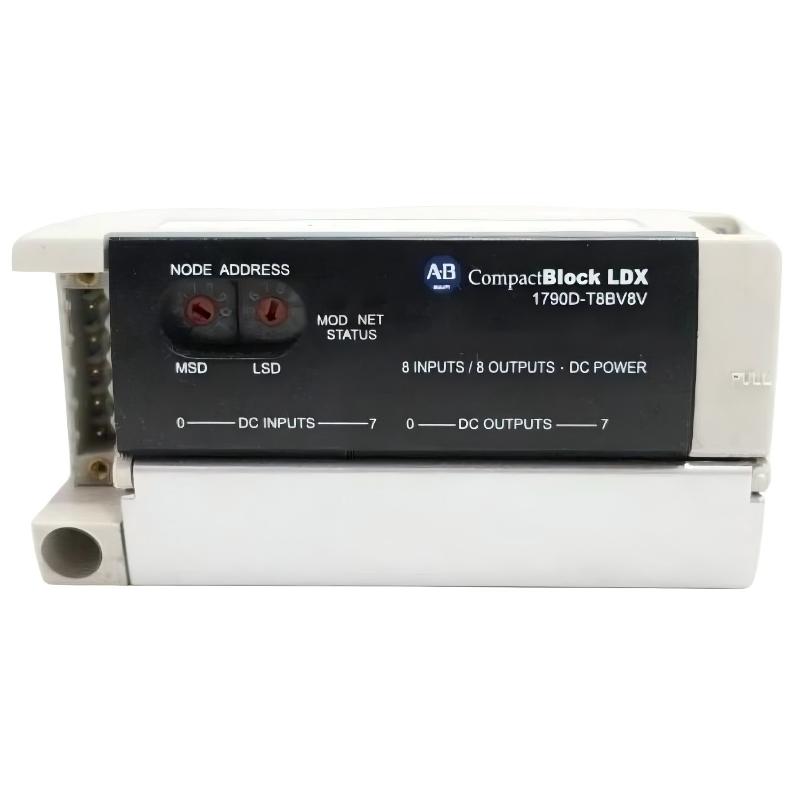

The Allen Bradley 1790D-T8BV8V is a DeviceNet Digital Base Terminal Block designed for modular digital input/output (I/O) applications in DeviceNet-based industrial automation systems. With dimensions of 104 × 42 × 52 mm and a lightweight profile of 0.1 kg, this module provides 8 digital inputs and 8 digital outputs, enabling efficient and reliable digital signal management in compact automation setups.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1790D-T8BV8V |
| Product Type | DeviceNet Digital Base Terminal Block |
| Dimensions | 104 × 42 × 52 mm |
| Weight | 0.1 kg |
| Module Type | Digital I/O (8 inputs + 8 outputs) |
| Communication | DeviceNet protocol |
| Mounting | DIN-rail or modular rack installation |
| Environmental Rating | Industrial-grade, suitable for harsh environments |
| Compatibility | CompactBlock LDX I/O system, DeviceNet networks |
Function and Working Principle
The 1790D-T8BV8V operates by:
- Providing 8 digital inputs and 8 digital outputs for DeviceNet systems
- Receiving signals from field devices and sending output commands to actuators
- Transmitting data over the DeviceNet network to connected LDX controllers
- Integrating seamlessly with CompactBlock LDX modules and DeviceNet networks
- Supporting modular and scalable system architectures
This module acts as a reliable interface for digital signal communication in DeviceNet automation networks.
Role in Industrial Automation
The module is used to:
- Expand digital I/O capability in DeviceNet LDX systems
- Interface with field devices such as sensors, switches, and actuators
- Provide compact and modular I/O solutions
- Ensure reliable DeviceNet communication for control and monitoring
Industrial Applications
- Factory and process automation systems
- Small-to-medium digital I/O expansions
- Integration with DeviceNet-enabled CompactBlock LDX controllers
- Monitoring and controlling industrial equipment in a modular setup
Installation and Usage
- Mount the 1790D-T8BV8V on a DIN rail or modular rack slot
- Connect digital input devices to the input terminals and digital output devices to the output terminals
- Link the module to a DeviceNet network and LDX controller
- Configure I/O addresses and network parameters via the controller software
- Verify proper operation of all channels and network communication
Its compact design allows for efficient 16-channel I/O management in a small footprint.
Compatible System Components
- DeviceNet-enabled CompactBlock LDX controllers
- Other LDX I/O modules (digital, universal input, output)
- Field devices such as sensors, switches, and actuators
- DIN-rail or modular automation racks
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1790D-T8BV8V | DeviceNet Digital Base Terminal Block | 8-in / 8-out DeviceNet module | Compact DeviceNet digital I/O |
| 1790D-T16BV0 | LDX I/O Basic Module | 16 digital channels | Small-scale digital I/O expansion |
| 1790D-T32BV0 | DeviceNet Universal Input Module | 32 universal input channels | Medium-to-large I/O networks |
Key Advantages
- Compact 104 × 42 × 52 mm form factor
- 8 digital inputs + 8 digital outputs for flexible control
- DeviceNet communication for seamless network integration
- Industrial-grade reliability for harsh environments
- Modular design for scalable automation systems
Technical FAQs
What is the primary function?
Provides 8 digital input channels and 8 digital output channels for DeviceNet LDX automation networks.
Which systems is it compatible with?
Compatible with DeviceNet-enabled CompactBlock LDX controllers and I/O modules.
Can it operate in harsh industrial environments?
Yes, it is industrial-grade, suitable for vibration, dust, and temperature extremes.
Is it suitable for space-constrained installations?
Yes, its compact design allows installation in tight modular racks.
Conclusion
The Allen Bradley 1790D-T8BV8V DeviceNet Digital Base Terminal Block is a compact, reliable, and modular solution for 16-channel digital I/O control in DeviceNet LDX automation systems. Its 8-in / 8-out configuration, DeviceNet compatibility, and industrial-grade durability make it ideal for space-efficient and flexible digital I/O applications.
