Product Overview

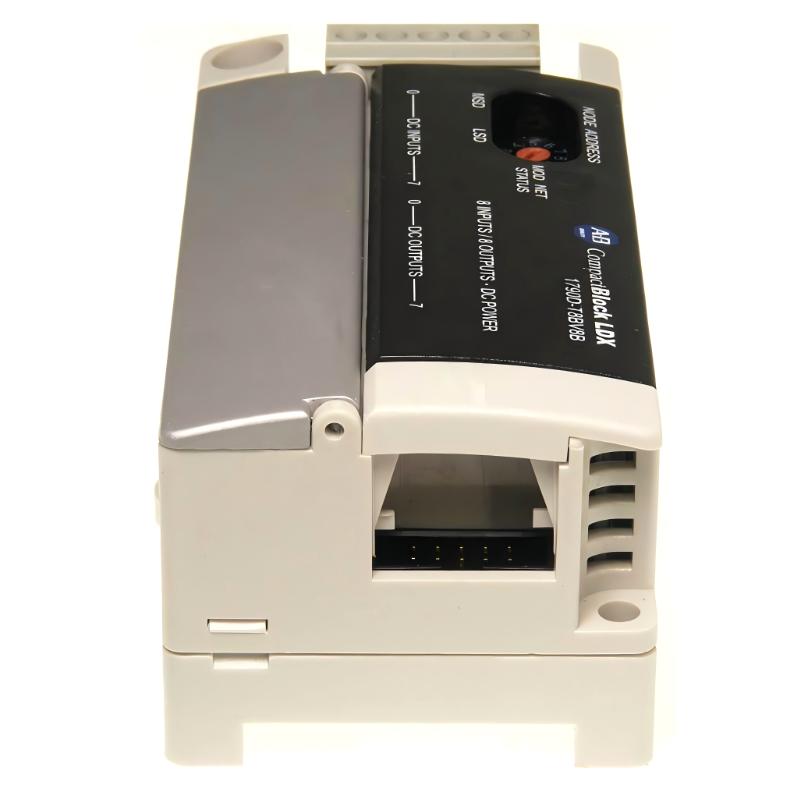

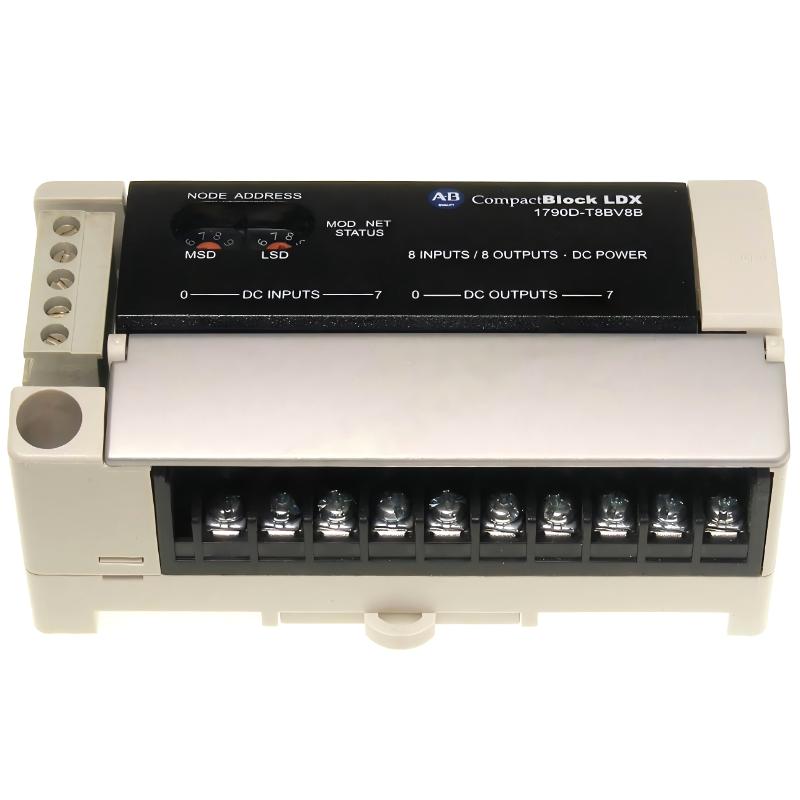

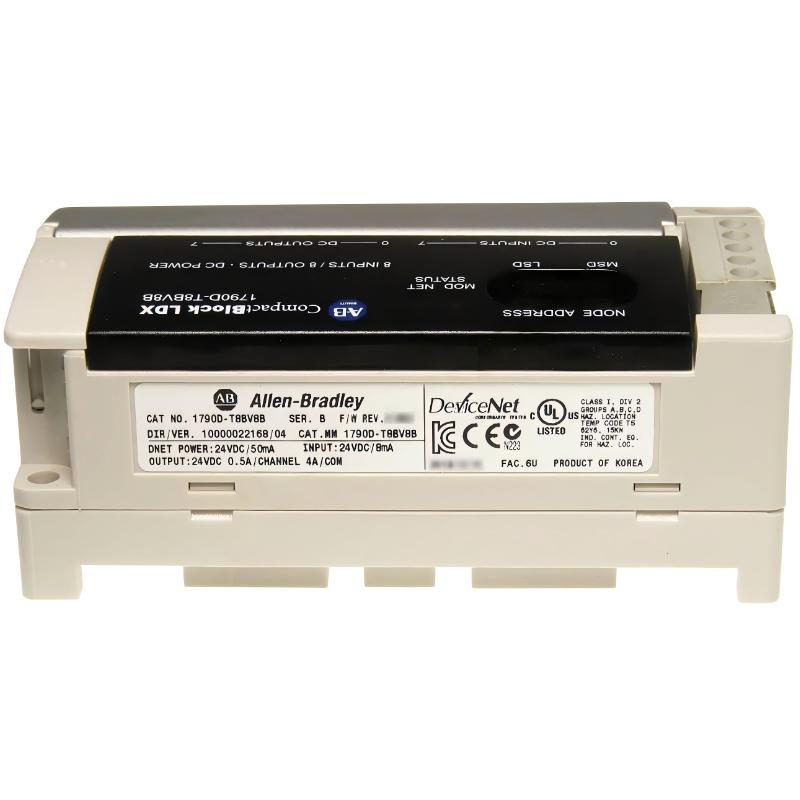

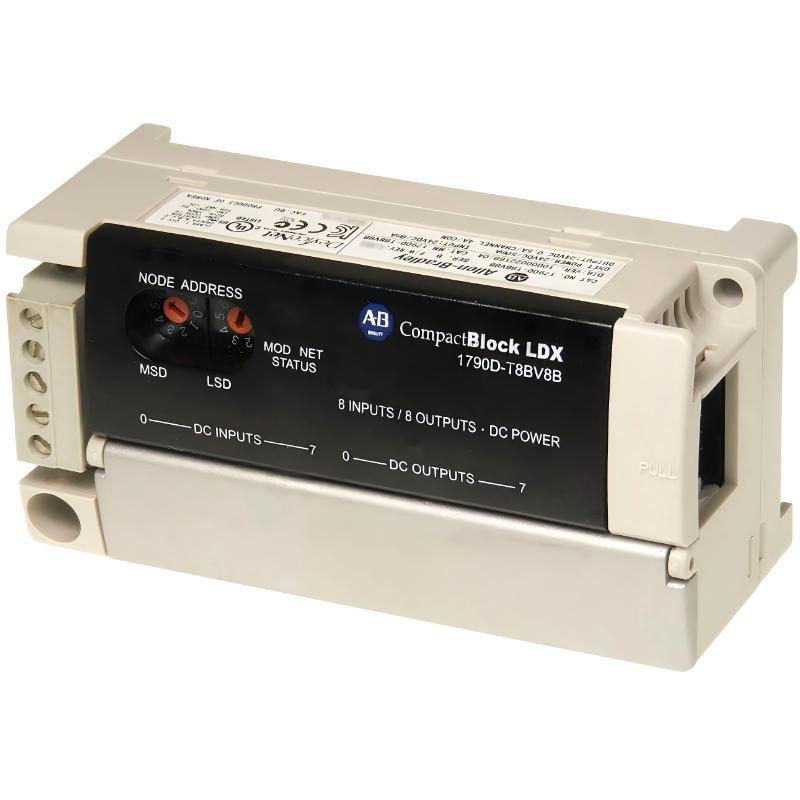

The Allen Bradley 1790D-T8BV8B is a CompactBlock LDX I/O Basic Module designed for modular digital input/output (I/O) applications in industrial automation. With compact dimensions of 104 × 42 × 52 mm and a lightweight profile of 0.1 kg, this module provides flexible and reliable digital I/O channels for controlling and monitoring sensors, actuators, and switches in automation systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1790D-T8BV8B |
| Product Type | CompactBlock LDX I/O Basic Module |
| Dimensions | 104 × 42 × 52 mm |
| Weight | 0.1 kg |
| Module Type | Digital I/O |
| Channel Configuration | 8 digital inputs + 8 digital outputs |
| Mounting | DIN-rail or modular rack installation |
| Environmental Rating | Industrial-grade, suitable for harsh environments |
| Compatibility | CompactBlock LDX I/O system components |
Function and Working Principle
The 1790D-T8BV8B operates by:
- Providing a combination of 8 digital inputs and 8 digital outputs
- Receiving signals from sensors and sending output signals to actuators
- Integrating seamlessly with CompactBlock LDX controllers and other modules
- Supporting modular and scalable automation system designs
It serves as a versatile I/O module for controlling multiple devices within a compact system footprint.
Role in Industrial Automation
This module is used to:
- Expand digital I/O capabilities in CompactBlock LDX systems
- Interface with field devices such as sensors, switches, and actuators
- Provide a mixed input/output solution in space-constrained installations
- Ensure reliable signal transmission for industrial monitoring and control
Industrial Applications
- Factory automation and process control systems
- Small-to-medium digital I/O expansions
- Integration with CompactBlock LDX controllers and modular I/O networks
- Applications requiring mixed input/output channels in a compact module
Installation and Usage
- Mount the 1790D-T8BV8B on a DIN rail or in a modular rack slot
- Connect digital input devices to the input terminals and digital output devices to the output terminals
- Link the module to the CompactBlock LDX controller
- Configure I/O addresses and parameters through the controller software
- Verify proper operation and signal integrity
Its compact size and mixed channel configuration allow efficient use of rack space while maintaining high I/O flexibility.
Compatible System Components
- CompactBlock LDX controllers
- Other LDX I/O modules (digital, universal input, output)
- Field devices such as sensors, actuators, and switches
- DIN-rail or modular automation racks
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1790D-T8BV8B | Digital I/O Basic Module | 8 inputs + 8 outputs | Compact mixed I/O applications |
| 1790D-T16BV0 | Digital I/O Basic Module | 16 digital channels | Small-scale I/O expansion |
| 1790D-T32BV0 | DeviceNet Universal Input Module | 32-channel universal input | Medium-to-large I/O networks |
Key Advantages
- Compact and lightweight (0.1 kg)
- Mixed 8-in / 8-out channel configuration
- Modular design for flexible system integration
- Industrial-grade durability
- Space-efficient solution for small-to-medium automation networks
Technical FAQs
What is the primary function?
Provides 8 digital inputs and 8 digital outputs for modular CompactBlock LDX automation systems.
Which systems is it compatible with?
Compatible with CompactBlock LDX controllers and other LDX I/O modules.
Can it operate in harsh industrial environments?
Yes, it is industrial-grade, suitable for vibration, dust, and temperature extremes.
Is it suitable for space-constrained installations?
Yes, its compact design and mixed I/O configuration make it ideal for tight modular racks.
Conclusion
The Allen Bradley 1790D-T8BV8B CompactBlock LDX I/O Basic Module is a compact, versatile, and industrial-grade solution for small-to-medium digital I/O automation systems. Its mixed 8-in / 8-out channels, modular design, and reliability make it ideal for space-efficient, flexible industrial automation networks.
