Product Overview

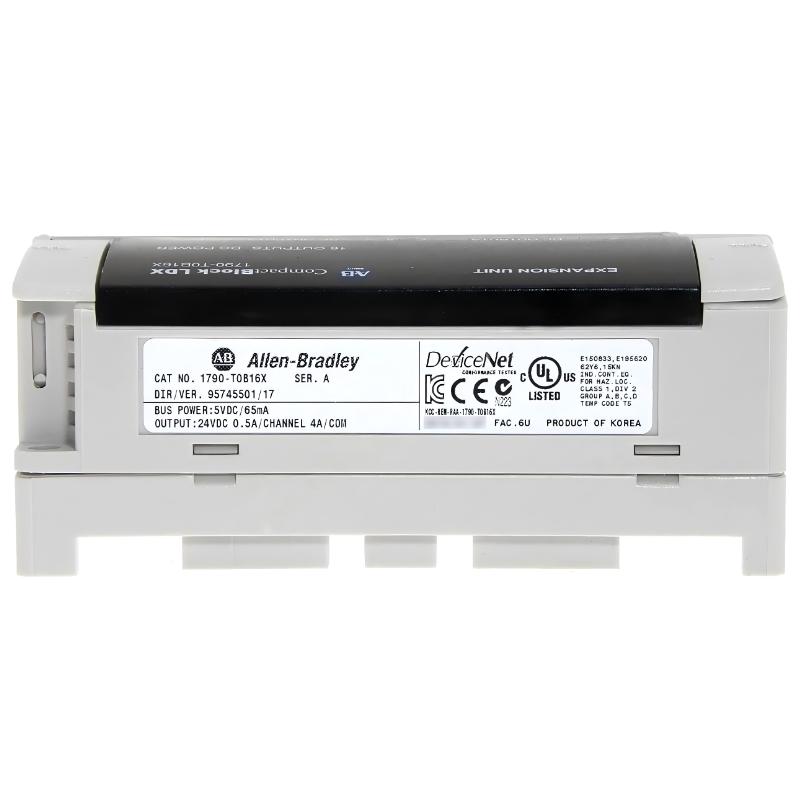

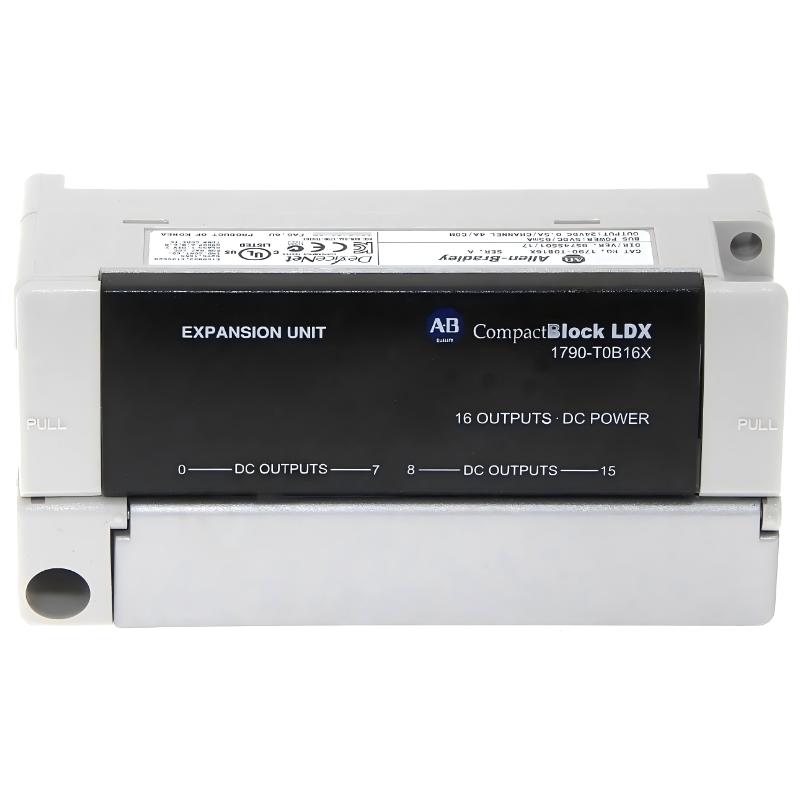

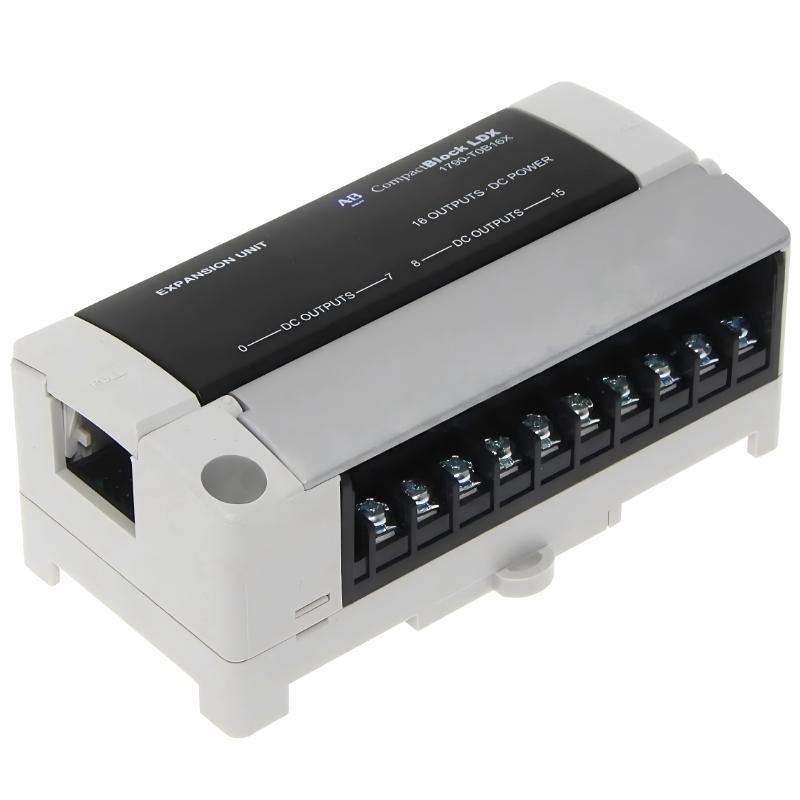

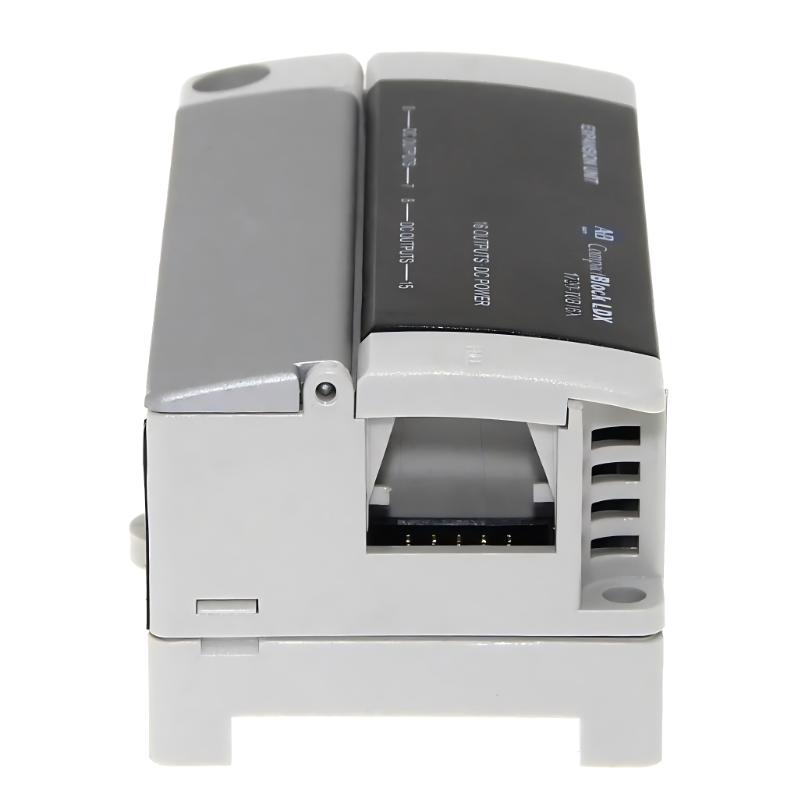

The Allen Bradley 1790-T0B16X is a CompactBlock LDX I/O Extension Block, designed to expand the I/O capacity of CompactBlock LDX systems. With dimensions of 104 × 42 × 52 mm and a lightweight profile of 0.1 kg, it provides a modular solution for adding additional digital I/O channels to existing automation setups. This extension block enables flexible system scaling without increasing the footprint significantly.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1790-T0B16X |
| Product Type | CompactBlock LDX I/O Extension Block |
| Dimensions | 104 × 42 × 52 mm |
| Weight | 0.1 kg |
| Module Type | Digital I/O Extension |
| Channel Configuration | Typically 16 additional digital channels |
| Mounting | DIN-rail or modular rack installation |
| Environmental Rating | Industrial-grade, suitable for harsh conditions |
| Compatibility | CompactBlock LDX I/O system components |
Function and Working Principle
The 1790-T0B16X operates as follows:
- Expands existing LDX I/O modules by providing additional digital input/output channels
- Receives commands from the LDX controller and relays them to connected field devices
- Transmits input signals from sensors back to the LDX controller
- Supports modular, scalable expansion without replacing the primary I/O module
It acts as a reliable digital I/O extender for CompactBlock LDX automation systems.
Role in Industrial Automation
This module is used to:
- Increase the number of digital I/O points in an existing LDX system
- Interface with additional field devices such as switches, sensors, and actuators
- Enable modular system scaling without significant footprint expansion
- Ensure reliable signal communication and control in industrial environments
Industrial Applications
- Factory and process automation requiring additional I/O channels
- Expansion of existing CompactBlock LDX I/O systems
- Monitoring and control of additional sensors and actuators
- Flexible modular automation solutions
Installation and Usage
- Mount the 1790-T0B16X on a DIN rail or in a modular rack
- Connect the extension block to the primary LDX I/O module
- Attach additional digital input and output devices to the extension module
- Ensure proper I/O addressing and configuration via the LDX controller software
- Verify proper operation of all newly added channels
Its compact design allows efficient I/O expansion while maintaining modular system integrity.
Compatible System Components
- CompactBlock LDX controllers
- Primary CompactBlock LDX I/O modules
- Field devices such as sensors, actuators, and switches
- DIN-rail or modular automation racks
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 1790-T0B16X | LDX I/O Extension Block | 16 additional digital channels | Modular I/O expansion |
| 1790D-T0B16 | CompactBlock LDX I/O Basic Module | 16 digital channels | Standard LDX digital I/O |
| 1790D-T32BV0 | DeviceNet Universal Input Module | 32-channel universal input | Larger-scale I/O expansion |
Key Advantages
- Compact 104 × 42 × 52 mm form factor
- Lightweight 0.1 kg design
- Provides additional 16 digital I/O channels
- Modular design for seamless system scaling
- Industrial-grade durability
Technical FAQs
What is the primary function?
Expands the number of digital input/output channels in a CompactBlock LDX system.
Which systems is it compatible with?
Compatible with CompactBlock LDX controllers and primary LDX I/O modules.
Can it operate in harsh industrial environments?
Yes, it is industrial-grade, capable of withstanding vibration, dust, and temperature extremes.
Is it suitable for space-constrained installations?
Yes, its compact and lightweight design allows efficient integration into tight racks.
Conclusion
The Allen Bradley 1790-T0B16X CompactBlock LDX I/O Extension Block is a reliable and space-efficient solution for expanding digital I/O capacity in CompactBlock LDX automation systems. Its modular design, 16-channel expansion, and industrial-grade durability make it ideal for scalable, flexible automation networks.
