Allen-Bradley 1785-BCM — Product Overview, Technical Specifications, Applications, Advantages, and Related Models

1. Product Introduction

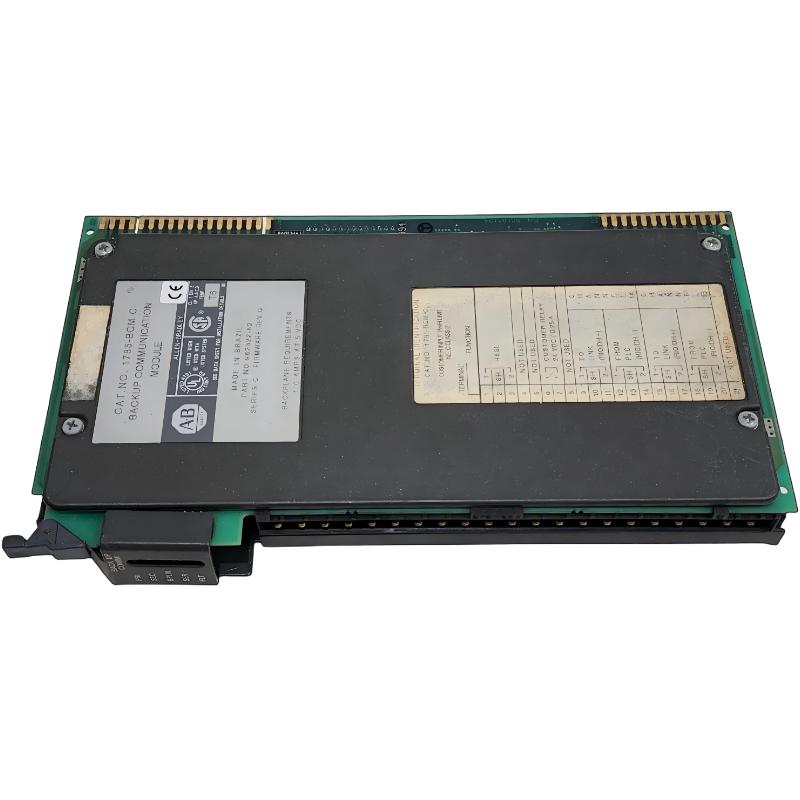

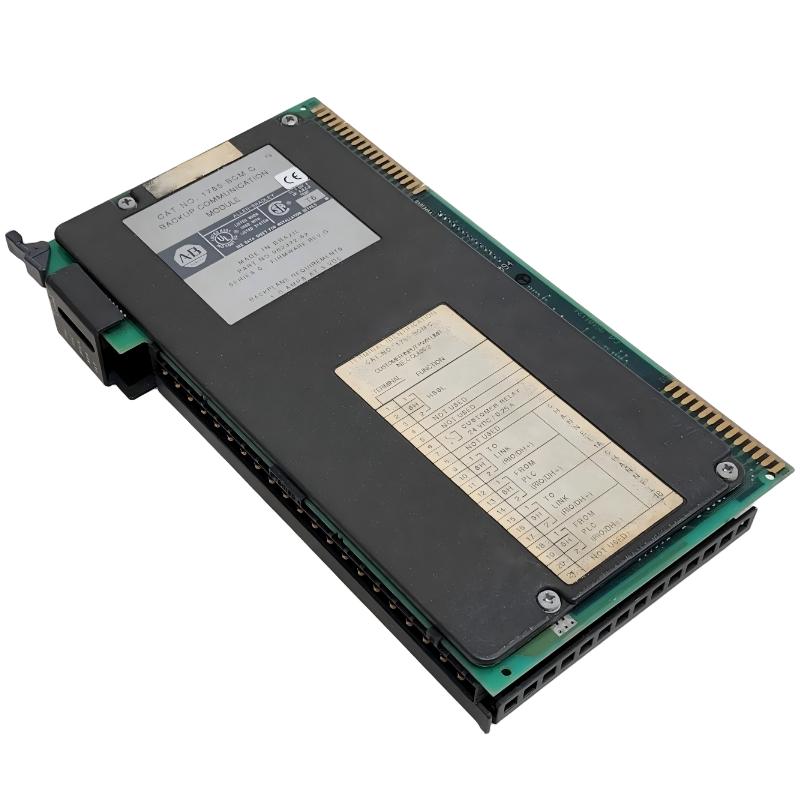

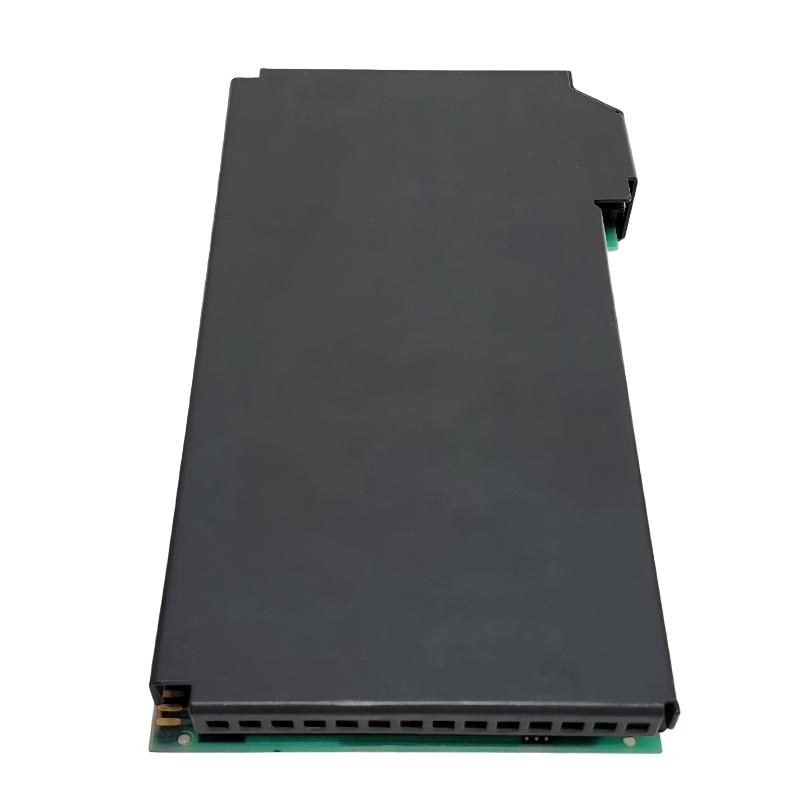

The Allen-Bradley 1785-BCM is a PLC-5 Backup Communication Module designed for industrial control systems that require improved controller availability and continuity of operation. It belongs to the PLC-5 family and is associated with backup arrangements in which a primary controller and a secondary controller are configured to support system recovery if the primary control system experiences a fault.

The module is intended for use in compatible PLC-5 architectures. Its role is to support communication and coordination between the primary and backup control arrangements, helping a properly designed system transfer control or recover operation when required. The exact behavior depends on the controller models, firmware, communication configuration, and system design.

The 1785-BCM is primarily relevant to facilities that continue to operate legacy PLC-5 equipment. When evaluating a replacement or planning maintenance, it is important to verify the complete catalog number, hardware revision, connector arrangement, and compatibility with the existing PLC-5 installation.

2. Technical Specifications

The following table summarizes the product’s key identification details and the mechanical information that should be checked before installation. Exact dimensions and weight should be confirmed against the unit’s hardware documentation or a physical measurement, rather than assumed from another PLC-5 module.

Important note: The 1785-BCM should not be treated as a general-purpose Ethernet communication module. Its intended role is specific to compatible PLC-5 backup arrangements. Before substituting another module, confirm that the replacement supports the same system architecture and backup function.

2.1 Detailed Electrical and Communication Parameters

These values are useful for preliminary engineering and maintenance planning. For a working system, the exact series revision and the applicable PLC-5 backup configuration should be checked before installation or commissioning.

3. Main Functions and Operating Principle

3.1 Backup Communication Between Controllers

The 1785-BCM provides a dedicated communication path for a compatible primary and secondary PLC-5 processor arrangement. The backup processor can receive the information required by the configured backup system so that it is prepared to take over when the primary system develops a fault.

The module does not independently create a complete redundant control system. The system also requires compatible processors, appropriate chassis and power supplies, correctly configured communication links, and application logic designed for the intended backup behavior.

3.2 High-Speed Communication Switching

The module supports switching of two DH+ or Remote I/O communication paths between the primary and secondary PLC-5 systems. Its High-Speed Serial Link provides the communication connection used by the backup arrangement.

This is particularly relevant where remote I/O equipment must remain under controller supervision during a fault or maintenance event. The overall recovery time depends on the complete system configuration, fault type, and application requirements.

3.3 Remote I/O and DH+ Network Support

The 1785-BCM is designed for legacy industrial networks rather than modern Ethernet-based control architectures. It can be relevant to installations where existing remote I/O racks, PLC-5 processors, and DH+ communication paths remain in service.

When planning changes, verify the exact network arrangement. A replacement that supports a different communication protocol may not provide equivalent switching or backup functionality.

3.4 Fault Recovery and Maintenance Support

In a properly configured backup system, the secondary controller can assume control following a qualifying primary-system fault. This can reduce the need to stop the whole process immediately while a faulted controller component is inspected or replaced.

The module is therefore best understood as a component of a system-level availability strategy, not as a standalone controller or a universal solution for every type of equipment failure.

4. Product Applications

4.1 Manufacturing and Production Lines

The 1785-BCM may be used in established production facilities where PLC-5 controllers supervise machinery, material movement, and coordinated production sequences.

Examples include assembly operations, conveyor systems, packaging machinery, and older automated production cells. In these installations, maintaining the existing backup architecture may be preferable to making an unplanned controller migration that could require substantial testing and downtime.

4.2 Process Control Systems

Some long-running industrial processes rely on legacy PLC-5 systems for equipment sequencing, monitoring, and remote I/O control. The 1785-BCM may support backup arrangements in these systems when the processor and network configuration is compatible.

Before relying on a backup arrangement for a critical process, engineers should validate the failure scenarios, controller synchronization, recovery sequence, and response of connected field equipment.

4.3 Remote I/O Installations

The module is relevant to control systems in which I/O racks are connected to PLC-5 processors through Remote I/O communication. Its switching capability can help maintain the intended controller-to-I/O communication path after a qualifying failure.

This is useful in established facilities where replacing the remote I/O architecture would require extensive rewiring, testing, or production interruption.

4.4 Utilities and Infrastructure

Legacy PLC-5 equipment may remain in use in utility-related installations, pumping systems, and infrastructure control panels. In these environments, the 1785-BCM can be part of an existing backup design where supported by the original engineering configuration.

Its suitability must be evaluated against the required availability level, environmental conditions, maintenance strategy, and the consequences of a control-system interruption.

4.5 Legacy Equipment Maintenance and Spare Parts

One of the most practical uses for the 1785-BCM today is maintaining existing equipment. A facility may keep a compatible spare available so that a failed module can be replaced without redesigning the entire PLC-5 system.

Because this is a legacy product, buyers should inspect the series revision, physical condition, connector integrity, and test status. A module that looks similar may not be configured or compatible in the same way as the installed unit.

5. Product Advantages

5.1 Supports Improved System Availability

The main advantage of the 1785-BCM is its role in a compatible PLC-5 backup configuration. A properly engineered primary/secondary arrangement can reduce the interruption associated with certain controller or power-related faults.

The actual availability improvement depends on the complete system design. The module alone does not guarantee uninterrupted operation.

5.2 Preserves Existing PLC-5 Infrastructure

For facilities that continue to use PLC-5 equipment, retaining a compatible backup module can avoid an immediate redesign of the controller system, remote I/O network, and associated control logic.

This can be particularly valuable where production equipment has a long service life and any major change requires substantial commissioning and validation.

5.3 Supports Legacy DH+ and Remote I/O Arrangements

The module is designed for communication arrangements that may still be found in older industrial installations. Its specific role can make it more suitable for an existing backup architecture than a general-purpose communication module.

5.4 Provides a Defined Backup Communication Function

The 1785-BCM has a focused role within the system. Its HSSL connection and two DH+/RIO paths support the backup communication design, helping maintenance engineers identify the module’s purpose during fault diagnosis and system restoration.

5.5 Can Reduce the Scope of an Emergency Repair

Where the backup system has been correctly designed and tested, a primary-system fault may not require an immediate shutdown of every connected process. This can provide additional time to diagnose the fault and replace the affected component.

The outcome depends on the failure type and system configuration, so the actual recovery behavior should be confirmed during commissioning and periodic functional testing.

5.6 Useful as a Maintenance Spare

Keeping a tested, compatible spare can help reduce procurement delays when a legacy module fails. For older control systems, the cost and lead time of sourcing an exact replacement may be important factors in maintenance planning.

A spare should be stored appropriately, identified by full catalog number and revision, and tested before being placed into service.

6. Brand and Product Series

The 1785-BCM belongs to the PLC-5 control platform, which uses a modular architecture with compatible processors, I/O chassis, power supplies, communication modules, and field I/O. Its purpose is more specialized than that of a standard input/output module.

When identifying a replacement, the full model number and revision are important. In particular, the 1785-BCM should not be confused with the 1785-BEM backup expansion module, which serves a related but different function.

7. Five Related Models and Compatible Product Options

The following models are related to the PLC-5 backup arrangement or the wider PLC-5 platform. Some are direct backup-system components, while others are processors that may be used in compatible legacy installations. They are not all direct replacements for the 1785-BCM.

Selection advice: If the goal is to replace a failed 1785-BCM, start with the same full catalog number and a compatible revision. A 1785-BEM is an expansion component rather than a direct substitute, and a PLC-5 processor cannot replace the BCM’s dedicated backup communication function.

8. Five Popular Allen-Bradley Models for Broader Automation Systems

These models are common examples from the wider Allen-Bradley automation portfolio. They belong to different product families and are included as broader alternatives for system expansion or modernization—not as direct replacements for the 1785-BCM.

The ControlLogix models above represent a different control architecture from PLC-5. Moving from a 1785-BCM-based backup system to a newer platform generally requires a migration plan covering controller logic, I/O, communication networks, wiring, safety requirements, and commissioning. It should not be treated as a simple one-for-one module swap.

9. Purchasing and Replacement Checklist

Before ordering a 1785-BCM or a related model, use the following checklist:

• Confirm the complete catalog number, including any revision suffix.

• Verify compatibility with the installed PLC-5 processor models.

• Check the 1771 chassis arrangement and the required keying positions.

• Confirm the HSSL, DH+, and Remote I/O cabling configuration.

• Check whether the installation uses a 1785-BEM for additional communication paths.

• Confirm that the replacement has the correct wiring arm and connectors.

• Inspect the circuit board, contacts, housing, and status indicators.

• Request evidence of functional testing when purchasing a used or refurbished unit.

• Confirm the module’s dimensions and weight if the information is needed for shipping, cabinet planning, or inventory control.

• Validate the complete backup sequence after replacement and before returning the system to normal operation.

10. Summary

The Allen-Bradley 1785-BCM is a PLC-5 backup communication module designed to support a compatible primary/secondary controller arrangement. Its main role is to provide a high-speed serial backup link and switching support for two DH+/Remote I/O communication paths.

Its principal value lies in maintaining legacy PLC-5 systems, supporting planned backup arrangements, and helping facilities manage repairs without immediately redesigning the entire control architecture. The most important considerations are processor compatibility, module revision, chassis installation, communication configuration, and the verified condition of the replacement unit.

For a direct replacement, prioritize a compatible 1785-BCM with the correct revision. For a wider backup configuration, evaluate the 1785-BEM and the existing PLC-5 processors. For modernization, consider the broader controller architecture separately, since newer ControlLogix components do not directly replace the dedicated backup function of the 1785-BCM.
