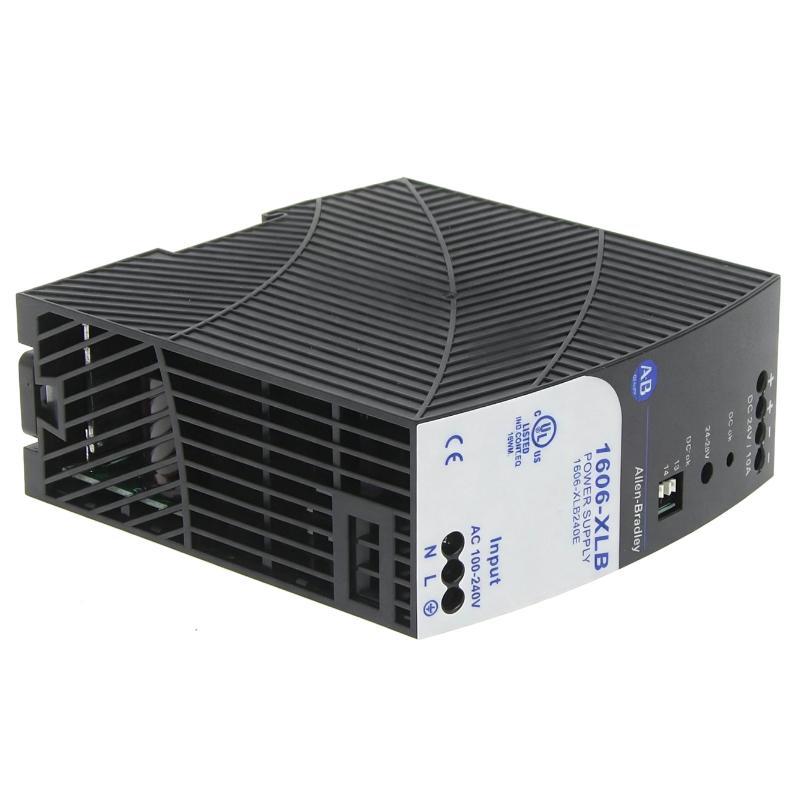

Allen Bradley 1606-XLB240E/A Fault Diagnosis Starting Point

Allen Bradley 1606-XLB240E/A troubleshooting should start with the location of the voltage abnormality, not with the device displaying the alarm. If a PLC Controller resets, a remote I/O Module disappears, or a Sensor signal becomes unstable, the 1606-XLB240E/A may be involved, but the actual cause can also be an overloaded branch, poor connection, unstable input, or downstream short circuit.

The first objective of Fault Diagnosis is therefore to establish a normal electrical baseline and reproduce the problem under controlled conditions. Once the fault occurs, compare measurements at the power supply, distribution point, and affected equipment.

Allen Bradley 1606-XLB240E/A Power Supply Fault Symptoms

Power-related faults often create indirect automation symptoms. The following patterns deserve attention when they occur repeatedly under similar operating conditions:

• PLC Controller restarts without an obvious program fault.
• Remote I/O Modules disconnect and reconnect.
• Industrial communication interfaces reset.
• Sensor signals become unstable when actuators operate.
• Control relays operate inconsistently.
• DC voltage changes substantially when loads are added.
• Faults occur during machine startup but not during idle operation.
• Faults appear only after prolonged cabinet operation.

Allen Bradley 1606-XLB240E/A Intermittent Fault Pattern

Timing is an important diagnostic clue. If the PLC fault appears at exactly the moment a group of solenoids, relays, contactors, or interface devices becomes active, measure the control-power circuit during that transition.

Allen Bradley 1606-XLB240E/A Troubleshooting by Electrical Evidence

A useful Troubleshooting strategy is to divide the circuit into four sections: incoming power, 1606-XLB240E/A output, DC distribution, and final load. The engineer then asks one question at each boundary: does the electrical condition remain stable here?

FAULT-BOUNDARY CHECK

Incoming source
      |
      v
1606-XLB240E/A output
      |
      v
Main DC distribution
      |
      v
Remote branch
      |
      v
PLC / Module / Sensor

If voltage changes before the supply:
  investigate input circuit.

If voltage changes at the supply:
  investigate power-supply operation and loading.

If supply is stable but distribution changes:
  investigate wiring and terminals.

If distribution is stable but one device fails:
  investigate the device or its local circuit.

This method prevents a common maintenance mistake: replacing the power supply because several downstream devices fail simultaneously even though the supply itself remains electrically stable.

Allen Bradley 1606-XLB240E/A Voltage and Load Measurements

Static measurements are useful for establishing a baseline, but intermittent faults require measurements during the event. If the fault occurs for only a fraction of a second, a normal reading taken after the event may not show the initiating condition.

For example, a measurement of approximately 24 VDC at the 1606-XLB240E/A output can coexist with a lower voltage at a remote PLC or I/O distribution point when the branch current increases. The difference should be treated as diagnostic evidence rather than ignored.

Allen Bradley 1606-XLB240E/A Measurement Points

• Incoming supply voltage.
• 1606-XLB240E/A DC output.
• Main DC distribution bus.
• Remote branch distribution point.
• Supply terminals of the affected PLC or Module.
• Voltage during the machine condition that creates the fault.

When a voltage drop increases with load current, investigate conductor resistance, terminal condition, branch loading, and cable length before condemning the power supply.

Common Allen Bradley 1606-XLB240E/A Fault Causes

• Overloaded DC bus: additional equipment may have increased the actual load beyond the original design.
• Downstream short circuit: damaged wiring or a failed field device can pull down one branch or the complete DC system.
• High-resistance connection: loose, oxidized, or damaged terminals can produce voltage drop under load.
• Excessive cable length: resistance in long DC runs can reduce the voltage available to remote equipment.
• Input instability: disturbances upstream of the power supply can produce secondary control faults.
• Thermal conditions: faults that appear only after hours of operation may require temperature-related investigation.
• Switching disturbances: poorly separated inductive loads can disturb sensitive control circuits.

Allen Bradley 1606-XLB240E/A Load Isolation Fault Diagnosis

Load isolation is particularly effective when the system works normally with a limited load but becomes unstable when the complete machine is placed into operation.

The engineer should identify which loads become active immediately before the fault. If permitted by the maintenance procedure, isolate non-critical branches and reconnect them individually while monitoring the DC system.

Allen Bradley 1606-XLB240E/A Branch Isolation Logic

1. Record the normal DC voltage.
2. Reproduce the original failure.
3. Identify all loads active during the failure.
4. Isolate the most likely branch safely.
5. Observe the power-supply output and load-side voltage.
6. Inspect the suspect branch for excessive current or poor connections.
7. Restore the branch only after the cause has been addressed.

Allen Bradley 1606-XLB240E/A Real Troubleshooting Case

In one field Fault Diagnosis case, a PLC Controller restarted whenever the machine changed from manual to automatic operation. At almost the same time, a remote I/O Module reported a communication interruption.

The maintenance team initially suspected the 1606-XLB240E/A because the failure affected several control devices. The engineer first established a baseline and measured approximately 24 VDC at the power-supply output during normal operation.

The automatic transition was then repeated while measurements were taken at both the supply and the remote distribution point. The 1606-XLB240E/A output remained relatively stable, while the remote point dropped to approximately 22.5 VDC during the transition.

At this stage, replacing the power supply would have been premature. The evidence indicated that the fault was downstream. The affected branch supplied several interface circuits that were energized simultaneously during automatic operation.

Inspection found a high-resistance terminal connection. It had not caused a significant problem during standby operation because the current was low. When the interface circuits became active together, the additional current caused a temporary voltage drop sufficient to disturb the remote equipment.

After the terminal connection was corrected, the machine was returned to automatic operation. The transition was repeated multiple times, and the PLC remained online while the remote I/O stayed connected.

This case demonstrates why experienced engineers distinguish between a fault symptom and a fault source. The PLC and I/O equipment displayed the symptom, while the actual cause was in the DC distribution path.

Allen Bradley 1606-XLB240E/A Repair and Replacement Assessment

The 1606-XLB240E/A should not be replaced solely because a downstream controller or Module loses power. Replacement should follow evidence showing that the abnormal condition remains associated with the power supply after the input circuit and connected loads have been checked.

If the output remains abnormal with an appropriate test condition and downstream faults have been excluded, the unit can become a legitimate replacement candidate according to the site’s maintenance and electrical procedures.

Allen Bradley 1606-XLB240E/A Corrective Action Guidelines

• Never bypass protective devices to keep a faulty circuit operating.
• Do not repeatedly energize a suspected short circuit.
• Verify DC polarity before reconnecting loads.
• Inspect terminals after overload or overheating events.
• Document measurements before replacing hardware.
• Repeat the original fault sequence after corrective work.

Allen Bradley 1606-XLB240E/A Recovery and Functional Testing

Recovery should reproduce the conditions that originally generated the fault. A simple power cycle is not enough to establish that an intermittent problem has been eliminated.

If the original fault appeared during automatic startup, test automatic startup again. If it appeared only after prolonged operation, allow the cabinet and connected equipment to reach representative operating conditions before final acceptance.

Allen Bradley 1606-XLB240E/A Post-Repair Checks

• Verify stable input power.
• Verify the DC output at the power supply.
• Compare source-side and load-side measurements.
• Confirm PLC Controller operation.
• Confirm I/O Module availability.
• Check communication stability.
• Operate the loads involved in the original fault.
• Record final diagnostic measurements.

Allen Bradley 1606-XLB240E/A Troubleshooting FAQ

Why can the Allen Bradley 1606-XLB240E/A be blamed for a PLC communication fault incorrectly?

Several devices may lose communication when their DC supply is temporarily disturbed. The PLC alarm identifies the communication consequence, but it does not necessarily identify the electrical root cause.

Does a normal 1606-XLB240E/A output mean the complete DC system is healthy?

No. A stable voltage at the power-supply terminals does not eliminate voltage drop, loose terminals, overloaded branches, or other problems farther downstream.

What does a temporary drop at the remote load indicate?

It indicates that the remote electrical path should be investigated. Cable resistance, poor connections, branch loading, and switching conditions are common areas to examine.

When is replacement of the 1606-XLB240E/A justified?

Replacement becomes appropriate when measurements and load-isolation tests indicate that the power supply itself is responsible for the abnormal output condition after external causes have been excluded.

How can intermittent 1606-XLB240E/A faults be reproduced?

Repeat the machine sequence that originally produced the problem while monitoring the power supply and important downstream points. The exact timing of the voltage change and equipment reset is often more informative than a static alarm history.

Allen Bradley 1606-XLB240E/A Overall Fault Diagnosis Summary

Allen Bradley 1606-XLB240E/A Troubleshooting is most reliable when the engineer follows the electrical path from input to load. PLC Controller resets, Module communication failures, and Sensor instability can be secondary symptoms rather than evidence of a failed power supply.

Effective Fault Diagnosis combines baseline measurements, controlled fault reproduction, source-to-load voltage comparison, branch isolation, and evidence-based replacement decisions. This approach is particularly valuable for intermittent failures that disappear after a power cycle.

The final objective is not simply to restore power. A proper repair should demonstrate that the original fault condition can no longer be reproduced and should leave a documented electrical baseline for future Installation, Setup, Commissioning, Troubleshooting, and maintenance work involving the Allen Bradley 1606-XLB240E/A.
