Product Overview
In industrial robotics and automated manufacturing systems, servo drivers are essential components responsible for precise motor control, stable motion performance, and reliable robotic operation. Servo drive modules convert electrical energy into controlled motor output, allowing industrial robots to achieve accurate positioning, smooth movement, and coordinated multi-axis operation.

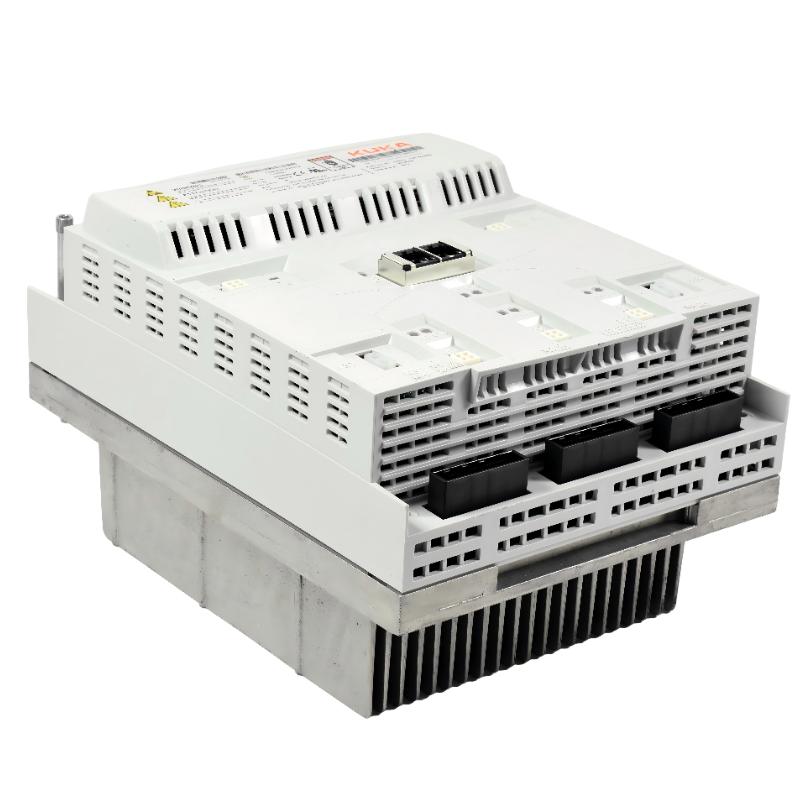

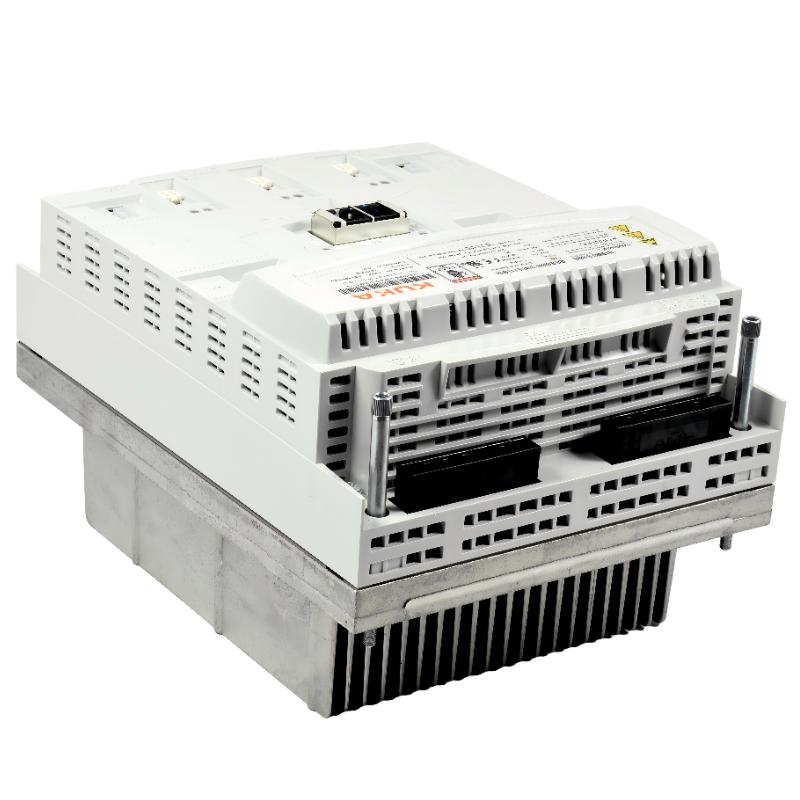

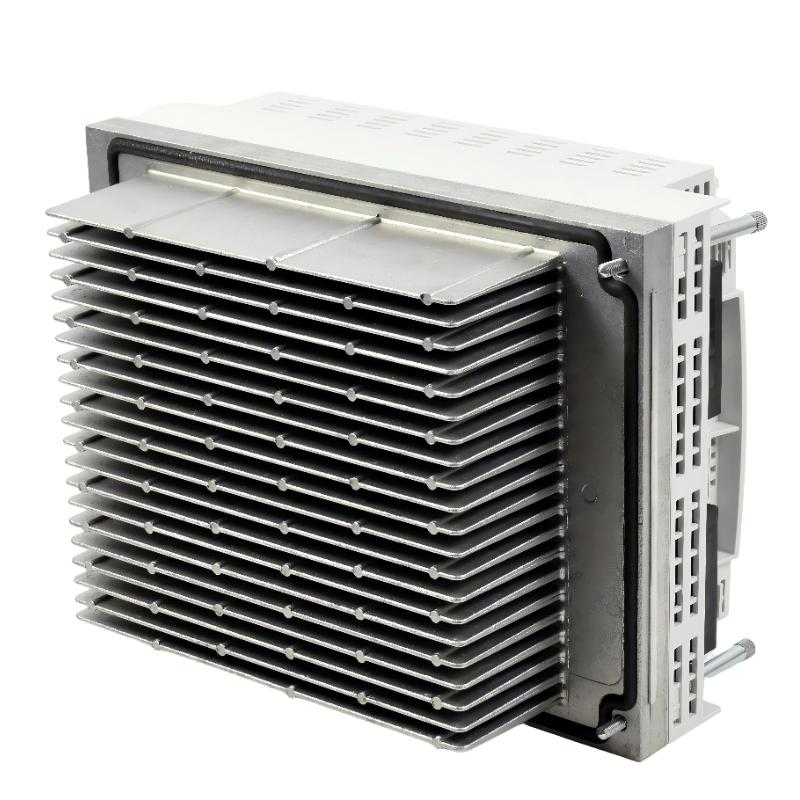

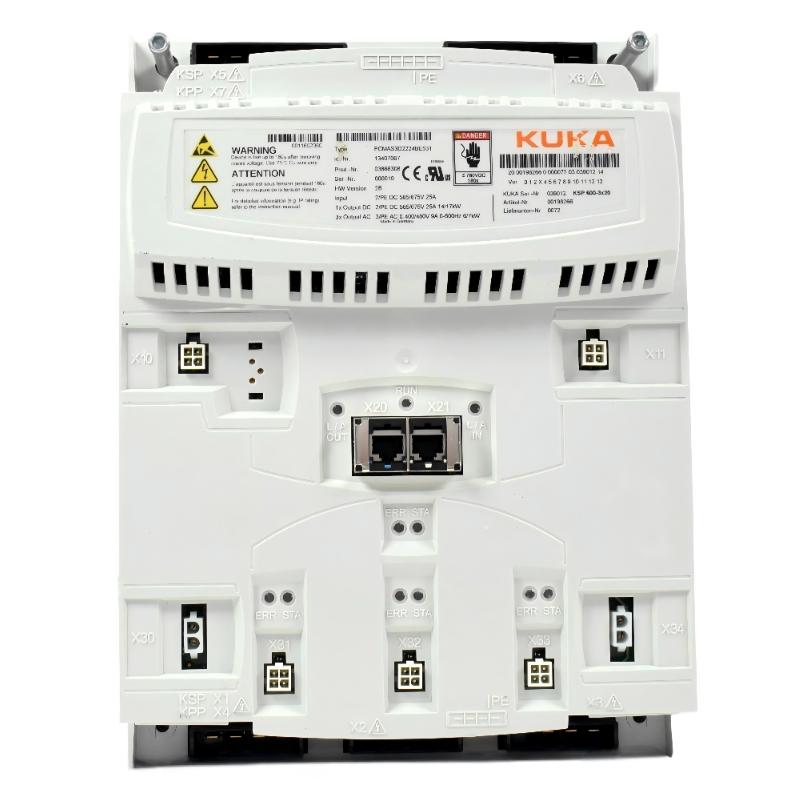

The ABB (KUKA) KSP 600-3×20 ECMAS3D2224BE531 Servo Driver is a high-performance servo drive module designed for KUKA industrial robot motion control systems. It provides reliable servo motor regulation for robotic axes, supporting applications that require high precision, fast response, and continuous industrial operation.
The KSP 600-3×20 series is designed for multi-axis robot control applications, integrating power electronics and servo control functions into a compact industrial module. It is widely applied in KUKA robot controllers, automation cells, and precision motion systems.
With dimensions of 240 × 120 × 80 mm and a weight of 9.09 kg, the ECMAS3D2224BE531 servo driver provides a robust design suitable for installation inside industrial robot control cabinets.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB (KUKA) |
| Model | KSP 600-3×20 |
| Part Number | ECMAS3D2224BE531 |
| Product Type | Servo Driver |
| Application | Industrial Robot Motion Control |
| Drive Type | Multi-Axis Servo Drive Module |
| Servo Channels | 3 Axis Servo Control |
| Input Type | DC Bus Power Input |
| Output Type | Servo Motor Control Output |
| Control Mode | Position / Speed / Torque Control |
| Cooling Method | Air Cooling |
| Installation Type | Robot Controller Cabinet Mounting |
| Dimensions | 240 × 120 × 80 mm |
| Weight | 9.09 kg |
Function and Working Principle
The ABB (KUKA) KSP 600-3×20 Servo Driver controls servo motors by converting DC power into accurately regulated electrical output.
The basic working process is:
DC Power Input → Servo Control Circuit → Power Amplifier → Servo Motor Output
The operating process includes:
- The servo driver receives DC power from the robot power system.
- The internal control electronics process motion commands.
- Power modules regulate current and voltage supplied to servo motors.
- Servo motors execute precise mechanical movements.
- Feedback signals continuously adjust motor operation.
Through closed-loop control, the KSP 600-3×20 maintains stable speed, torque, and positioning performance during robot operation.
Role in Industrial Automation Systems
The ABB (KUKA) KSP 600-3×20 Servo Driver plays an important role in robotic automation systems.
Main functions include:
- Servo motor control
- Robot axis movement management
- Torque regulation
- Speed adjustment
- Position correction
- Multi-axis synchronization
- Drive status monitoring
Typical applications include:
- Industrial robots
- Automotive manufacturing robots
- Welding automation systems
- Assembly production lines
- Material handling equipment
- Precision motion platforms
Main Features
Three-Axis Servo Control Capability
The KSP 600-3×20 is designed to support multi-axis robot motion control.
Advantages include:
- Three-channel servo management
- Coordinated axis operation
- Improved robot motion efficiency
- Reduced control cabinet complexity
It enables industrial robots to perform synchronized movements during complex production processes.
High-Precision Motion Control
The servo driver provides accurate control of robotic servo motors.
Key benefits include:
- High positioning accuracy
- Smooth acceleration and deceleration
- Fast dynamic response
- Stable torque output
- Improved repeatability
These features make it suitable for applications requiring precise robotic movement.
Reliable Industrial Design
The KSP 600-3×20 is designed for continuous industrial environments.
Main advantages include:
- Stable electrical performance
- Robust hardware structure
- Efficient thermal management
- Long operating reliability
It supports demanding automation applications where downtime must be minimized.
Compact Cabinet Integration
With dimensions of 240 × 120 × 80 mm, the servo driver is designed for efficient installation inside robot controllers.
Benefits include:
- Space-saving design
- Easy integration
- Modular replacement
- Convenient maintenance
The compact structure helps optimize industrial control cabinet layouts.
Closed-Loop Servo Regulation
The KSP 600-3×20 works with encoder feedback systems to maintain accurate motor control.
Closed-loop control provides:
- Position monitoring
- Speed stabilization
- Torque adjustment
- Motion accuracy improvement
This allows robots to perform complex tasks with consistent precision.
Industrial Applications
Industrial Robot Systems
The KSP 600-3×20 is commonly used in industrial robotic equipment.
Typical applications include:
- Welding robots
- Handling robots
- Assembly robots
- Painting robots
- Palletizing robots
It provides reliable control for robotic axes during continuous production.
Automotive Manufacturing
Automotive production relies heavily on precise robotic motion systems.
Applications include:
- Body welding
- Component assembly
- Automated material transfer
- Production line robotics
The servo driver helps maintain consistent robotic performance.
Automated Assembly Equipment
Precision assembly requires stable motion control.
Applications include:
- Electronics manufacturing
- Mechanical assembly
- Inspection systems
- Automated positioning equipment
The KSP 600-3×20 supports accurate and repeatable production processes.
Installation Guide
Step 1: Verify Installation Environment
Before installation, check:
- Control cabinet space
- Power supply conditions
- Cooling requirements
- Grounding system
- Environmental temperature
Ensure suitable installation conditions.
Step 2: Install the Servo Driver
Install the ABB (KUKA) KSP 600-3×20 securely inside the robot controller cabinet.
Installation requirements:
- Maintain proper ventilation
- Avoid excessive vibration
- Prevent dust accumulation
- Ensure stable mounting
Step 3: Connect Power Supply
Connect:
- DC power input
- Grounding connection
- Power terminals
Check all wiring before startup.
Step 4: Connect Servo Motors
Connect:
- Servo motor cables
- Encoder feedback cables
- Control signal lines
Correct wiring ensures stable servo operation.
Step 5: Configure Parameters
Configure:
- Motor parameters
- Axis settings
- Speed limits
- Torque values
- Motion control settings
Proper configuration improves system performance.
Step 6: Commissioning
After installation:
- Power on the robot controller
- Check servo status
- Test axis movement
- Verify feedback signals
- Confirm positioning accuracy
Common Failure Symptoms
| Fault Symptom | Possible Cause |
|---|---|
| Robot axis does not move | Power supply problem |
| Servo alarm occurs | Driver protection fault |
| Position deviation | Encoder feedback issue |
| Motor vibration | Parameter configuration error |
| Overheating | Cooling problem |
| Motion interruption | Communication fault |
Troubleshooting Guide
Check Power Input
Inspect:
- DC bus voltage
- Power connections
- Protection circuits
Incorrect power conditions may prevent servo operation.
Check Motor Connections
Verify:
- Motor cables
- Encoder wiring
- Connector condition
Loose connections may cause movement errors.
Check Feedback System
Inspect:
- Encoder signals
- Feedback cables
- Position feedback data
Feedback faults can affect robot accuracy.
Check Servo Parameters
Review:
- Motor configuration
- Control settings
- Speed parameters
- Torque limits
Incorrect settings may reduce performance.
Maintenance Recommendations
To maintain reliable operation of the ABB (KUKA) KSP 600-3×20 Servo Driver:
- Inspect electrical connections regularly
- Clean control cabinet dust
- Check cooling airflow
- Monitor servo alarms
- Verify feedback signals
- Perform preventive inspections
Regular maintenance helps extend equipment life and improves robot system reliability.
Compatible Automation Components
| Component | Function |
|---|---|
| Servo Driver | Controls servo motor operation |
| Servo Motor | Provides mechanical movement |
| Robot Controller | Executes motion commands |
| Encoder System | Provides position feedback |
| Power Supply Module | Provides electrical energy |
Key Advantages
- Designed for KUKA industrial robot systems
- Three-axis servo control capability
- High-precision motion regulation
- Compact industrial design
- Reliable continuous operation
- Suitable for advanced automation applications
Technical FAQs
What is ABB (KUKA) KSP 600-3×20 used for?
The KSP 600-3×20 Servo Driver is used to control servo motors in KUKA industrial robots and automated motion control systems.
What is the part number?
The part number is ECMAS3D2224BE531.
How many servo channels does KSP 600-3×20 support?
The KSP 600-3×20 is designed for three-axis servo control applications.
What are the dimensions of this servo driver?
The dimensions are 240 × 120 × 80 mm.
What is the weight of this servo driver?
The weight is 9.09 kg.
Conclusion
The ABB (KUKA) KSP 600-3×20 ECMAS3D2224BE531 Servo Driver is a reliable industrial motion control component designed for robotic automation and precision manufacturing systems.
With three-axis servo control capability, accurate motion regulation, compact design, and stable industrial performance, it provides essential support for KUKA robot systems, automated production lines, and advanced motion control applications.
For automation engineers, robot maintenance teams, and system integrators, the KSP 600-3×20 Servo Driver is an effective solution for maintaining precise robotic movement, improving production reliability, and supporting long-term industrial automation operation.
