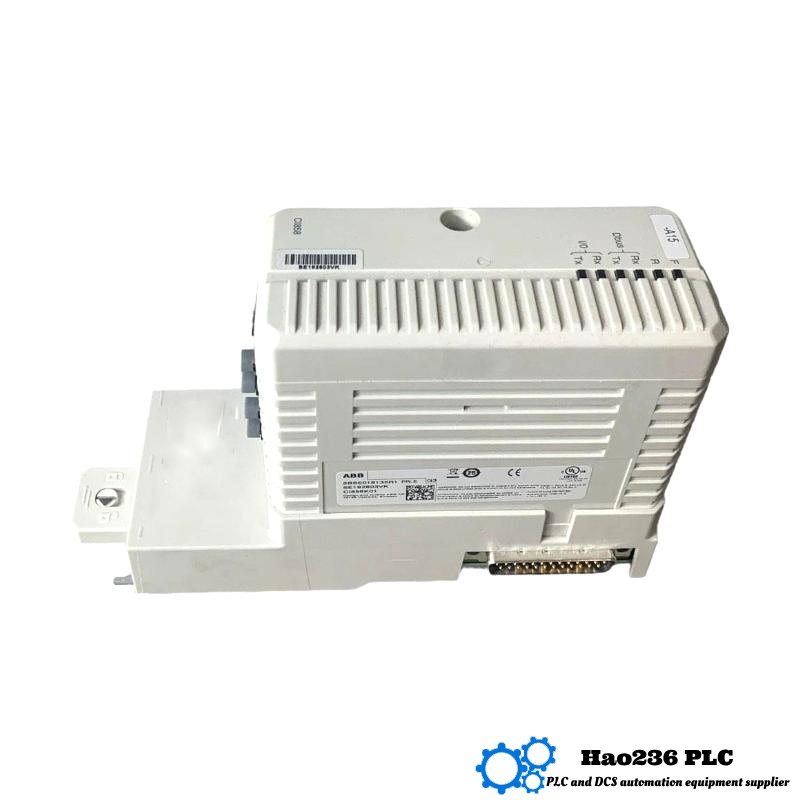

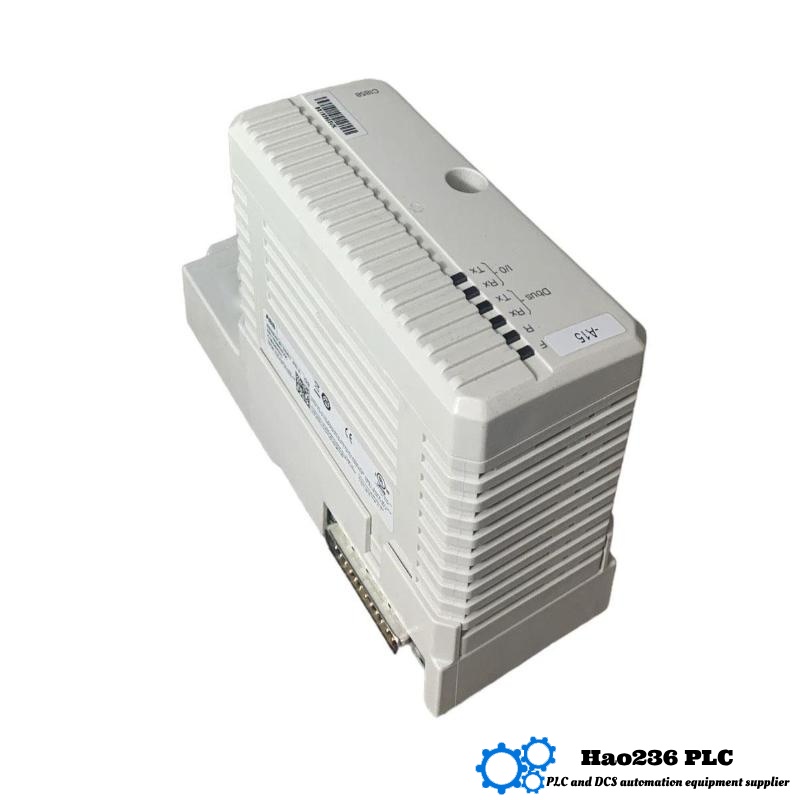

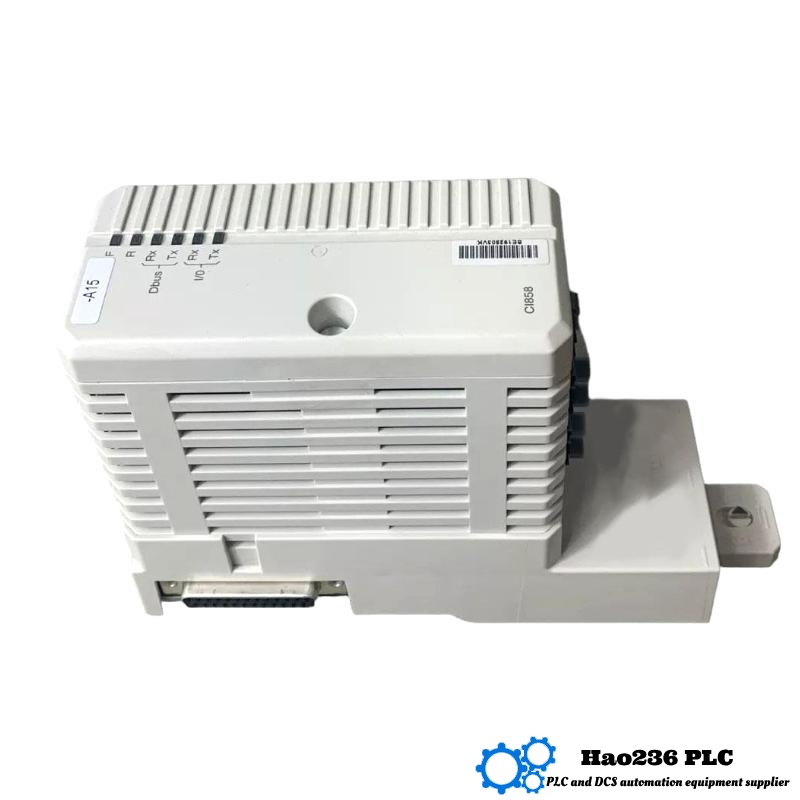

ABB CI858K01 / CI858 (3BSE018135R1) — Product Overview
Brand: ABB
Series: AC 800M / System 800xA – DriveBus Communication Interface
Product Introduction
The CI858K01 (also referred to as CI858) is a dedicated DriveBus interface module for ABB’s AC 800M controllers. It facilitates high-speed communication—up to 8 Mbit/s—with ABB drives and special I/O units, making it ideal for systems requiring precision and responsiveness (e.g., rolling mills, paper machines). Powered directly via CEX-Bus from the processor, and supporting hot-swapping, it enables uninterrupted operation in critical environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | CI858K01 / CI858 (3BSE018135R1) |
| Function | DriveBus communication with ABB Drives & special I/O units |
| Protocol Speed | ~8 Mbit/s |
| Communication Modes | Master / Slave |
| Hot-Swap | Yes – supports replacement during RUN mode |
| Connection Capacity | Up to 24 ABB drives per module; up to 2 modules per AC 800M controller |
| Topology Support | Requires branching unit (NDBU) for star configurations |
| Power Supply | Via CEX-Bus from processor, no external power needed |
| Dimensions (H × W × D) | ~185 × 59 × 127.5 mm |
| Weight | ~0.7 kg (700 g) |
| Power Consumption | ~200 mA @ 24 V DC (~4.8 W) |
| Operating Temperature | +5 °C to +55 °C |
| Storage Temperature | –40 °C to +70 °C |
| Protection Rating | IP20, suitable for indoor cabinet environment |
| Certifications | CE, RoHS, WEEE, marine approvals (ABS, BV, DNV‑GL, LR) |
Product Applications
-
Rolling mill and paper machine control: Enables synchronized, real-time drive interaction across multiple axes.
-
Sectioned drive networks: Supports logical bus structures with star topologies using branching units (NDBU).
-
High-availability systems: Hot-swap capability ensures uptime during maintenance.
-
Distributed control installations: Bridges AC 800M controllers with ABB drives in power generation, manufacturing automation, and more.
Product Advantages
-
High-speed, dedicated DriveBus support ensures minimal latency in drive control.
-
Hot-swap functionality allows maintenance without system shutdown.
-
Compact, robust design: Under 0.7 kg and ruggedly built for industrial environments.
-
Scalable drive connectivity: Up to 24 drives per module and multiple modules per controller.
-
Eliminates need for external power—streamlined installation via CEX-Bus power.
Related Models (Same Series / Family)
| Model | Description |
|---|---|
| CI858K01 / CI858 | DriveBus interface (this model) |
| CI857K01 | INSUM Ethernet interface |
| CI855K01 | MasterBus 300 interface |
| CI854AK01‑EA | Profibus DP/V1 interface |
| CI856K01 | S100 I/O interface kit |
Other Popular ABB Modules
| Model | Function |
|---|---|
| CI857K01 | INSUM Ethernet interface |
| CI855K01 | MasterBus 300 interface |
| CI854AK01‑EA | Profibus DP/V1 interface |
| CI867 | Modbus TCP/IP interface |
| CI873 | Ethernet/IP interface |
Frequently Asked Questions (QA)
Q1: What is the CI858 used for?
A1: It enables DriveBus communication between AC 800M controllers and ABB drives.
Q2: How many drives can connect to one CI858?
A2: Up to 24 drives per module; up to two modules per controller.
Q3: Can modules be replaced live?
A3: Yes, it supports hot-swapping during operation.
Q4: What is its size and weight?
A4: Roughly 185×59×127 mm and weighs about 0.7 kg.
Q5: How is it powered?
A5: It draws power via the CEX-Bus—no extra wiring needed.
Q6: What topologies are supported?
A6: Supports star topology through NDBU branching units.
Q7: What’s its communication speed?
A7: Approximately 8 Mbit/s via DriveBus protocol.
Q8: Does it support redundancy?
A8: No built-in redundancy—but multi-module setups offer failover.
Q9: Where is it typically used?
A9: Used in rolling mills, paper machines, and other industrial environments needing precise drive control.
Q10: What certifications does it carry?
A10: CE, RoHS, WEEE, and marine compliance (ABS, BV, DNV‑GL, LR).
