Product Overview

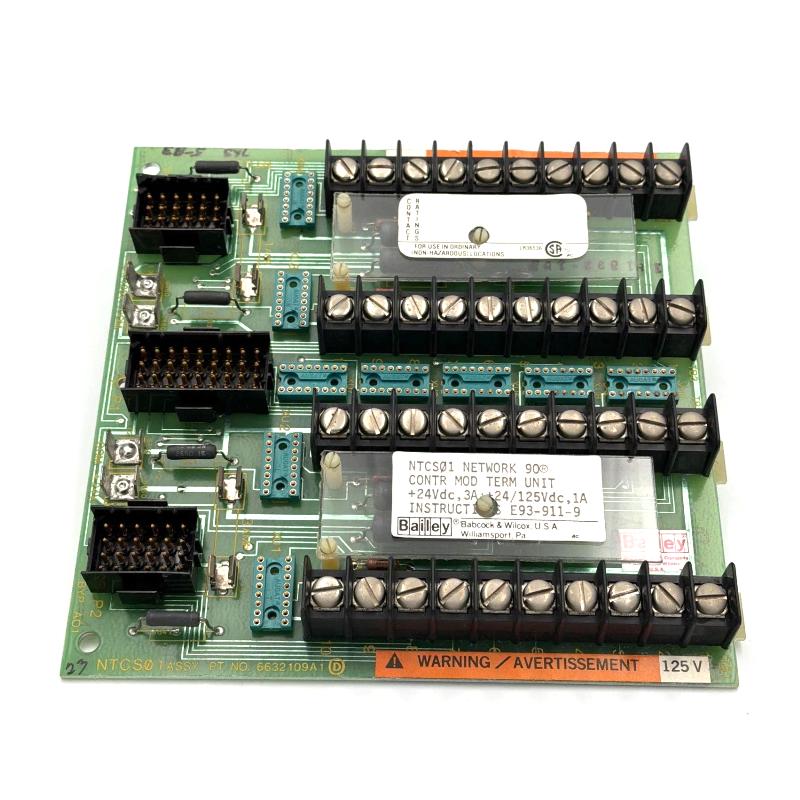

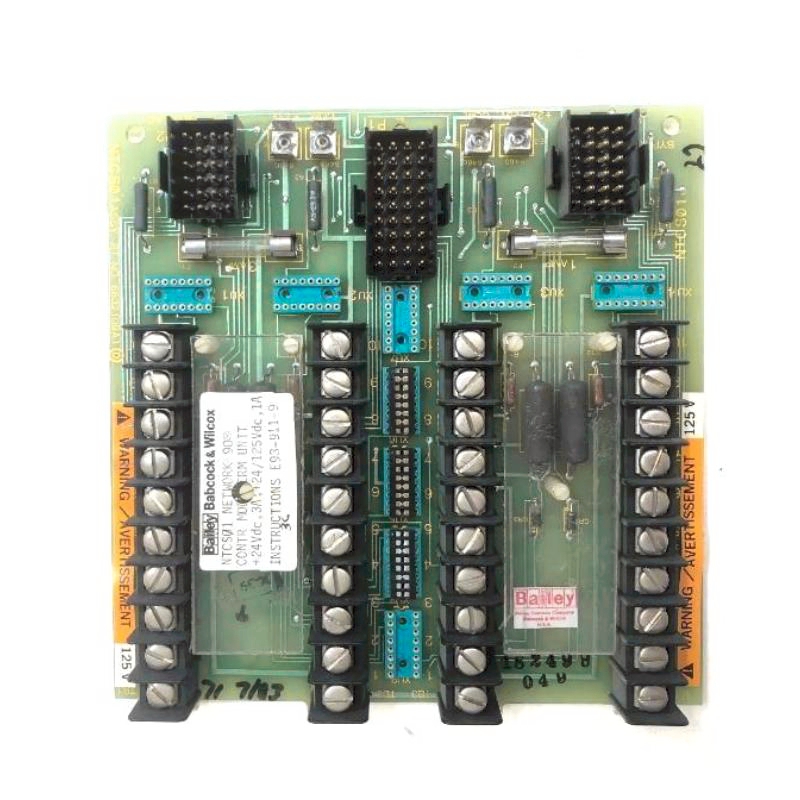

The ABB Bailey NTCS01 is a Control I/O Termination Unit used within ABB Bailey Symphony Harmony control-system installations. It provides the termination interface for I/O connections between the control system and associated field or I/O equipment.

In a Symphony Harmony architecture, the NTCS01 is positioned at the I/O interface layer, where control-system signals are organized and connected to the corresponding I/O circuitry. This arrangement is useful in industrial control cabinets where numerous field signals must be routed between controllers, I/O modules, and field devices.

The NTCS01 is applicable to process automation, power generation, industrial plant control, and other applications using Symphony Harmony equipment. Its termination function helps establish an organized connection between control-system I/O channels and the external signal wiring.

For maintenance and replacement work, the NTCS01 should be checked together with the associated I/O modules, terminal wiring, field cables, and signal circuits. Incorrect termination or channel wiring can result in missing inputs, incorrect outputs, or unexpected field-device behavior.

Technical Specifications

Product Features

• Control I/O termination for ABB Bailey Symphony Harmony systems
• Provides an interface between I/O circuitry and field wiring
• Suitable for distributed industrial control architectures
• Supports organized termination of control-system I/O connections
• Applicable to process automation and power-generation installations
• Helps simplify field signal wiring within control cabinets
• Suitable for I/O maintenance, troubleshooting, and replacement work
• Integrates with compatible ABB Bailey Symphony Harmony I/O equipment

Working Principle

The NTCS01 functions as the physical termination point for control-system I/O connections. Signals from field devices are routed through the termination interface toward the associated I/O circuitry, while output signals generated by the control system are routed through the appropriate termination connections toward field equipment.

Field Devices → NTCS01 Control I/O Termination Unit → I/O Module → Symphony Harmony Controller

For output circuits, the signal path operates in the opposite direction:

Symphony Harmony Controller → I/O Module → NTCS01 → Field Actuator / Equipment

During troubleshooting, the termination unit is one part of the complete I/O signal path. Technicians should verify the channel assignment, field wiring, terminal connections, I/O module status, and controller configuration rather than isolating the termination unit from the rest of the circuit.

Role in a Symphony Harmony Control Architecture

The NTCS01 occupies the field-interface layer between Symphony Harmony I/O equipment and external process wiring. It does not execute control logic; instead, it supports the physical connection of I/O channels used by the controller.

Field Device → NTCS01 → I/O Module → Symphony Harmony Controller → Control Logic

Industrial Applications

Installation and Maintenance

1. Confirm that the NTCS01 is compatible with the installed Symphony Harmony I/O architecture before replacement.
2. Record the existing terminal and channel assignments before disconnecting the unit.
3. Identify each field cable before removing it from the termination interface.
4. Check terminal connections for looseness or physical damage.
5. Verify that field wiring corresponds to the intended I/O channel.
6. Keep signal wiring properly separated and organized within the control cabinet.
7. Inspect for damaged insulation, broken conductors, or improperly terminated wires.
8. Confirm the associated I/O module is correctly installed and powered.
9. Check controller I/O configuration when a channel does not respond as expected.
10. Verify input signal continuity when field measurements are missing.
11. Check output wiring and field-device response when an output channel does not operate correctly.
12. Perform an I/O point-to-point test after replacement or rewiring before returning the system to normal operation.

Related Components

Recommended Related Models

Key Advantages

• Control I/O termination interface for Symphony Harmony installations
• Supports organized connections between field wiring and I/O modules
• Suitable for distributed industrial control architectures
• Applicable to process and power-generation control systems
• Simplifies identification and maintenance of I/O termination circuits
• Integrates with associated ABB Bailey Symphony Harmony I/O equipment

Technical FAQs

What is the role of the NTCS01 between field devices and Symphony Harmony I/O?

The NTCS01 provides the physical termination interface between field wiring and the associated I/O circuitry. It allows input and output signal connections to be organized before reaching the I/O module and controller.

Can a loose NTCS01 connection cause an I/O channel failure?

Yes. A loose or improperly terminated connection can interrupt an input signal or prevent an output signal from reaching the field device. Terminal condition and wiring continuity should therefore be checked when a single channel behaves abnormally.

How should an NTCS01-related I/O fault be isolated?

Start with the affected field device and trace the signal path through the NTCS01, I/O module, and controller. Comparing the field signal with the corresponding I/O channel status can help determine whether the fault is in the field wiring, termination, I/O module, or control configuration.

What should be verified after replacing an NTCS01?

Verify every terminal against the documented channel assignment and confirm that the associated I/O module is correctly connected. A point-to-point I/O test should then be performed to confirm both input acquisition and output operation where applicable.
