- ABB Bailey
- NTCL01
- Communication Termination Unit
- Sweden (SE)
- 96.52 × 236.22 × 220.98 mm
- 0.476 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 15
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

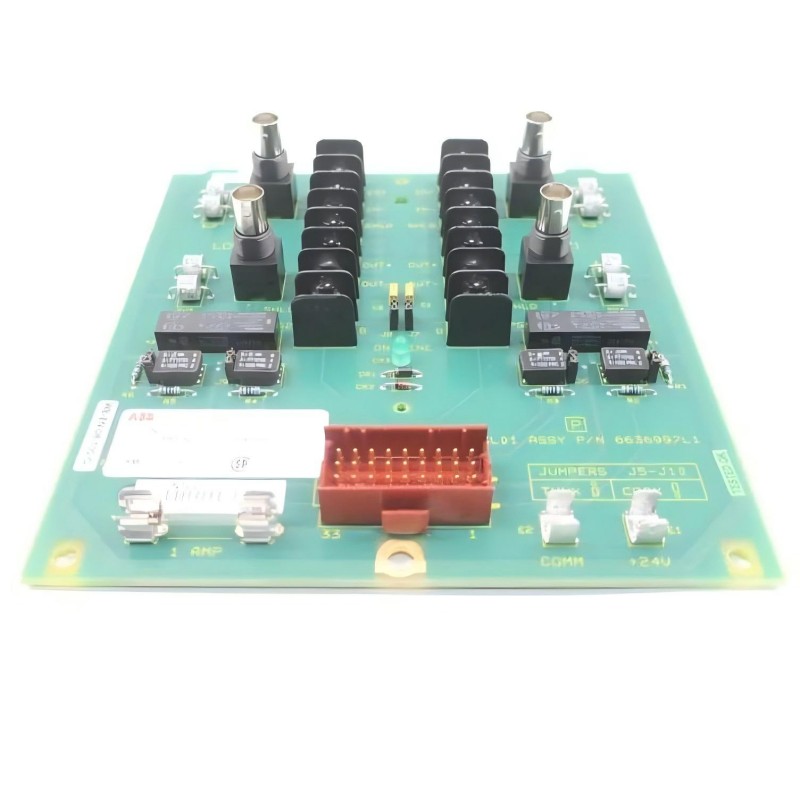

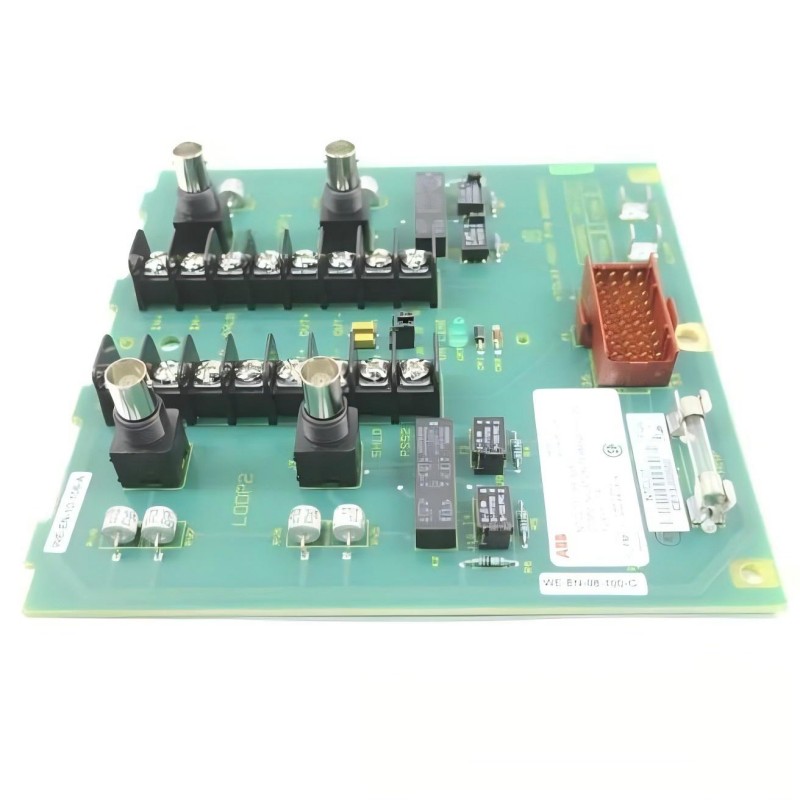

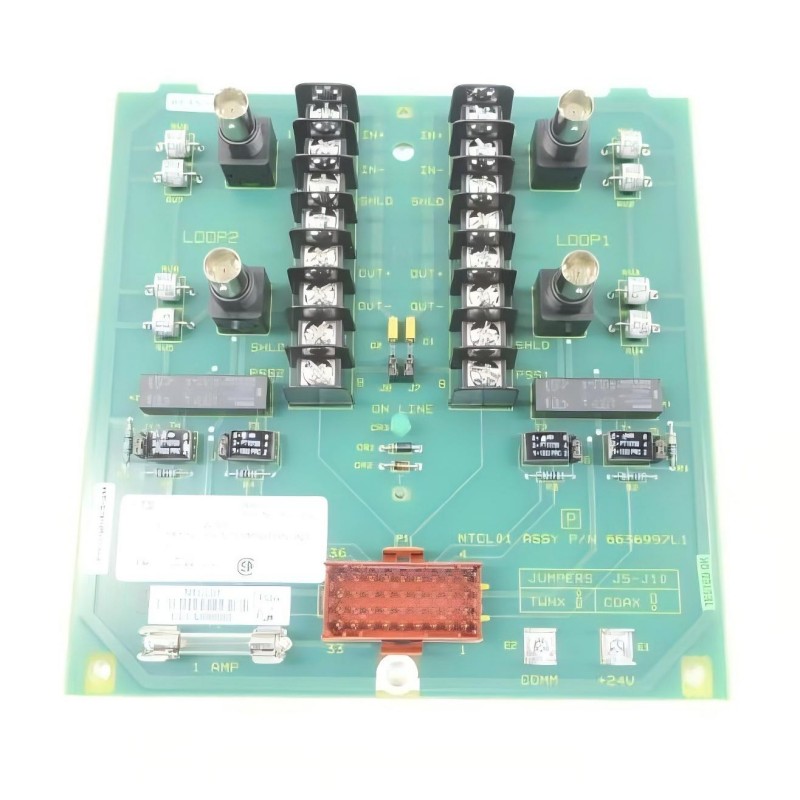

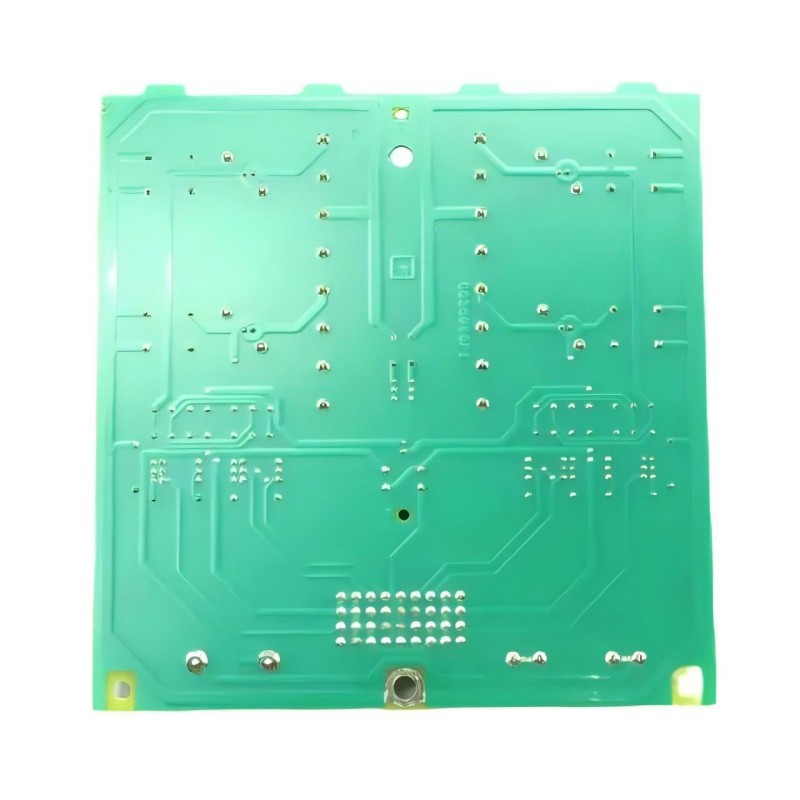

The ABB Bailey NTCL01 is a communication termination unit used within ABB Bailey Symphony Harmony control-system infrastructure. It provides a physical interface for communication connections and supports the organization of communication wiring between system equipment and the associated control network.
In a Symphony Harmony installation, the NTCL01 can be used as part of the communication interface between control-system equipment and connected communication circuits. Termination units such as the NTCL01 are particularly useful in distributed control installations where multiple system components are interconnected through dedicated communication paths.
The NTCL01 is applicable to industrial process control, power generation, plant automation, and other Symphony Harmony installations. Its role is focused on communication connectivity rather than process-control execution, allowing it to be integrated with the broader control-system communication architecture.
During maintenance, the NTCL01 should be considered together with the connected communication equipment, wiring, connectors, and termination points. Correct identification of communication connections is important when replacing the unit or troubleshooting communication faults.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NTCL01 |
| Product Family | ABB Bailey Symphony Harmony |
| Product Type | Communication Termination Unit |
| Primary Function | Communication termination and interface |
| System Role | Communication interface |
| Application | Industrial control and process automation systems |
| Dimensions | 96.52 × 236.22 × 220.98 mm |
| Weight | 0.476 kg |
Product Features
- Communication termination for ABB Bailey Symphony Harmony systems
- Provides an organized interface for compatible communication connections
- Suitable for distributed control-system architectures
- Supports communication infrastructure within industrial control installations
- Applicable to process automation and power-generation environments
- Helps simplify communication wiring within control cabinets
- Suitable for maintenance and replacement applications
- Integrates with associated ABB Bailey Symphony Harmony communication equipment
Working Principle
The NTCL01 functions as a physical termination and interface point within the Symphony Harmony communication architecture. Communication signals arriving through the connected communication path are routed through the termination interface toward the associated system equipment.
Communication Network → NTCL01 Communication Termination Unit → Symphony Harmony Communication Equipment → Control System
The termination unit itself does not execute process-control logic. Its condition and connection quality directly affect the physical communication path, so troubleshooting should include the NTCL01, connected cables, terminals, connectors, and associated communication equipment.
During commissioning or replacement, each communication connection should be identified before disconnection. After installation, communication status should be checked at the system level to confirm that the complete communication path has been restored.
Role in a Symphony Harmony Control Architecture
The NTCL01 occupies the communication interface layer of a Symphony Harmony control architecture. It connects the physical communication wiring with compatible communication equipment and supports communication between distributed control-system elements.
Control System → Communication Equipment → NTCL01 → Communication Network → Remote System Equipment
| System Element | Function |
|---|---|
| Symphony Harmony Controller | Executes control logic and process functions |
| Communication Equipment | Handles system-level data communication |
| NTCL01 | Terminates and interfaces communication connections |
| Communication Network | Transfers system communication signals |
| Remote Control Equipment | Exchanges process and system information |
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Communication between distributed control-system components |
| Power Generation | Plant control and communication infrastructure |
| Industrial Plants | Communication connections between control cabinets |
| Distributed Control Systems | Interface for communication between separated system equipment |
| Electrical Control Systems | Communication infrastructure within industrial electrical installations |
| Large Control Facilities | Organized communication connections across different equipment locations |
Installation and Maintenance
- Confirm that the NTCL01 matches the installed Symphony Harmony communication architecture before replacement.
- Record the existing communication connections before disconnecting the unit.
- Inspect terminals and connectors for contamination or physical damage.
- Verify that each cable is connected to the correct termination point.
- Avoid applying excessive mechanical force to communication cables or connectors.
- Keep communication wiring properly routed inside the control cabinet.
- Check for loose connections when troubleshooting intermittent communication.
- Verify the associated communication equipment is powered and operating correctly.
- Check communication status after completing the installation.
- Compare communication symptoms with the condition of connected cables and termination points.
- Document the communication wiring arrangement after maintenance.
- Perform a complete system communication test before returning the control system to normal operation.
Related Components
| Component | Function |
|---|---|
| ABB Bailey Symphony Harmony Controller | Control logic and process control |
| Symphony Harmony Communication Module | System communication interface |
| Communication Cable | Transfers communication signals |
| Communication Connector | Provides physical communication connection |
| Communication Network Equipment | Handles network communication |
| Control Cabinet | Houses control and communication equipment |
| Remote I/O Equipment | Interfaces field signals with the control system |
| System Engineering Station | Configuration, diagnostics, and maintenance |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| ABB Bailey NTCL01 | Communication Termination Unit | Communication termination |
| ABB Bailey NTCF22 | Fiber Optic Communication Termination Unit | Fiber communication termination |
| ABB Bailey NTCF23 | Fiber Optic Communication Termination Unit | Fiber communication termination |
| ABB Bailey Symphony Harmony Series | Distributed Control System | Process and industrial automation |
| ABB Bailey Communication Modules | Communication Interface Modules | Control-system networking |
| ABB Bailey Symphony Controllers | Process Controllers | Plant control and automation |
| ABB Bailey Remote I/O Modules | I/O Interface Modules | Field signal acquisition and control |
| ABB Bailey Control Network Components | Network Equipment | Control-system communication |
Key Advantages
- Communication termination interface for Symphony Harmony installations
- Suitable for distributed industrial control architectures
- Supports organized communication connections within control cabinets
- Applicable to process automation and power-generation systems
- Practical for maintenance and replacement of communication infrastructure
- Integrates with associated ABB Bailey Symphony Harmony equipment
Technical FAQs
What is the function of the ABB Bailey NTCL01 in a Symphony Harmony system?
The NTCL01 functions as a communication termination unit, providing a physical termination and interface point between communication wiring and compatible Symphony Harmony communication equipment.
What should be checked when an NTCL01 communication path becomes intermittent?
Check the complete physical communication path, including the NTCL01 connections, terminals, cables, connectors, and associated communication equipment. Loose or contaminated connections can produce intermittent communication even when the main control equipment is operating normally.
Does the NTCL01 perform control logic?
No. The NTCL01 is a communication termination component rather than a process controller. Control logic remains within the appropriate Symphony Harmony controller, while the NTCL01 supports the physical communication interface.
What is important when replacing an NTCL01 in an existing control cabinet?
The existing communication connections should be documented before removal. After installation, verify each connection, inspect the physical termination points, and perform a communication test with the connected Symphony Harmony equipment before returning the system to service.
