- ABB
- 5SHX2645L0002 3BHB012961R0001
- IGCT Module
- Sweden (SE)
- 85 x 50 x 35 mm
- 0.2 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 7
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

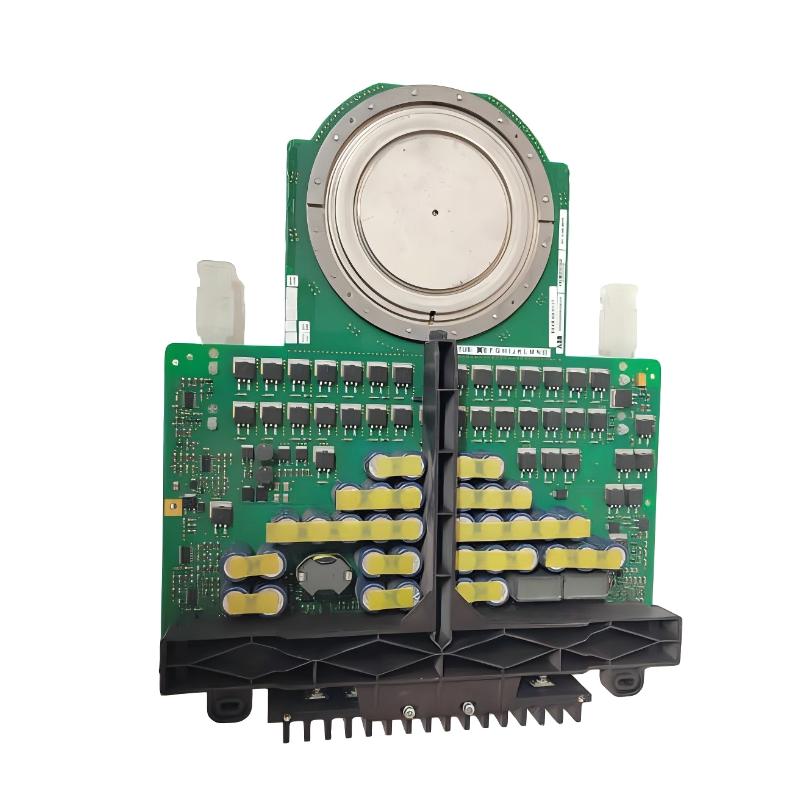

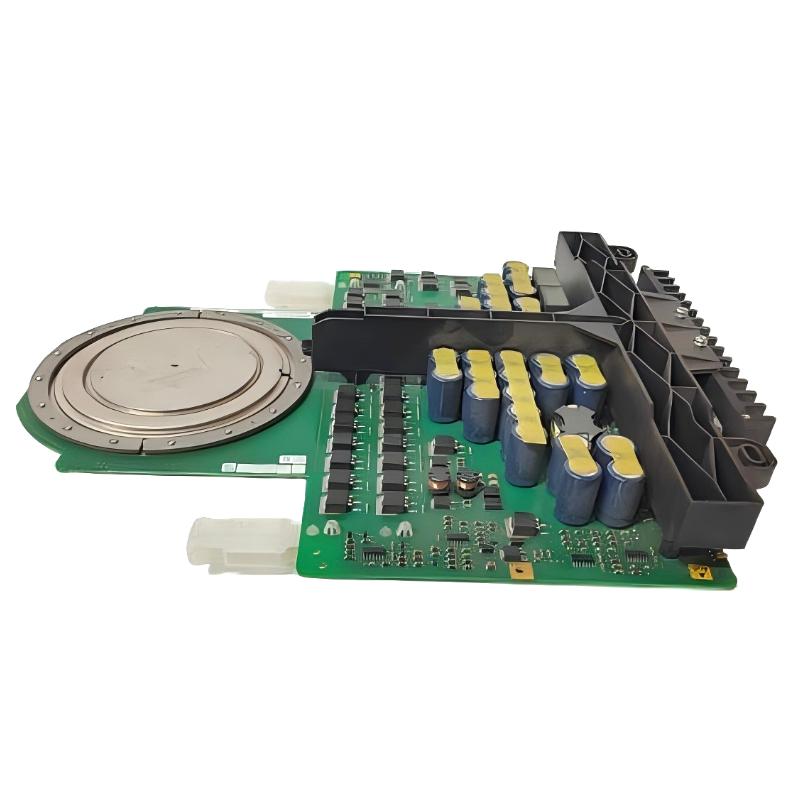

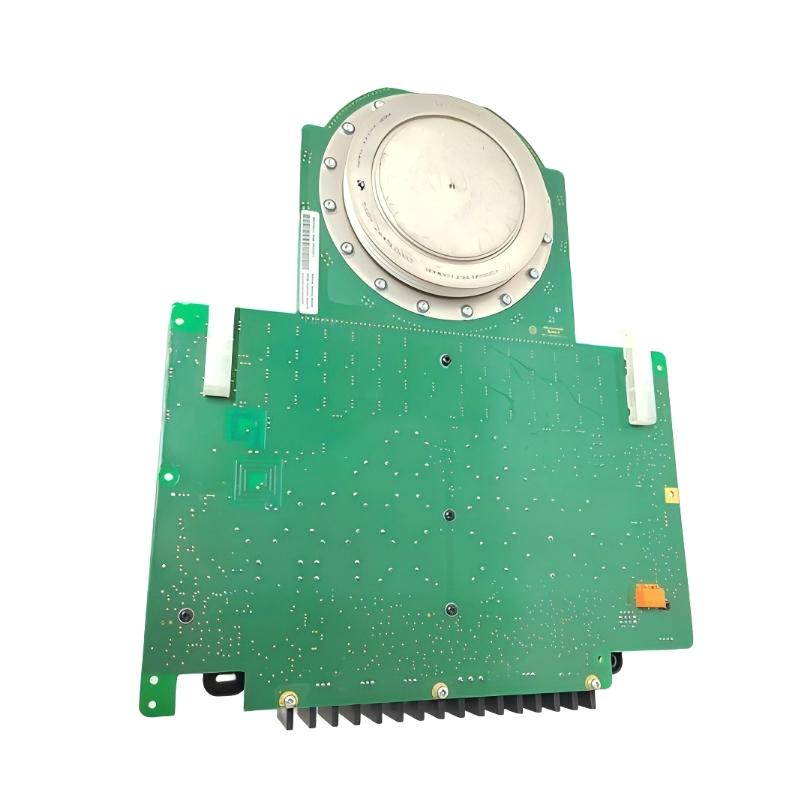

The ABB 5SHX2645L0002 (3BHB012961R0001) IGCT Module is a high-performance power semiconductor device based on Integrated Gate-Commutated Thyristor (IGCT) technology. It is specifically designed for high-power switching applications in industrial drive systems and power conversion equipment.
With its compact structure and efficient switching capability, this module is ideal for applications requiring high reliability, fast response, and low energy loss in medium- and high-voltage environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model | 5SHX2645L0002 |
| Part Number | 3BHB012961R0001 |
| Product Type | IGCT Module |
| Technology | Integrated Gate-Commutated Thyristor |
| Function | High-power switching and control |
| Voltage Class | Medium / High voltage industrial class |
| Current Capacity | High-current capability |
| Switching Performance | Fast switching, low conduction loss |
| Gate Control | Requires external IGCT driver unit |
| Cooling Method | Heatsink / air or liquid cooling |
| Dimensions | 85 × 50 × 35 mm |
| Weight | 0.2 kg |
| Mounting Type | Press-pack / module mounting |
| Operating Environment | Industrial high-power systems |
| Application Category | Power electronics / drive systems |
Function and Working Principle
The 5SHX2645L0002 operates using IGCT switching technology, combining the advantages of traditional thyristors with improved turn-off capability.
Its working process includes:
- Receiving gate signals to control conduction state
- Switching high voltage and current efficiently
- Rapid turn-off via integrated gate commutation
- Minimizing switching losses for higher efficiency
- Maintaining stable operation under heavy electrical loads
This structure enables fast switching speed and high power handling capability.
Role in Industrial Control Systems
Within industrial power systems, this module serves as a critical component:
- Acts as a core switching device in converters and inverters
- Enables efficient motor control in medium-voltage drives
- Supports stable energy conversion in power systems
- Enhances system reliability under high load conditions
- Provides precise control of electrical power flow
It is essential for high-performance power electronic systems.
Industrial Applications
The ABB IGCT Module is widely used in:
- Medium-voltage motor drives
- Industrial variable speed drive systems (VSD)
- Power converters and inverter systems
- HVDC transmission systems
- Renewable energy conversion systems
- Heavy industries such as steel, mining, and cement
It is particularly suitable for high-power and high-reliability applications.
Installation and System Integration
For optimal performance, the module should be installed as follows:
- Mounted on suitable heatsink or cooling system
- Integrated with compatible IGCT gate driver units
- Installed within converter or inverter assemblies
- Proper thermal management ensured
- Electrical insulation and protection applied
Correct installation is essential for safe operation and long service life.
Compatible System Components
The 5SHX2645L0002 typically works with:
- ABB IGCT gate driver units
- Medium-voltage drive systems
- Power converter modules
- Cooling systems (air or liquid-based)
- Protection and monitoring circuits
These components together form a complete high-power control system.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 5SHX2645L0006 | IGCT Module | Enhanced switching capability | Advanced converters |
| 5SHX1445H0002 | IGCT Module | Compact high-power design | Drive systems |
| 5SHY2645L0002 | IGCT Module | Modular IGCT variant | Medium-voltage drives |
| 5SHX1060H0003 | IGCT Module | Smaller capacity | Medium-power systems |
| IGBT Modules | Power Semiconductor | Alternative technology | General applications |
Key Advantages
- High efficiency in power switching applications
- Fast switching with reduced energy loss
- High voltage and current handling capability
- Compact and lightweight design
- Strong reliability in harsh industrial environments
- Suitable for continuous heavy-duty operation
Technical FAQs
What is the main function of this module?
It performs high-power switching and control in industrial power electronic systems.
How does IGCT compare to IGBT?
IGCT modules typically provide higher power handling and lower conduction losses in high-voltage applications.
Where is it typically used?
It is commonly used in medium-voltage drives and industrial power conversion systems.
Conclusion
The ABB 5SHX2645L0002 (3BHB012961R0001) IGCT Module is a reliable and efficient solution for high-power industrial applications. With its fast switching performance, strong durability, and high efficiency, it plays a key role in modern power conversion and motor control systems.
