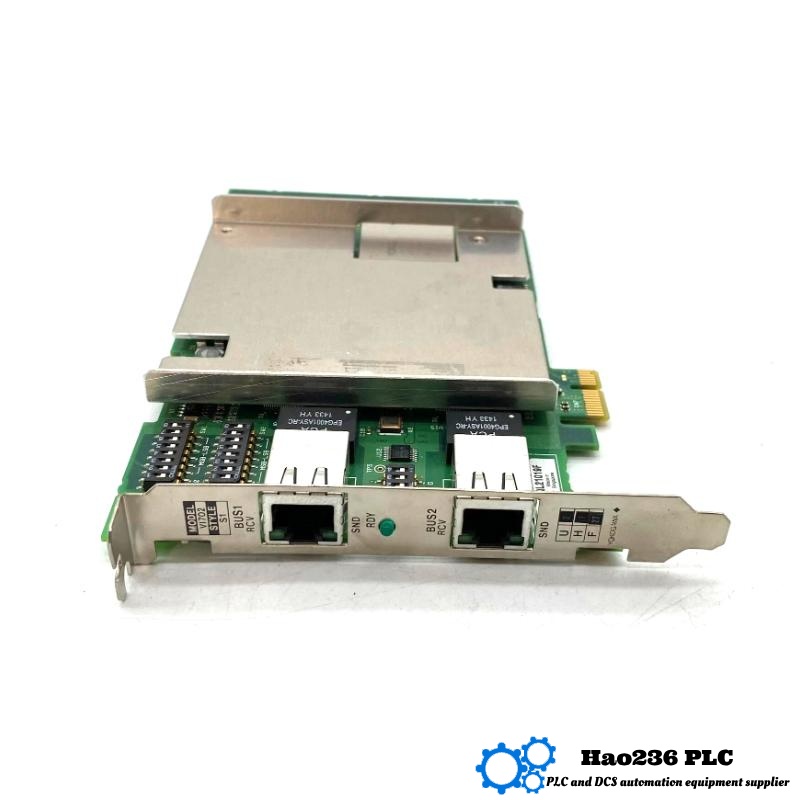

📘 Product Overview – Yokogawa VI702
The VI702 is a high-performance Vnet/IP Interface Card designed for use in Yokogawa’s CENTUM VP distributed control systems. It enables reliable and fast Ethernet communication between host computers or control units and the Vnet/IP control network, playing a critical role in data transfer and system integration.
This module is designed to be installed in a PCI Express (PCIe) slot of a PC or controller, offering a 1 Gbps full-duplex communication speed using standard RJ45 Ethernet connectors. The VI702 simplifies complex network integration tasks while maintaining robust industrial standards for environmental conditions, power supply, and data reliability.
🔧 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | VI702 |
| Product Type | Vnet/IP Network Interface Card |
| Network Interface | RJ45 Ethernet, 1000BASE-T, CAT5e Cable |
| Communication Speed | 1 Gbps Full Duplex |
| Interface Standard | PCI Express Rev. 1.0a, x1 Link |
| Slot Compatibility | PCIe x1/x4/x8/x16 (Not PCI) |
| Power Supply | 3.3 V DC ±9% |
| Maximum Current | 2.5 A |
| Indicators | LED: RDY (Ready), RCV (Receive), SND (Send) |
| Maximum Distance to Switch | 100 meters |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95%, Non-condensing |
| Dimensions (W×L×H) | 111.15 mm × 167.65 mm × 21.6 mm |
| Weight | 0.18 kg |
| Compliance | Meets industrial EMC and vibration standards |
🏭 Applications
-
Integrating PC-based controllers with Yokogawa’s Vnet/IP-based systems
-
Industrial process control networks requiring high-speed Ethernet
-
Real-time data communication between CENTUM VP operator stations and field devices
-
Expanding control architecture with modular and scalable communication
-
Replacing outdated or legacy network interface modules with gigabit-capable hardware
✅ Advantages
-
Gigabit Ethernet Communication: Ensures ultra-fast and stable data exchange across systems
-
LED Status Indicators: Provide immediate diagnostics on data transfer and device readiness
-
Standardized Interface: Works with regular CAT5e cables and standard PCIe slots
-
Compact & Lightweight: Fits into most industrial computers and embedded controllers
-
Industrial Grade Design: Withstands wide temperature and humidity ranges
-
Easy Integration: Seamlessly connects to existing Vnet/IP-based DCS architectures
🏷️ Brand and Series Information
🔁 Related Models – Same Series or Function
| Model | Function Description | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| VI701 | Legacy Vnet/IP interface card | 111 × 168 × 22 | 0.18 | Predecessor to VI702 |
| VI451-10 | High-speed analog input module | 220 × 110 × 40 | 1.2 | Suitable for signal acquisition |
| VC401-10 | Vnet/IP communication coupler | 100 × 68 × 26 | 0.20 | Used for bus coupling |
| SCP451-53 | Analog output module (Safety Systems) | 123 × 122 × 100 | 1.5 | Certified for safety control loops |
| SSB401-53 | Bus interface slave module | 110 × 23 × 100 | 0.20 | Compact ESB interface solution |
🌟 Popular Models from Same Brand
| Model | Function / Purpose | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|---|
| SEC401-51 | Digital input module | 123 × 30 × 100 | 0.18 | Handles multiple status signals |
| SPW482-53 | Dual power output module | 99 × 22.5 × 114 | 0.34 | Provides redundant DC power |
| SCP451-11 | Safety controller module | 123 × 122 × 100 | 1.2 | Controls SIL-rated safety loops |
| ADV151-P00 | Digital output module | 123 × 122 × 100 | 0.9 | Controls digital devices and relays |
| VI702 | Vnet/IP interface module | 111 × 168 × 21.6 | 0.18 | High-speed network integration |
❓ FAQ (Q&A Format)
Q1: What does the VI702 module do?
A1: It acts as an Ethernet communication interface, connecting a PC or controller to a Vnet/IP industrial network.
Q2: What kind of slot does the VI702 require?
A2: A PCI Express slot (x1 to x16). It does not work in a standard PCI slot.
Q3: Can it handle long cable distances?
A3: Yes, it supports up to 100 meters of CAT5e Ethernet cable.
Q4: Is it hot-swappable?
A4: No. It must be installed and powered off during setup or removal.
Q5: What operating conditions does it support?
A5: It can operate between -20°C and +70°C, with humidity from 5% to 95%.
Q6: How can I tell if it’s working properly?
A6: LED indicators show “Ready”, “Receive”, and “Send” statuses for diagnostics.
Q7: What is the weight and size of the VI702?
A7: It weighs approximately 0.18 kg and measures 111.15 mm x 167.65 mm x 21.6 mm.
Q8: Does it require external power?
A8: No, it receives power directly from the PCIe slot at 3.3V.
Q9: Is it backward compatible with VI701?
A9: Yes, in most systems where VI701 is used, VI702 can serve as a replacement.
Q10: What systems is it mainly used with?
A10: It’s primarily used with Yokogawa’s CENTUM VP systems or other compatible Vnet/IP architectures.
