Product Overview: Yokogawa SSC50D-F2121
Brand: Yokogawa
Series: Yokogawa SSC Series
Product Introduction:

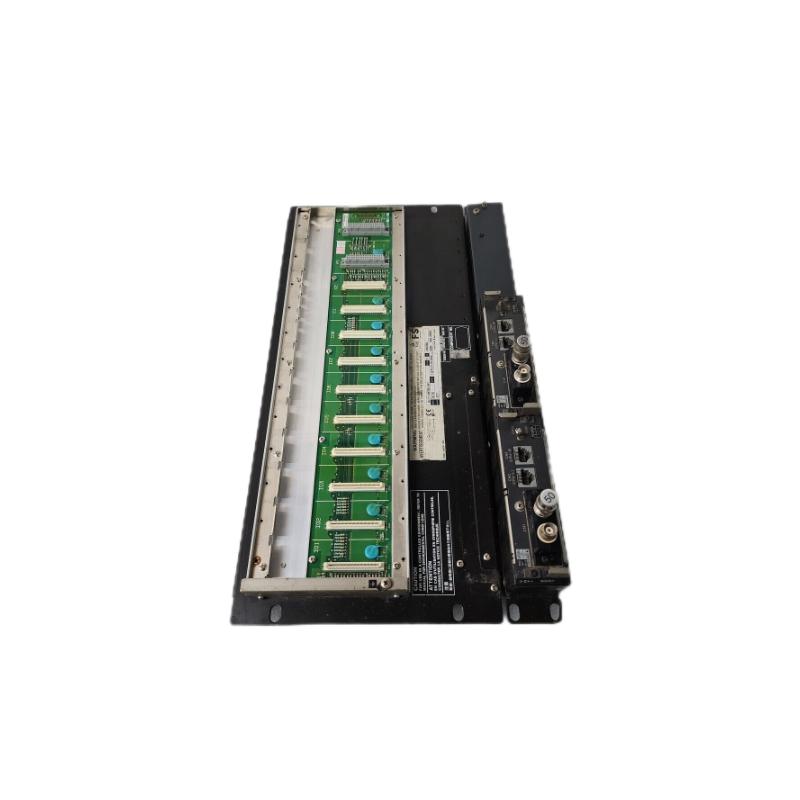

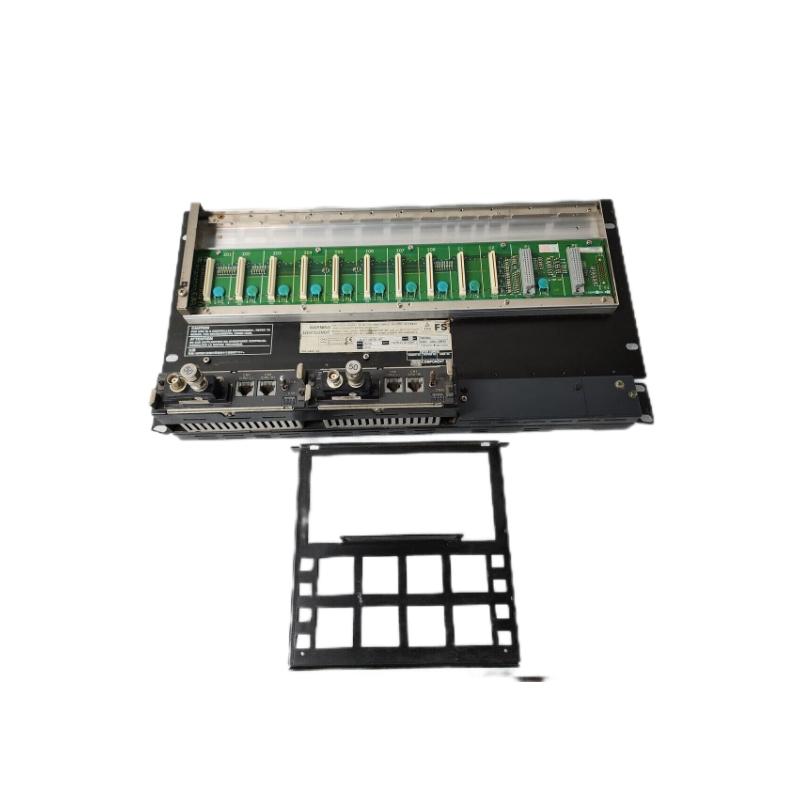

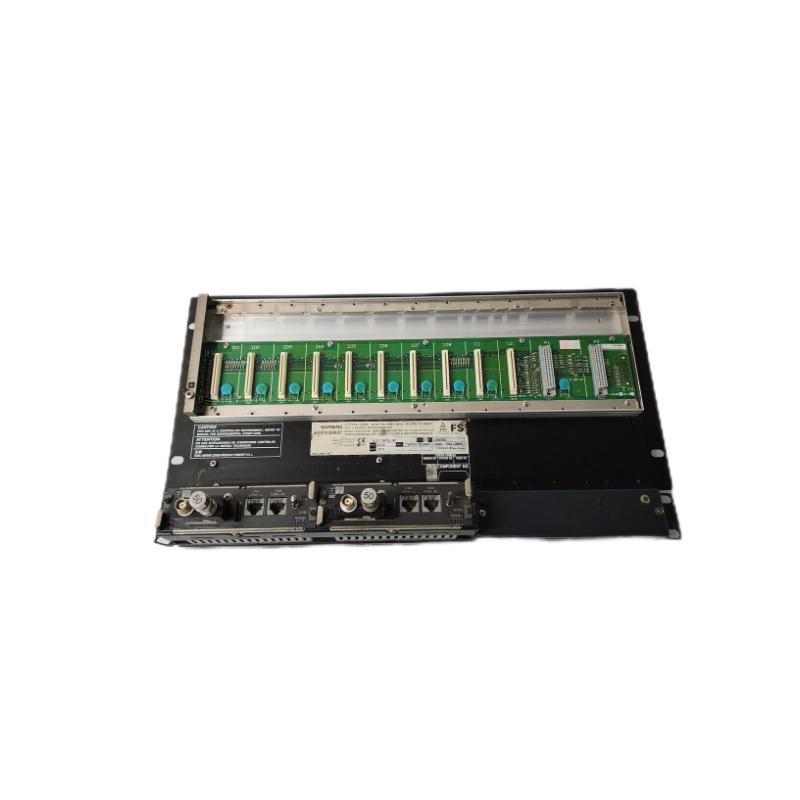

The Yokogawa SSC50D-F2121 is an advanced signal conditioning module from the Yokogawa SSC series. Designed to handle demanding industrial environments, this model offers high-precision signal processing capabilities. It is built to convert and condition input signals from various industrial sensors and transducers, ensuring compatibility with control systems for accurate and efficient operation. With its versatile input/output capabilities, compact design, and robust performance, the SSC50D-F2121 is ideal for applications in industrial automation, process control, and measurement systems, enhancing overall system performance and reliability.
Applications:
-
Industrial Automation: Ideal for signal conditioning in automated processes, ensuring precise and reliable data transmission from sensors to control systems.
-
Process Control: Used in critical applications where maintaining process parameters like pressure, flow, and temperature is essential.
-
Measurement Systems: Converts raw sensor signals into usable data, aiding in accurate monitoring and control of various parameters.
-
Test Systems: Provides reliable signal conditioning for equipment used in testing and calibration, ensuring the quality and consistency of measurements.
Product Advantages:
-
High-Precision Signal Processing: Ensures accurate signal conversion with minimal distortion, making it perfect for applications that require high data integrity.
-
Wide Compatibility: Compatible with a variety of input signals from different sensor types, including 4-20 mA, 0-10 V, and thermocouple inputs.
-
Durability and Reliability: Designed to withstand challenging industrial conditions, the model offers long-lasting performance in harsh environments.
-
Compact Form Factor: Its small size allows it to be easily integrated into control systems, even in spaces with limited room.
-
Ease of Integration: Simple to integrate with existing control systems, offering minimal setup time and high flexibility.
Technical Specifications:
| Parameter | Details |
|---|---|
| Model | SSC50D-F2121 |
| Dimensions (L x W x H) | 150mm x 100mm x 60mm |
| Weight | 0.5 kg |
| Input Voltage | 24 VDC |
| Signal Range | 4-20 mA, 0-10 V, Thermocouple |
| Power Consumption | 8 W |
| Temperature Range | -20°C to 70°C |
| Output Type | Analog (4-20 mA, 0-10 V) |
| Communication Interface | RS-485, Modbus RTU |
| Certification | CE, UL, RoHS |
Recommended Models from the Same Series:
| Model | Parameters |
|---|---|
| SSC50D-F2122 | Input Voltage: 24 VDC, Weight: 0.6 kg, Dimensions: 155mm x 105mm x 65mm |
| SSC50D-F2130 | Input Voltage: 24 VDC, Weight: 0.55 kg, Dimensions: 150mm x 100mm x 60mm |
| SSC50D-F2110 | Input Voltage: 24 VDC, Weight: 0.5 kg, Dimensions: 145mm x 95mm x 55mm |
| SSC50D-F2200 | Input Voltage: 24 VDC, Weight: 0.5 kg, Dimensions: 150mm x 100mm x 60mm |
| SSC50D-F2300 | Input Voltage: 24 VDC, Weight: 0.5 kg, Dimensions: 150mm x 100mm x 60mm |
