✅ Yokogawa NFCP502-W15 – Full Product Overview (Offline Mode)
📌 Brand & Series
-
Brand: Yokogawa
-
Series: STARDOM FCN Series
-
Product Type: CPU Processing Module
📦 Product Introduction

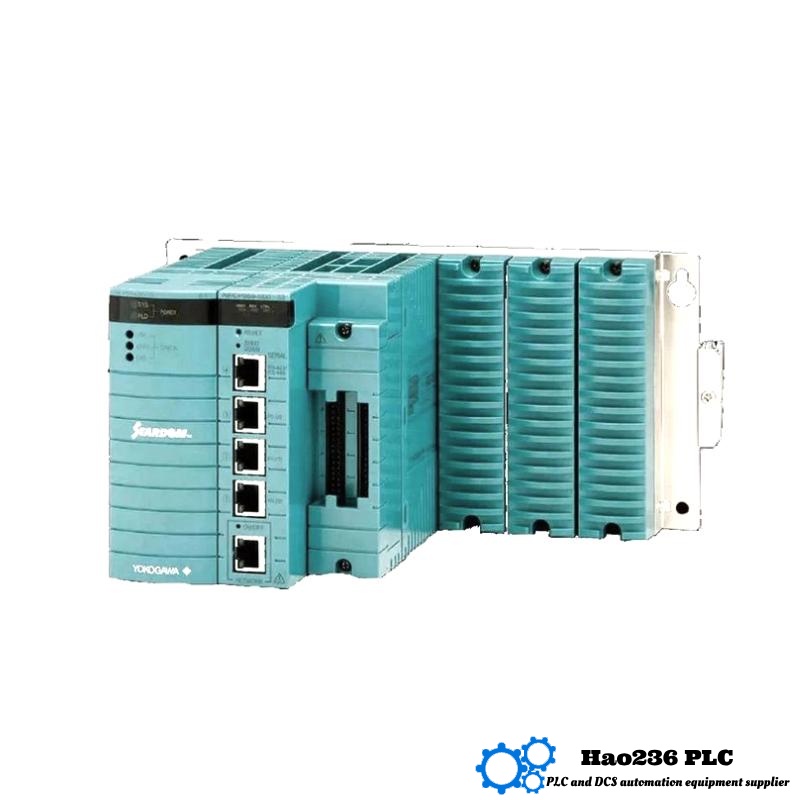

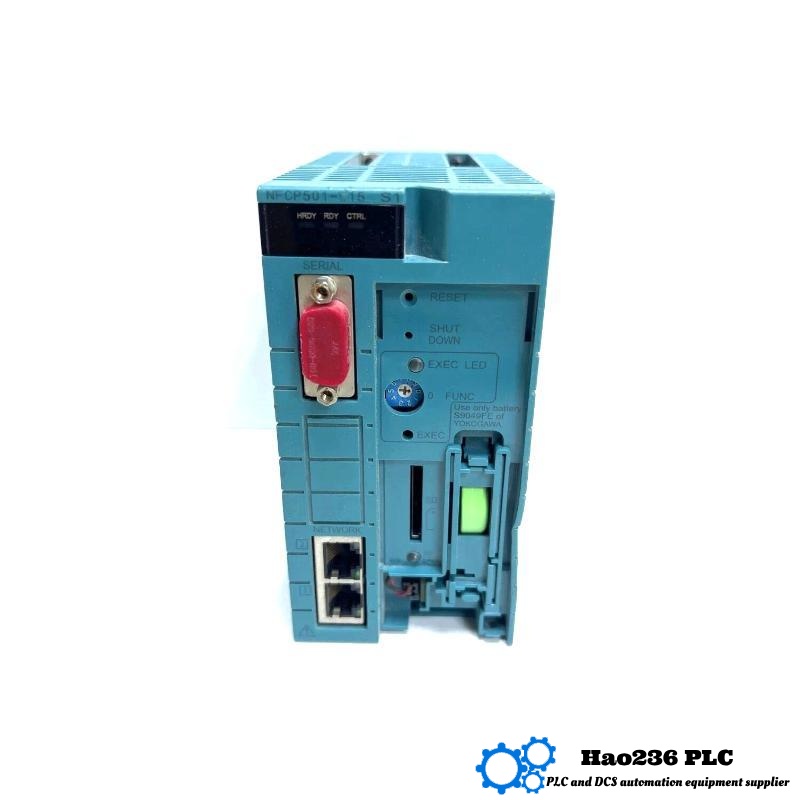

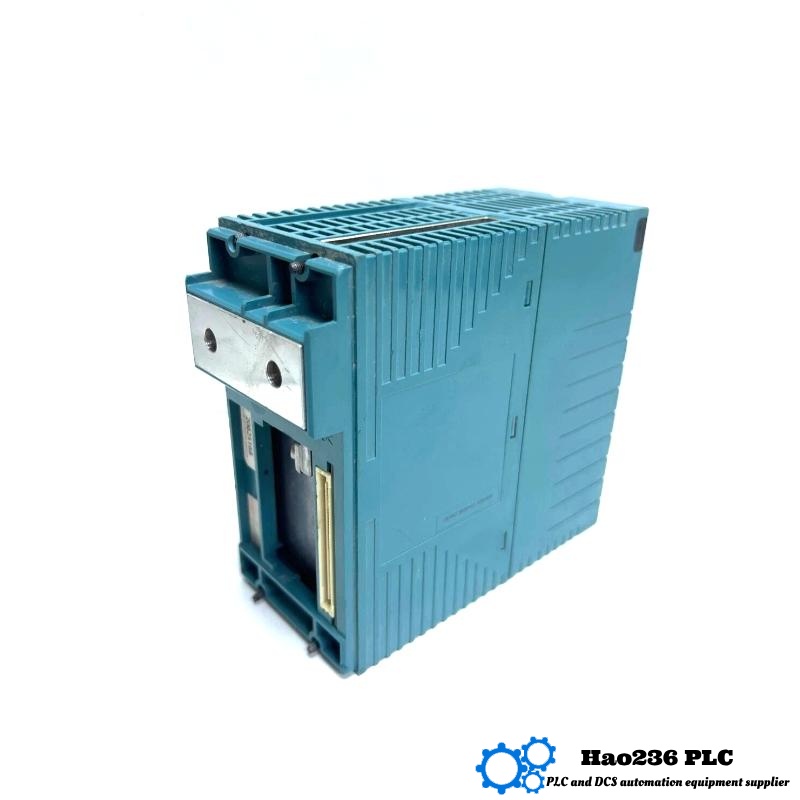

The Yokogawa NFCP502-W15 is a high-performance CPU module used in the STARDOM autonomous controller family. Designed to function as a core processor in distributed control systems (DCS), it integrates processing capabilities with flexible communication and field interface support.
This model is suitable for various applications across industries like oil & gas, petrochemical, power generation, water treatment, and other process automation systems. With four Ethernet ports and multiple memory protection features, the module ensures robust and reliable control in even the harshest environments.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NFCP502-W15 |
| CPU Type | Intel Atom E3815 (approx. 1.46 GHz) |
| Main RAM | 256 MB ECC-protected |
| Static RAM | 2 MB (Battery-backed) |
| Internal Flash | 1 GB |
| SD Card Slot | Yes (supports SDHC, 4–32 GB) |
| Ethernet Ports | 4 × 10/100 Mbps RJ45 |
| Serial Port | 1 × RS-232C |
| Power Supply | 24 V DC (nominal) |
| Redundancy Support | Yes (duplex operation supported) |
| Operating Temperature | –40°C to +70°C |
| Dimensions (W×H×D) | 65.8 mm × 130 mm × 149.3 mm |
| Weight | 0.3 kg |
| Mounting Type | DIN Rail or Panel Mount |
| Environmental Rating | Industrial Grade |
| Status Indicators | LED indicators for module and network status |
🧩 Applications
-
Distributed Process Control (DCS)
-
SCADA-based Automation
-
Water & Wastewater Treatment Plants
-
Remote Oil/Gas Monitoring Stations
-
Power Substation Automation
-
Environmental Monitoring Systems
-
Industrial IoT Edge Computing
🌟 Key Advantages
-
Robust Performance: Intel Atom CPU with high-speed processing ensures low-latency control.
-
High Availability: Supports redundancy and battery-backed RAM for critical applications.
-
Flexible Communication: Four Ethernet ports for segmented or redundant networking.
-
Field-Friendly: Wide temperature tolerance makes it ideal for field installation.
-
Compact & Lightweight: Saves cabinet space and simplifies installation.
🔁 5 Related Models from Same Series
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| NFCP502-W05 | Lower model, fewer comms options | 65.8 × 130 × 149.3 | 0.3 |
| NFCP502-S15 | Standard-grade model without wide-temp support | 65.8 × 130 × 149.3 | 0.3 |
| NFCP501-W15 | Entry-level FCN CPU module | 65.8 × 130 × 149.3 | 0.25 |
| NFCP502-W06 | Variant for mid-range applications | 65.8 × 130 × 149.3 | 0.3 |
| NFCP503-W15 | High-end with extended memory and I/O support | 65.8 × 130 × 149.3 | 0.35 |
🔝 5 Popular Models from the Same Brand
| Model | Function Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| ADV151-P63 | Digital Input Module (32 ch) | 140 × 130 × 100 | 0.3 |
| ADV551-P63 | Digital Output Module (32 ch) | 140 × 130 × 100 | 0.3 |
| AAI143-S50 | Analog Input Module | 140 × 130 × 100 | 0.35 |
| ANB10D-415 | Communication Interface | 150 × 130 × 110 | 0.6 |
| ALP121-S00 | PROFIBUS-DP Communication | 140 × 130 × 90 | 0.3 |
❓ FAQ – 10 Common Questions
Q1: What makes the NFCP502-W15 suitable for harsh environments?
A1: Its wide operating temperature range (–40°C to +70°C) and industrial-grade components make it ideal for harsh or remote installations.
Q2: Does this model support redundant system configurations?
A2: Yes. The NFCP502-W15 can be used in duplex mode for system redundancy.
Q3: How is memory protected in this module?
A3: The module uses ECC RAM for automatic error correction and battery-backed static RAM to retain critical data.
Q4: How many network interfaces does it have?
A4: It includes 4 independent Ethernet ports (RJ45), supporting multiple segmented networks or redundancy.
Q5: Can I store data externally on this unit?
A5: Yes, it supports SDHC memory cards (4–32 GB) for external storage and logging.
Q6: What is the typical use case for this CPU module?
A6: It serves as the central controller in remote process automation, especially in oil/gas, water treatment, and manufacturing.
Q7: What voltage is required to power this unit?
A7: The CPU operates at a nominal 24 V DC input.
Q8: What’s the difference between NFCP502-W15 and NFCP501-W15?
A8: NFCP502 typically offers more network ports and higher data handling capacity than NFCP501.
Q9: How do I mount this module?
A9: It can be DIN rail or panel-mounted within a standard control cabinet.
Q10: Is this CPU compatible with other Yokogawa FCN series modules?
A10: Yes, it is fully compatible with other I/O and communication modules within the FCN STARDOM series.
