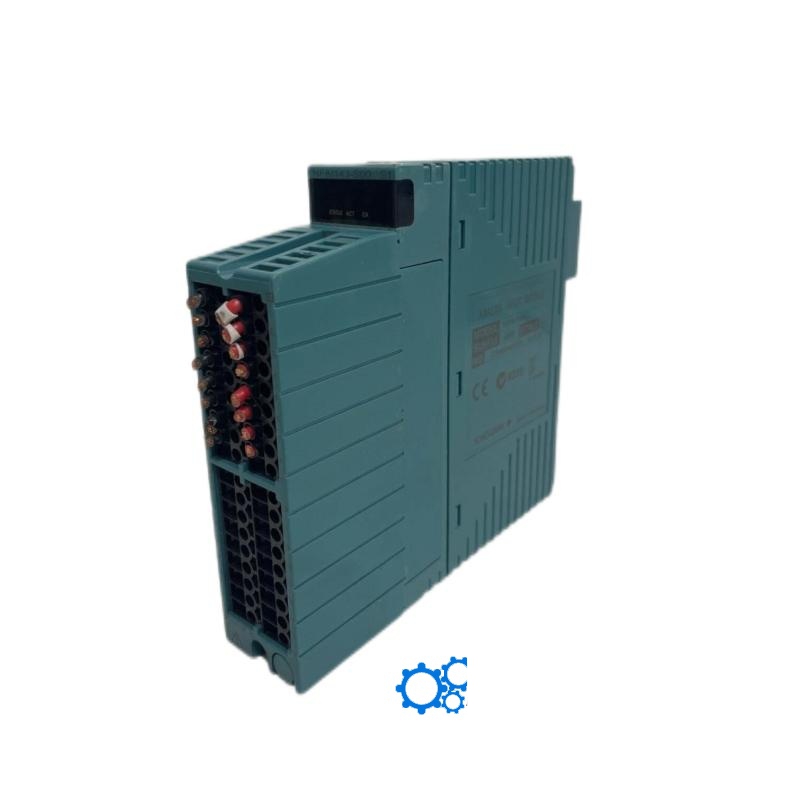

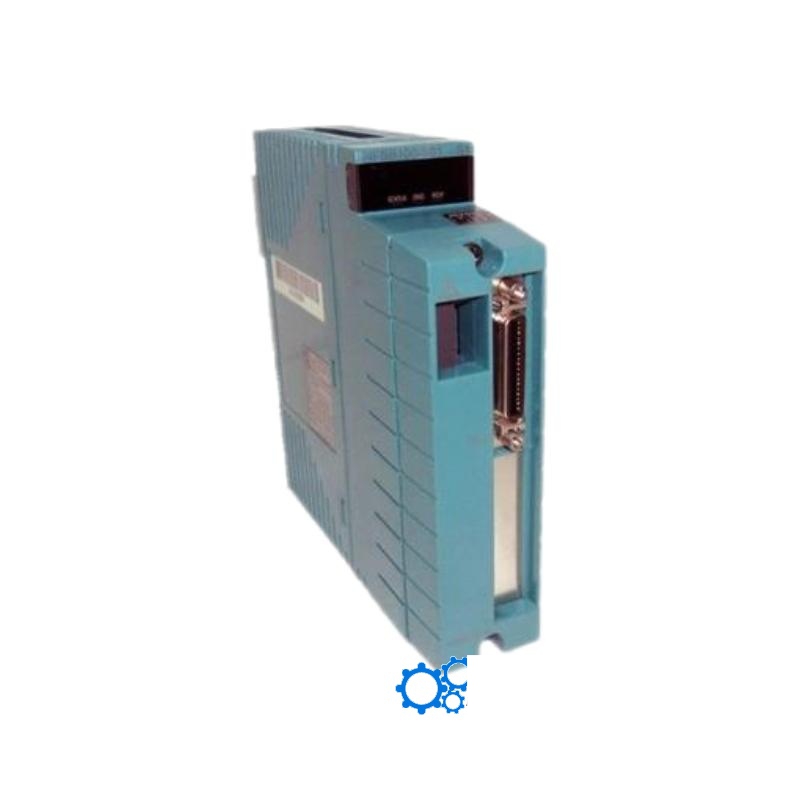

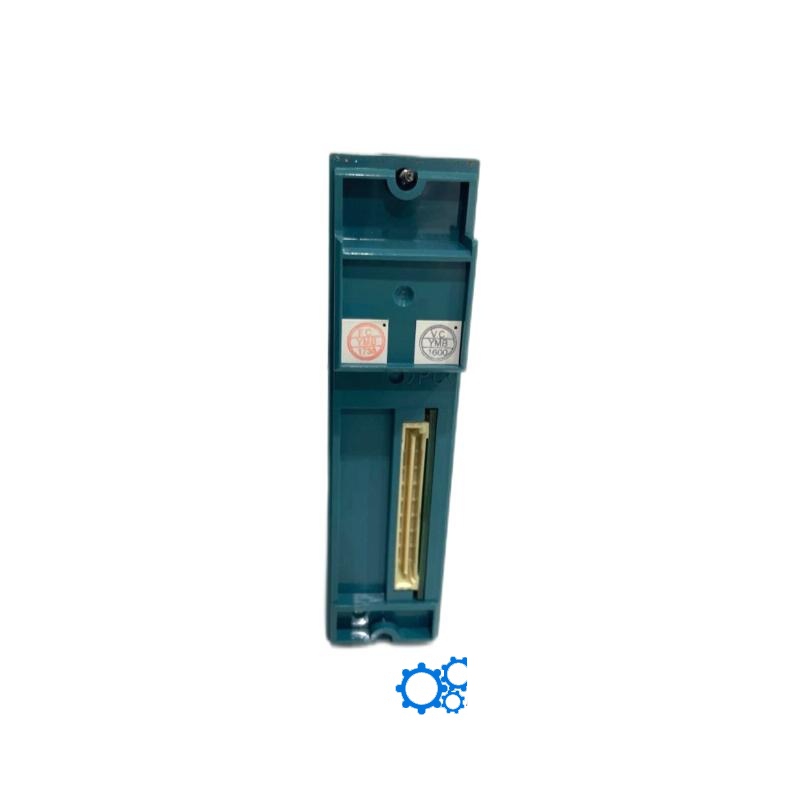

Yokogawa NFAF135-S00 Frequency Input Module
Product Overview
The Yokogawa NFAF135-S00 is a high-precision 8-channel frequency input module designed for integration with Yokogawa’s STARDOM FCN/FCJ controllers. It accurately measures frequencies ranging from 0.1 Hz to 10 kHz with a precision of ±0.1% of the reading. The module supports various input signal types, including contact ON/OFF and voltage pulses, making it suitable for diverse industrial applications such as wind power generation, solar power systems, water treatment plants, factory automation, and process control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NFAF135-S00 |
| Input Channels | 8 isolated channels |
| Frequency Range | 0.1 Hz to 10 kHz |
| Frequency Accuracy | ±0.1% of reading |
| Input Signal Types | Contact ON/OFF, voltage pulse |
| Minimum Input Pulse Width | 40 μs |
| Input Signal Level | VH: 3–24 V DC, VL: –1 to 8 V DC |
| Signal Source Resistance | ≤1 kΩ |
| Shunt Resistance | OFF/1000 Ω |
| Pull-up Resistance | 68 kΩ (12 V DC or 24 V DC) |
| Data Refresh Cycle | 10 ms |
| Power Supply | Selectable 24 V DC/12 V DC |
| Withstanding Voltage | 500 V AC for 1 minute (input/system) |
| Dimensions | 130 x 107.5 x 32.8 mm |
| Weight | 0.3 kg |
Applications
-
Wind Power Generation: Monitoring turbine rotation speeds for efficient energy production.
-
Solar Power Systems: Ensuring optimal inverter performance through frequency monitoring.
-
Water Treatment Plants: Controlling pump and motor frequencies for effective water management.
-
Factory Automation: Monitoring machinery speeds to maintain production quality.
-
Process Control Systems: Providing precise frequency measurements for critical process control.
Key Advantages
-
High Precision: Offers ±0.1% accuracy for reliable frequency measurements.
-
Versatile Input Support: Handles various signal types, including contact and voltage pulses.
-
Isolated Channels: Each input channel is electrically isolated, enhancing noise immunity.
-
Compact Design: Space-saving dimensions facilitate easy integration into control panels.
-
Robust Performance: Operates effectively in demanding industrial environments.
Brand Information
Yokogawa Electric Corporation is a global leader in industrial automation and control solutions. With a commitment to innovation and quality, Yokogawa provides a wide range of products and services designed to optimize operational efficiency and ensure safety across various industries.
Related Models
| Model | Description |
|---|---|
| NFAF135-S01 | Frequency Input Module with enhanced features |
| NFAF135-S02 | Frequency Input Module with extended range |
| NFAF135-S03 | Frequency Input Module with additional diagnostics |
| NFAF135-S04 | Frequency Input Module with advanced filtering |
| NFAF135-S05 | Frequency Input Module with high-speed processing |
Popular Yokogawa Modules
| Model | Type | Channels | Application |
|---|---|---|---|
| NFAI135-S00 | Analog Input | 16 | Temperature, Pressure Monitoring |
| NFAO135-S00 | Analog Output | 4 | Actuator Control |
| NFDI135-S00 | Digital Input | 16 | Equipment Status Monitoring |
| NFDI135-S50 | Digital Input | 16 | Emergency Shutdown Systems |
| NFAI141-S00 | Analog Input | 8 | pH, ORP, Conductivity Monitoring |
Frequently Asked Questions (FAQ)
Q1: What types of input signals does the NFAF135-S00 support?
A1: It supports contact ON/OFF signals and voltage pulses (rectangular wave).
Q2: What is the frequency measurement range of the module?
A2: The module measures frequencies from 0.1 Hz to 10 kHz.
Q3: How many input channels are available?
A3: There are 8 isolated input channels.
Q4: What is the accuracy of frequency measurements?
A4: The module offers an accuracy of ±0.1% of the reading.
Q5: Can the module operate in high-noise environments?
A5: Yes, the isolated channels enhance noise immunity, making it suitable for such environments.
Q6: What are the dimensions and weight of the module?
A6: It measures 130 x 107.5 x 32.8 mm and weighs 0.3 kg.
Q7: Is the module compatible with other Yokogawa systems?
A7: Yes, it integrates seamlessly with Yokogawa’s STARDOM FCN/FCJ controllers.
Q8: What is the minimum input pulse width the module can detect?
A8: The module can detect pulse widths as short as 40 μs.
Q9: Does the module support both 12 V DC and 24 V DC power supplies?
A9: Yes, it can operate with either 12 V DC or 24 V DC field power supplies.
Q10: What is the data refresh cycle of the module?
A10: The data refresh cycle is 10 ms.
