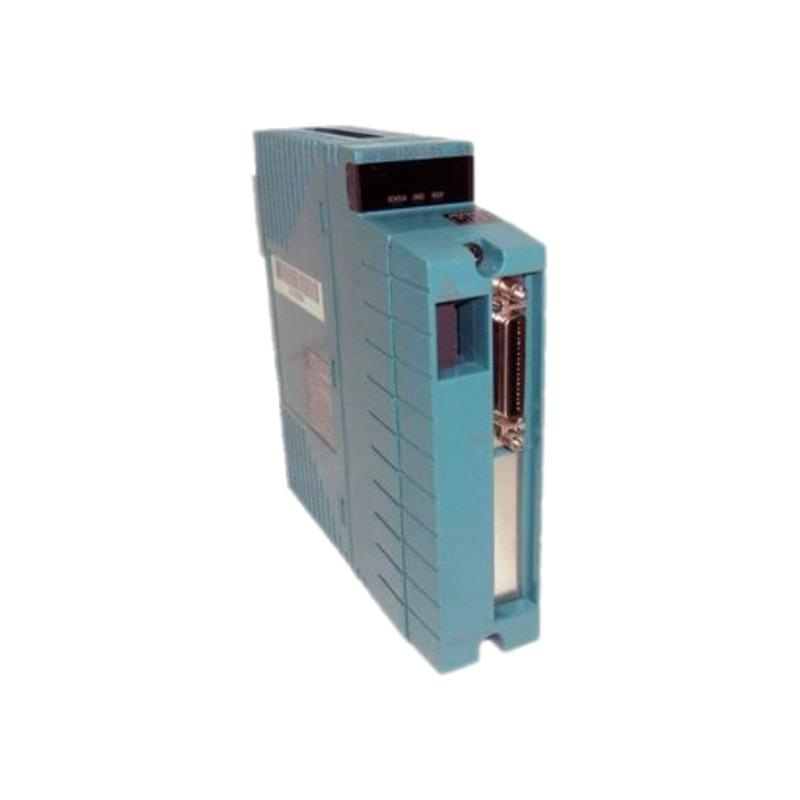

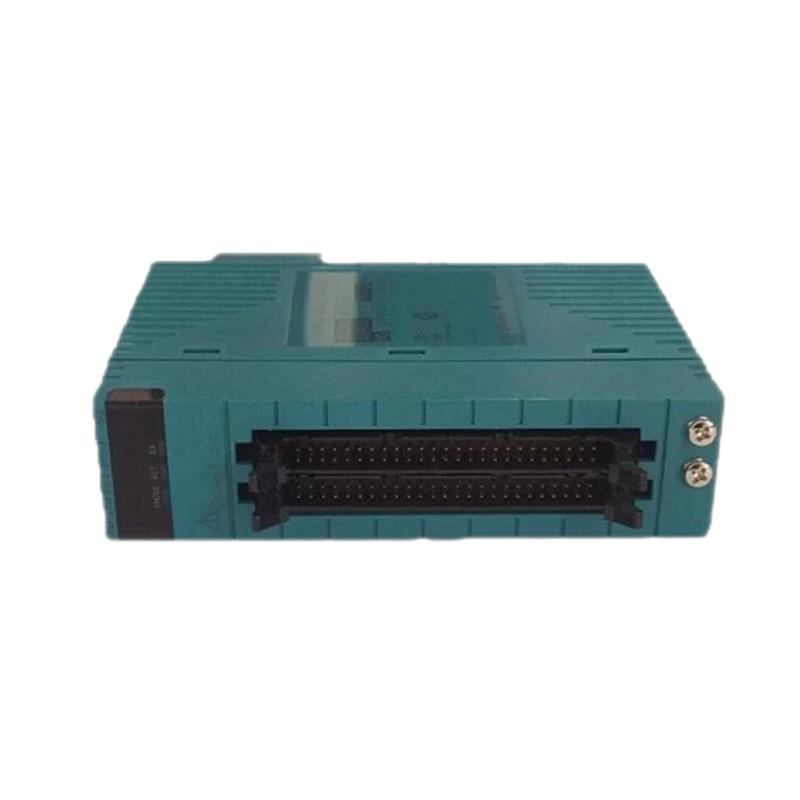

Product Overview: Yokogawa NFAF135-S00
Brand: Yokogawa
Series: Yokogawa NFA Series
Product Introduction:
The Yokogawa NFAF135-S00 is an advanced signal analyzer that is part of the Yokogawa NFA Series, known for its precision, reliability, and versatility in electrical measurement and analysis. This model is specifically designed for monitoring and analyzing power quality in industrial systems, ensuring the efficient operation of electrical equipment by providing accurate data on parameters such as voltage, current, frequency, power, and harmonics. With its high-precision capabilities and fast data acquisition, the NFAF135-S00 is well-suited for industries requiring high-performance power monitoring, process control, and energy management.
This model excels in environments where real-time monitoring is critical, offering detailed insights into electrical systems to prevent downtime, optimize performance, and ensure compliance with international power quality standards. The NFAF135-S00 integrates easily into both existing and new systems, delivering reliable results under demanding industrial conditions.
Applications:
-
Power Quality Monitoring: The NFAF135-S00 is ideal for monitoring electrical systems in industries such as manufacturing, energy, and utilities, ensuring consistent power quality and minimizing the risk of operational disruptions.
-
Energy Management: Used in energy management systems to provide real-time data for tracking energy consumption, optimizing usage, and improving system efficiency.
-
Process Control Systems: Provides accurate power quality data, supporting optimal control of electrical parameters in critical processes.
-
Predictive Maintenance: Assists in predictive maintenance by offering early detection of power quality issues, preventing potential failures and reducing unplanned downtime.
-
Compliance with Standards: Ensures compliance with local and international power quality standards, offering detailed reports for audits and inspections.
Product Advantages:
-
High Precision Measurement: Delivers highly accurate measurements of electrical parameters such as voltage, current, and power, enabling precise monitoring of system performance.
-
Comprehensive Power Quality Analysis: Capable of analyzing a wide range of electrical parameters simultaneously, including harmonics, voltage, frequency, and power, providing a comprehensive view of system health.
-
Real-time Data Acquisition: Offers fast data acquisition and real-time analysis, enabling quick decision-making and immediate adjustments to maintain optimal system performance.
-
Rugged Design for Industrial Use: Built to withstand harsh industrial conditions, including extreme temperatures and electromagnetic interference, ensuring reliable operation in demanding environments.
-
Seamless Integration: Easily integrates into existing industrial systems, offering a plug-and-play solution for energy management and power quality monitoring.
Technical Specifications:
| Parameter | Details |
|---|---|
| Model | NFAF135-S00 |
| Dimensions (L x W x H) | 180mm x 160mm x 130mm |
| Weight | 1.5 kg |
| Input Voltage | 100-240 VAC |
| Power Consumption | 25 W |
| Measurement Range | Voltage: 0-600 V, Current: 0-100 A |
| Accuracy | ±0.5% of reading |
| Temperature Range | -10°C to 50°C |
| Communication Interface | Modbus RTU, Ethernet |
| Output Type | Analog, Digital |
| Certification | CE, UL, RoHS |
Recommended Models from the Same Series:
| Model | Parameters |
|---|---|
| NFAF135-S01 | Input Voltage: 100-240 VAC, Weight: 1.6 kg, Dimensions: 180mm x 160mm x 130mm |
| NFAF135-S02 | Input Voltage: 100-240 VAC, Weight: 1.7 kg, Dimensions: 185mm x 165mm x 135mm |
| NFAF135-S03 | Input Voltage: 100-240 VAC, Weight: 1.8 kg, Dimensions: 190mm x 170mm x 140mm |
| NFAF135-S04 | Input Voltage: 100-240 VAC, Weight: 1.6 kg, Dimensions: 185mm x 160mm x 130mm |
| NFAF135-S05 | Input Voltage: 100-240 VAC, Weight: 1.5 kg, Dimensions: 180mm x 160mm x 130mm |
