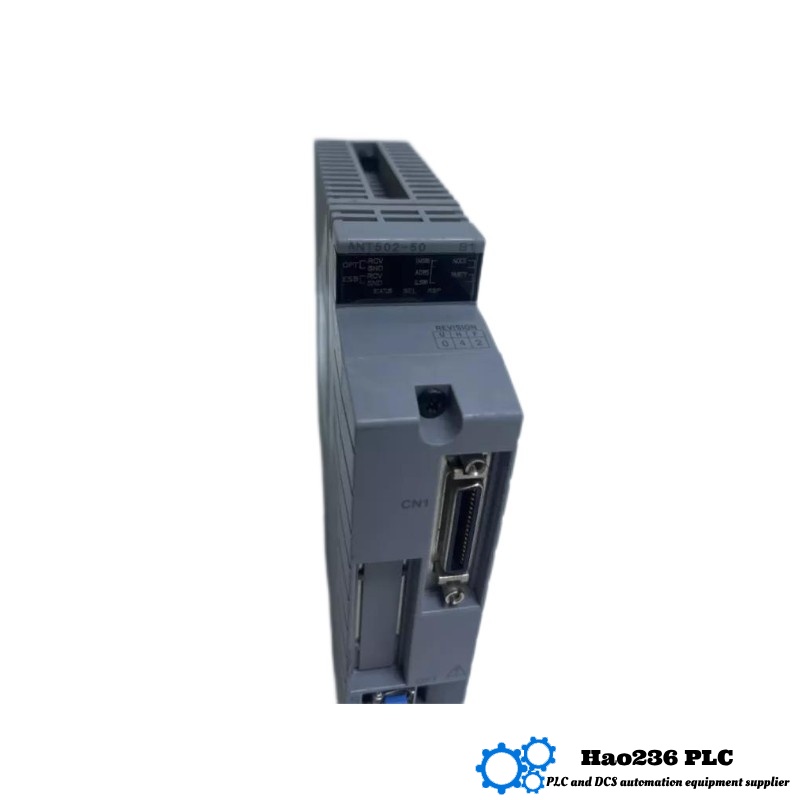

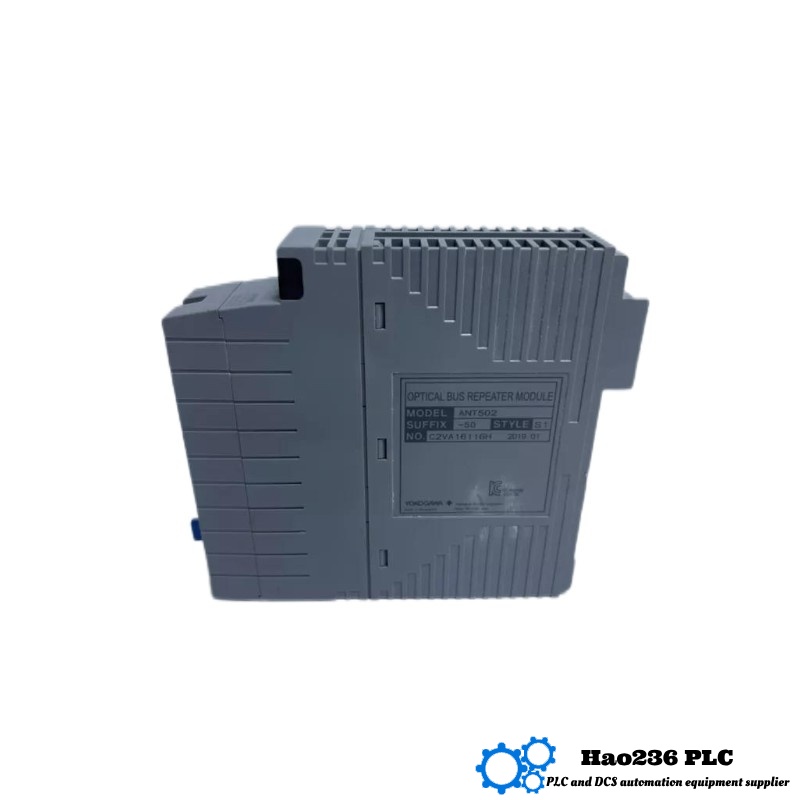

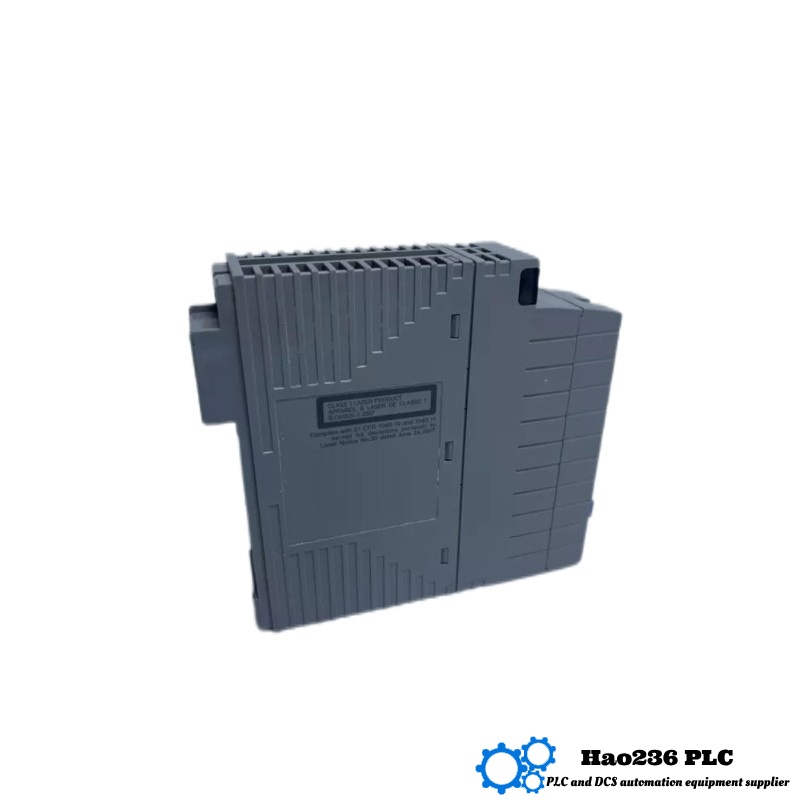

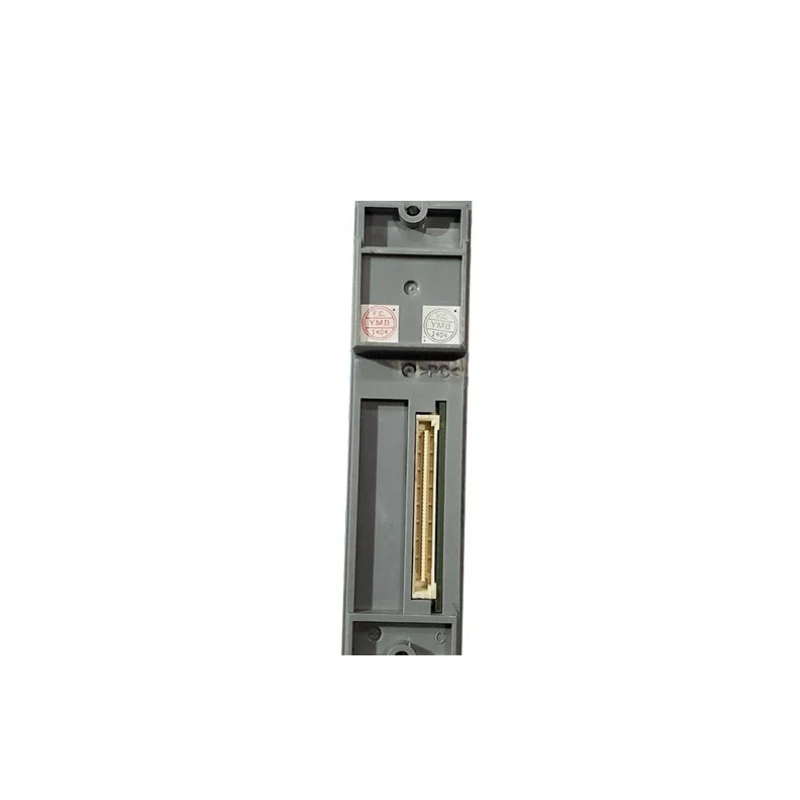

Yokogawa ANT502-50 Optical Bus Slave Module
Product Description:
The Yokogawa ANT502-50 is a high-performance optical bus slave module designed to be integrated within optical bus networks for industrial automation applications. This module is an essential part of an optical communication system, functioning as the slave unit that communicates with a master module to transfer data over long distances without the signal degradation typically seen with electrical transmission. Its compact and robust design (155.9 × 32.8 × 130 mm) ensures reliable signal regeneration and transmission in demanding industrial environments. With a weight of just 0.25 kg, the ANT502-50 is an ideal choice for integrating into existing systems where space and weight constraints are critical.
This module uses optical communication to extend data transmission distances and enhance the overall efficiency of the control system. It is designed for use in applications where high-speed data transfer and signal integrity are paramount.
Specifications:
| Parameter | Value |
|---|---|
| Dimensions | 155.9 × 32.8 × 130 mm |
| Weight | 0.25 kg |
| Input/Output | 1 x Optical In, 1 x Optical Out |
| Communication Protocol | Optical Bus |
| Power Supply | 24V DC |
| Operating Temperature | -10°C to 60°C |
| Isolation | 1500V DC |
Applications:
The Yokogawa ANT502-50 optical bus slave module is designed for integration in a wide range of industrial and control applications. Its primary use is to facilitate reliable data transmission over long distances. The module can be used in:
-
Industrial Automation Systems: Perfect for SCADA systems, process control, and remote monitoring where reliable data transmission is essential.
-
Remote Monitoring: The ANT502-50 is ideal for monitoring and control applications spread across large industrial sites, providing seamless communication between remote devices and central systems.
-
Data Acquisition Systems: Extending the range and reliability of data transfer in systems that require high-quality signal regeneration.
-
Telecommunications Networks: For use in optical data communication networks, where long-distance signal transmission and regeneration are crucial.
Advantages:
-
Signal Regeneration: The ANT502-50 helps in regenerating optical signals, extending the communication distance without any signal degradation, making it ideal for long-distance transmission.
-
Compact and Lightweight Design: With dimensions of 155.9 × 32.8 × 130 mm and a weight of only 0.25 kg, the module is designed to save space and integrate easily into existing systems without adding unnecessary bulk.
-
High Reliability: The optical communication method ensures robust and reliable transmission of data, which is especially beneficial in harsh industrial environments.
-
Versatile Power Supply: Powered by 24V DC, this module is flexible enough to integrate into various industrial control systems with different power configurations.
-
Electrical Isolation: The module provides 1500V DC isolation, which protects against electrical surges, ensuring safe operation in complex industrial setups.
Brand:
Yokogawa is a globally recognized leader in industrial automation and control systems. The company is known for its commitment to providing high-quality and reliable products that help optimize operations in industrial environments. The ANT502-50 optical bus slave module is part of Yokogawa’s extensive range of products designed to improve the efficiency and reliability of communication in automation systems.
Related Models (Same Series/Category):
| Model | Input/Output | Communication Protocol | Power Supply | Dimensions | Weight |
|---|---|---|---|---|---|
| ANT501-50 | 1 x Optical In, 1 x Optical Out | Optical Bus | 24V DC | 155.9 × 32.8 × 130 mm | 0.28 kg |
| ANT503-50 | 1 x Optical In, 1 x Optical Out | Optical Bus | 24V DC | 155.9 × 32.8 × 130 mm | 0.27 kg |
| ANT504-50 | 1 x Optical In, 1 x Optical Out | Optical Bus | 24V DC | 155.9 × 32.8 × 130 mm | 0.26 kg |
| ANT505-50 | 1 x Optical In, 1 x Optical Out | Optical Bus | 24V DC | 155.9 × 32.8 × 130 mm | 0.29 kg |
| ANT506-50 | 1 x Optical In, 1 x Optical Out | Optical Bus | 24V DC | 155.9 × 32.8 × 130 mm | 0.30 kg |
Popular Models from Yokogawa:
| Model | Input Channels | Input Type | Communication Protocol | Power Supply | Dimensions | Weight |
|---|---|---|---|---|---|---|
| ADV151-P60 | 6 | Voltage/Current | Modbus RTU | 24V DC | 120 × 90 × 60 mm | 0.45 kg |
| ADV161-P50 | 8 | Voltage/Current | Modbus RTU | 24V DC | 130 × 100 × 65 mm | 0.50 kg |
| ADV159-P01 | 4 | Voltage/Current | Modbus RTU | 24V DC | 115 × 95 × 58 mm | 0.40 kg |
| ADV150-P80 | 8 | Voltage/Current | Modbus RTU | 24V DC | 125 × 90 × 70 mm | 0.48 kg |
| ADV160-P70 | 10 | Voltage/Current | Modbus RTU | 24V DC | 135 × 110 × 75 mm | 0.55 kg |
FAQs (10 Q&A):
-
Q: What is the main function of the ANT502-50?
-
A: The ANT502-50 is an optical bus slave module designed to extend the communication range of optical bus systems by regenerating signals over long distances.
-
-
Q: What is the power supply requirement for the ANT502-50?
-
A: The ANT502-50 operates with a 24V DC power supply.
-
-
Q: How many input/output channels does the ANT502-50 support?
-
A: The module supports one optical input and one optical output.
-
-
Q: What is the operating temperature range of the ANT502-50?
-
A: The ANT502-50 operates in a temperature range of -10°C to 60°C.
-
-
Q: What is the isolation level of the ANT502-50?
-
A: The module provides 1500V DC isolation to protect against electrical surges.
-
-
Q: Can the ANT502-50 be used in harsh industrial environments?
-
A: Yes, the ANT502-50 is designed to operate reliably in industrial environments and withstand challenging conditions.
-
-
Q: What is the weight of the ANT502-50?
-
A: The ANT502-50 weighs 0.25 kg.
-
-
Q: What are the dimensions of the ANT502-50?
-
A: The module measures 155.9 × 32.8 × 130 mm.
-
-
Q: How does the ANT502-50 improve data transmission?
-
A: The ANT502-50 regenerates optical signals, allowing for reliable data transmission over extended distances with minimal loss.
-
-
Q: How is the ANT502-50 integrated into existing systems?
-
A: The ANT502-50 can be easily integrated into existing optical bus networks, enhancing communication between devices by extending the signal range.
-
