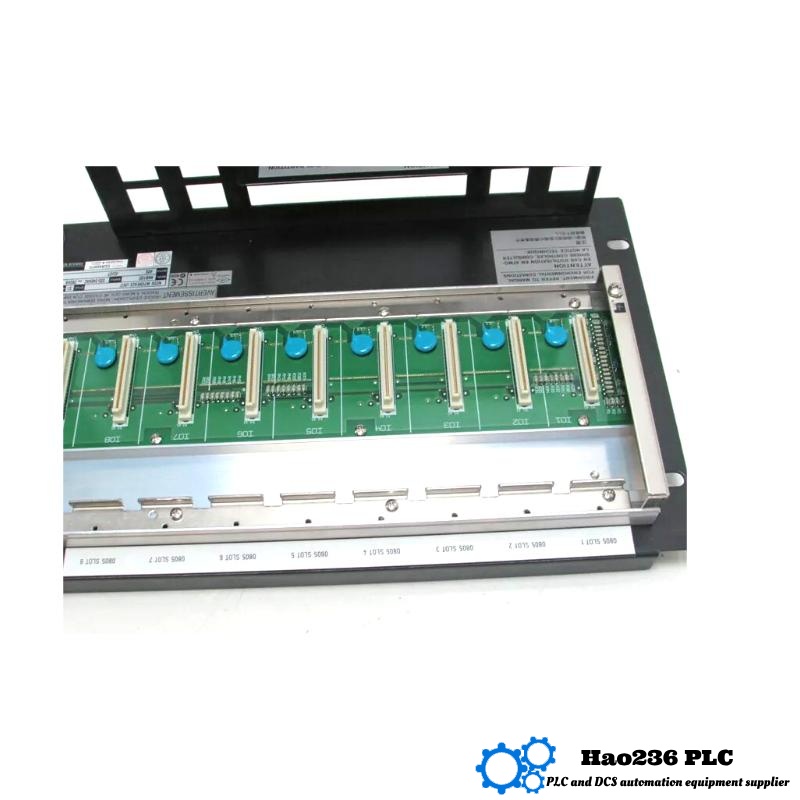

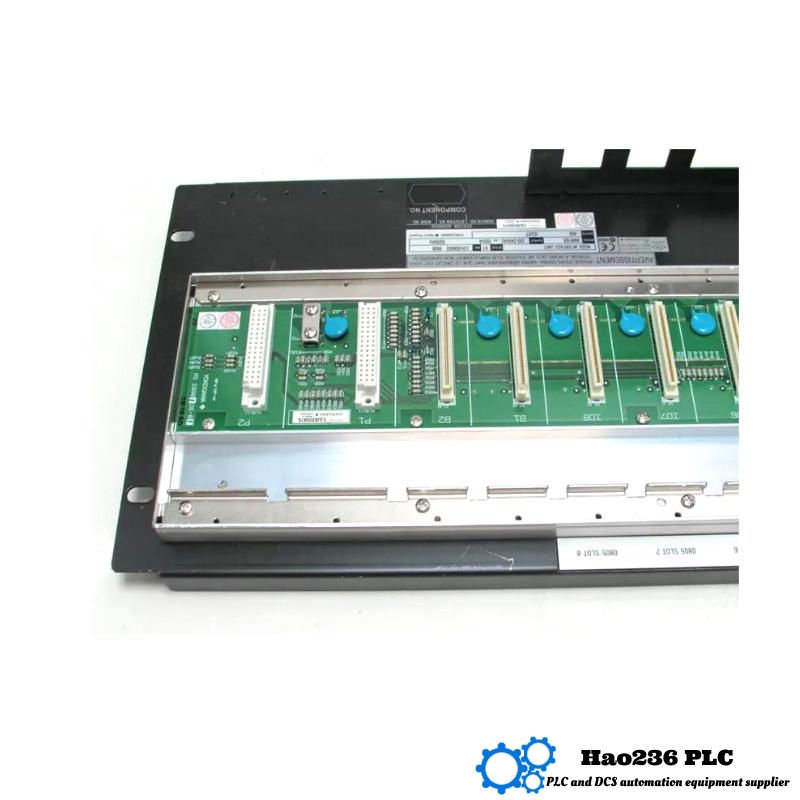

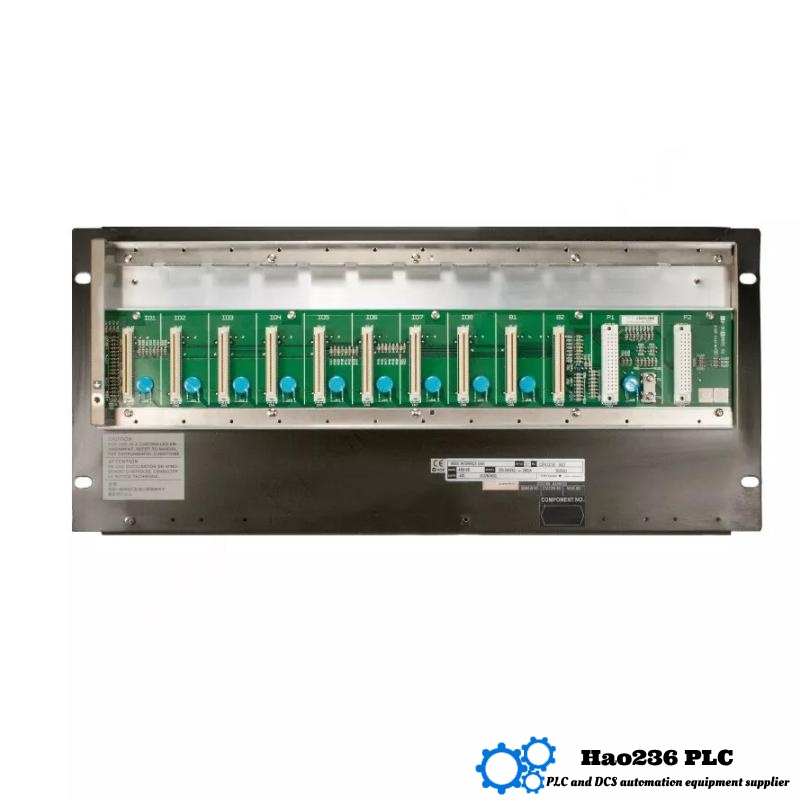

Yokogawa ANB10D-420 S2 ESB Bus Node Unit
Product Introduction
The Yokogawa ANB10D-420 S2 is a high-performance ESB (Enhanced Serial Bus) bus node unit designed for distributed control systems (DCS). It functions as a communication node within Yokogawa’s control architecture, enabling seamless data exchange between controllers and field devices. This unit is engineered for reliability and robustness in complex industrial environments, supporting various analog and digital input/output configurations.
Its compact size combined with a sturdy build makes it ideal for integration into Yokogawa’s rack-mounted systems, delivering stable and secure communication in process automation setups. The ANB10D-420 S2 is built to comply with stringent industrial standards, ensuring long-term operation with minimal maintenance.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | ANB10D-420 S2 |
| Product Type | ESB Bus Node Unit |
| Dimensions (W×H×D) | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg |
| Communication Bus | ESB (Enhanced Serial Bus) |
| Power Supply | 24 V DC |
| Input/Output Ports | Configurable, multiple slots |
| Operating Temperature | 0 to 55 °C |
| Protection Level | IP20 |
| Mounting | Rack-mounted |
| Data Transfer Rate | Up to 10 Mbps |
| Protocol Support | Yokogawa proprietary ESB protocol |
Product Applications
-
Distributed Control Systems (DCS) in process industries
-
Power generation plants and substations
-
Chemical and petrochemical plants
-
Oil and gas production and refining
-
Manufacturing automation requiring reliable node communication
-
Infrastructure monitoring and control systems
-
Environmental monitoring systems
-
Water and wastewater treatment plants
Product Advantages
-
High Reliability: Designed for continuous 24/7 operation in harsh industrial environments.
-
Scalable Architecture: Supports modular expansion via ESB bus for future-proof system growth.
-
Compact and Space-Saving: Fits standard racks with dimensions optimized for industrial control cabinets.
-
Flexible Configuration: Supports a variety of I/O modules to meet diverse application needs.
-
Robust Communication: Utilizes Yokogawa’s proprietary ESB protocol for secure and fast data transfer.
-
Easy Maintenance: Modular design allows quick replacement and minimal downtime.
-
Wide Operating Temperature Range: Suitable for most industrial environments.
-
Strong Brand Support: Backed by Yokogawa’s global service and technical support network.
Brand Information
Yokogawa Electric Corporation is a global leader in industrial automation and control solutions. Founded in 1915, Yokogawa has built a reputation for delivering reliable, innovative, and high-quality products for process control, measurement, and automation across many industries worldwide. The company focuses on enhancing industrial productivity and safety by offering advanced hardware and software solutions tailored to customer needs.
Recommended Related or Same Series Models
| Model Number | Description | Dimensions (mm) | Weight (kg) | Notes |
|---|---|---|---|---|
| ANB10D-410 | ESB Bus Node Unit, Analog focus | 482.6 × 221.5 × 205 | 9.8 | Optimized for analog I/O |
| ANB10D-430 S2 | ESB Bus Node Unit, Digital focus | 482.6 × 221.5 × 205 | 10 | Enhanced digital signal support |
| ANB10D-440 | ESB Bus Node Unit with high-density I/O | 482.6 × 221.5 × 205 | 11 | Supports more channels |
| ANB10D-420 | Base ESB Bus Node Unit | 482.6 × 221.5 × 205 | 10 | Previous version, widely used |
| ANB10D-450 S3 | Advanced ESB Node with redundant power | 482.6 × 221.5 × 210 | 12 | For critical applications |
Recommended Popular Yokogawa Models
| Model Number | Product Type | Dimensions (mm) | Weight (kg) | Key Features | Typical Applications |
|---|---|---|---|---|---|
| ANB10D-415 | ESB Bus Node Unit | 482.6 × 221.5 × 205 | 9.8 | Analog/Digital I/O support, rack-mounted | Distributed Control Systems (DCS) |
| ATA4S-S00 | Analog Transmitter Module | 120 × 60 × 50 | 0.8 | High-accuracy analog signal transmission | Field instrumentation |
| ADV151-P60 | Input Module (Digital) | 130 × 90 × 45 | 1.0 | High-speed digital input processing | Process automation |
| ADV161-P50 | Output Module (Analog) | 130 × 90 × 45 | 1.0 | Precise analog output control | Control system output signals |
| ADV159-P01 | Hybrid I/O Module | 130 × 90 × 45 | 1.2 | Combination of analog and digital I/O modules | Flexible automation control |
Frequently Asked Questions (FAQ)
Q1: What communication protocol does ANB10D-420 S2 use?
A1: It uses Yokogawa’s proprietary ESB (Enhanced Serial Bus) protocol for fast and reliable communication.
Q2: What is the typical operating temperature range?
A2: The unit operates between 0 to 55 °C.
Q3: Can the ANB10D-420 S2 support both analog and digital I/O?
A3: Yes, it supports configurable slots that can accommodate both analog and digital modules.
Q4: Is the unit rack-mountable?
A4: Yes, it is designed for standard 19-inch rack mounting.
Q5: What are the dimensions and weight of the unit?
A5: Dimensions are 482.6 × 221.5 × 205 mm and it weighs approximately 10 kg.
Q6: How is the unit powered?
A6: The unit requires a 24 V DC power supply.
Q7: Does the unit have any environmental protection rating?
A7: It has an IP20 rating, suitable for indoor industrial environments.
Q8: Can the unit be used in hazardous areas?
A8: It depends on specific hazardous area certifications which need to be verified for each model variant.
Q9: Is there support for redundant power supplies?
A9: Certain versions like ANB10D-450 S3 support redundant power supply configurations.
Q10: How can I perform maintenance or troubleshooting?
A10: The modular design allows easy removal and replacement of modules; Yokogawa also provides detailed manuals and support.
