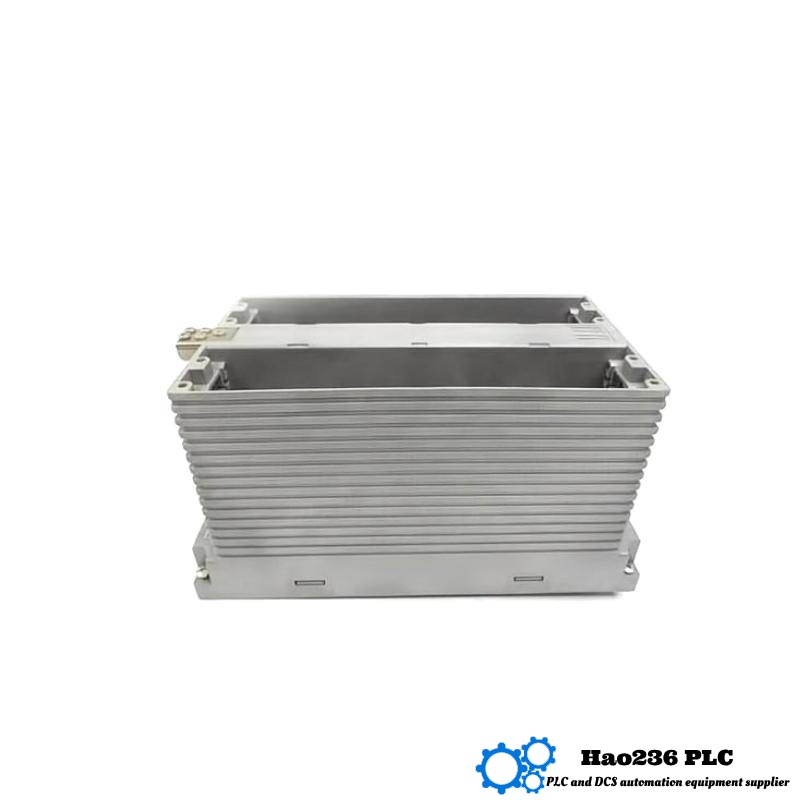

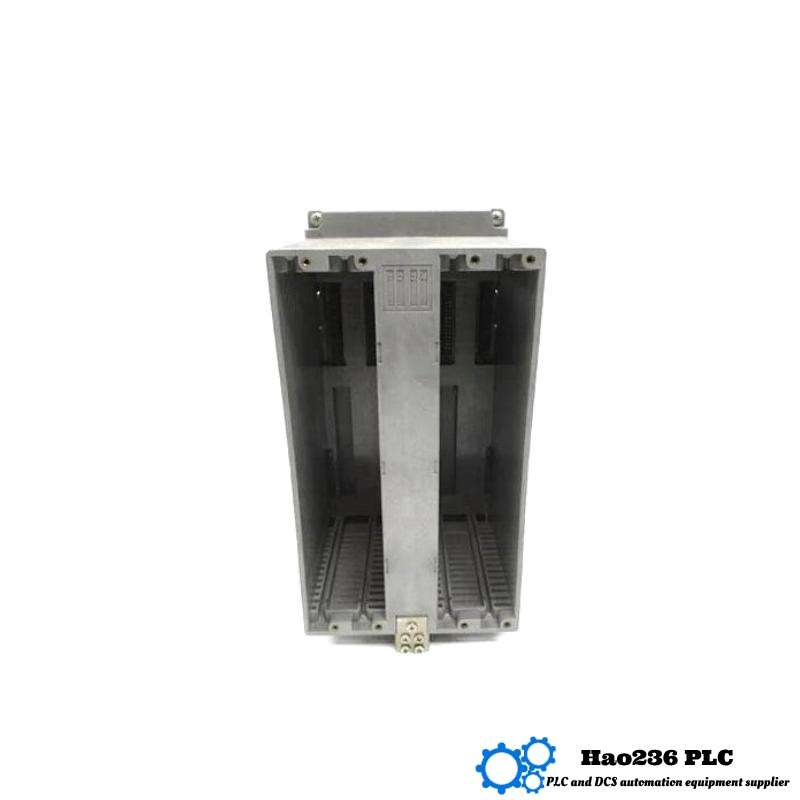

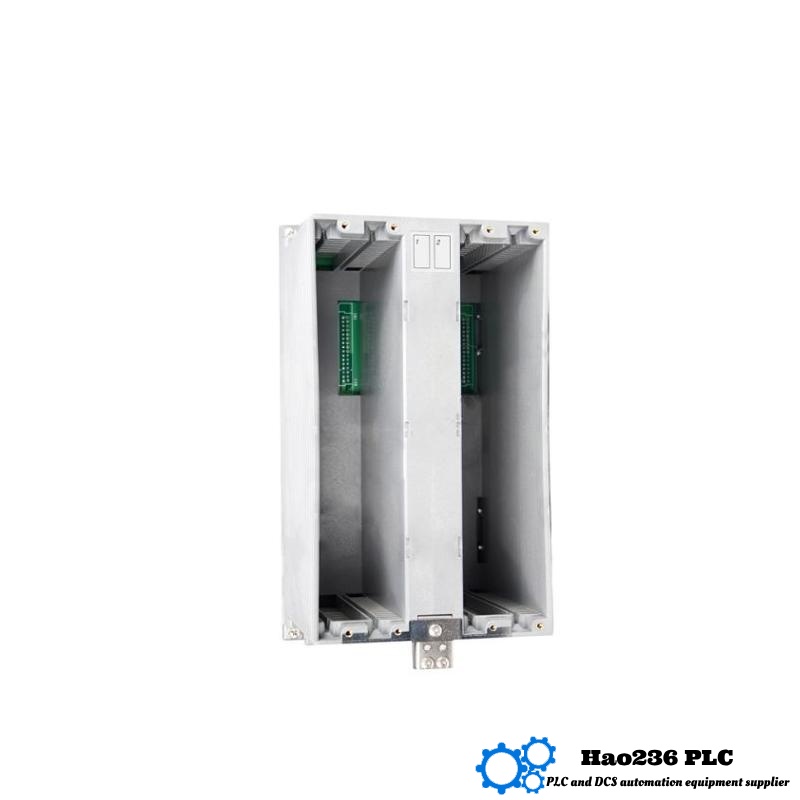

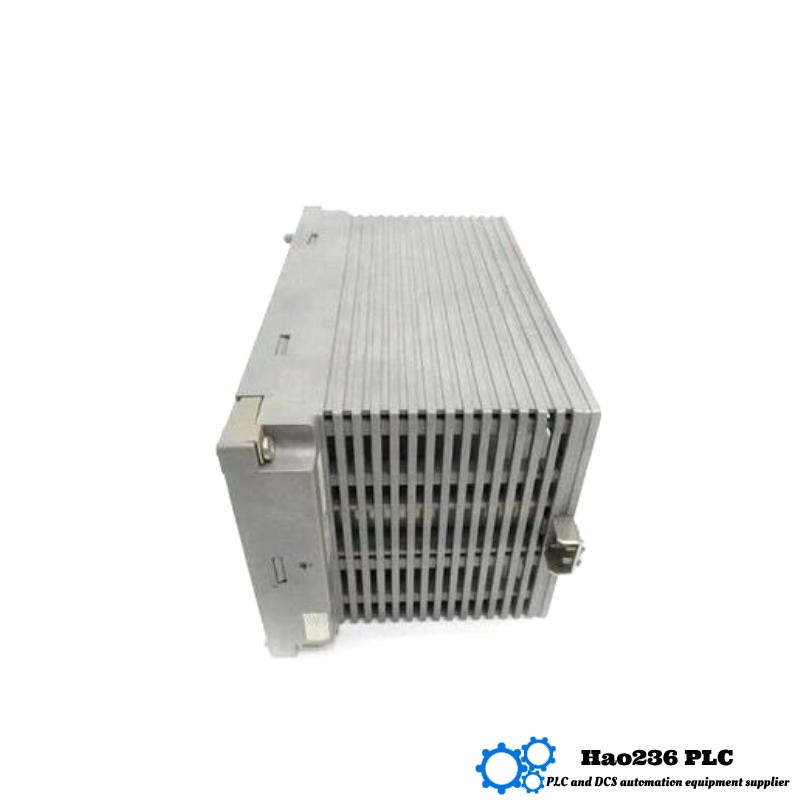

Yokogawa AMN51 Communication Card Rack
Product Overview
The Yokogawa AMN51 is a robust, rack-mount carrier designed to house and interconnect communication interface cards within the CENTUM® VP distributed control system. Featuring precision backplane connectors, integrated power rails, and a large back-end cable duct, the AMN51 ensures high-speed, reliable data exchange between control modules and field devices. Its heavy-gauge steel frame and corrosion-resistant finish provide long-term durability in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AMN51 |
| Function | Communication Card Rack |
| Compatible Series | CENTUM VP |
| Card Slots | 8 |
| Backplane Bus | Proprietary high-speed parallel bus |
| Power Rails | +5 V, +24 V DC |
| Cable Duct | Rear-mounted, 50 mm depth |
| Cooling | Passive vent slots |
| Material | Powder-coated steel |
| Dimensions (W × H × D) | 300 × 200 × 150 mm |
| Weight | 4 kg |
| Mounting | Panel-mount or 19″ rack via adapters |
| Operating Temperature Range | –10 °C to +55 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Certifications | CE, UL, cULus |
Applications
The AMN51 rack is used to:
• Integrate fieldbus, Ethernet, serial, and redundant communication cards for plantwide data networks.
• Provide a consolidated platform for gateway cards that link CENTUM VP to DCS, PLC, and safety instrumented systems.
• House timing-synchronization modules for precise time stamping across high-availability clusters.
• Support fiber-optic communication cards to extend network reach between remote skids and central control rooms.
• Serve as central wiring hubs in control cabinets for multi-protocol communication architectures.
Advantages
• High Slot Density
Eight card slots maximize interface options in a single 300 × 200 × 150 mm frame.
• Reliable Power Distribution
Integrated +5 V and +24 V rails eliminate external wiring and ensure stable card operation.
• Robust Construction
Powder-coated steel chassis withstands vibration, dust, and moisture in industrial sites.
• Effortless Maintenance
Quick-release front bezel and rear cable duct clamps allow tool-free card insertion or removal.
• Flexible Mounting
Panel-mount or 19″ rack options via adapters adapt to diverse cabinet layouts.
Brand
Yokogawa is a global leader in process automation and control, renowned for its CENTUM® series of distributed control solutions that deliver unmatched reliability and scalability for critical industrial processes.
Related Models in the CENTUM VP Family
| Model | Function | Slots | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AMN50 | I/O Card Rack | 8 | 300 × 200 × 150 | 3.8 |
| AMN52 | Analog Input Card Rack | 8 | 300 × 200 × 150 | 4.2 |
| AMN53 | Digital I/O Card Rack | 16 | 300 × 200 × 150 | 4.5 |
| AMN24 | Small Communication Module Carrier | 4 | 150 × 100 × 150 | 2.1 |
| AMN25 | Mixed I/O & Comm. Hybrid Rack | 8 | 300 × 200 × 150 | 4.0 |
Popular Yokogawa Modules
| Model | Function | Input/Output Type | Channel Count | Resolution | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| ADV151-P60 | Analog Input Module | 4–20 mA / 1–5 V | 16 Channels | 16-bit | 130 × 100 × 130 | 0.35 |
| ADV161-P50 | Analog Output Module | 4–20 mA | 8 Channels | 14-bit | 130 × 100 × 130 | 0.34 |
| ADV159-P01 | RTD Input Module | Pt100, Pt1000, Cu50 etc. | 8 Channels | 16-bit | 130 × 100 × 130 | 0.36 |
| ADV141-P00 | Thermocouple Input Module | Type K, J, T, E etc. | 16 Channels | 16-bit w/ cold junction | 130 × 100 × 130 | 0.38 |
| ADV163-P03 | Analog Output (High Precision) | 1–5 V / 0–10 V / 4–20 mA | 8 Channels | 16-bit | 130 × 100 × 130 | 0.37 |
Frequently Asked Questions (FAQ)
Q1: How many cards can the AMN51 rack accommodate?
A1: Up to eight communication or I/O interface cards.
Q2: What power rails are integrated?
A2: The backplane provides +5 V and +24 V DC power distribution.
Q3: What are the physical dimensions?
A3: 300 × 200 × 150 mm (W×H×D).
Q4: How much does the rack weigh?
A4: Approximately 4 kg.
Q5: What mounting options are available?
A5: It supports panel-mounting or 19″ rack mounting via optional adapters.
Q6: What temperature range can it operate in?
A6: From –10 °C to +55 °C.
Q7: Does it include active cooling?
A7: No; it relies on passive vent slots for convection cooling.
Q8: How is cable management handled?
A8: A rear-mounted cable duct with snap-in clamps organizes and secures wiring.
Q9: Can I hot-swap cards?
A9: Yes; the keyed backplane connectors and quick-release bezel allow tool-free card replacement.
Q10: Which systems is this rack compatible with?
A10: Designed for Yokogawa’s CENTUM® VP and related modular automation platforms.
