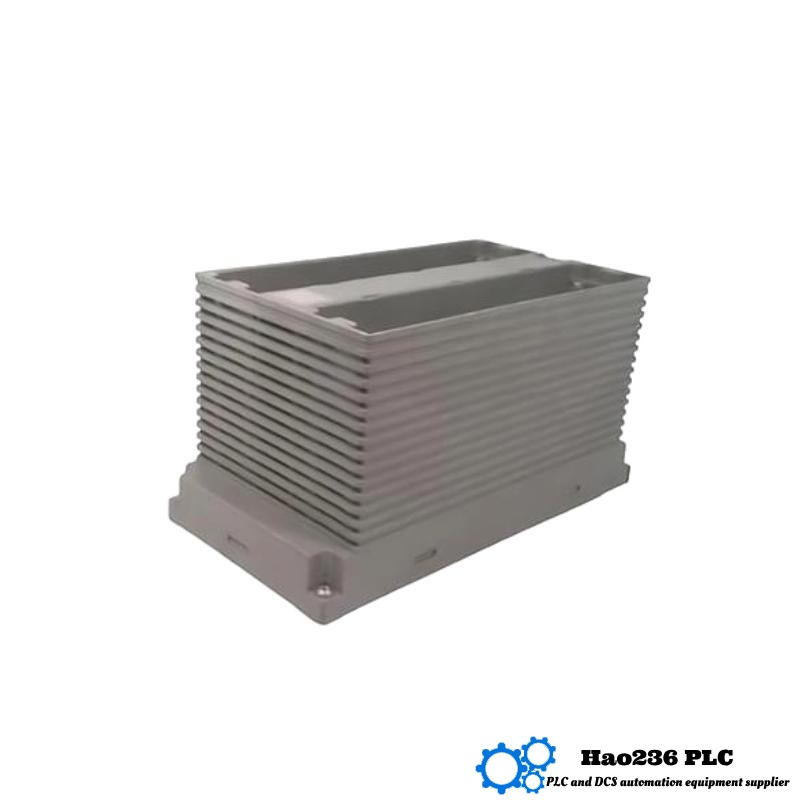

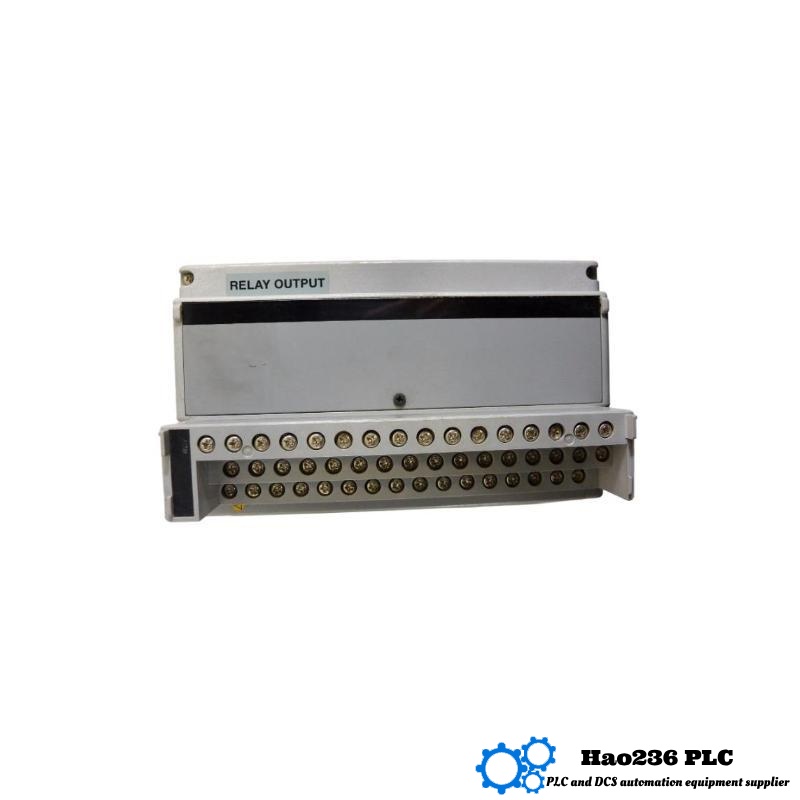

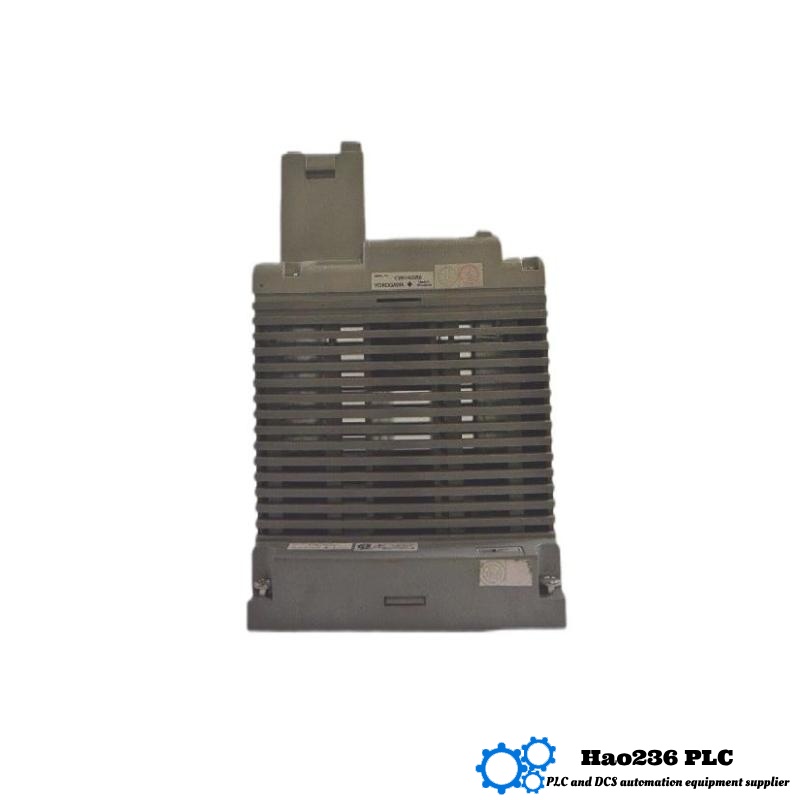

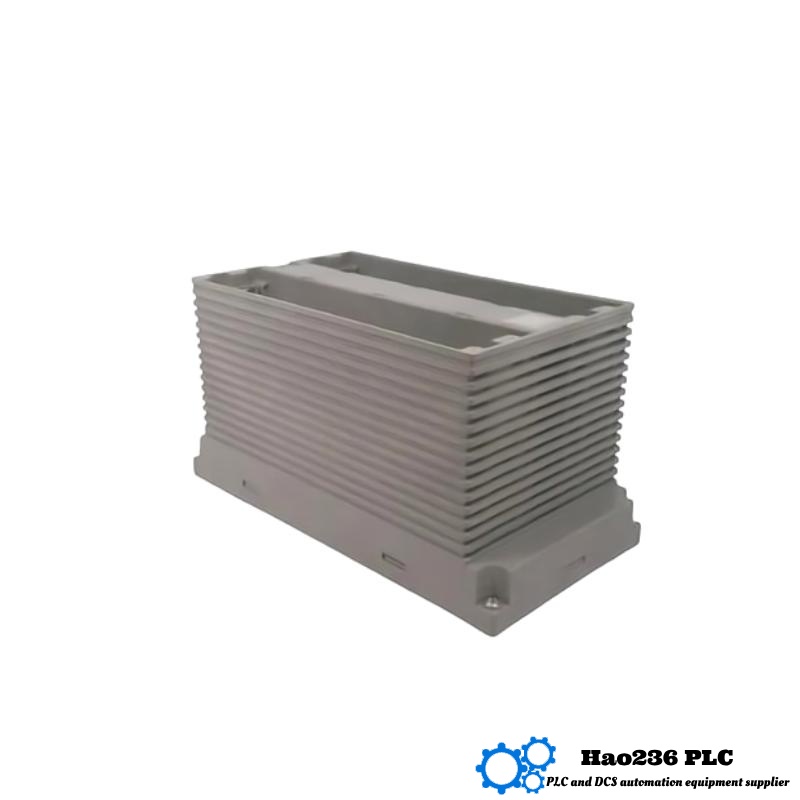

Yokogawa AMN21 Relay I/O Module Rack
Product Overview
The Yokogawa AMN21 is a rack‐mounted relay I/O module carrier designed for the CENTUM® VP distributed control system. It provides secure mounting, power distribution, and backplane interconnects for up to 8 relay I/O cards, enabling flexible expansion of discrete control points. Built with robust steel construction and precision backplane connectors, this rack ensures reliable operation in harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AMN21 |
| Function | Relay I/O Module Rack |
| Series | CENTUM VP |
| Brand | Yokogawa |
| Card Slots | 8 |
| Backplane Bus | Proprietary CENTUM VP parallel bus |
| Power Distribution | +5 V, +24 V DC rails |
| Cooling | Passive vents |
| Material | Powder-coated steel |
| Dimensions (W × H × D) | 125 × 130 × 248 mm |
| Weight | 2 kg |
| Mounting | Panel or DIN‐rail via adapter brackets |
| Operating Temperature Range | –10 °C to +55 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Certifications | CE, UL, cULus |
Applications
-
Discrete Control: Houses relay output and input cards for machine start/stop, alarms, and interlocks.
-
Safety Interlocks: Centralizes safety relay I/O for emergency shutdown (ESD) loops.
-
Batch Sequencing: Provides high‐density discrete outputs for valve and motor sequencing.
-
Building Management: Interfaces with door contacts, pumps, and lighting relays in facility automation.
-
OEM Panels: Integrates into custom control panels requiring modular discrete I/O.
Advantages
-
High Slot Count: Eight card slots maximize I/O density in compact spaces.
-
Rugged Construction: Steel chassis and secure card guides resist vibration and shock.
-
Simple Serviceability: Removable front bezel and keyed backplane connectors allow tool‐free card swaps.
-
Integrated Power Rails: Built‐in +5 V and +24 V distribution eliminates external wiring.
-
Versatile Mounting: Supports panel and DIN‐rail installation to suit varied control cabinet layouts.
Brand
Yokogawa is a global leader in measurement, control, and automation, providing high‐integrity solutions such as the CENTUM VP series for critical industrial processes.
Related Models in the CENTUM VP I/O Family
| Model | Function | Slots | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| AMN21 | Relay I/O Module Rack | 8 | 125 × 130 × 248 | 2.00 |
| AMN22 | Analog Input Module Rack | 8 | 125 × 130 × 248 | 2.10 |
| AMN23 | Analog Output Module Rack | 8 | 125 × 130 × 248 | 2.05 |
| AMN24 | Digital Input Module Rack | 8 | 125 × 130 × 248 | 1.95 |
| AMN25 | Mixed I/O Module Rack | 8 | 125 × 130 × 248 | 2.15 |
Popular Yokogawa Modules
| Model | Module Type | Number of Channels | Signal Type / Range | Resolution / Accuracy | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| AMM22M | Analog Input Module | 16 Channels | 4–20 mA, 1–5 V | 16-bit, ±0.1% F.S. | 130 × 115 × 30 | 0.30 |
| AMM22C | Analog Input Module | 16 Channels | 4–20 mA, 1–5 V | 16-bit, ±0.1% F.S. | 130 × 115 × 30 | 0.30 |
| ADV151-P60 | Analog Output Module | 8 Channels | 4–20 mA | 14-bit, ±0.2% F.S. | 130 × 100 × 30 | 0.25 |
| ADV161-P50 | Analog Output Module | 8 Channels | 1–5 V, 4–20 mA (switchable) | 14-bit, ±0.1% F.S. | 130 × 100 × 30 | 0.28 |
| ADV159-P01 | Analog Output Module | 8 Channels | 0–10 V, 4–20 mA | 14-bit, ±0.2% F.S. | 130 × 100 × 30 | 0.27 |
Frequently Asked Questions (FAQ)
Q1: How many I/O cards can the AMN21 rack hold?
A1: It accommodates up to eight plug‐in I/O cards.
Q2: What power rails are provided by the rack?
A2: Integrated +5 V and +24 V DC power distribution rails for all slots.
Q3: What are the rack’s dimensions and weight?
A3: 125 × 130 × 248 mm; weight approximately 2 kg.
Q4: Which mounting options are supported?
A4: Panel-mount via brackets or direct DIN-rail mounting with adapter.
Q5: What operating temperature range is supported?
A5: –10 °C to +55 °C for reliable industrial performance.
Q6: Does the rack include cooling fans?
A6: No active fans; passive vent slots provide natural convection.
Q7: Can I hot-swap I/O cards?
A7: Yes, cards can be inserted or removed with power applied, thanks to keyed connectors.
Q8: What backplane bus does it use?
A8: Proprietary CENTUM VP 32-bit parallel bus for high-speed data exchange.
Q9: Is the chassis certified?
A9: Yes, it carries CE, UL, and RoHS approvals.
Q10: Which control systems is this rack compatible with?
A10: Designed for Yokogawa CENTUM VP and related modular automation platforms.
