Product Overview

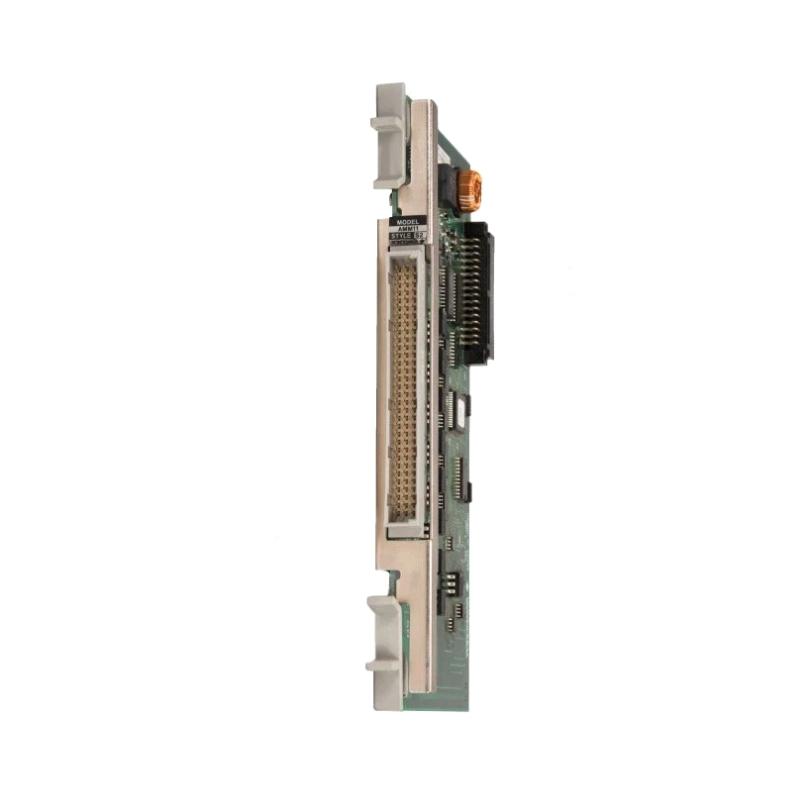

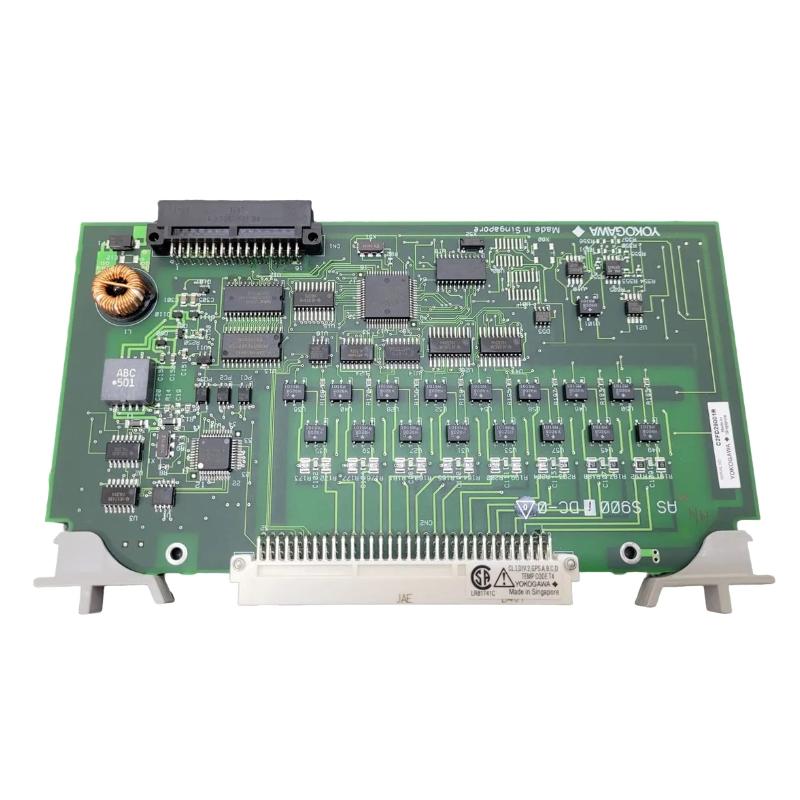

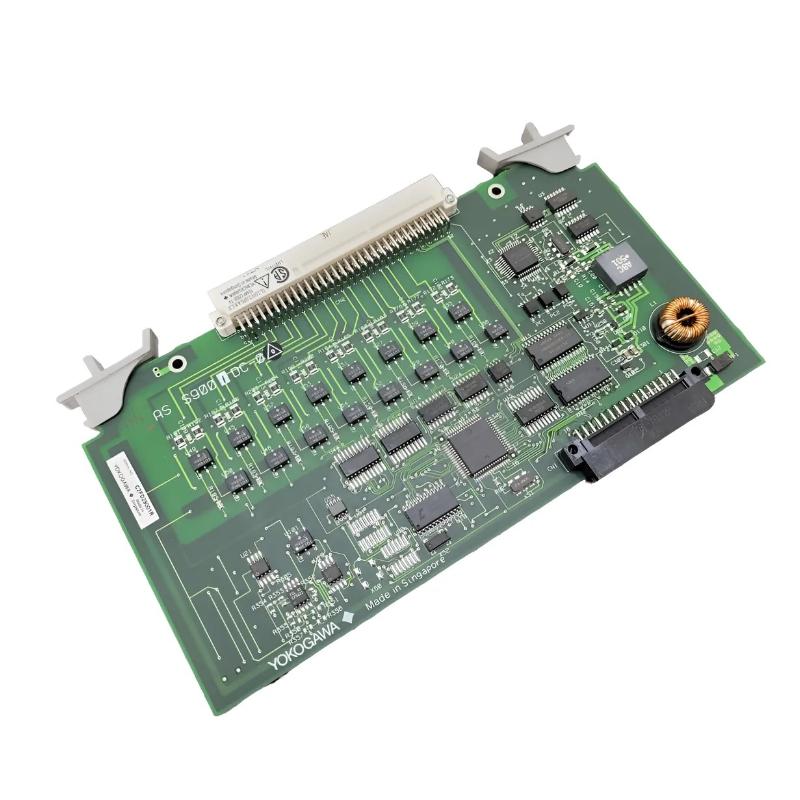

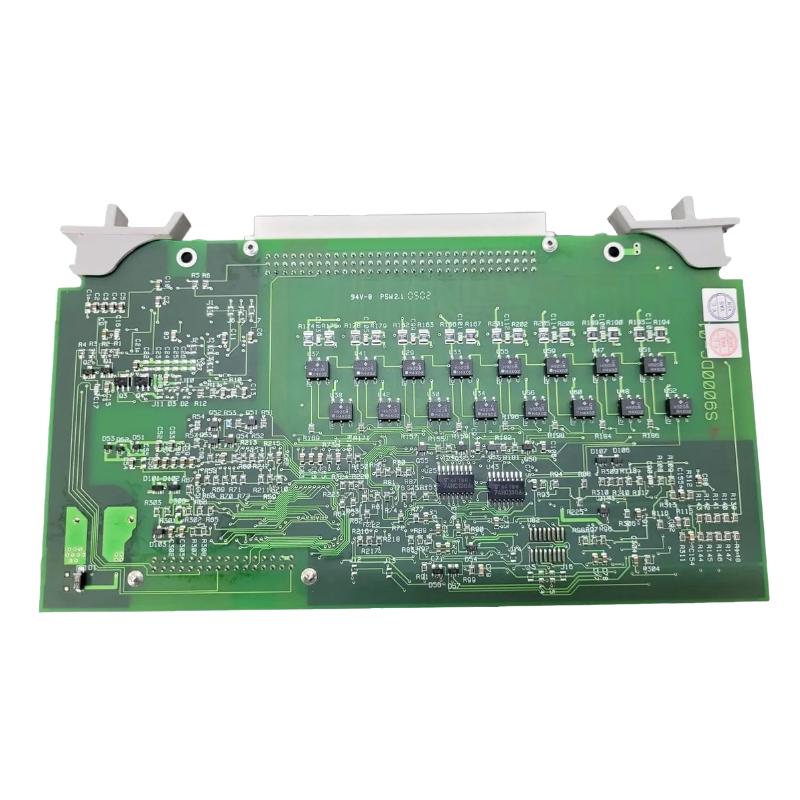

The Yokogawa AMM11 Voltage Input Multiplexer Module is a key component for expanding measurement capabilities in Yokogawa automation systems. With compact dimensions of 45 x 120 x 110 mm and a shipping weight of 0.5 kg, this module allows for the multiplexing of multiple voltage inputs, enabling efficient data collection and management in industrial environments. It is designed for use in applications that require precise voltage measurement across multiple channels.

Technical Specifications

Function and Working Principle

The Yokogawa AMM11 Voltage Input Multiplexer Module functions by allowing the connection of multiple voltage inputs to a single measurement channel. This allows for efficient switching between channels for voltage monitoring and measurement. Here’s how it works:

1. Voltage Multiplexing: The AMM11 module allows multiple voltage signals to be multiplexed into a single channel for measurement by the system. This reduces the need for multiple measurement modules, saving space and cost.
2. Accurate Voltage Measurement: The module enables precise voltage measurement from each connected channel, ensuring accurate data collection for process control and monitoring.
3. Switching Mechanism: The AMM11 uses an internal switching mechanism to cycle between the connected input channels. This switching is seamless and ensures that each voltage signal is measured correctly.
4. Integration with Control Systems: The module integrates with Yokogawa automation systems, transmitting data to central controllers or monitoring systems for real-time analysis and control.

Role in Industrial Systems

The Yokogawa AMM11 Voltage Input Multiplexer Module plays an important role in industrial systems where multiple voltage measurements are needed but limited by available channels. It provides several key benefits:

• Centralized Voltage Monitoring: The AMM11 simplifies voltage monitoring by allowing multiple signals to be multiplexed into one channel, making it easier to collect data from various sources without requiring additional hardware.
• Cost and Space Efficiency: By reducing the need for additional measurement modules, the AMM11 helps save on both cost and space, making it an excellent choice for industrial applications with limited resources.
• Flexibility in Measurement: The AMM11 offers flexibility by enabling the measurement of a variety of voltage signals, which is useful in applications where different devices or circuits need to be monitored.
• Real-Time Monitoring: The module allows for the real-time collection of data, enabling effective monitoring and control of industrial processes, improving operational efficiency.

Industrial Applications

The Yokogawa AMM11 Voltage Input Multiplexer Module is suitable for a range of industrial applications that require multiple voltage measurements:

• Automation Systems: The module is an essential component in automation systems that need to monitor multiple voltage sources from various devices and sensors.
• Power Generation: In power plants, the AMM11 is used to multiplex voltage signals from turbines, generators, and other equipment to ensure that all systems are operating efficiently.
• Process Control: The module is ideal for process control applications where multiple voltage readings are necessary, such as in manufacturing, chemical, or pharmaceutical plants.
• Testing and Calibration: In testing environments, the AMM11 can be used to multiplex voltage inputs for monitoring and calibrating various devices and systems.
• SCADA Systems: The AMM11 enables voltage measurement from various sensors and actuators in industrial systems that are connected to SCADA systems for remote monitoring.

Installation and System Integration

Installing the Yokogawa AMM11 Voltage Input Multiplexer Module is designed to be straightforward, ensuring easy integration into Yokogawa automation systems:

1. Mounting: The AMM11’s compact dimensions (45 x 120 x 110 mm) allow for easy installation in standard enclosures or racks without occupying excessive space.
2. Connecting Inputs: The module allows multiple voltage inputs to be connected to the system. These inputs are multiplexed and routed to a single channel for measurement, reducing system complexity.
3. Configuration: Use Yokogawa’s configuration software to integrate the AMM11 into the control system, ensuring that the correct voltage range and input channels are configured properly.
4. System Testing: Once installed, perform testing to verify that all connected voltage signals are being multiplexed and measured accurately by the control system.

Compatible System Components

The Yokogawa AMM11 Voltage Input Multiplexer Module is compatible with various Yokogawa system components, making it ideal for integration into large-scale industrial systems:

• Yokogawa Controllers: Integrates seamlessly with controllers to collect and manage voltage data from multiple sources.
• Field Devices: Compatible with various sensors and field devices that output voltage signals, allowing for efficient data collection and processing.
• SCADA Systems: Can be connected to SCADA systems to allow for real-time monitoring and control of voltage levels across the industrial network.

Recommended Alternative Models

Key Advantages

• Space-Saving Design: The AMM11’s compact size (45 x 120 x 110 mm) ensures it can be easily integrated into existing systems without taking up significant space.
• Cost-Effective: By multiplexing multiple voltage signals into a single channel, the AMM11 reduces the need for additional measurement modules, saving both cost and space.
• Accurate Data Measurement: The AMM11 ensures high-precision voltage measurement from each input channel, providing reliable data for process control and monitoring.
• Seamless Integration: The module is designed to work seamlessly with Yokogawa automation systems, making integration simple and efficient.
• Flexibility: The AMM11 is capable of handling a wide range of voltage inputs, providing versatility for different industrial applications.

Technical FAQs

What is the size of the AMM11 Voltage Input Multiplexer Module?
The Yokogawa AMM11 measures 45 x 120 x 110 mm, making it compact and easy to install in most industrial systems.

How much does the AMM11 weigh?
The AMM11 weighs 0.5 kg, ensuring it is lightweight and easy to handle during installation.

How many voltage inputs can the AMM11 handle?
The AMM11 can multiplex multiple voltage inputs to a single channel, allowing for flexible measurement of different voltage signals from various devices.

Conclusion

The Yokogawa AMM11 Voltage Input Multiplexer Module is a reliable and efficient solution for industrial systems that require multiple voltage measurements. Its compact size, cost-effectiveness, and accurate data collection make it an ideal choice for Yokogawa automation systems in industries such as manufacturing, power generation, and process control. By enabling efficient multiplexing of voltage signals, the AMM11 helps improve system efficiency and simplify integration, making it an essential component for modern industrial applications.
