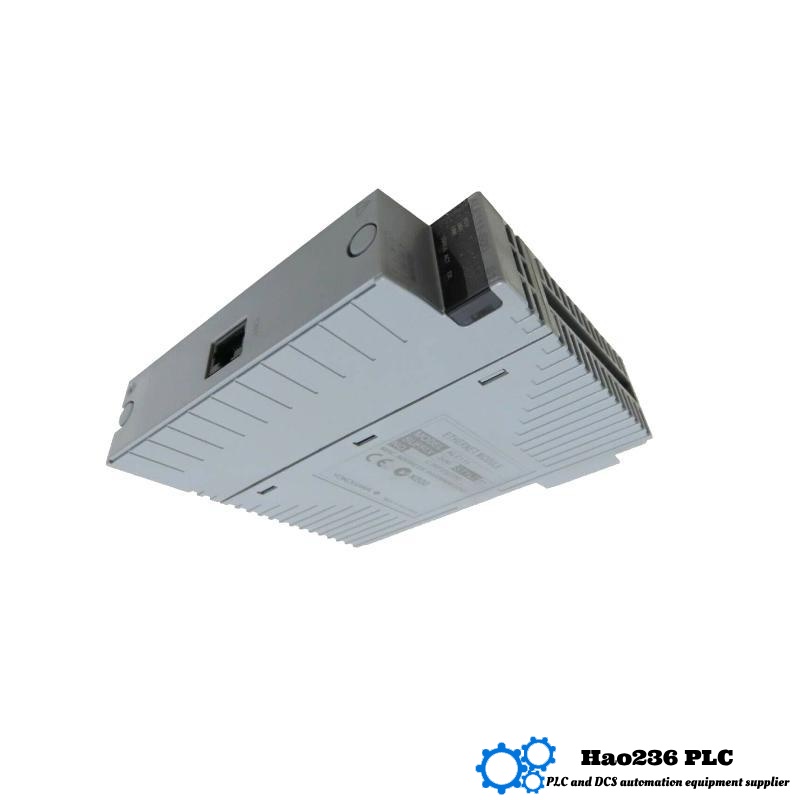

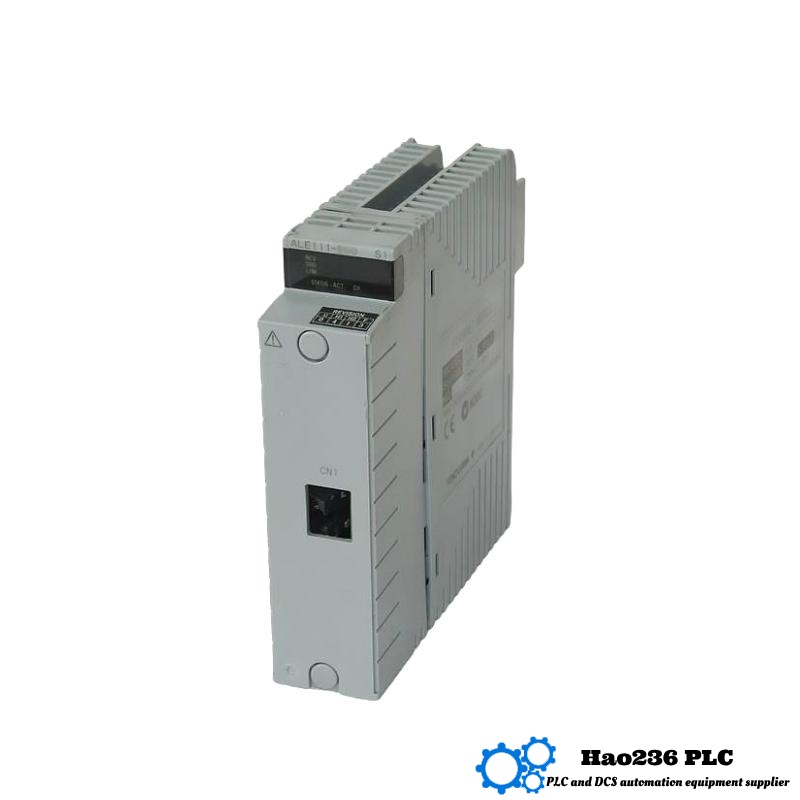

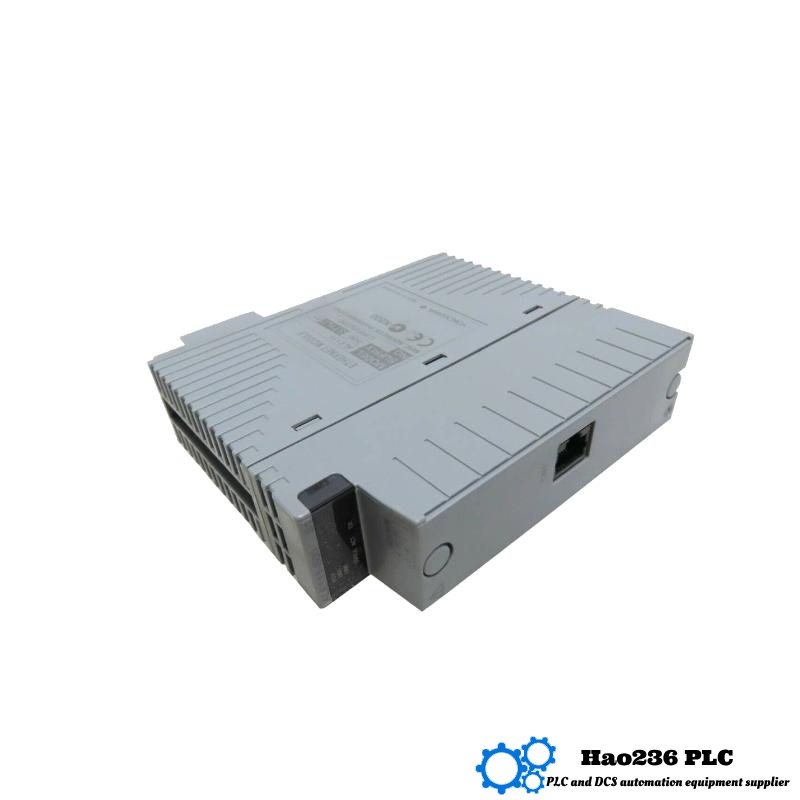

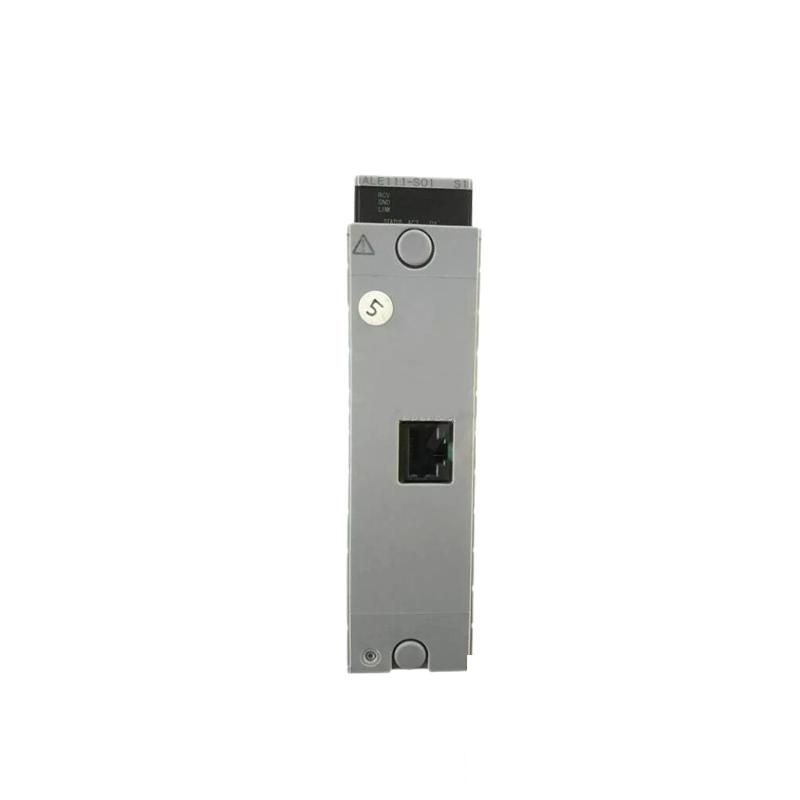

The Yokogawa ALE111-S01 Ethernet Communication Module is a highly reliable and efficient networking solution designed for industrial automation systems. This module provides seamless communication between field devices and higher-level systems, utilizing Ethernet for data transmission. The ALE111-S01 enables high-speed and stable communication, ensuring real-time data exchange between controllers, SCADA systems, and other networked devices.
The compact design of the ALE111-S01 (dimensions: 130 x 125.5 x 32.8 mm and weight: 0.3 kg) allows for easy integration into existing systems, making it ideal for applications where space and flexibility are crucial. Its robust construction ensures high performance in harsh industrial environments, ensuring reliable communication in demanding applications.
Specification | Details |
---|---|
Dimensions | 130 x 125.5 x 32.8 mm |
Weight | 0.3 kg |
Communication Protocol | Ethernet, TCP/IP |
Operating Voltage | 24 VDC ± 20% |
Temperature Range | -20°C to +60°C |
Mounting Type | DIN rail or panel mountable |
Connector Type | RJ45 Ethernet port |
Data Rate | 10/100 Mbps |
Interface | EtherNet/IP, Modbus TCP |
Power Consumption | 5W |
Compatibility | Compatible with Yokogawa controllers and industrial equipment |
The Yokogawa ALE111-S01 Ethernet Communication Module is used in various industrial applications where real-time communication and data exchange are crucial. Common applications include:
Industrial Automation Systems: It is used to connect different field devices such as sensors, actuators, and controllers to a central system, enabling seamless communication in automation networks.
SCADA Systems: The module acts as a communication bridge between industrial devices and SCADA systems, facilitating real-time monitoring and control.
Process Control Systems: Used in process industries such as chemicals, pharmaceuticals, and oil & gas for reliable communication between controllers and field devices.
Building Automation: Can be utilized in building management systems to control HVAC, lighting, and security systems via Ethernet-based communication.
Energy Management Systems: Used in systems that monitor and control energy consumption by linking devices like meters, controllers, and energy management systems.
Seamless Integration: The ALE111-S01 integrates easily into existing Yokogawa systems and networks, offering flexibility and scalability for future expansions.
High-Speed Communication: With support for 10/100 Mbps Ethernet connections, it ensures fast and reliable data transmission between devices and control systems.
Robust Construction: Built for industrial environments, the module is designed to operate reliably in harsh conditions with an operating temperature range of -20°C to +60°C.
Compact and Lightweight: The module’s compact size (130 x 125.5 x 32.8 mm) and lightweight design (0.3 kg) make it easy to install and integrate into various industrial setups without taking up excessive space.
Wide Compatibility: It supports common communication protocols such as EtherNet/IP and Modbus TCP, making it compatible with a wide range of field devices and industrial equipment.
Power-Efficient: Consumes only 5W of power, providing an energy-efficient solution for network communication in automation systems.
Yokogawa is a global leader in industrial automation, control, and measurement systems. With decades of experience in the automation industry, Yokogawa provides innovative solutions designed to improve the efficiency, safety, and reliability of industrial operations. The ALE111-S01 Ethernet Communication Module is part of Yokogawa’s comprehensive range of networking solutions, ensuring seamless communication between industrial devices and control systems. Yokogawa’s products are trusted by industries such as manufacturing, oil & gas, chemical, and power generation.
Model | Description | Specifications |
---|---|---|
ALE112-S01 | Ethernet communication module with advanced data processing capabilities. | Dimensions: 130 x 125.5 x 32.8 mm, Weight: 0.31 kg |
ALE113-S01 | Enhanced model with higher data rate support. | Dimensions: 130 x 125.5 x 32.8 mm, Weight: 0.32 kg |
ALE110-S01 | Basic Ethernet module for smaller industrial setups. | Dimensions: 130 x 125.5 x 32.8 mm, Weight: 0.30 kg |
ALE120-S01 | Ethernet communication module with additional protocol support. | Dimensions: 130 x 125.5 x 32.8 mm, Weight: 0.33 kg |
ALE125-S01 | High-performance model with enhanced security features. | Dimensions: 130 x 125.5 x 32.8 mm, Weight: 0.34 kg |
Model | Description | Dimensions | Weight | Interface | Communication Protocol |
---|---|---|---|---|---|
ALF111-S51 | Ethernet Communication Module, advanced features | 130 x 125.5 x 32.8 mm | 0.31 kg | Ethernet (RJ45) | EtherNet/IP, Modbus TCP |
ALE111-S50 | Basic Ethernet Communication Module | 130 x 125.5 x 32.8 mm | 0.30 kg | Ethernet (RJ45) | Modbus TCP, EtherNet/IP |
AKB331-M005 | Digital Input Module for automation systems | 130 x 125 x 30 mm | 0.32 kg | Digital Input | None (Local communication) |
ALE111-S01 | Ethernet Communication Module for industrial use | 130 x 125.5 x 32.8 mm | 0.30 kg | Ethernet (RJ45) | Modbus TCP, EtherNet/IP |
ALF111-S60 | Industrial Communication Module with extended I/O | 130 x 125.5 x 35 mm | 0.35 kg | Ethernet (RJ45) | EtherNet/IP, Modbus TCP |
Q: What is the primary function of the Yokogawa ALE111-S01 module?
A: It facilitates Ethernet communication between field devices and higher-level monitoring or control systems in industrial automation networks.
Q: What is the cable length of the ALE111-S01 module?
A: The module has a cable length of 4.0 meters.
Q: What is the weight of the module?
A: The module weighs 0.3 kg.
Q: Which communication protocols are supported by the ALE111-S01?
A: The module supports EtherNet/IP and Modbus TCP communication protocols.
Q: What is the operating temperature range of the ALE111-S01 module?
A: It operates within a temperature range of -20°C to +60°C.
Q: Is the ALE111-S01 compatible with other Yokogawa products?
A: Yes, the ALE111-S01 is fully compatible with other Yokogawa controllers and industrial equipment.
Q: Can this module be used in small-scale industrial setups?
A: Yes, its compact size makes it suitable for both large and small-scale industrial applications.
Q: How is the ALE111-S01 mounted?
A: It can be mounted on a DIN rail or directly on a panel, providing flexibility in installation.
Q: Does the ALE111-S01 consume a lot of power?
A: No, it is designed to be energy-efficient, consuming only 5W of power.
Q: Is this module easy to integrate into existing systems?
A: Yes, it integrates seamlessly into existing systems, particularly those utilizing Ethernet communication protocols.
