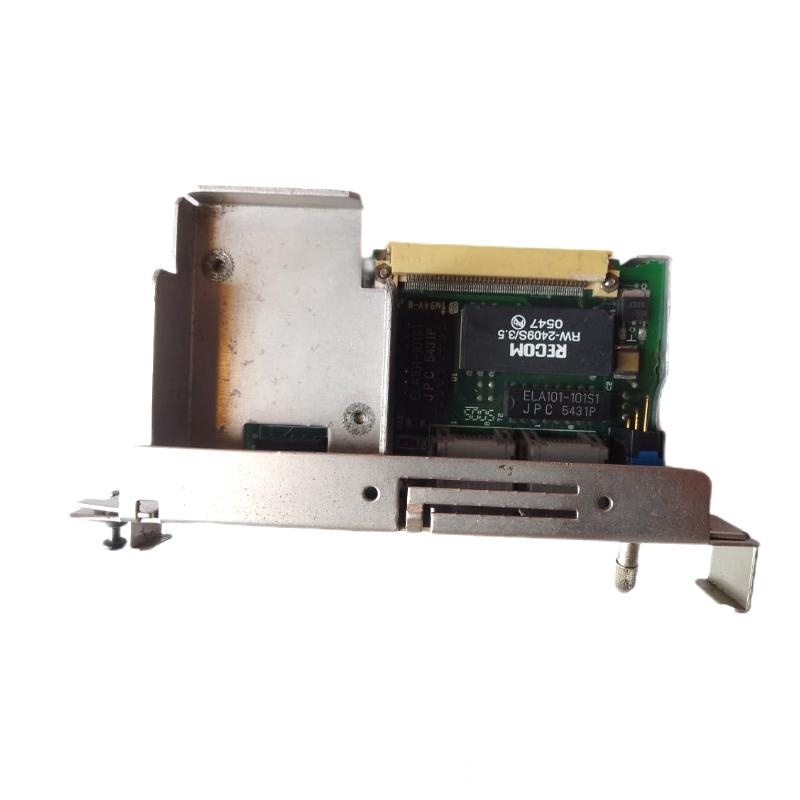

Yokogawa AIP504-10 V-Net Coupler Unit
Product Overview
The Yokogawa AIP504-10 is a V-Net Coupler Unit designed for seamless integration into Yokogawa’s control and monitoring systems. As part of the V-Net series, this unit serves as a vital component for enabling communication and data transfer within a network of distributed control systems (DCS). The AIP504-10 coupler ensures reliable, real-time data transmission, allowing for precise control and monitoring of industrial processes in a variety of applications, including power generation, chemical processing, and manufacturing.
With compact dimensions of 100 x 100 x 43 mm and a weight of 0.5 kg, this unit is easy to install and highly effective in maintaining system stability and high data integrity across the network. The AIP504-10 is engineered to ensure that all connected devices in a network can communicate effectively, providing high reliability even in demanding industrial environments.
Product Specifications
| Feature | Specification |
|---|---|
| Product Type | V-Net Coupler Unit |
| Model Number | AIP504-10 |
| Dimensions | 100 x 100 x 43 mm |
| Weight | 0.5 kg |
| Input Voltage | 24 V DC |
| Communication Protocol | V-Net (Distributed Control System) |
| Operating Temperature | -10°C to +60°C |
| Mounting Type | DIN Rail Mounted |
| Connector Type | V-Net compatible connectors |
| Compliance | CE Certified |
| Environmental Rating | IP20 |
Product Applications
The Yokogawa AIP504-10 V-Net Coupler Unit is primarily used in applications requiring stable, high-speed communication between distributed control systems and field devices. Some of the key industries and applications include:
-
Power Generation: The unit is essential for real-time monitoring and control in power plants, enabling efficient operation by linking multiple systems together for synchronized data transfer.
-
Chemical Processing: Used for continuous monitoring and control of complex chemical processes, ensuring product quality and safety by connecting different systems within a plant.
-
Manufacturing: Provides a secure data communication link between machines and control systems, allowing for real-time production monitoring, reducing downtime and ensuring efficient operation.
-
Water Treatment: Enables seamless integration of control systems in water treatment plants, providing data communication between sensors, pumps, and other field devices.
-
Oil and Gas Industry: In upstream and downstream operations, the coupler unit ensures reliable communication across various components, monitoring critical systems such as pressure gauges, valves, and pumps.
Product Advantages
-
Reliable Data Transfer: The AIP504-10 ensures stable and fast data transfer, which is essential for efficient process control and monitoring.
-
Compact and Robust Design: With its 100 x 100 x 43 mm size and 0.5 kg weight, the unit can be easily mounted on DIN rails and operates efficiently in space-constrained environments.
-
Versatility: It supports a wide range of applications, from industrial to automation systems, providing universal compatibility with Yokogawa’s DCS and control systems.
-
Wide Temperature Range: The AIP504-10 operates in a broad temperature range from -10°C to +60°C, making it suitable for various industrial environments.
-
Easy Integration: Compatible with V-Net communication protocols, it integrates smoothly with existing Yokogawa control systems and devices, reducing installation time and complexity.
-
IP20 Rating: Offers protection against solid objects larger than 12 mm, making it suitable for indoor use in industrial environments where dust and other small particles are present.
-
CE Certification: Meets international safety and performance standards, ensuring its reliability and compliance with industrial regulations.
Brand and Series
-
Brand: Yokogawa
-
Series: V-Net Series
Similar Models or Related Products
Here are five related models from the V-Net Series or similar products:
| Model | Description | Dimensions | Weight | Application |
|---|---|---|---|---|
| AIP504-11 | V-Net Coupler Unit for extended temperature range | 100 x 100 x 43 mm | 0.5 kg | General Industrial Use |
| AIP502-10 | V-Net Interface for digital I/O signals | 120 x 110 x 45 mm | 0.6 kg | DCS Interface |
| AIP503-10 | V-Net Coupler with enhanced signal processing | 95 x 95 x 40 mm | 0.45 kg | Automation Control |
| AIP506-10 | High-performance V-Net Coupler for fast data transfer | 110 x 110 x 45 mm | 0.55 kg | Manufacturing Control |
| AIP504-12 | V-Net Coupler Unit for communication in hazardous environments | 100 x 100 x 43 mm | 0.52 kg | Chemical Processing |
Popular Yokogawa Models
Here are five popular Yokogawa models within the same brand:
| Model | Description | Features | Weight | Dimensions |
|---|---|---|---|---|
| AIP507-10 | Multi-channel signal processing module | Multi-channel I/O for process systems | 0.8 kg | 120 x 120 x 55 mm |
| AIP512-10 | Digital input module for distributed control systems | Digital signals for real-time monitoring | 0.75 kg | 110 x 110 x 50 mm |
| AIP505-10 | Signal isolator for robust data integrity | Ensures noise immunity in control systems | 0.6 kg | 95 x 95 x 40 mm |
| AIP510-10 | Intelligent data acquisition module | High-speed data capture and processing | 0.9 kg | 130 x 130 x 60 mm |
| AIP515-10 | V-Net Data Logger and monitoring system | For long-term data collection and analysis | 1.1 kg | 140 x 140 x 65 mm |
FAQs
-
Q: What is the total length of the Yokogawa AIP504-10 V-Net Coupler Unit?
A: The total length is 100 mm. -
Q: What is the weight of the Yokogawa AIP504-10 unit?
A: The weight of the unit is 0.5 kg. -
Q: What is the temperature range for the Yokogawa AIP504-10 unit?
A: The operating temperature range is -10°C to +60°C. -
Q: What communication protocol does the Yokogawa AIP504-10 use?
A: It uses the V-Net communication protocol for distributed control systems. -
Q: Is the Yokogawa AIP504-10 unit CE certified?
A: Yes, it is CE certified, ensuring compliance with international standards. -
Q: How is the Yokogawa AIP504-10 mounted?
A: It is mounted on a DIN rail for easy installation. -
Q: Can the Yokogawa AIP504-10 be used in hazardous environments?
A: The AIP504-10 is designed for general industrial environments, but for hazardous applications, other models with enhanced protection may be required. -
Q: What types of applications is the Yokogawa AIP504-10 suitable for?
A: It is ideal for use in power generation, chemical processing, manufacturing, and other industrial automation systems. -
Q: What type of connectors does the Yokogawa AIP504-10 use?
A: It uses V-Net compatible connectors for seamless integration with Yokogawa control systems. -
Q: What protection rating does the Yokogawa AIP504-10 have?
A: It has an IP20 protection rating, offering protection against solid objects larger than 12 mm.
