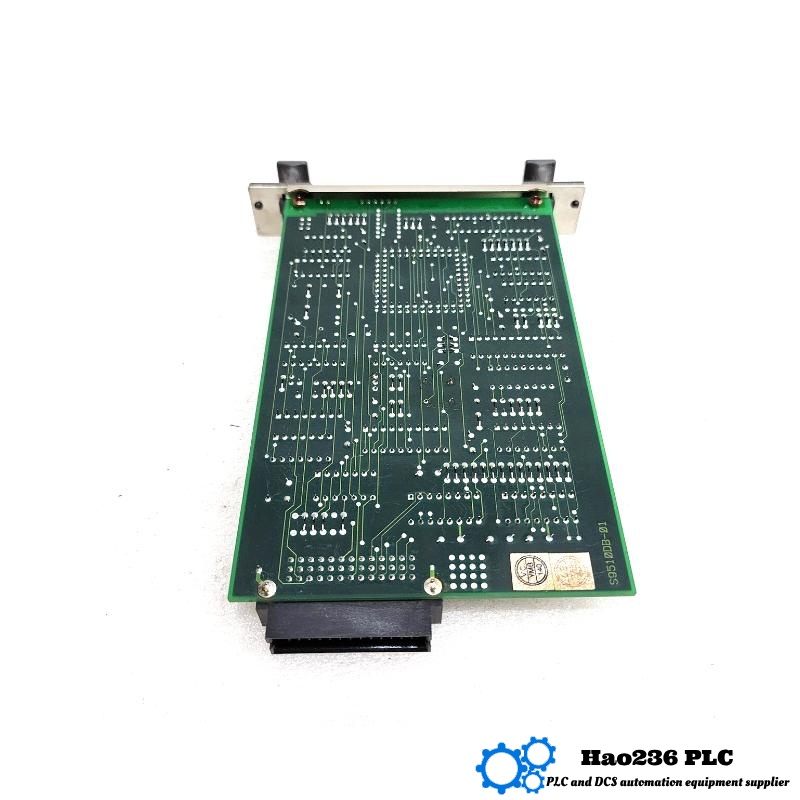

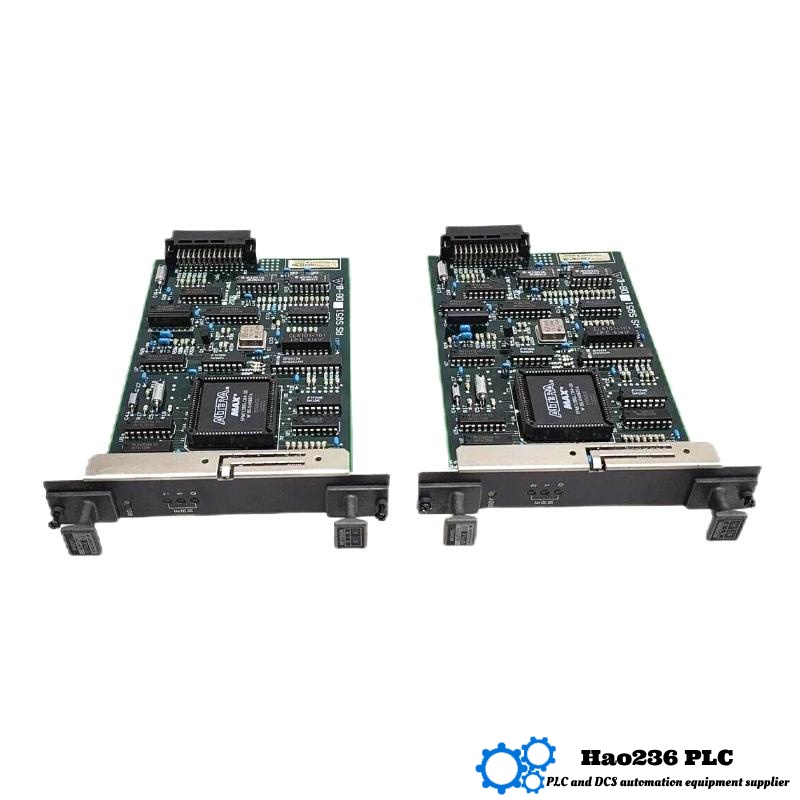

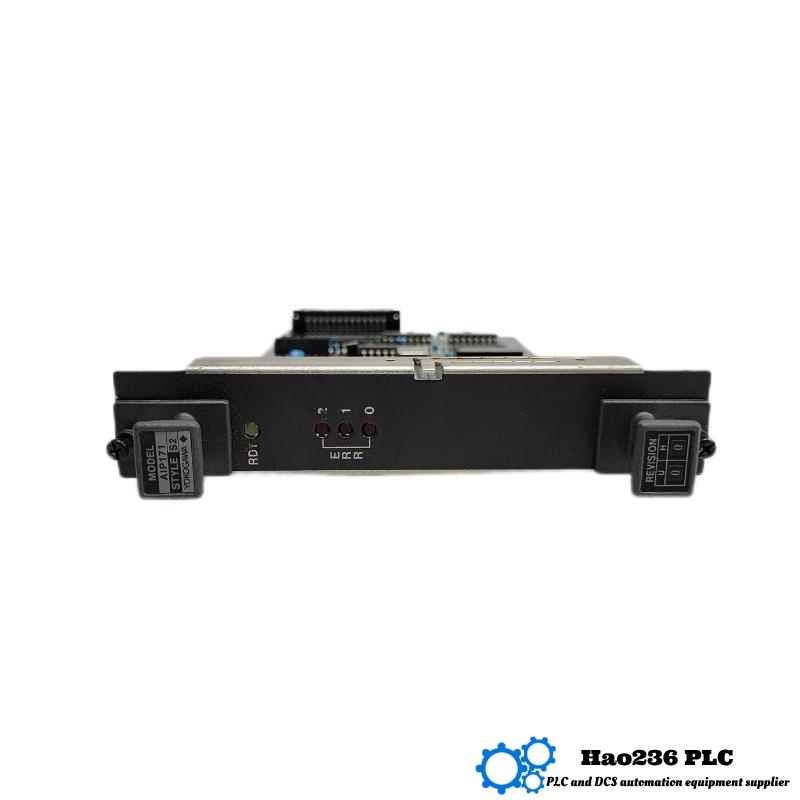

Product Overview: Yokogawa AIP171
Brand & Series
-
Brand: Yokogawa
-
Series / Type: Transceiver Control Module (part of the communication / network module family in Yokogawa’s DCS systems e.g. CENTUM VP / CS)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AIP171 |
| Type | Transceiver Control Module |
| Compatibility | CENTUM VP / CENTUM CS systems; used with V‑Net repeaters / transceiver units |
| Input / Supply Voltage | 24 V DC |
| Operating Temperature | ‑20 °C to +60 °C (non‑condensing) |
| Storage Temperature | ‑20 °C to +70 °C |
| Weight | 0.20 kg |
| Dimensions (Width × Height × Depth) | 12.7 cm × 17.8 cm × 2.5 cm |
| Communication Interfaces / Methods | V‑Net; RS‑485; (some sources indicate possibly Ethernet / RS‑232) |
| Certification / Compliance | Industrial compliance; CE / UL / RoHS in some listings |
Product Introduction
The AIP171 is a transceiver control module designed for Yokogawa’s distributed control systems. Its job is to manage communication between transceivers and repeaters on the V‑Net network, maintaining signal integrity, enabling remote / extended connections, allowing diagnostic features, and supporting redundancy. It is built for industrial settings, with moderate environmental tolerances and a compact physical form.
Applications
-
Acting as a communication intermediary (transceiver / repeater control) in DCS networks
-
Extending communication range of V‑Net links or balancing signal strength over longer distances
-
Environments where reliability and diagnostics are required (e.g. power plants, oil & gas, chemical process industries)
-
Systems where space is constrained, but modular replacement / maintenance is expected
-
Upgrades or retrofits of existing DCS installations that need enhanced communication modules
Advantages
-
Compact size and light weight (≈ 0.20 kg) simplifies installation and reduces mechanical load
-
Standard 24 V DC operating power, common in control cabinets
-
Temperature range that covers many typical industrial ambient conditions (‑20 to +60 °C)
-
Communication interface options (V‑Net, RS‑485 etc.) provide flexibility
-
Diagnostic / status reporting helps detect communication faults early
-
Physical dimensions make it easy to replace or add to existing card slots
Similar / Related Models & Other Popular Modules
Below are tables comparing similar modules in the same functional domain, and other popular modules from the same brand for context.
Related / Same Category Models
| Model | Key Specs / Differentiators | Dimensions / Weight |
|---|---|---|
| AIP171 | Transceiver control; 24 V DC; moderate environmental requirement; V‑Net / RS‑485 interface | 12.7×17.8×2.5 cm; 0.20 kg |
| AIP578 | Optical link / fiber optics capable; extended distance communication | Slightly larger; weight ~0.30‑0.4 kg |
| AIP571 | High‑performance electrical transceiver module; possibly higher data rates or redundancy | Similar footprint; heavier due to more interface hardware |
| AIP501 / AIP502 | Communication / interface modules; possibly protocol conversion or bus couplers | Comparable weight; possibly more depth |
| ACP71 | PROFIBUS or other field‑bus card; supplement to V‑Net communication in multi‑protocol environments | Size & weight comparable; function is bus‑specific rather than generic transceiver control |
Popular Yokogawa Modules for Context
| Model | Use Case / Highlight | Dimensions / Weight Approx. |
|---|---|---|
| ADV551‑P63 | 32‑channel digital output, with LED status, good for actuator control | ~0.20 kg; module size larger in height/depth than AIP171 |
| ADV151‑P63 | 32‑channel digital input with display/status | ~0.30 kg |
| AAI143‑S50 | Analog input module (voltage/current) frequently used in process I/O | ~0.40‑0.50 kg |
| ADR541‑P50 | Discrete / relay output module for driving loads | ~0.35‑0.45 kg |
| AIS143‑H63 | High‑speed analog input, suited for fast process measurement | ~0.30‑0.45 kg |
FAQs
Here are 10 questions & answers about AIP171, phrased in a non‑AI style, technical / field oriented.
Q1: What power supply voltage does AIP171 require?
A1: It requires 24 V DC (standard supply in many Yokogawa control cabinets).
Q2: What is the operating temperature range?
A2: Typically ‑20 °C to +60 °C in non‑condensing conditions.
Q3: How heavy is AIP171 & what are its physical dimensions?
A3: Weight is about 0.20 kg. Dimensions are approximately 12.7 cm wide × 17.8 cm high × 2.5 cm deep.
Q4: What communication interfaces does it support?
A4: It supports V‑Net, RS‑485; some listings also include possible RS‑232 or Ethernet in certain versions.
Q5: What is the module’s role in network communication?
A5: It acts as a transceiver control module or repeater / relay of signals between V‑Net repeaters and transceivers, helping maintain network integrity and reach.
Q6: Can it be used for redundant communication networks?
A6: Yes—some configurations support redundancy (pairing modules) to improve reliability in case of module or link failure.
Q7: What is the acceptable storage temperature for the module?
A7: Storage temperature is around ‑20 °C to +70 °C in many listings.
Q8: How good is its diagnostic or status indication capability?
A8: It includes status or diagnostic capability in many versions, enabling detection of communication faults or module status visually or via system monitoring.
Q9: Are there special mounting requirements?
A9: It is card/module style; mounted in racks or DCS cabinets; attention to ventilation and ambient conditions helps ensure long life.
Q10: What is the maximum distance / performance capability for communication?
A10: Data rate is reportedly up to 10 Mbps in some listings; the transceiver link helps extend range of V‑Net communication through repeaters. Exact maximum distance depends on cable type, network design, and environmental conditions.
