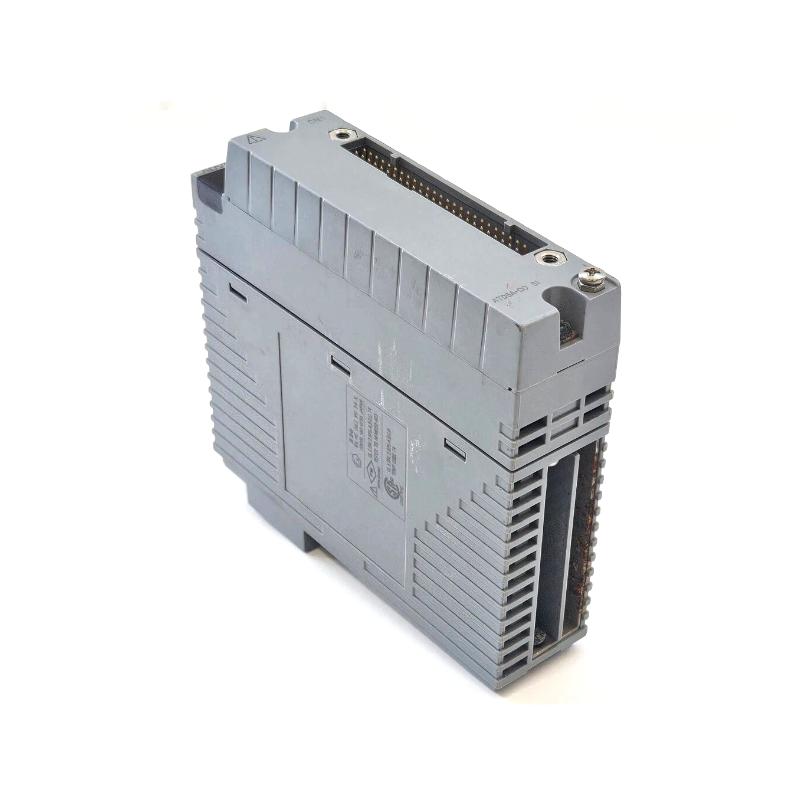

Product Introduction – ADV561‑P10
The Yokogawa ADV561‑P10 is a 64‑channel digital output module engineered for industrial automation and process control systems. It provides 24 V DC transistor (current‑sink) outputs, with high-density mapping to drive a large number of field devices such as solenoid valves, relays, actuators, indicator lamps, and alarms.
The suffix “P10” indicates that this version supports pulse-width modulation (PWM) and time-proportional output but does not include per-channel status LEDs. This makes it well suited for applications where timing control (e.g., duty cycle, pulse duration) is critical, but channel-by-channel visual status is less important.
The module is designed to plug into modular I/O racks or DCS backplanes, enabling flexible expansion or replacement in large automation systems. With its robust design, high output count, and timing functions, ADV561‑P10 is ideal for systems that require precise control of many output devices.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Output Channels | 64 |
| Output Type | 24 V DC transistor, current‑sink, isolated |
| Nominal Supply Voltage | 24 V DC |
| External Supply Voltage Range | ~20.4 – 26.4 V DC |
| Max Load Current per Channel | 100 mA |
| OFF-state Leakage Current | ≤ 0.1 mA per channel |
| ON-state Voltage Drop | ≤ ~2 V DC |
| Output Response Time | ≤ 3 ms (status) / ≤ 10 ms (pulse‑width or time-proportional) |
| Pulse-Width / Time‑Proportional Range | 8 ms – 7200 s |
| Pulse-Width Resolution | 8 ms increments |
| Withstand Voltage – Output to System | ~2 kV AC (1 minute) |
| Withstand Voltage – Between Commons | ~500 V AC between 16‑channel commons (1 minute) |
| Isolation | Fully isolated common groups |
| Connection Interface | Dedicated cable or terminal (depending variant) |
| Weight | Approx. 0.29 kg |
| Dimensions | Approx. 144 mm (W) × 100 mm (H) × 30 mm (D) |
| Redundancy | Supports redundant (dual) configuration in modular systems |
| Operating Environment | Industrial – designed for control racks and field systems |
Applications
-
Process Industry: Valve sequencing, pump control, actuation of actuators, and time-based control in chemical, petrochemical, or refining plants.
-
Power Generation: Controlling auxiliary relays, indicator lights, contactors, and alarms in power stations.
-
Water & Wastewater Treatment: Proportional control of blowers, mixers, gates, and timed operations in plant process.
-
Oil & Gas Safety Systems: Safety interlocks, emergency shutdown (ESD) valve control, and timed actuation.
-
Automation & Manufacturing Systems: Robotics peripherals, packaging machinery, conveyors, and interlock systems with high channel count.
-
Large-Scale DCS / I/O Rack Expansion: Ideal for cost-effective scalable expansion in distributed control systems requiring many outputs with timing capability.
Advantages
-
High Output Density: 64 channels in one module reduce the need for multiple smaller modules, saving rack space.
-
Precision Timing Control: Supports pulse-width modulation and time-proportional output for sophisticated control strategies.
-
Electrical Isolation: Robust isolation protects the control system from noise, surges, and cross-channel interference.
-
Scalable & Modular: Easily integrates into modular I/O racks and supports redundancy for high availability.
-
Compact & Lightweight: At roughly 0.29 kg and compact form factor, it is easy to mount and service.
-
Cost-Effective: Without per-channel status LEDs, it offers a more economical way to achieve high-performance timed output.
-
Reliable for Continuous Use: Designed for industrial operations, continuous cycling, and long-term reliability.
-
Flexible Integration: Compatible with many control architectures and field device wiring schemes.
Brand & Series Information
-
Brand: Yokogawa
-
Series: ADV Series – Digital I/O Modules
-
Sub-series: ADV561 – 64‑channel digital output modules with timing functions.
Recommended Models – Same Series / Related
Here are five related or alternative models within the same series or with similar functionality. The “Model” column is bolded:
| Model | Channels | Key Features | Notes |
|---|---|---|---|
| ADV561‑P10 | 64 | Pulse-width, time-proportional | Current model, high-capacity timed output |
| ADV561‑P00 | 64 | Pulse-width, time-proportional, status | Includes status output |
| ADV561‑P01 | 64 | High environmental tolerance + timing | For harsh industrial conditions |
| ADV561‑P50 | 64 | Timing control (pulse, proportion) | Lower-cost version with fewer features |
| ADV551‑P10 | 32 | Timing outputs in 32‑channel format | For smaller or mixed I/O systems |
Recommended Popular Models – Same Brand
Here are five other widely used modules from Yokogawa that complement or provide alternative I/O functions:
| Model | Type | Channels | Application / Role |
|---|---|---|---|
| ADV151‑P60 | Digital Input | 32 | Discrete input acquisition for control systems |
| ADV161‑P00 | Digital Input | 64 | High-channel input board for large automation systems |
| ADV559‑P00 | Digital Output | 32 | Lower-channel output module for smaller systems |
| ADV569‑P00 | Digital Output | 64 | Alternative 64-channel output module |
| ADV869‑P01 | Mixed I/O | 32 in / 32 out | Combined input/output flexibility |
FAQ – 10 Questions (Q/A)
Q1: How many output channels does ADV561‑P10 have?
A1: It provides 64 output channels.
Q2: What output modes are supported?
A2: It supports pulse-width modulation and time-proportional output, in addition to status output.
Q3: What is the rated supply voltage?
A3: The nominal supply is 24 V DC, with a nominal external range of ~20.4–26.4 V DC.
Q4: What is the maximum current per channel?
A4: Each channel can drive up to 100 mA.
Q5: What is the response time for output switching?
A5: Status switching is ≤ 3 ms; for pulse or proportional mode it’s ≤ 10 ms.
Q6: How isolated are the outputs?
A6: Very isolated: ~2 kV AC between outputs and system, ~500 V AC between groups of 16 channels.
Q7: What are the physical dimensions and weight of the module?
A7: Approx. 144 mm × 100 mm × 30 mm, weight ~0.29 kg.
Q8: Can the module be used in redundant control architectures?
A8: Yes — it supports dual-redundant configurations for high-availability systems.
Q9: In what applications is timing (pulse/prop proportion) most beneficial?
A9: It is most useful in valve sequencing, batch control, periodic actuation, and duty‑cycle applications.
Q10: Is the module suitable for continuous duty cycles?
A10: Yes — it is designed for industrial continuous operation, cycling, and precise timed outputs.
