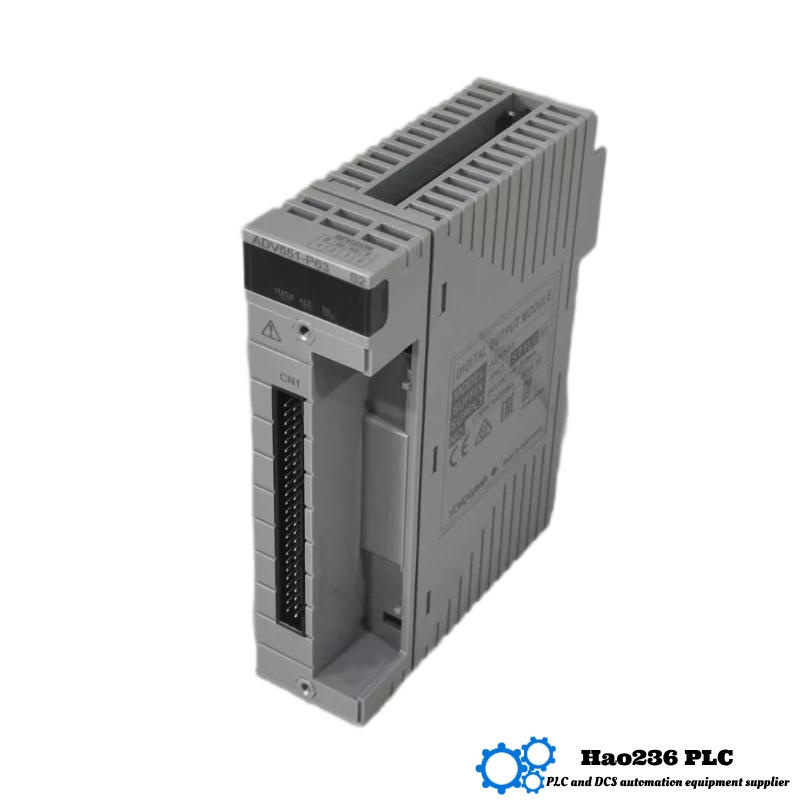

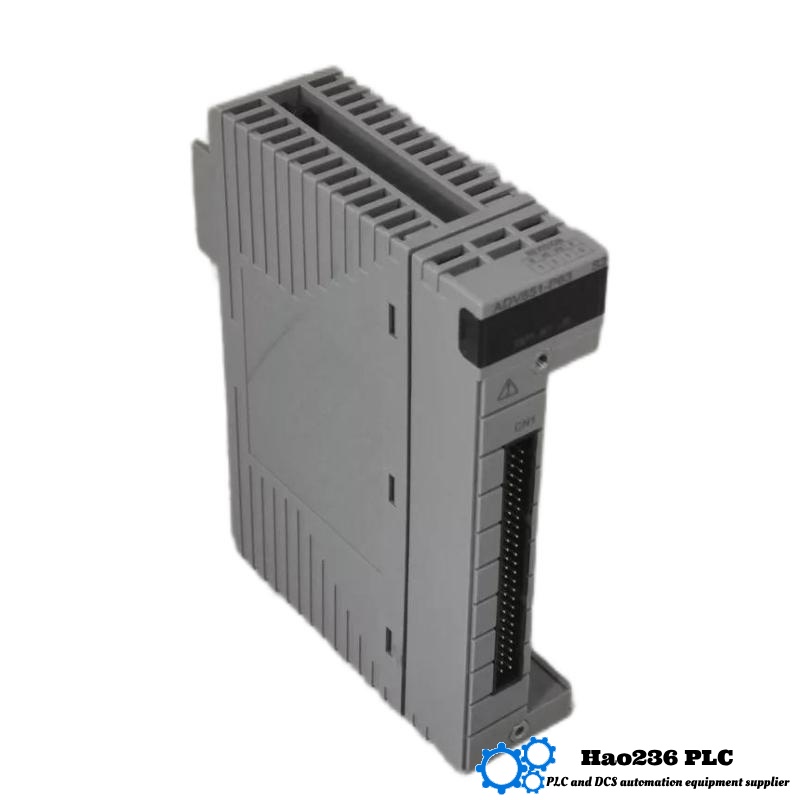

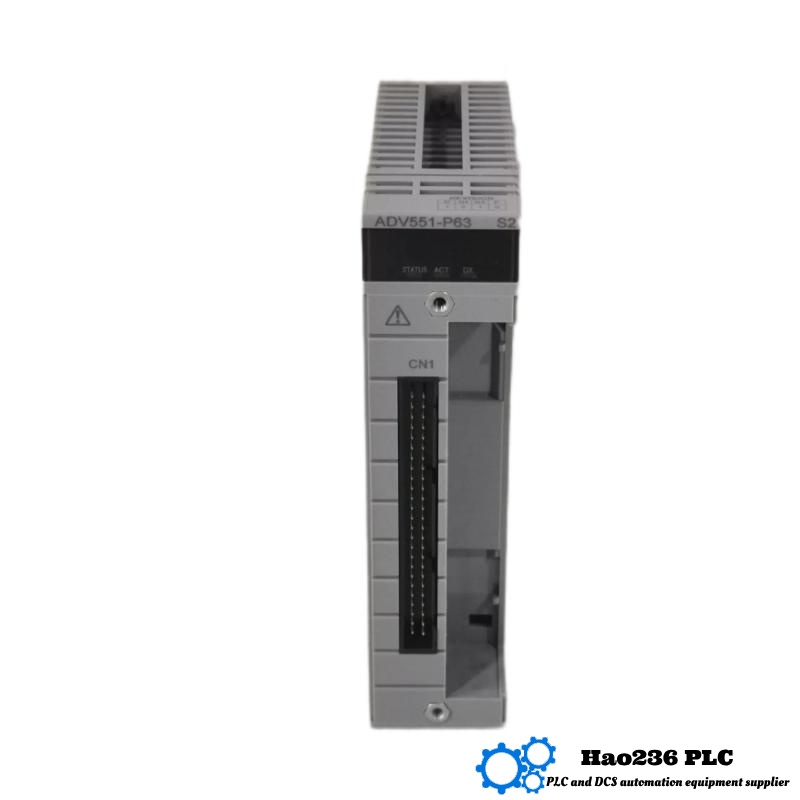

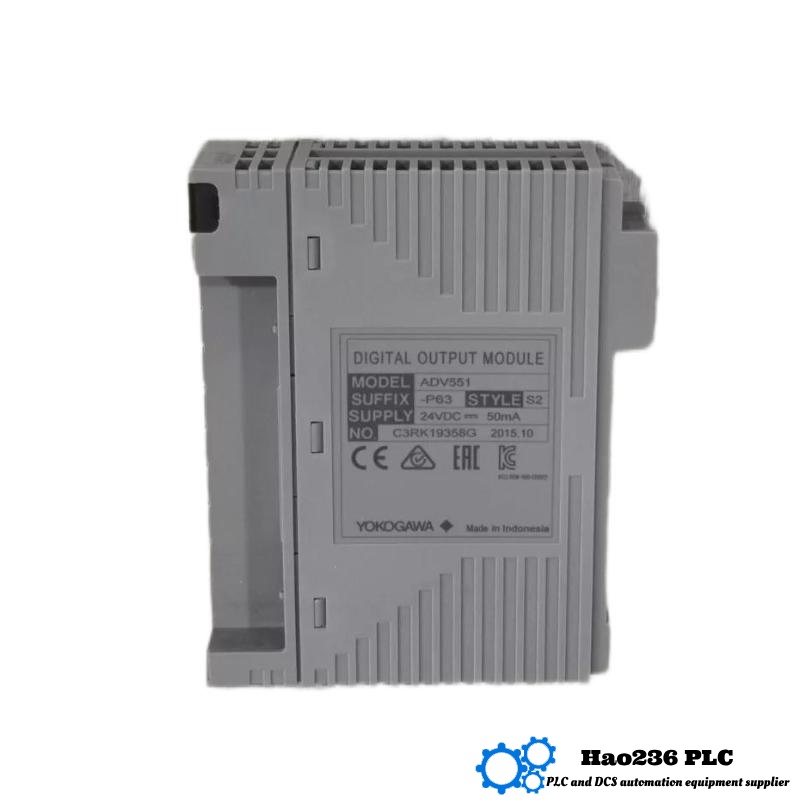

Yokogawa ADV551-P63 Digital Output Module
Product Introduction
The Yokogawa ADV551-P63 is a high-quality digital output module designed specifically for industrial automation and control systems requiring reliable and fast digital switching capabilities. This module features 16 transistor output channels with a rated output voltage of 24 V DC, allowing precise control of various devices such as actuators, indicators, and relays.
Built with advanced optical isolation technology, the ADV551-P63 ensures excellent noise immunity and protects the control system from electrical interference and potential damage. Its compact dimensions of 107.5 × 130 × 32.8 mm and a lightweight design of 0.2 kg make it suitable for dense panel mounting without compromising space efficiency.
With built-in protections against overload and short circuit conditions, the ADV551-P63 offers operational safety and enhances system reliability. Its fast switching response and stable output performance make it ideal for critical processes in industries like manufacturing, power generation, water treatment, and chemical processing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV551-P63 |
| Number of Channels | 16 channels |
| Output Type | Transistor (sink/source) |
| Rated Output Voltage | 24 V DC |
| Maximum Output Current | 0.5 A per channel |
| Output Response Time | ≤ 3 ms |
| Isolation Voltage | 1500 V AC (optical isolation) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Mounting Type | DIN rail |
| Protection Features | Overload and short circuit protection |
| Certifications | CE, RoHS compliant |
Product Applications
The ADV551-P63 is suitable for a wide variety of industrial control applications including:
-
Automotive manufacturing: Controlling actuators and digital indicators for assembly lines.
-
Power generation plants: Managing alarms, indicators, and auxiliary equipment.
-
Water and wastewater treatment: Operating valves and pumps for process automation.
-
Food and beverage processing: Automating packaging and filling machinery.
-
Chemical processing: Reliable control of safety interlocks and process instrumentation.
-
Building automation: Controlling lighting systems, HVAC, and security devices.
Product Advantages
-
High reliability and safety: Equipped with optical isolation and protection circuits to prevent damage.
-
Compact and lightweight: Small form factor (107.5 × 130 × 32.8 mm) and only 0.2 kg, saving valuable panel space.
-
Fast switching response: Quick output signal transitions support time-critical automation tasks.
-
Wide operating temperature range: Suitable for varied industrial environments, from -20°C to +70°C.
-
Easy installation: Supports DIN rail mounting for simple setup and maintenance.
-
Compatibility: Seamless integration with Yokogawa’s ADV series control systems ensures flexible system expansion.
Brand Information
Yokogawa Electric Corporation, established in 1915 in Japan, is a global leader in industrial automation, control, and measurement solutions. Renowned for their quality, precision, and technological innovation, Yokogawa products, such as the ADV551-P63, provide trusted performance in challenging industrial environments worldwide.
Recommended Related Models (Same Series or Similar)
| Model | Channels | Output Type | Voltage | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|
| ADV551-P03 S2 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.18 kg | Compact 8-channel module with optical isolation |
| ADV551-P10 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Medium density, fast switching digital outputs |
| ADV551-P50 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Balanced channels with robust protection features |
| ADV551-P53 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Compact design, optical isolation, overload protection |
| ADV159-P01 | 16 | Relay | 24 V DC | 130 × 107.5 × 35.0 | 0.22 kg | Relay outputs for high power load applications |
Recommended Popular Yokogawa Models (Other Product Lines)
| Model | Channels | Output Type | Rated Voltage | Response Time | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|---|
| ADV151-P60 | 32 | Transistor Output | 24 V DC | ≤ 0.5 ms | 107.5 × 130 × 32.8 | 0.2 kg | High-density 32-point output, ultra-fast response, ideal for high-speed logic control |
| ADV551-P60 | 16 | Transistor Output | 24 V DC | ≤ 1 ms | 107.5 × 130 × 32.8 | 0.2 kg | Standard 16-point output, overload protection, opto-isolated, reliable performance |
| ADV159-P01 | 16 | Relay Output | 24 V DC | ≤ 10 ms | 130 × 107.5 × 35 | 0.22 kg | Relay-based for higher load applications, provides mechanical isolation |
| ADV551-P03 S2 | 8 | Transistor Output | 24 V DC | ≤ 3 ms | 107.5 × 130 × 32.8 | 0.18 kg | Compact 8-channel module, ideal for small-scale control, opto-isolated |
| ADV161-P50 | 16 | Transistor Output | 24 V DC | ≤ 1 ms | 107.5 × 130 × 32.8 | 0.2 kg | Robust standard 16-channel output, strong anti-interference, versatile automation use |
Frequently Asked Questions (FAQ)
Q1: How many output channels does the ADV551-P63 provide?
A1: It provides 16 transistor output channels.
Q2: What is the rated output voltage?
A2: The rated output voltage is 24 V DC.
Q3: Does the module provide electrical isolation?
A3: Yes, the module uses optical isolation for noise immunity.
Q4: What is the maximum current per channel?
A4: Each channel supports up to 0.5 A.
Q5: What are the physical dimensions of the module?
A5: The dimensions are 107.5 × 130 × 32.8 mm.
Q6: How much does the module weigh?
A6: The weight is approximately 0.2 kg.
Q7: What protection features does the module have?
A7: It includes overload and short circuit protection.
Q8: What is the operating temperature range?
A8: The operating temperature range is from -20°C to +70°C.
Q9: Is DIN rail mounting supported?
A9: Yes, the module supports DIN rail mounting.
Q10: Which industries is this module commonly used in?
A10: It is commonly used in automotive, power plants, water treatment, chemical processing, and building automation industries.
