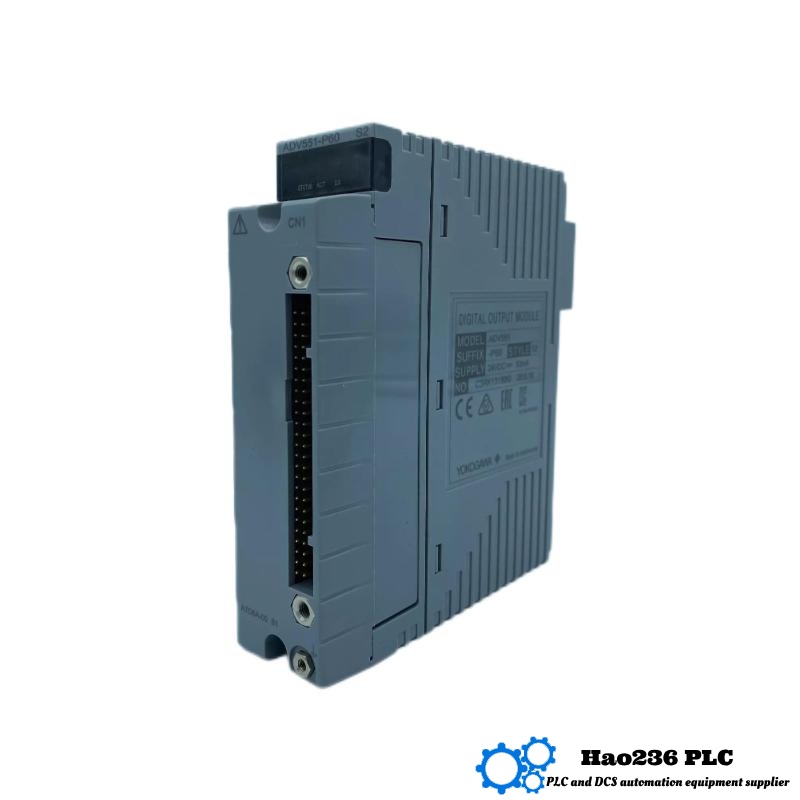

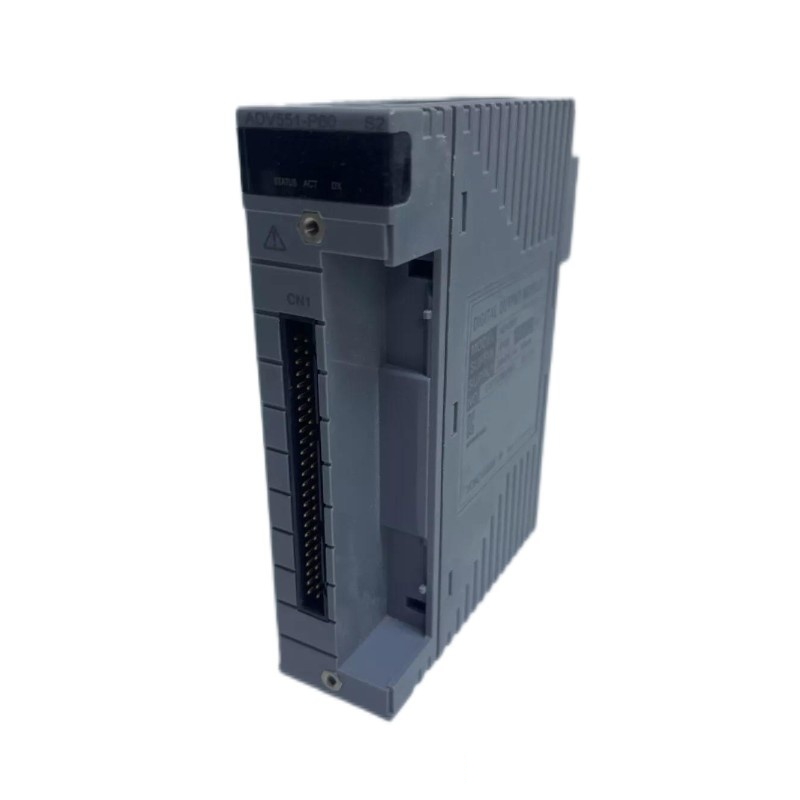

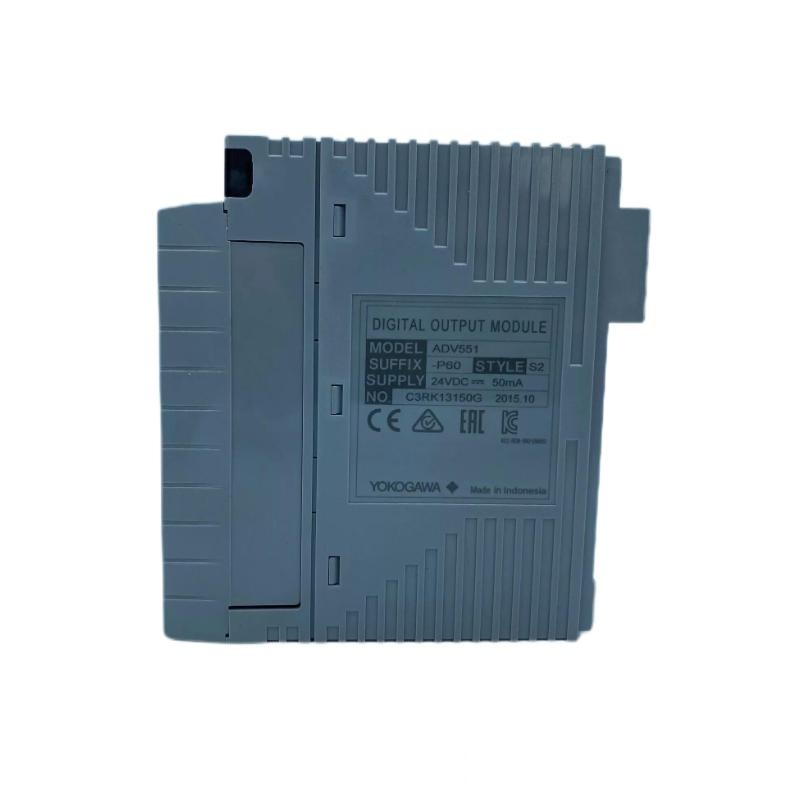

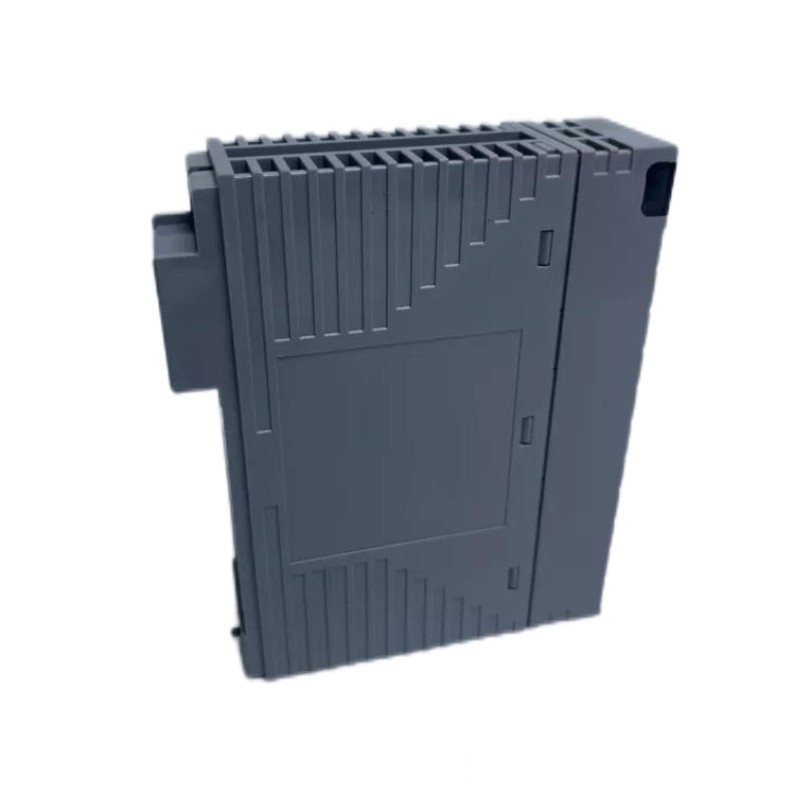

Yokogawa ADV551-P60 Digital Output Module
Product Introduction
The Yokogawa ADV551-P60 is a high-performance digital output module designed for industrial automation systems that demand reliability, precision, and durability. Equipped with 32 transistor output channels, this module provides extensive digital output capabilities within a compact footprint. Its output voltage rating is 24 V DC, suitable for controlling a wide array of industrial devices such as actuators, valves, and relays.
Constructed with robust optical isolation, the ADV551-P60 protects sensitive circuitry from noise and electrical interference, ensuring signal integrity and system stability even in harsh industrial environments. The module’s quick switching speed and built-in protection features, including short circuit and overload safeguards, contribute to its dependable operation in critical process control applications.
Measuring 107.5 × 130 × 32.8 mm and weighing 0.2 kg, the ADV551-P60 fits easily into control panels with limited space, offering scalable solutions for digital control needs. It integrates seamlessly into Yokogawa’s ADV series control platforms, enabling easy system expansion and flexible deployment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV551-P60 |
| Number of Channels | 32 channels |
| Output Type | Transistor (sink/source) |
| Rated Output Voltage | 24 V DC |
| Maximum Output Current | 0.5 A per channel |
| Output Response Time | ≤ 3 ms |
| Isolation Voltage | 1500 V AC (optical isolation) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Mounting Type | DIN rail |
| Protection Features | Short circuit and overload protection |
| Certifications | CE, RoHS compliant |
Product Applications
The ADV551-P60 is widely applied in:
-
Automotive Assembly Lines: Provides control signals to actuators and robotic equipment for efficient manufacturing.
-
Power Plants: Manages switching of electrical components and alarms to ensure safe operation.
-
Water Treatment Facilities: Controls pumps and valves for precise process management.
-
Food & Beverage Processing: Operates packaging and filling machines with high accuracy.
-
Building Automation: Enables centralized control of lighting, HVAC, and security systems.
-
Chemical Plants: Ensures reliable control of safety interlocks and process equipment under demanding conditions.
Product Advantages
-
High Channel Density: 32 output channels provide broad control capacity in a single module.
-
Compact and Lightweight: The slim profile (107.5 × 130 × 32.8 mm) and light weight (0.2 kg) save panel space.
-
Robust Electrical Isolation: Optical isolation ensures signal integrity and protects against noise.
-
Fast Switching Performance: Responds quickly to control commands, supporting real-time process control.
-
Built-In Protection: Features overload and short circuit protection to safeguard the system and reduce downtime.
-
Wide Operating Temperature Range: Operates effectively between -20°C and +70°C for use in various environments.
-
Easy Installation: DIN rail mounting simplifies setup and maintenance.
Brand Information
Yokogawa Electric Corporation, headquartered in Tokyo, Japan, is a renowned leader in industrial automation and control systems since 1915. Known for precision engineering and innovation, Yokogawa develops reliable and high-quality products that optimize process efficiency globally. The ADV551-P60 exemplifies Yokogawa’s dedication to delivering rugged and efficient digital output solutions for modern industrial needs.
Recommended Related Models (Same Series or Similar)
| Model | Channels | Output Type | Voltage | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|
| ADV551-P03 S2 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.18 kg | Compact 8-channel module, space-saving design |
| ADV551-P10 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Medium density module with fast switching |
| ADV551-P50 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Balanced channels with robust protection features |
| ADV551-P53 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Compact design, optical isolation, overload protection |
| ADV159-P01 | 16 | Relay | 24 V DC | 130 × 107.5 × 35.0 | 0.22 kg | Relay output for high power applications |
Recommended Popular Yokogawa Models (Other Product Lines)
| Model | Channels | Output Type | Voltage | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|
| ADV541-P10 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Medium density transistor outputs, compact size |
| ADV161-P50 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Robust design, fast switching, overload protection |
| ADV159-P01 | 16 | Relay | 24 V DC | 130 × 107.5 × 35.0 | 0.22 kg | Relay output for higher load applications |
| ADV551-P03 S2 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.18 kg | Small size, 8 channel transistor output |
| ADV551-P50 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Balanced 16 channel transistor outputs, reliable |
Frequently Asked Questions (FAQ)
Q1: How many output channels does the ADV551-P60 support?
A1: It supports 32 transistor output channels.
Q2: What is the rated voltage of the module?
A2: The rated output voltage is 24 V DC.
Q3: What type of output does this module provide?
A3: It provides transistor (sink/source) digital outputs.
Q4: What is the maximum output current per channel?
A4: Each channel can handle up to 0.5 A.
Q5: Does the module have electrical isolation?
A5: Yes, it uses optical isolation for each channel.
Q6: What are the physical dimensions of the ADV551-P60?
A6: The module measures 107.5 × 130 × 32.8 mm.
Q7: How much does the module weigh?
A7: It weighs approximately 0.2 kg.
Q8: What protection features are included?
A8: The module has short circuit and overload protection.
Q9: Can it be mounted on a DIN rail?
A9: Yes, it supports DIN rail mounting.
Q10: What is the operating temperature range?
A10: It operates between -20°C and +70°C.
