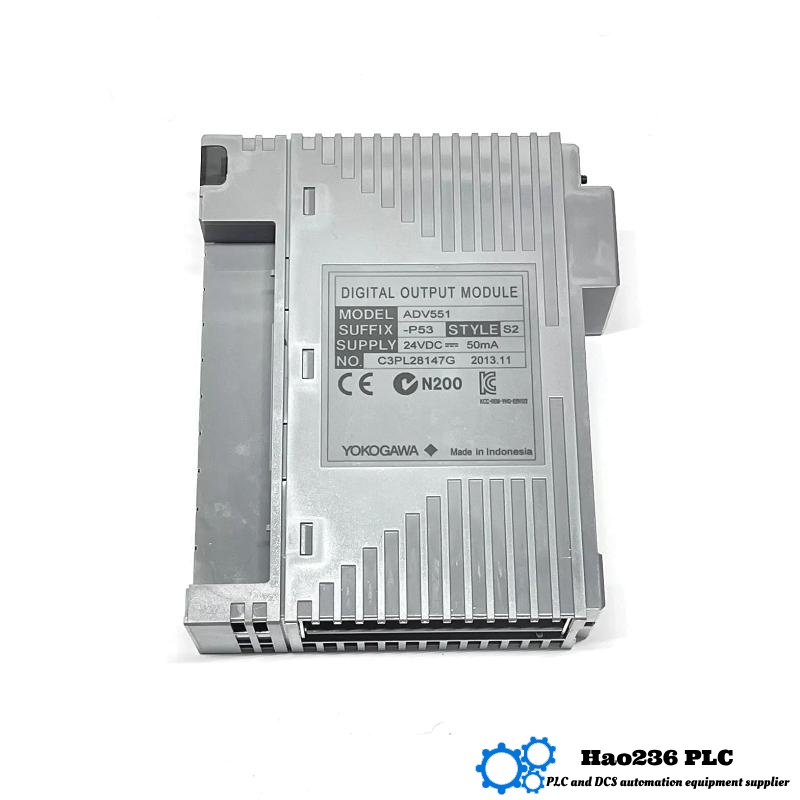

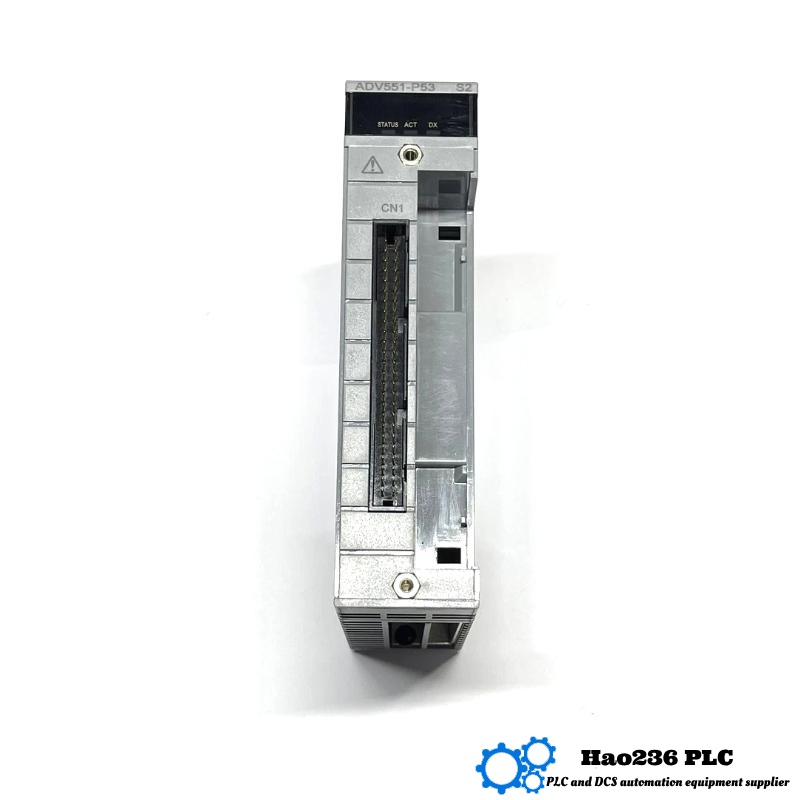

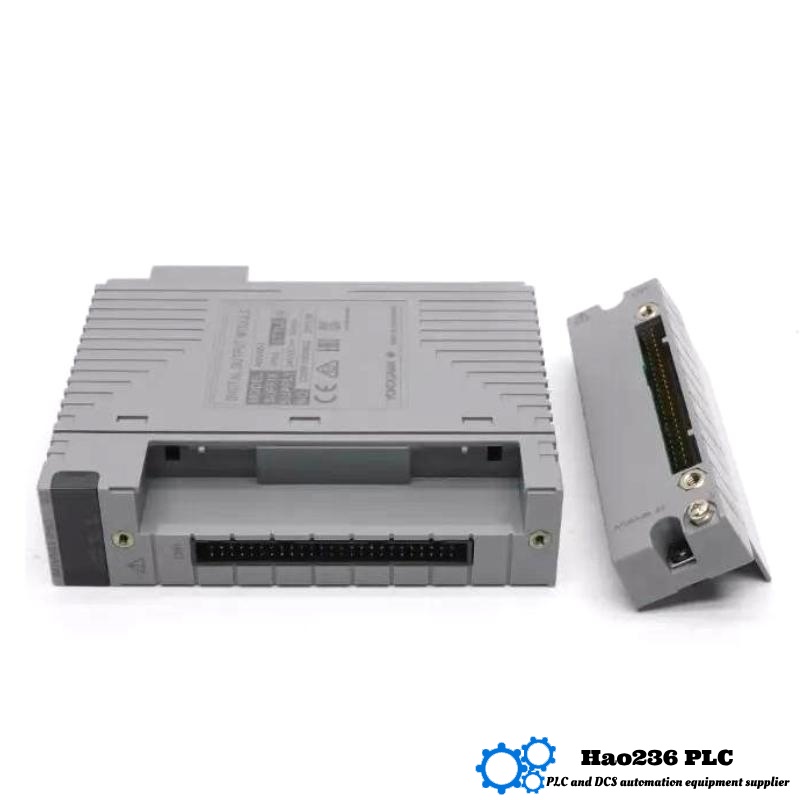

Yokogawa ADV551-P53 Digital Output Module
Product Introduction
The Yokogawa ADV551-P53 is a reliable and versatile digital output module designed for advanced industrial automation systems. It provides 8 transistor output channels with a rated voltage of 24 V DC, ensuring precise and efficient control over connected devices. The module features compact dimensions of 107.5 × 130 × 32.8 mm and weighs only 0.2 kg, making it highly suitable for installations where space constraints exist.
Built with advanced optical isolation technology, the ADV551-P53 safeguards sensitive electronics from electrical noise and interference, improving signal integrity and system stability. This module supports fast switching capabilities and robust protection mechanisms, including short circuit and overload protection, to prevent system failures and reduce downtime.
Designed for seamless integration into Yokogawa’s ADV series control systems, the ADV551-P53 offers dependable performance for critical process controls, facilitating smooth operations across various industrial sectors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV551-P53 |
| Number of Channels | 8 channels |
| Output Type | Transistor (sink/source) |
| Rated Output Voltage | 24 V DC |
| Maximum Output Current | 0.5 A per channel |
| Output Response Time | ≤ 3 ms |
| Isolation Voltage | 1500 V AC (optical isolation) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Mounting Type | DIN rail |
| Protection Features | Short circuit and overload protection |
| Certifications | CE, RoHS compliant |
Product Applications
The ADV551-P53 module is widely applied across various industries including:
-
Automotive Manufacturing: Controls actuators and motors for precise assembly operations.
-
Power Generation: Provides digital output signals for switching and monitoring electrical components.
-
Water and Wastewater Treatment: Operates pumps, valves, and alarms to ensure safe and efficient processing.
-
Food and Beverage Industry: Controls packaging, filling, and processing equipment to maintain hygiene and efficiency.
-
Building Automation: Manages lighting, HVAC systems, and security devices for smart building solutions.
-
Chemical Processing: Delivers reliable outputs for controlling valves and safety interlocks in hazardous environments.
Product Advantages
-
Compact Design: Small footprint and lightweight make it ideal for limited space environments.
-
Reliable Isolation: Optical isolation reduces noise, protecting both the module and connected equipment.
-
Fast Switching Speed: Enables quick response for time-sensitive control applications.
-
Built-in Protection: Short circuit and overload protections increase operational safety and device longevity.
-
Wide Operating Range: Functions reliably in temperatures from -20°C to +70°C.
-
Easy Installation: DIN rail mounting facilitates quick and convenient setup and maintenance.
Brand Information
Yokogawa Electric Corporation is a global leader in industrial automation and control technologies. Established in 1915 and headquartered in Tokyo, Japan, Yokogawa has built a strong reputation for delivering high-quality, innovative products that enhance process control reliability and efficiency worldwide. The ADV551-P53 digital output module exemplifies Yokogawa’s commitment to precision engineering, durability, and customer satisfaction.
Recommended Related Models (Same Series or Similar)
| Model | Channels | Output Type | Voltage | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|
| ADV551-P60 | 32 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | High channel density, fast switching, optical isolation |
| ADV551-P03 S2 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.18 kg | Compact 8-channel module, space-saving design |
| ADV159-P01 | 16 | Relay | 24 V DC | 130 × 107.5 × 35.0 | 0.22 kg | Relay output for high power loads |
| ADV551-P10 | 32 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Medium density module, wide temperature range |
| ADV551-P50 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Balanced channels, reliable protection features |
Recommended Popular Yokogawa Models (Other Product Lines)
| Model | Channels | Output Type | Voltage | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|
| ADV151-P10 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Medium channel count, compact size, fast switching |
| ADV551-P50 S2 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Robust protection, reliable performance |
| ADV557-S00 | 8 | Relay | 24 V DC | 130 × 107.5 × 35.0 | 0.22 kg | Relay outputs, suitable for higher power loads |
| ADV551-P53 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Compact, optical isolation, overload protection |
| ADV159-P01 | 16 | Relay | 24 V DC | 130 × 107.5 × 35.0 | 0.22 kg | Relay output for high power applications |
Frequently Asked Questions (FAQ)
Q1: How many output channels does the ADV551-P53 have?
A1: It has 8 digital output channels.
Q2: What is the rated voltage for this module?
A2: The rated output voltage is 24 V DC.
Q3: What type of output does this module use?
A3: It uses transistor outputs with sink/source capability.
Q4: What is the maximum current per channel?
A4: Each channel supports up to 0.5 A maximum current.
Q5: Does the module provide electrical isolation?
A5: Yes, optical isolation is applied to each channel.
Q6: What are the dimensions of the ADV551-P53?
A6: The dimensions are 107.5 × 130 × 32.8 mm.
Q7: How much does the module weigh?
A7: The module weighs approximately 0.2 kg.
Q8: What protection features are included?
A8: It has short circuit and overload protection.
Q9: Can this module be mounted on a DIN rail?
A9: Yes, it is designed for DIN rail mounting.
Q10: What is the operating temperature range?
A10: The module operates reliably between -20°C and +70°C.
