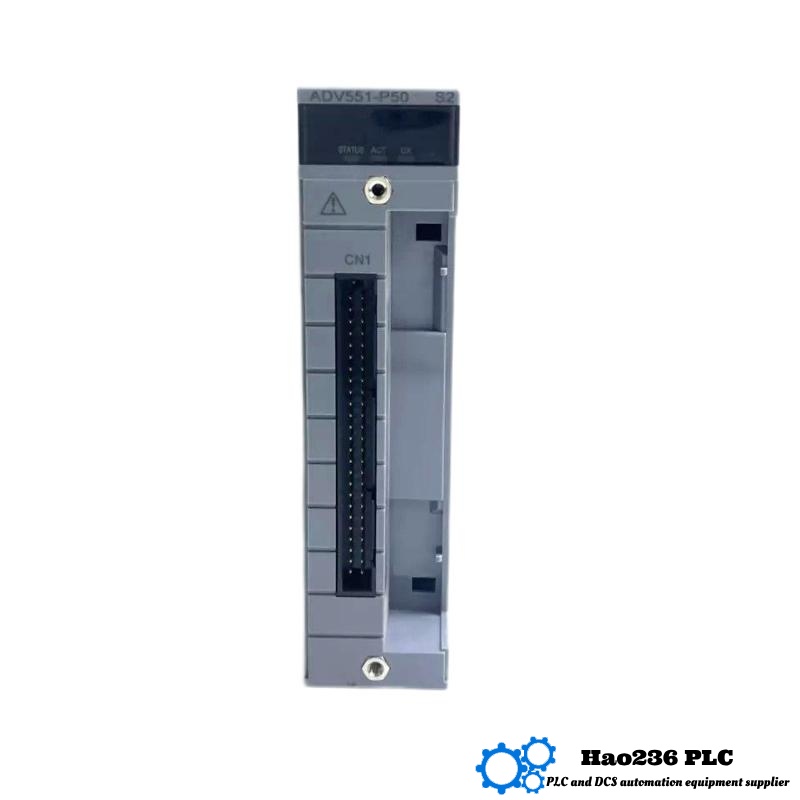

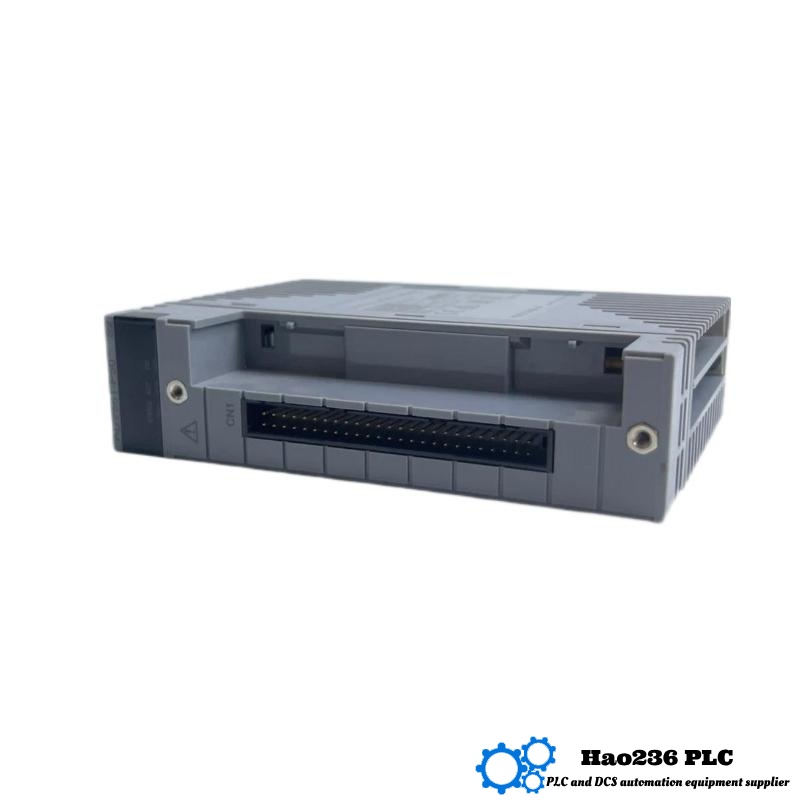

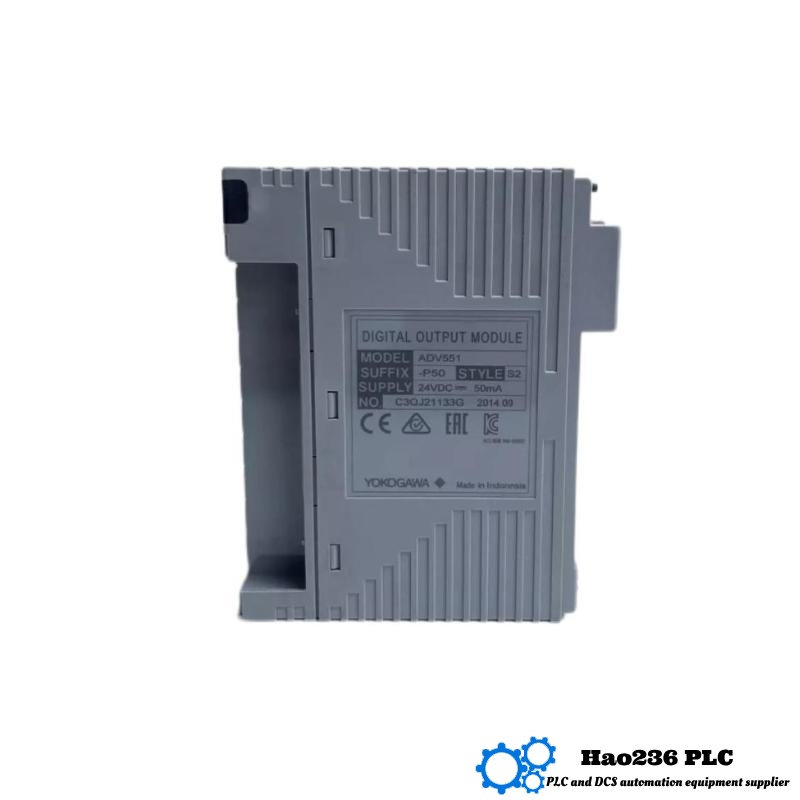

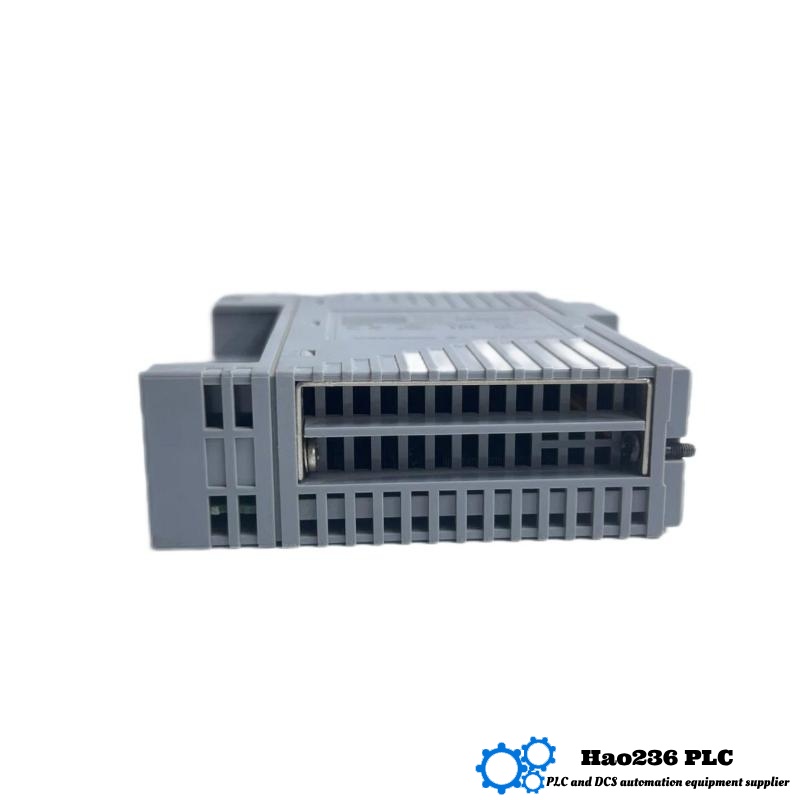

Yokogawa ADV551-P50 S2 Digital Output Module
Product Introduction
The Yokogawa ADV551-P50 S2 is a high-performance digital output module designed for industrial automation and process control systems. It features 16 transistor output channels operating at 24 V DC, delivering reliable and precise control for actuators, valves, motors, alarms, and other field devices. With its compact dimensions of 107.5 × 130 × 32.8 mm and light weight of 0.2 kg, the module is ideal for integration in compact control panels where space is limited.
Engineered for demanding industrial environments, the ADV551-P50 S2 offers robust electrical isolation through optical coupling, minimizing the risk of signal interference and ensuring system safety. Its fast response time and built-in short circuit protection enhance overall system reliability. The module is compatible with Yokogawa’s ADV series, making it a versatile choice for expansions or upgrades within existing automation systems.
Backed by Yokogawa’s renowned quality and innovation, the ADV551-P50 S2 combines efficiency, durability, and ease of installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV551-P50 S2 |
| Number of Channels | 16 channels |
| Output Type | Transistor (sink/source) |
| Rated Output Voltage | 24 V DC |
| Maximum Output Current | 0.5 A per channel, 8 A total |
| Output Response Time | ≤ 3 ms |
| Isolation Voltage | 1500 V AC (optical isolation) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Mounting Type | DIN rail |
| Protection Features | Short circuit and overload protection |
| Certifications | CE, RoHS compliant |
Product Applications
The ADV551-P50 S2 is utilized in a wide range of industrial sectors, including:
-
Manufacturing Automation: Controls solenoids, motors, and actuators in assembly lines and robotic systems.
-
Energy Management: Manages switching of electrical loads and status signaling in power plants and substations.
-
Water Treatment Plants: Operates pumps, valves, and alarm systems for process safety and control.
-
Building Automation: Controls lighting, HVAC systems, and security devices in commercial buildings.
-
Chemical and Pharmaceutical Industries: Provides reliable outputs for critical control processes demanding high safety and precision.
-
Material Handling and Logistics: Facilitates control of conveyors, packaging machines, and sorting equipment.
Product Advantages
-
Compact and Lightweight: Its small size and low weight make it easy to install even in crowded control cabinets.
-
High Reliability: Optical isolation per channel reduces noise and electrical interference, enhancing system stability.
-
Fast Response: Outputs switch in less than 3 milliseconds, enabling timely and accurate control actions.
-
Versatile Output Configuration: Supports both sinking and sourcing output modes to fit various system designs.
-
Safety Features: Built-in protection against short circuits and overloads prevents damage to both module and connected devices.
-
Wide Operating Range: Works reliably under a broad temperature range from -20°C to +70°C.
-
Easy Installation: Designed for DIN rail mounting, simplifying panel assembly and maintenance.
Brand Information
Yokogawa Electric Corporation, established in 1915 and headquartered in Tokyo, Japan, is a global pioneer in industrial automation, instrumentation, and control solutions. The company is trusted worldwide for its dedication to innovation, product quality, and customer support. Yokogawa’s ADV series digital output modules, including the ADV551-P50 S2, reflect the brand’s emphasis on precision, reliability, and compatibility within advanced automation ecosystems.
Recommended Related Models (Same Series or Similar)
| Model | Channels | Output Type | Voltage | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|
| ADV551-P60 | 32 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | High-density 32-channel output, fast switching |
| ADV551-P03 S2 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.18 kg | Compact 8-channel module, space-saving design |
| ADV159-P01 | 16 | Relay | 24 V DC | 130 × 107.5 × 35.0 | 0.22 kg | Relay output, suitable for AC/DC high power loads |
| ADV551-P10 | 32 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Medium density 32-channel module, reliable isolation |
| ADV551-P50 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Balanced output channels, reliable for many systems |
Recommended Popular Yokogawa Models (Other Product Lines)
| Model | Channels | Output Type | Voltage | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|
| ADV151-P60 | 32 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | High channel density, fast switching, optical isolation |
| ADV161-P50 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Balanced channel count, robust protection features |
| ADV159-P01 | 16 | Relay | 24 V DC | 130 × 107.5 × 35.0 | 0.22 kg | Relay output for high power AC/DC loads, mechanical isolation |
| ADV151-P53/D5A00 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.18 kg | Compact size, suitable for limited-space applications |
| ADV551-P50 S2 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Reliable digital output, short circuit protection |
Frequently Asked Questions (FAQ)
Q1: How many output channels does the ADV551-P50 S2 have?
A1: The module has 16 digital output channels.
Q2: What is the rated output voltage for this module?
A2: The rated output voltage is 24 V DC.
Q3: What type of outputs are used in the ADV551-P50 S2?
A3: It uses transistor outputs that support both sinking and sourcing modes.
Q4: What is the maximum current per channel?
A4: Each channel supports a maximum current of 0.5 A.
Q5: Does this module provide electrical isolation?
A5: Yes, each channel has optical isolation for protection against noise and interference.
Q6: What are the physical dimensions of the ADV551-P50 S2?
A6: The module measures 107.5 × 130 × 32.8 mm.
Q7: How much does the module weigh?
A7: It weighs approximately 0.2 kg.
Q8: What protections are built into the module?
A8: The module includes short circuit and overload protections.
Q9: Can this module be installed on a DIN rail?
A9: Yes, it is designed for easy DIN rail mounting.
Q10: What is the operating temperature range for this module?
A10: It operates reliably within a temperature range of -20°C to +70°C.
