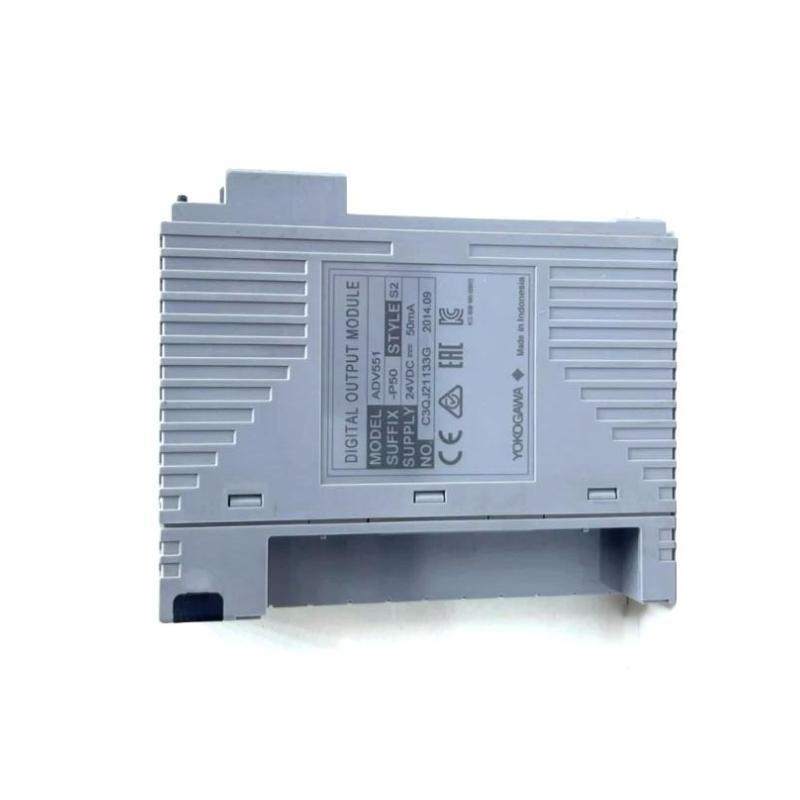

Product Model: Yokogawa ADV551-P50 S2
Brand: Yokogawa
Series: ADV551 Series – Digital Output Modules
Product Introduction
The ADV551-P50 S2 is a high-performance 32-channel digital output module built for industrial automation and process control systems. Within the ADV551 family, the “P50” suffix indicates that this variant supports pulse-width and time-proportional output functions (in addition to standard ON/OFF outputs), while the “S2” denotes a specific revision or option set. This module is designed to drive 24 V DC discrete field devices—such as solenoids, relays, indicator lamps and actuators—via current-sink outputs, all in a compact rack-mountable format.
Because space, wiring complexity and system reliability matter in modern automation, the ADV551-P50 S2 combines 32 channels in one module, supports enhanced output functions, and integrates smoothly into Yokogawa’s modular I/O architecture. The module features high electrical isolation, fast switching, and efficient installation wiring flexibility—making it a strong fit for plants, manufacturing lines, utilities and retrofit scenarios requiring dense output control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Output Channels | 32 channels |
| Rated Applied Voltage | 24 V DC nominal |
| External Power Supply Voltage Range | 20.4 V to 26.4 V DC |
| Output Format | Current-sink digital outputs |
| Maximum Load Current per Channel | Approx. 100 mA per channel (at ~26.4 V) |
| Output ON Voltage (Maximum Drop) | ≤ 2 V DC |
| Leakage Current when OFF | ≤ 0.1 mA |
| Withstanding Voltage (Isolation) | 2 kV AC between output signal & system (1 min) 500 V AC between commons every 16 channels (1 min) |
| Output Response Time | ≤ 3 ms for status output; ≤ 10 ms for mixed status + pulse outputs |
| Supported Pulse Width / Time-Proportioning | 8 ms to 7 200 s |
| External Connection Options | Pressure clamp terminal, dedicated cable (AKB331), MIL-connector cable |
| Dimensions (W × H × D) | Approx. 107.5 mm × 130 mm × 32.8 mm |
| Weight | Approx. 0.20 kg |
| Operating Temperature Range | -20 °C to +60 °C (typical) |
Applications
-
In large-scale process plants (chemical, petrochemical, power generation) where dozens of discrete outputs such as solenoid valves, alarms, relays and actuators must be managed reliably.
-
In manufacturing automation systems (assembly lines, machine control, robotics) where high-density output control is needed and wiring/cabinet space are constrained.
-
In utilities/infrastructure (water/wastewater treatment, pumping, motor control centres) where discrete output devices are numerous and need efficient I/O modules.
-
In retrofit or expansion scenarios: When an existing I/O rack must be expanded to support more output channels without increasing cabinet size, the ADV551-P50 S2 offers 32 channels in one slot, reducing module count and wiring.
-
In systems requiring timed control: The module’s pulse-width and time-proportional output capability allow more advanced control of actuators, making it suitable for modern automation environments beyond simple ON/OFF switching.
Advantages
-
High output density: 32 channels per module reduce the number of modules, wiring paths and rack slots required.
-
Compact & lightweight: At approx. 0.20 kg and modest dimensions, the module fits well into dense rack environments.
-
Enhanced control functions: Pulse-width/time-proportional output capability provides flexibility beyond standard digital output.
-
Robust electrical isolation: Withstanding voltages up to 2 kV AC protect the system in noisy industrial environments.
-
Fast switching: Response times ≤ 3 ms ensure timely signal delivery to field devices.
-
Modular integration: Compatible with Yokogawa I/O platform—standard form-factor and interface simplify system design and maintenance.
-
Cost efficiency: Fewer physical modules, fewer wiring terminations, simpler installation and maintenance reduce total cost of ownership.
-
Future-proof scalability: The advanced output functions and modular architecture support evolving automation requirements without redesigning the infrastructure.
Recommended Models – Same Series / Related
| Model | Description / Key Specification |
|---|---|
| ADV551-P50 S2 | This model: 32-channel digital output module with pulse-width/time-proportional output functions. |
| ADV551-P00 | 32-channel digital output basic variant (standard ON/OFF) in the ADV551 family. |
| ADV551-P10 | 32-channel digital output module variant with extended features for timing/proportional outputs. |
| ADV551-P63 | 32-channel digital output module with extended temperature rating or status-display options. |
| ADV561-32DO | 64-channel digital output module in the same platform family—higher channel capacity. |
Recommended Models – Same Brand Popular
| Model | Description / Typical Specification |
|---|---|
| ADV161-P00 | 64-channel digital input module – high-density input counterpart to the output modules. |
| ADV169-P00 | 64-channel digital input module variant – another popular choice in the digital I/O line. |
| ADV171-P00 | 16-channel analog input module – for sensing analog process variables. |
| ADV181-P00 | 16-channel analog output module – used for analog actuator control. |
| ADV151-E63 S2 | Advanced digital I/O module with enhanced diagnostics, part of the same I/O ecosystem. |
FAQ – Frequently Asked Questions (10 Q&A)
Q1: How many output channels does the ADV551-P50 S2 provide?
A1: It provides 32 discrete digital output channels in one module.
Q2: What is the nominal operating voltage for this module’s outputs?
A2: The outputs are designed for a nominal 24 V DC.
Q3: What is the maximum current each channel can drive?
A3: Each channel is rated to drive up to around 100 mA at the top voltage (approx. 26.4 V).
Q4: What kinds of output functions are supported beyond simple ON/OFF?
A4: The P50 variant supports pulse-width and time-proportional output, enabling more refined control strategies.
Q5: What is the response time for switching the outputs?
A5: For standard status outputs it’s ≤ 3 ms; when using mixed status/pulse modes it may be up to ≤ 10 ms.
Q6: What are the module’s physical dimensions and weight?
A6: Dimensions are approximately 107.5 mm (W) × 130 mm (H) × 32.8 mm (D), and the module weighs about 0.20 kg.
Q7: What output format does this module use?
A7: It uses a current-sink format for digital outputs compatible with 24 V DC field devices.
Q8: Is the module compatible with the brand’s modular I/O architecture?
A8: Yes – it is part of the ADV551 series and designed for integration into standard racks/backplanes of the Yokogawa system.
Q9: What ambient conditions can it operate under?
A9: It is rated for typical ambient range of -20 °C to +60 °C under industrial installation conditions.
Q10: How is maintenance or module replacement handled in a system?
A10: The module uses a plug-in architecture; maintenance involves isolating power, removing the module, replacing it, reconnecting field wiring, and verifying each output channel’s function. Periodic inspection of wiring, connections and ventilation is recommended.
