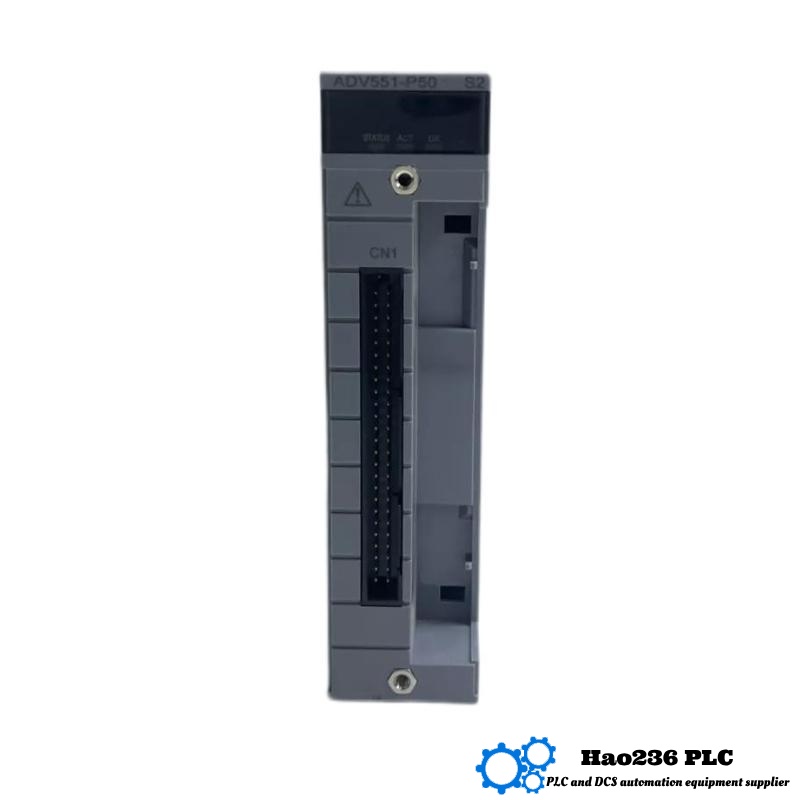

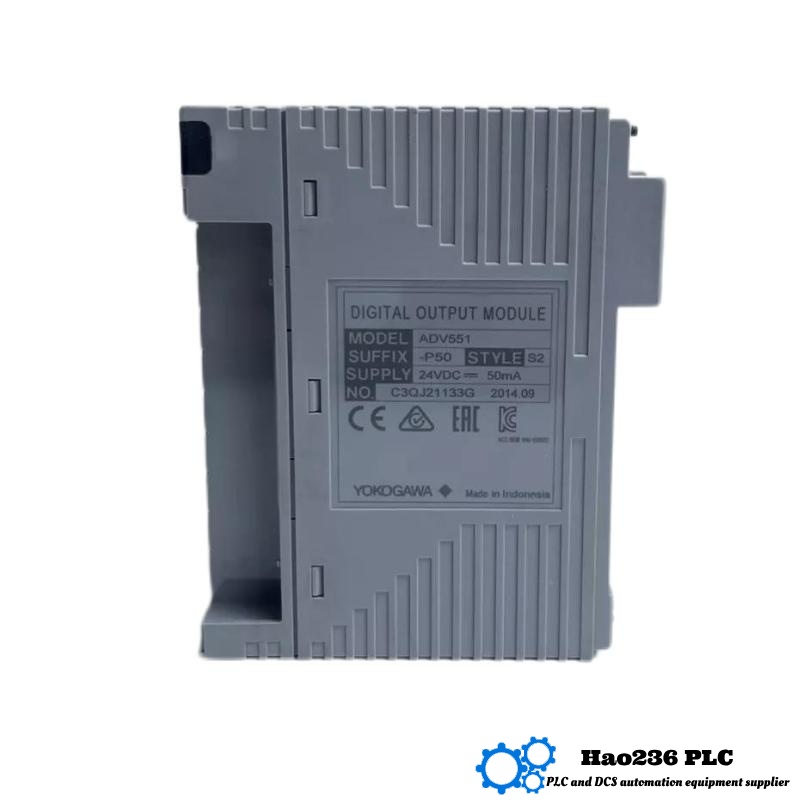

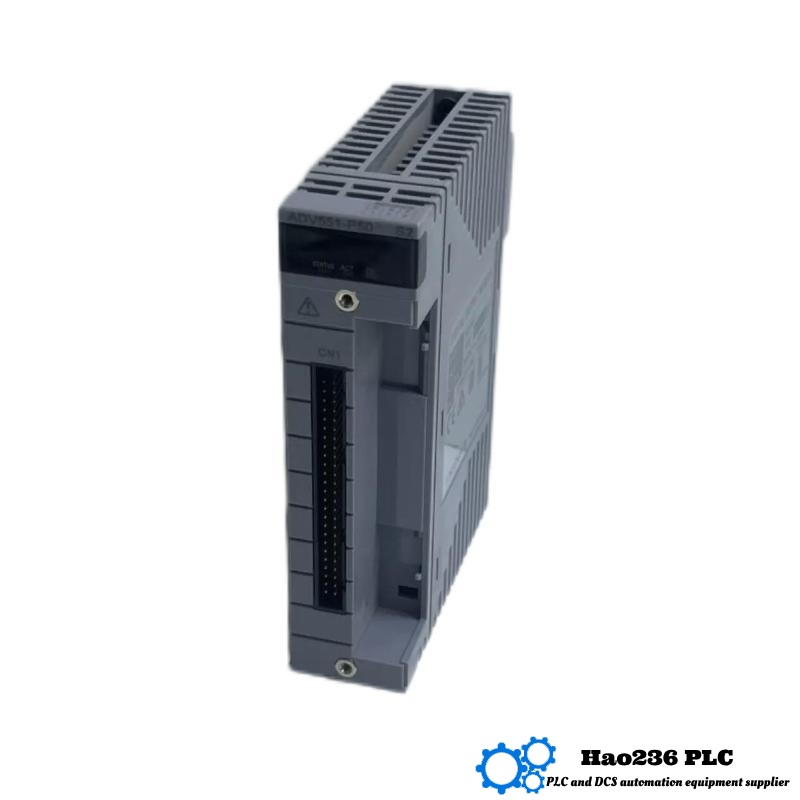

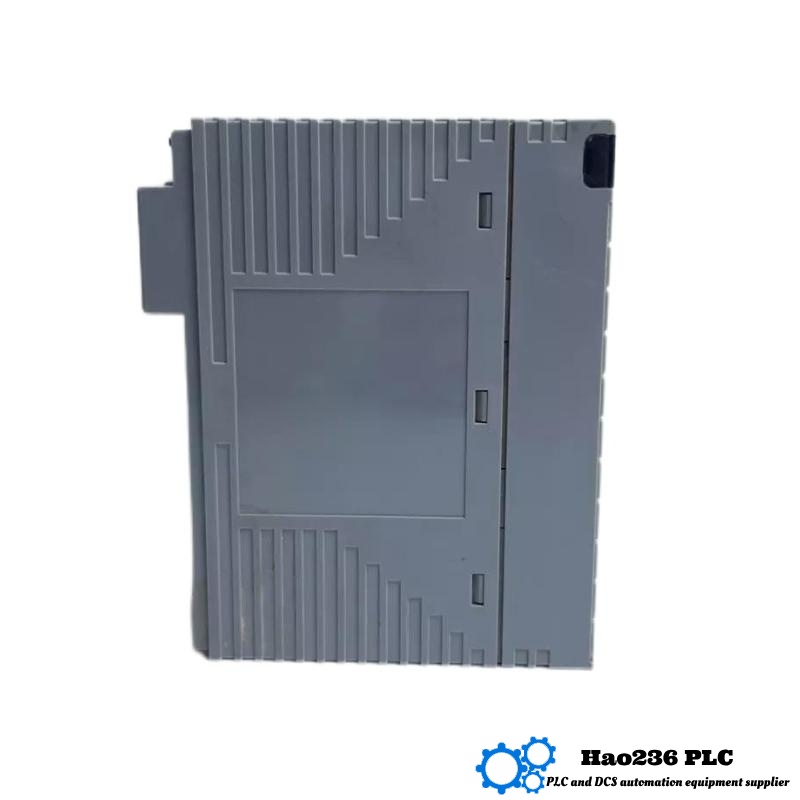

Yokogawa ADV551-P50 Digital Output Module
Product Introduction
The Yokogawa ADV551-P50 is a robust and efficient digital output module designed specifically for industrial automation and process control applications. It features 16 transistor output channels operating at 24 V DC, allowing precise control over various field devices such as valves, indicators, motors, and relays. The module is engineered with a compact size of 107.5 × 130 × 32.8 mm and a light weight of 0.2 kg, making it suitable for installation in tightly packed control panels or cabinets.
Designed with advanced electrical isolation and protection mechanisms, the ADV551-P50 ensures reliable operation even in environments with electrical noise and interference. Its quick response time and high channel density enable seamless integration into demanding control systems, boosting automation efficiency and safety.
Manufactured by Yokogawa, a globally recognized leader in measurement and control solutions, the ADV551-P50 reflects the company’s commitment to quality, reliability, and innovative engineering.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV551-P50 |
| Output Channels | 16 channels |
| Output Type | Transistor (sink/source) |
| Rated Output Voltage | 24 V DC |
| Maximum Output Current | 0.5 A per channel, 8 A total |
| Output Response Time | ≤ 3 ms |
| Isolation Voltage | 1500 V AC (optical isolation) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -25°C to +70°C |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Mounting Type | DIN rail |
| Protection Features | Short circuit and overload protection |
| Certifications | CE, RoHS compliant |
Product Applications
The ADV551-P50 is widely applied in diverse industrial automation scenarios including:
-
Manufacturing: Controls actuators, solenoids, and motor starters in production lines and automated machinery.
-
Energy and Utilities: Manages load switching and status indication in power distribution and monitoring systems.
-
Water and Wastewater Treatment: Operates pumps, valves, and alarm systems to ensure proper plant operations.
-
Building Automation: Interfaces with HVAC systems, lighting controls, and security devices.
-
Chemical and Pharmaceutical Industries: Provides safe and reliable switching for critical processes requiring strict control.
-
Material Handling and Logistics: Controls conveyor belts, robotic arms, and packaging systems.
Product Advantages
-
High Channel Density: Provides 16 output channels within a small form factor, optimizing panel space usage.
-
Fast and Reliable Switching: Achieves output response times of less than 3 milliseconds for real-time control.
-
Robust Electrical Isolation: Each channel has optical isolation, protecting the system from noise and voltage spikes.
-
Flexible Output Configuration: Supports both sinking and sourcing outputs, allowing easy integration with various control architectures.
-
Built-In Protection: Safeguards against short circuits and overloads, enhancing system safety and longevity.
-
Wide Operating Temperature Range: Operates reliably in environments from -20°C to +70°C.
-
Easy Installation: Designed for quick and secure DIN rail mounting.
Brand Information
Yokogawa Electric Corporation is a global leader in industrial automation, instrumentation, and control technologies. Founded in 1915 and headquartered in Tokyo, Japan, Yokogawa has a long history of innovation and excellence. The company is known for delivering reliable, high-quality products and solutions that help industries optimize operations, improve safety, and enhance productivity worldwide.
Yokogawa’s ADV series digital output modules, including the ADV551-P50, reflect the company’s dedication to precision engineering, system compatibility, and customer-centric design.
Recommended Related Models (Same Series or Similar)
| Model | Channels | Output Type | Voltage | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|
| ADV551-P03/D5A00 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | 8-channel optical isolation output |
| ADV551-P10/D5A00 | 32 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | 32-channel high-density transistor output |
| ADV551-P04/D5A00 | 16 | Transistor | 24 V DC | 215 × 130 × 32.8 | 0.40 kg | 16-channel extended version with enhanced isolation |
| ADV551-P02/D5A00 | 8 | Relay | 24 V DC | 107.5 × 130 × 35.0 | 0.22 kg | Relay output type suitable for high voltage switching |
| ADV551-P50/D5A00 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Balanced performance for medium channel count needs |
Recommended Popular Yokogawa Models (Other Product Lines)
| Model | Channels | Output Type | Voltage | Dimensions (mm) | Weight | Key Features |
|---|---|---|---|---|---|---|
| ADV551-P60 | 32 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | High-density 32-channel transistor outputs, optical isolation, fast switching |
| ADV551-P03 S2 | 8 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.18 kg | Compact 8-channel module, suitable for space-constrained installations |
| ADV159-P01 | 16 | Relay | 24 V DC | 130 × 107.5 × 35.0 | 0.22 kg | Relay output module for AC/DC loads, mechanical isolation |
| ADV551-P50 | 16 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Balanced channel count and compact size, robust protection features |
| ADV551-P10 | 32 | Transistor | 24 V DC | 107.5 × 130 × 32.8 | 0.20 kg | Medium channel density, reliable optical isolation, wide temperature range |
Frequently Asked Questions (FAQ)
Q1: How many output channels does the ADV551-P50 have?
A1: It has 16 digital output channels.
Q2: What is the rated output voltage?
A2: The rated output voltage is 24 V DC.
Q3: What type of output does this module use?
A3: It uses transistor outputs supporting both sinking and sourcing modes.
Q4: What is the maximum current per channel?
A4: Each channel can handle up to 0.5 A.
Q5: Does the ADV551-P50 have electrical isolation?
A5: Yes, it features optical isolation for each output channel.
Q6: What are the module’s physical dimensions?
A6: The dimensions are 107.5 × 130 × 32.8 mm.
Q7: What is the weight of the module?
A7: The module weighs approximately 0.2 kg.
Q8: What protection features are included?
A8: It includes short circuit and overload protection.
Q9: Can the module be mounted on a DIN rail?
A9: Yes, the module is designed for DIN rail mounting.
Q10: What is the operating temperature range?
A10: It operates reliably between -20°C and +70°C.
