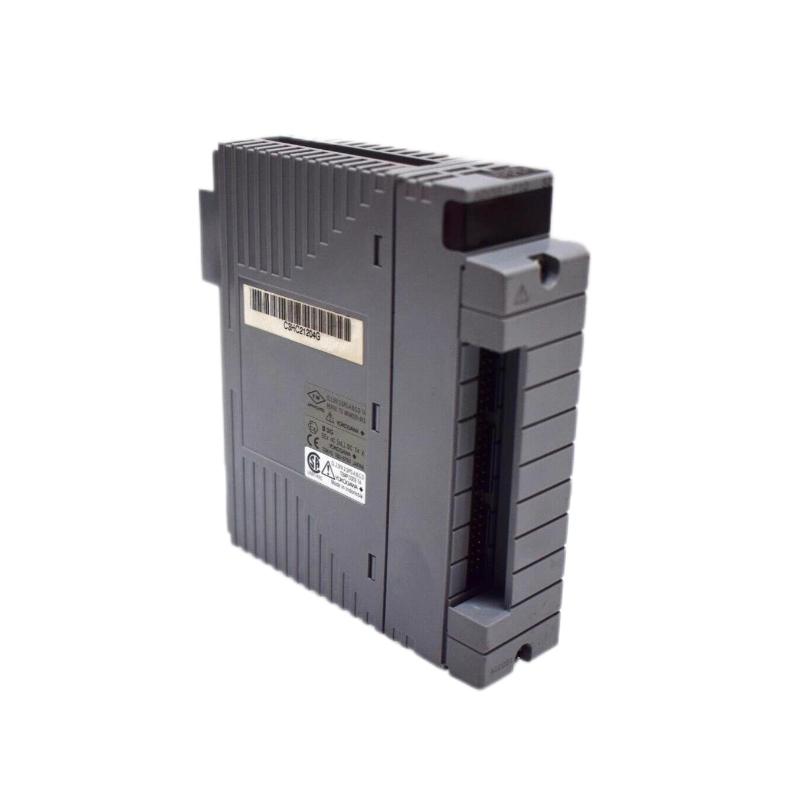

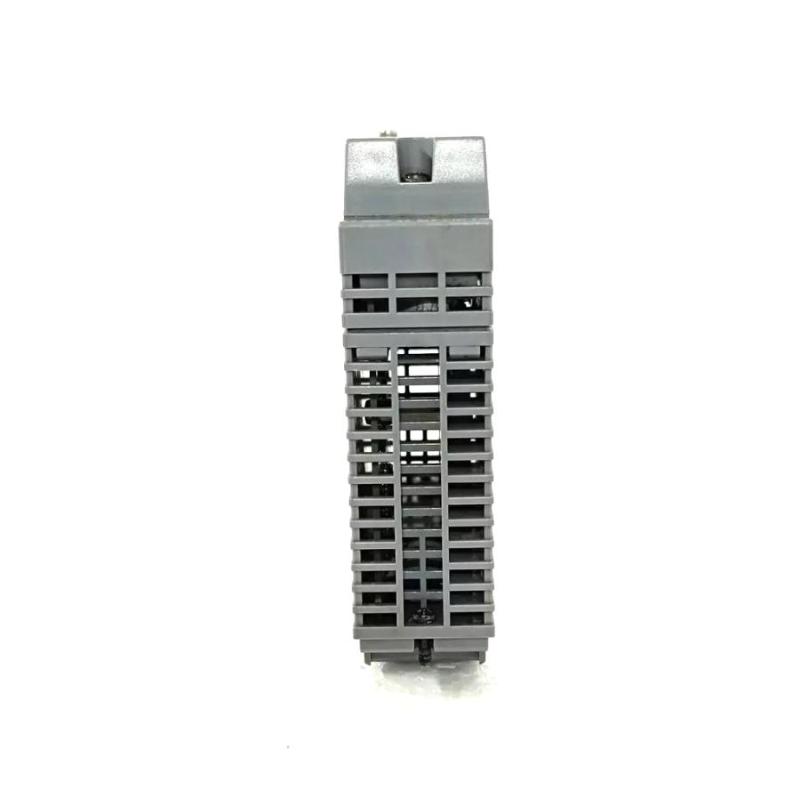

Product Model: Yokogawa ADV551-P13/D5A00
Brand: Yokogawa
Series: ADV551 Series — Digital Output Modules
Product Introduction
The Yokogawa ADV551-P13/D5A00 is a high-density 32-channel digital output module designed for advanced process automation and factory control systems. It belongs to the ADV551 modular I/O series, which offers compact, reliable, and high-performance digital signal handling.
The P13 variant is a performance-enhanced version of the series, integrating additional functions such as pulse-width and time-proportioning output control. The /D5A00 option specifies that this module is equipped with a KS Cable Interface Adapter, which simplifies field wiring, reduces installation time, and ensures high reliability in industrial environments.
This module is commonly used within distributed control systems (DCS) and programmable automation frameworks where stable, isolated, and precise 24 V DC output signals are required. Its robust design, superior electrical isolation, and high switching speed make it a preferred choice for demanding industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ADV551-P13/D5A00 |
| Number of Channels | 32 digital output channels |
| Rated Output Voltage | 24 V DC nominal |
| Allowable Voltage Range | 20.4 V DC to 26.4 V DC |
| Output Type | Current-sink transistor type |
| Maximum Load Current | 100 mA per channel |
| Output ON Voltage Drop | ≤ 2 V DC |
| Leakage Current (OFF State) | ≤ 0.1 mA |
| Isolation Voltage | 2 kV AC between I/O and system ground |
| Common Isolation | 500 V AC between every 16-channel group |
| Response Time | ≤ 3 ms (standard output), ≤ 10 ms (pulse/time proportioning modes) |
| Advanced Functions | One-shot pulse width and time-proportioning output control |
| Diagnostics | Channel fault detection, signal status indication |
| Connector Type | KS Cable Interface Adapter (model ATD5A-00) |
| Mounting Method | Plug-in to base I/O rack or backplane |
| Dimensions (W × H × D) | 107.5 mm × 130 mm × 32.8 mm |
| Weight | 0.20 kg |
| Operating Temperature | −20 °C to +60 °C |
| Storage Temperature | −40 °C to +70 °C |
| Relative Humidity | 10 % to 90 % RH (non-condensing) |
| Vibration Resistance | 5 Hz to 150 Hz, 0.4 mm or 4.9 m/s² |
| Protection Class | IP20 (for cabinet installation) |
Product Applications
The ADV551-P13/D5A00 is ideal for environments where large numbers of digital output points are required within limited cabinet space. Typical applications include:
-
Process Plants: Used to drive solenoid valves, relays, indicators, and alarms in power, petrochemical, and refining industries.
-
Manufacturing Automation: Provides fast and stable digital output for robotic lines, packaging machines, and material handling systems.
-
Utility Systems: Ideal for pump control, HVAC, and power distribution automation systems.
-
Water and Wastewater Treatment: Controls field actuators and status indicators within distributed control cabinets.
-
Retrofit Projects: Upgrades existing DCS racks with more output channels without redesigning cabinet layout.
Product Advantages
-
High Channel Density: 32 outputs in one compact module reduce space and cost.
-
Advanced Control Functions: Supports pulse-width and time-proportioning outputs for precise timing control.
-
Superior Isolation: 2 kV AC isolation protects the system from surges and grounding issues.
-
Fast Switching Speed: ≤ 3 ms response ensures accurate and real-time control.
-
Easy Maintenance: Modular plug-in design allows quick replacement without rewiring.
-
Rugged Construction: Industrial-grade build ensures long-term stability in harsh conditions.
-
Low Power Loss: Efficient output circuitry minimizes heat generation and energy use.
-
Simplified Wiring: The /D5A00 adapter streamlines wiring connections and minimizes field errors.
Recommended Related Models (Same Series)
| Model | Description |
|---|---|
| ADV551-P00/D5A00 | Standard 32-channel digital output module with KS cable interface. |
| ADV551-P10/D5A00 | Digital output module with enhanced timing control and extended diagnostic functions. |
| ADV551-P03/D5A00 | Compact digital output variant optimized for small system expansions. |
| ADV551-P50/D5A00 | High-performance digital output module supporting proportional control. |
| ADV561-32DO | 64-channel digital output module with expanded capacity for large control systems. |
Recommended Popular Models (Same Brand)
| Model | Description |
|---|---|
| ADV161-P00 | 64-channel digital input module — complements the ADV551 output line. |
| ADV169-P00 | 64-channel enhanced digital input module with diagnostic features. |
| ADV171-P00 | 16-channel analog input module for process signal measurement. |
| ADV181-P00 | 16-channel analog output module for precision actuator control. |
| ADV151-E63 S2 | Mixed digital I/O module with advanced diagnostic and reliability features. |
FAQ (10 Q & A)
Q1: How many outputs does the ADV551-P13/D5A00 provide?
A1: It provides 32 isolated transistor-type output channels.
Q2: What voltage is required for operation?
A2: The module operates at 24 V DC nominal, with an allowable range between 20.4 V and 26.4 V.
Q3: What is the maximum current per channel?
A3: Each channel can drive up to 100 mA continuously.
Q4: Can this module handle pulse output functions?
A4: Yes, it supports both one-shot pulse width and time-proportioning output modes.
Q5: What isolation rating does it have?
A5: 2 kV AC isolation between output circuits and system ground ensures electrical protection.
Q6: Is it compatible with existing ADV551 racks?
A6: Yes, it is fully compatible with the standard ADV551 series backplane and base racks.
Q7: What field connection option does “/D5A00” specify?
A7: It specifies the KS Cable Interface Adapter for simplified cable connection to field devices.
Q8: What is the operating temperature range?
A8: It can operate between −20 °C and +60 °C without performance loss.
Q9: How heavy is this module?
A9: The unit weighs approximately 0.20 kg.
Q10: How should it be maintained?
A10: Ensure clean contacts, proper ventilation, and periodic inspection of cable adapters for secure connection.
