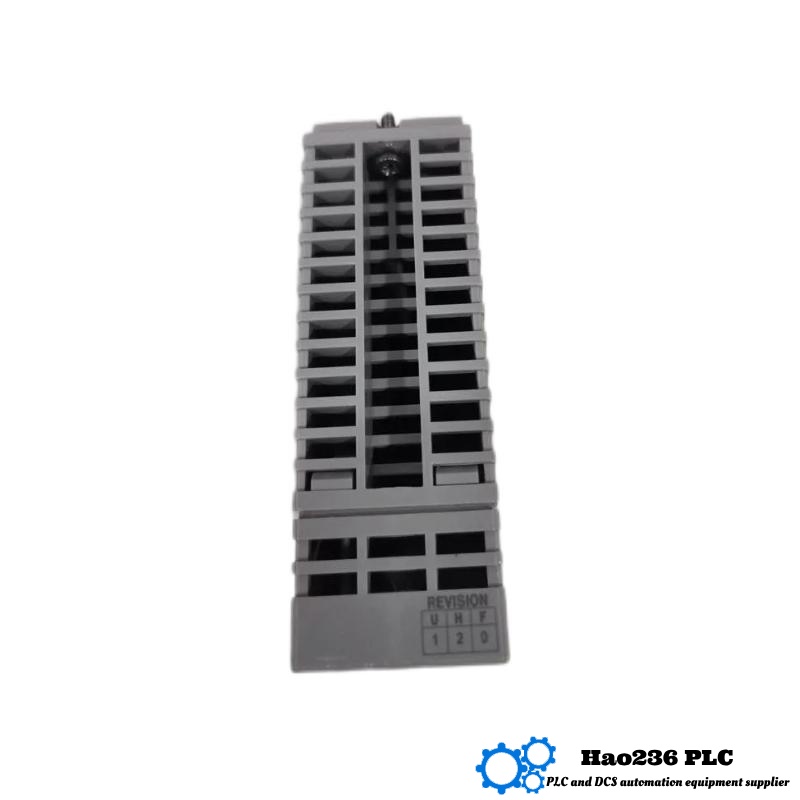

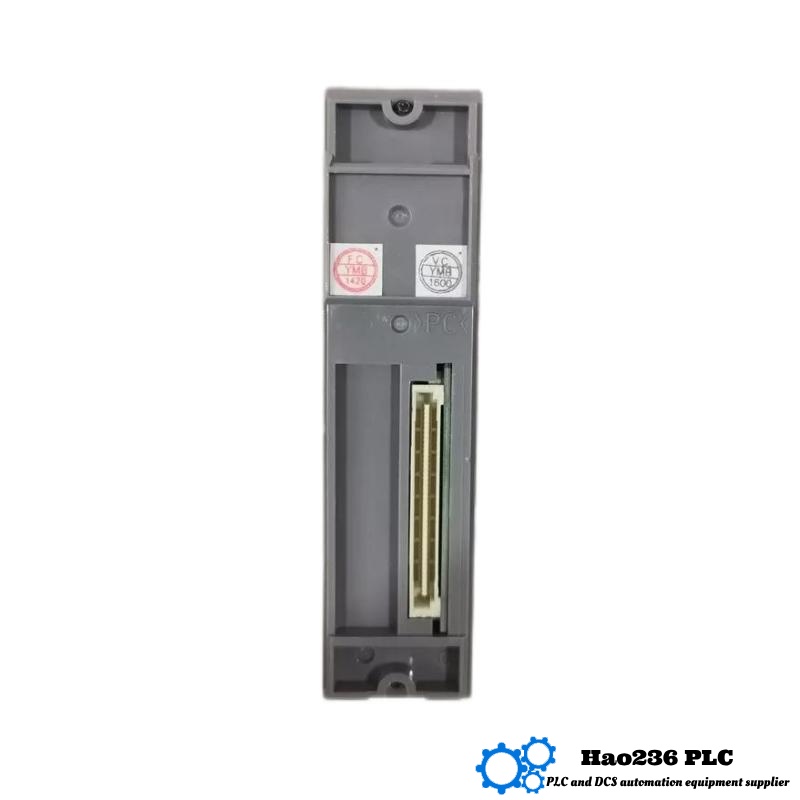

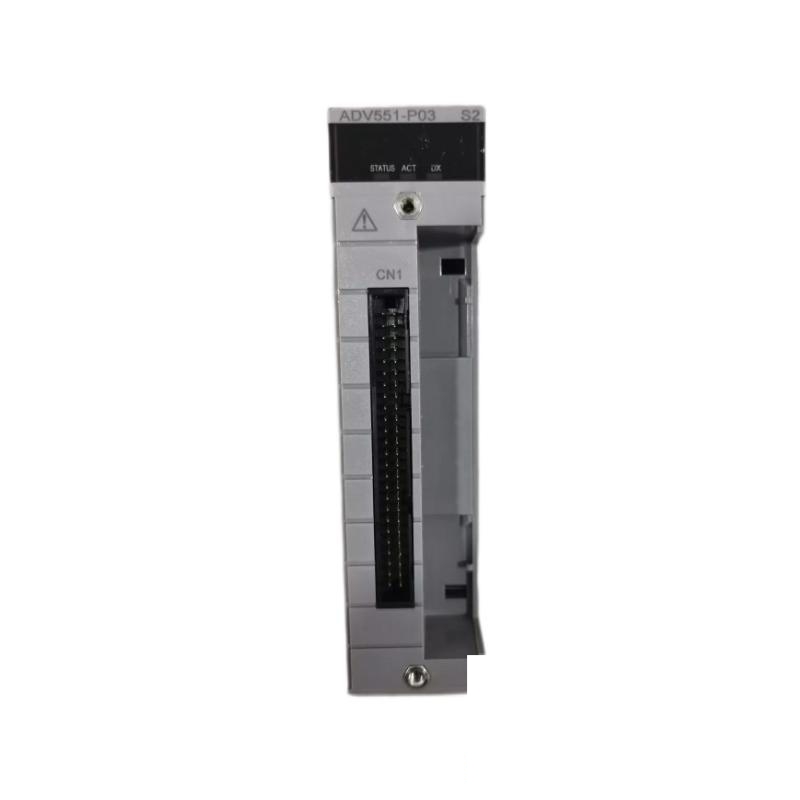

Yokogawa ADV551-P03/D5A00 Digital Output Module
Product Introduction
The ADV551-P03/D5A00 is a high-performance 8-channel digital output module developed by Yokogawa Electric Corporation, a global leader in industrial automation. As part of Yokogawa’s robust ADV551 series, this module is specifically designed for precise and reliable digital control in PLC-based and distributed automation systems.
Engineered for applications requiring fast, safe, and stable output switching, the ADV551-P03/D5A00 features transistor-type outputs, compact physical dimensions, and high channel isolation. Its plug-in style and DIN rail compatibility make it especially suitable for space-constrained control cabinets.
Whether in a modern manufacturing facility or critical infrastructure plant, this module delivers the stability and durability needed to maintain high productivity and system safety.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV551-P03/D5A00 |
| Product Type | Digital Output Module |
| Output Channels | 8 channels |
| Output Method | Transistor (Sink or Source) |
| Output Voltage | 24 V DC nominal |
| Max Output Current | 0.5 A per channel |
| Output Isolation | Optical isolation per channel |
| Response Time | < 1 ms |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Mounting Type | DIN rail |
| Power Supply | Internal system power via bus |
| Protection Features | Short-circuit and overload protection |
| Certification | CE, RoHS compliant |
Product Applications
-
Industrial Automation – Used to control actuators, alarms, indicator lamps, and solenoids in automated assembly lines.
-
Energy Systems – Integrated into power distribution panels and substations for load switching and monitoring.
-
Water and Wastewater Plants – Controls valves, pumps, and motor starters for automated treatment processes.
-
Building Management Systems (BMS) – Interfaces with lighting, HVAC, and security systems.
-
Pharmaceutical and Chemical Plants – Supports safe switching of field devices in hazardous and cleanroom environments.
-
Logistics and Packaging – Drives relay banks and actuators for robotic systems and conveyor lines.
Product Advantages
-
Compact & Lightweight – With a width of just 32.8 mm and weighing only 0.2 kg, it fits tightly into control panels.
-
Fast Switching – Offers a sub-1 ms response time, ideal for real-time control environments.
-
Electrical Safety – Built-in optical isolation prevents electrical noise interference and cross-channel issues.
-
Flexible Output Modes – Supports both sink and source output configurations to meet diverse system requirements.
-
Energy Efficient – Consumes low power while maintaining high output reliability.
-
System Integration – Fully compatible with Yokogawa PLC systems and ADV series backplanes.
-
Wide Temperature Range – Performs reliably in industrial temperature extremes.
-
Long Service Life – Designed with robust industrial-grade components for extended use.
Brand Information
Yokogawa Electric Corporation, founded in 1915 and headquartered in Tokyo, Japan, is one of the most respected names in the industrial automation industry. With over a century of experience and operations in more than 60 countries, Yokogawa is known for precision instrumentation, reliability, and innovation in control systems and test equipment.
Yokogawa’s solutions are trusted worldwide across energy, manufacturing, water treatment, oil and gas, and other process-intensive industries. Its commitment to quality and technological leadership makes it the preferred choice for mission-critical automation and instrumentation.
Recommended Models – Same Series / Related
| Model | Channels | Output Type | Size (mm) | Weight | Notable Features |
|---|---|---|---|---|---|
| ADV551-P01/D5A00 | 4 | Transistor | 107.5 × 130 × 32.8 | 0.18 kg | Compact version for smaller systems |
| ADV551-P02/D5A00 | 8 | Relay | 107.5 × 130 × 35.0 | 0.22 kg | Relay-based output, suitable for high voltage |
| ADV551-P03/D5A01 | 8 | Transistor | 107.5 × 130 × 33.0 | 0.21 kg | Upgraded insulation layer |
| ADV551-P04/D5A00 | 16 | Transistor | 215 × 130 × 32.8 | 0.40 kg | High-density 16-channel design |
| ADV551-P05/D5A00 | 8 | Transistor | 107.5 × 130 × 32.8 | 0.20 kg | Optimized for high-speed output |
Recommended Popular Yokogawa Models
| Model | Output Type | Channels | Output Voltage | Mounting Type | Isolation Type | Size (mm) | Weight |
|---|---|---|---|---|---|---|---|
| ADV151-P60 | Relay Output | 16 | 250 V AC / 30 V DC | DIN rail | Relay Isolation | 130 × 160 × 50 | 0.45 kg |
| ADV161-P50 | Transistor Output | 8 | 24 V DC | DIN rail | Optical Isolation | 107.5 × 130 × 32.8 | 0.22 kg |
| ADV159-P01 | Transistor Output | 16 | 24 V DC | DIN rail | Optical Isolation | 215 × 130 × 32.8 | 0.40 kg |
| ADV551-P03 | Transistor Output | 8 | 24 V DC | DIN rail | Optical Isolation | 107.5 × 130 × 32.8 | 0.20 kg |
| ADV552-P02 | Transistor Output | 32 | 24 V DC | DIN rail | Optical Isolation | 265 × 130 × 32.8 | 0.60 kg |
Frequently Asked Questions (FAQ)
Q1: How many digital outputs does the ADV551-P03/D5A00 support?
A1: It supports 8 independent digital output channels.
Q2: What is the output method of this module?
A2: It uses transistor-based outputs, compatible with sink or source wiring.
Q3: Is this module optically isolated?
A3: Yes, every output channel has built-in optical isolation for safety and noise suppression.
Q4: What type of mounting does it support?
A4: It supports DIN rail mounting.
Q5: What is the output voltage?
A5: The nominal output voltage is 24 V DC.
Q6: Can I use it in harsh industrial environments?
A6: Yes, it operates reliably between -10°C and +55°C.
Q7: What is the size of the module?
A7: The module measures 107.5 × 130 × 32.8 mm.
Q8: Does it support overcurrent protection?
A8: Yes, it includes protection against short circuits and overloads.
Q9: Is this module compatible with other ADV551 modules?
A9: Yes, it is fully compatible with other modules in the ADV551 series.
Q10: How fast is its switching response?
A10: The switching response time is under 1 millisecond.
