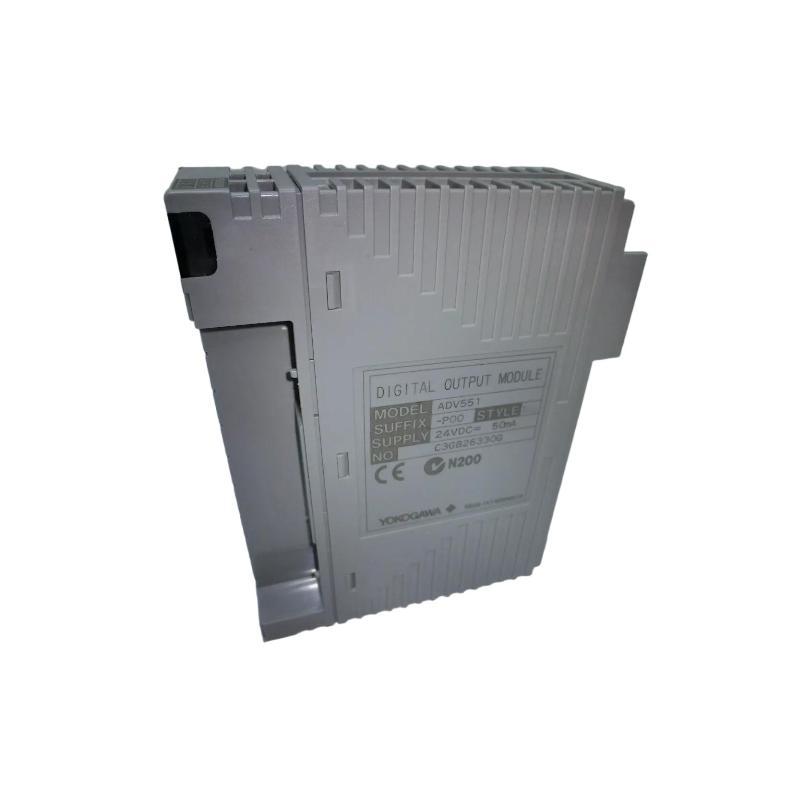

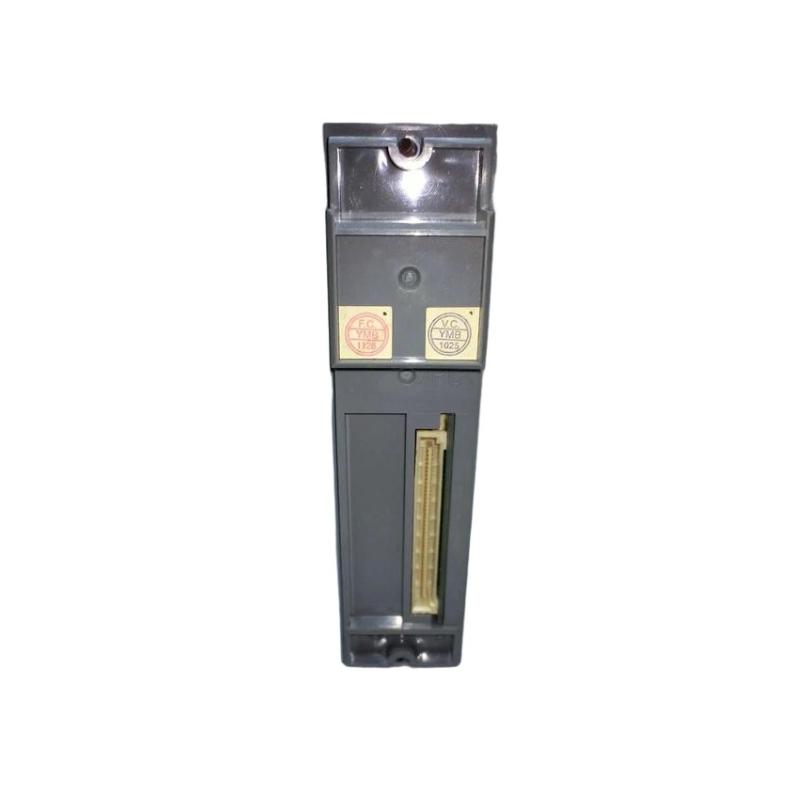

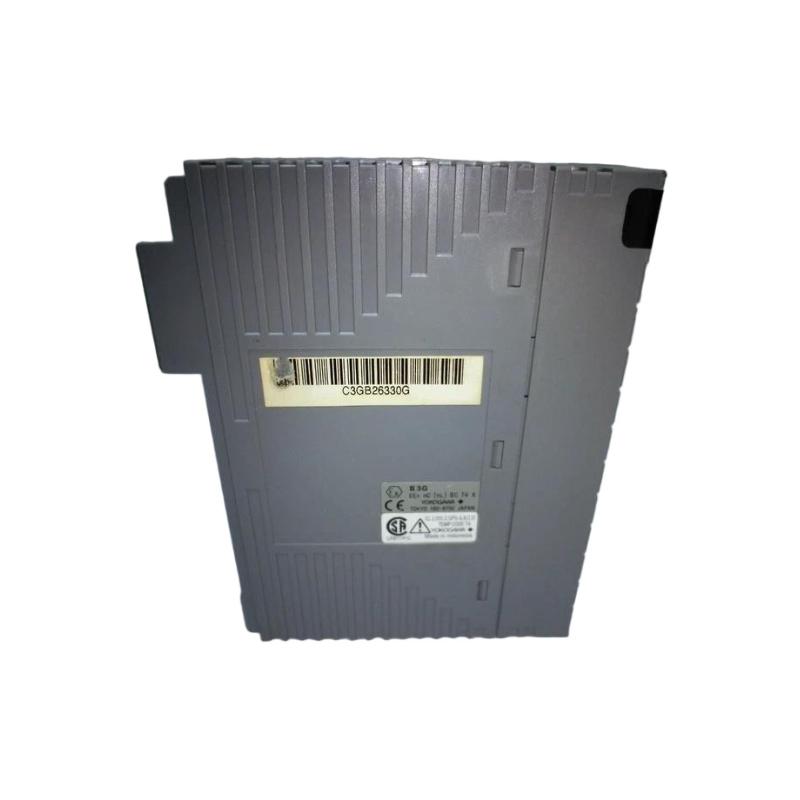

Product Model: Yokogawa ADV551‑P00/D5S00
Brand: Yokogawa
Series: ADV551 Series – Digital Output Modules
Product Introduction
The ADV551‑P00/D5S00 is a 32‑channel digital output module from Yokogawa’s ADV551 family, designed for high‑density, reliable discrete output control in industrial automation systems. The “P00” suffix denotes the basic functional variant (standard output, no advanced diagnostics by default), while the “/D5S00” option code indicates a variant fitted with a pressure‑clamp terminal block for field wiring rather than a connector cable.
This module provides 24 V DC current‑sink transistor outputs to drive field devices such as solenoids, relays, indicators, valve actuators and other discrete output elements. With 32 outputs in one module, it enables efficient use of rack space and simplifies wiring in cabinets or panels. Its electrical isolation, fast switching response and compatibility with Yokogawa I/O architecture make it well suited for process plants, manufacturing automation, utility installations and retrofits.
Being part of the ADV551 series, the ADV551‑P00/D5S00 integrates with the modular base frame/backplane system of Yokogawa’s I/O family, allowing standardised installation, spare‑parts management and system expansion. The combination of compact size, high channel count and robust design supports system designers seeking both performance and footprint efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Output Channels | 32 channels |
| Rated Applied Voltage | 24 V DC (nominal) |
| External Field Power Supply Range | 20.4 to 26.4 V DC |
| Output Format | Current‑sink type digital outputs |
| Maximum Load Current per Channel | Approx. 100 mA per channel (at 26.4 V) |
| Output ON Voltage Maximum (Voltage Drop) | ≤ 2 V DC |
| Leakage Current when Output OFF | ≤ 0.1 mA (typical) |
| Withstanding Voltage (Isolation) | 2 kV AC between output signal & system (1 min); 500 V AC between common minus sides every 16‑channels (1 min) |
| Output Response Time | ≤ 3 ms for status output; ≤ 10 ms for mixed status + pulse modes |
| Supported Pulse Width / Time‑Proportioning Output | 8 ms to 7,200 s (supported in P series variants) |
| Dimensions (W × H × D) | Approx. 107.5 mm × 130 mm × 32.8 mm |
| Weight | Approx. 0.20 kg |
| Operating Temperature Range | Approx. ‑20 °C to +60 °C (typical for module) |
Applications
-
In process industries (chemical, petrochemical, oil & gas, power generation) to drive discrete output devices such as solenoids, motor starters, valve actuators, alarm lamps and relays from the control system.
-
In manufacturing automation systems (assembly lines, machine control, robotics) where multiple 24 V DC discrete outputs are required and a high‑density output module helps reduce cabinet footprint and wiring complexity.
-
In utility systems (water/wastewater treatment, pump/motor stations, infrastructure control) where many discrete outputs exist and efficient I/O modules with terminal‑block wiring ease are advantageous.
-
In retrofit or expansion scenarios of I/O racks: when existing cabinets need more output channels without expanding size, the ADV551‑P00/D5S00 offers 32 outputs in a single module, reducing module count and wiring labour.
-
In applications requiring reliable, fast discrete output switching under industrial conditions with electrical noise, long wiring runs or vibration present—since the module offers robust isolation and efficient wiring options (pressure clamp terminal block).
Advantages
-
High channel density: 32 outputs in one module reduce the number of modules needed, minimise wiring, and shrink the rack or panel footprint.
-
Efficient wiring termination: The “/D5S00” option features pressure‑clamp field wiring blocks, making installation and replacement faster and more robust in the field.
-
Strong electrical isolation and reliability: With withstand voltages up to 2 kV AC between output and system and 500 V AC between commons, the module withstands industrial electrical stress and keeps signals integrity.
-
Quick output response: Status switching ≤ 3 ms ensures timely control of field devices; mixed and pulse modes ≤ 10 ms support more advanced control.
-
Compact and lightweight: Approx. 107.5 × 130 × 32.8 mm and ~0.20 kg weight make the module easy to install, handle and service in high‑density cabinets.
-
Platform compatibility: Belongs to the ADV551 family, seamlessly integrating into Yokogawa’s I/O base frames and backplanes, supporting maintenance, spare‑parts management and system expansion.
-
Cost‑effective installation: Fewer modules, simpler wiring (thanks to pressure‑clamp terminal option), reduced terminal blocks and shorter commissioning time all contribute to lower total cost of ownership.
-
Future‑ready flexibility: While this variant is a standard output module, the series supports pulse width/time‑proportioning outputs, offering upgrade paths without changing the module architecture.
Related / Same‑Series Models
| Model | Specification / Description |
|---|---|
| ADV551‑P00/D5S00 | 32‑channel digital output module with pressure‑clamp terminal block (this model) |
| ADV551‑P50/D5S00 | 32‑channel digital output module variant with pulse width / time‑proportioning output functions plus pressure‑clamp terminal block |
| ADV551‑P63/D5S00 | 32‑channel digital output module with extended temperature rating, status display options, and pressure‑clamp wiring block |
| ADV561‑32DO | 64‑channel digital output module in the same platform family—higher density for output‑heavy systems |
| ADV151‑P10 | 32‑channel digital input module in the Yokogawa I/O ecosystem—complementary to the ADV551 output modules |
Popular Yokogawa Models (Same Brand)
| Model | Description / Typical Specification |
|---|---|
| ADV161‑P00 | 64‑channel digital input module—high‑density discrete input module in Yokogawa’s digital I/O family |
| ADV169‑P00 | 64‑channel digital input module variant—widely used in discrete input applications |
| ADV171‑P00 | 16‑channel analog input module—part of the process I/O family for analog signal acquisition |
| ADV181‑P00 | 16‑channel analog output module—for analog actuator/control signals in Yokogawa’s ecosystem |
| ADV151‑E63 S2 | Advanced digital input module variant with high‑spec diagnostics, monitoring and reliability features in the same digital I/O family |
FAQ – Frequently Asked Questions (QA Format)
Q1: How many output channels does the ADV551‑P00/D5S00 provide?
A1: It provides 32 discrete digital output channels in a single module.
Q2: What is the rated applied voltage for the module’s outputs?
A2: The module is designed around a 24 V DC nominal applied voltage.
Q3: What is the maximum current that each output channel can drive?
A3: Each channel can drive approximately 100 mA at the upper supply voltage (~26.4 V) under rated conditions.
Q4: What is the typical response time when switching an output?
A4: For standard OK/OFF status output the response time is ≤ 3 ms; when using pulse width or mixed status/pulse modes it may be up to ≤ 10 ms.
Q5: What are the physical dimensions and weight of the module?
A5: The dimensions are approximately 107.5 mm wide × 130 mm high × 32.8 mm deep, and the weight is about 0.20 kg.
Q6: What type of output format does this module implement (sink or source)?
A6: This module uses current‑sink digital output format, suitable for typical 24 V DC field devices.
Q7: Does this module support advanced output features such as pulse width or time‑proportioning outputs?
A7: The P00/D5S00 variant supports ON/OFF status outputs; although the series includes variants (e.g., P50) that support pulse width and time‑proportioning functions.
Q8: Is the module compatible with Yokogawa’s modular I/O rack and base frames?
A8: Yes—the ADV551‑P00/D5S00 is part of the ADV551 series, designed to integrate with the standard base frame/backplane system of Yokogawa I/O architecture, making installation, replacement and maintenance more straightforward.
Q9: What ambient temperature conditions can it operate under?
A9: It is rated for approximate operation from ‑20 °C to +60 °C (typical), assuming proper cabinet ventilation and installation practices for industrial environments.
Q10: How should one replace or maintain this module in a control cabinet?
A10: To replace or maintain: power down or isolate the I/O rack/backplane, remove the module, insert the replacement in the same slot, reconnect any required field wiring terminals, restore power, and verify that all output channels function correctly. Regular wiring and terminal integrity checks are also advisable.
