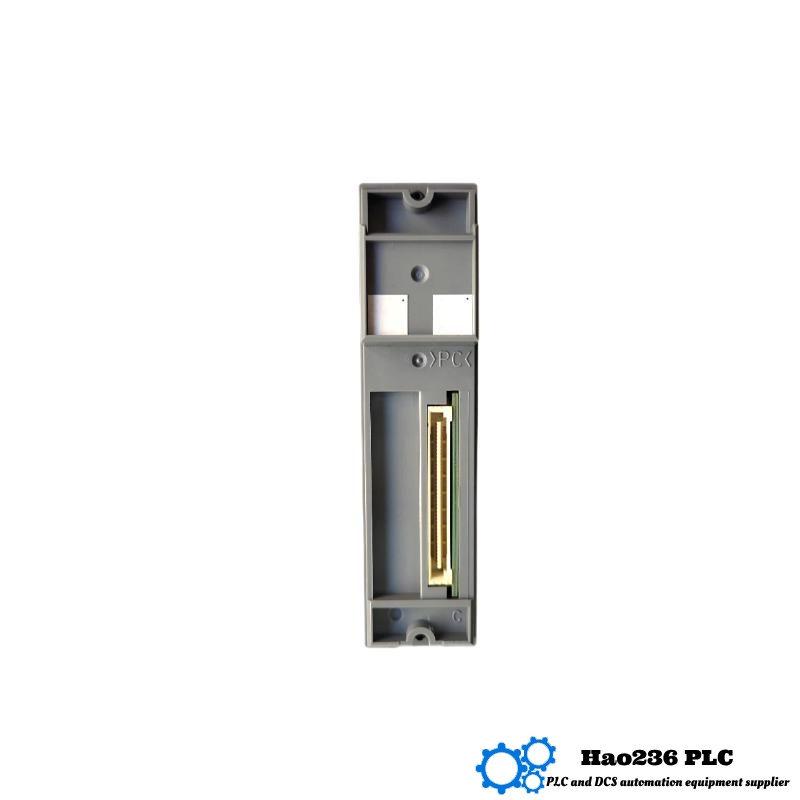

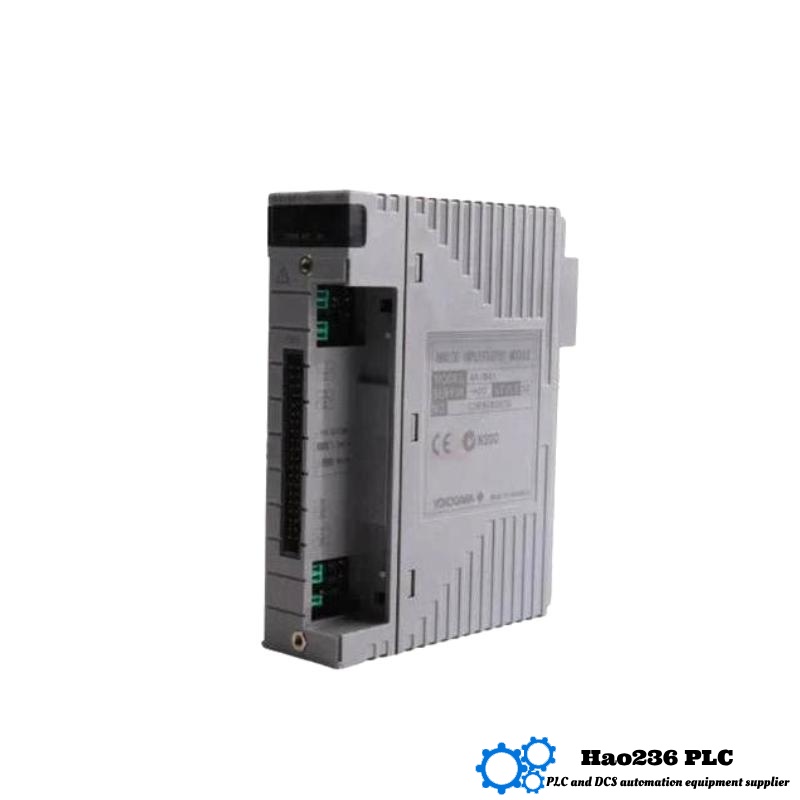

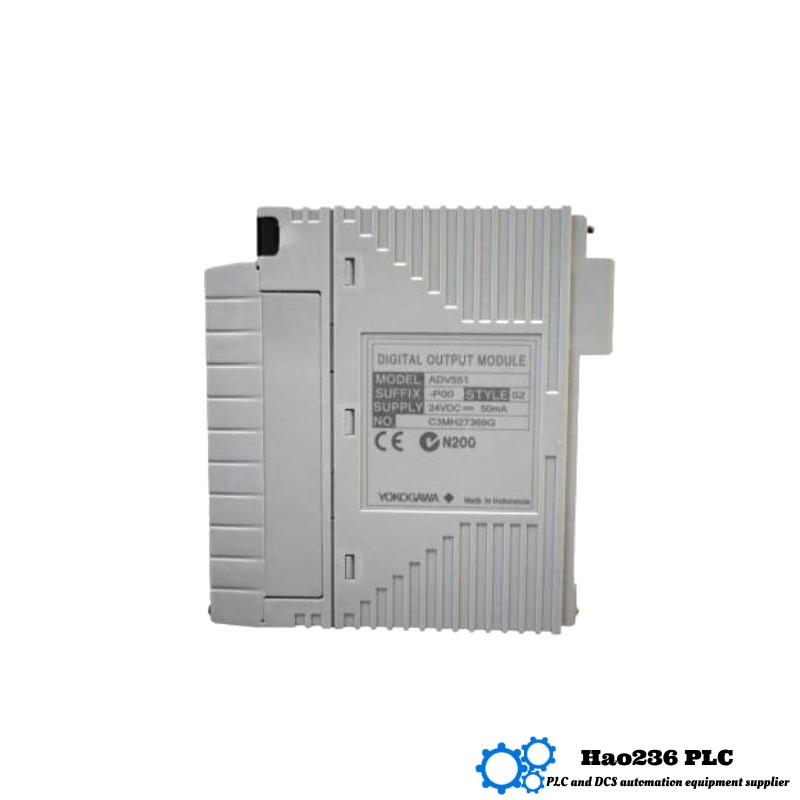

Yokogawa ADV551-P00/D5A00D Digital Output Module
Brand: Yokogawa
Series: ADV550 Series
Product Type: Digital Output Module
Product Overview
The Yokogawa ADV551-P00/D5A00D is a high-performance digital output module designed for use with Yokogawa’s DCS (Distributed Control System) systems. Part of the ADV550 series, this module offers reliable and flexible output control for automation and process industries. It is used in various industries to manage output signals in real-time, providing seamless integration and control for processes that require precise output regulation.
This module converts control signals from the system’s control units into corresponding digital output signals for driving external devices, such as actuators, valves, and relays. By interfacing with other control systems and I/O modules, the ADV551-P00/D5A00D enables automation of industrial systems, ensuring smooth, efficient operation.
The compact design and advanced technology make it an ideal choice for critical applications requiring real-time control. The module’s flexibility and robustness ensure that it performs reliably even in harsh industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
| Output Channels | 8 channels |
| Output Type | Digital (On/Off) |
| Nominal Voltage | 24V DC |
| Max Output Current | 500 mA per channel |
| Response Time | 10 ms |
| Mounting | DIN Rail Mountable |
| Operating Temperature | –20°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Environmental Protection | IP20 |
| Power Consumption | 2.5 W |
| Signal Isolation | 2 kV |
Product Applications
-
Automation Systems: Used in industrial automation to provide digital signals for controlling various processes and machinery, such as controlling valves, motors, and actuators.
-
Process Control: Provides output signals to external devices in process control systems, ensuring accurate and reliable control in industries like chemicals, oil & gas, and power plants.
-
Safety Systems: Employed in safety-critical systems to drive outputs for alarm systems, safety shutdowns, and emergency response mechanisms.
-
Building Automation: Widely used in building automation systems to control lighting, HVAC, and other infrastructure systems based on digital output commands.
-
Manufacturing: Essential for controlling production lines, packaging machinery, and robotic systems that require precise digital control.
Product Advantages
-
Compact and Space-Saving Design: With dimensions of just 107.5 × 130 × 32.8 mm, this module can be easily integrated into a variety of control cabinets and panels.
-
High Reliability: Designed for harsh industrial environments, the ADV551-P00/D5A00D provides stable and dependable performance, ensuring that control operations are executed reliably.
-
Wide Operating Range: The module operates within a wide temperature range of –20°C to +60°C, making it suitable for use in both indoor and outdoor environments with varying temperature conditions.
-
Easy Integration: The module can be easily mounted on standard DIN rails and integrated into existing Yokogawa control systems and other industrial automation setups.
-
High-Speed Response: With a fast response time of 10 ms, the module ensures real-time control, critical for high-speed processes and machinery.
Recommended Models from ADV550 Series
| Model | Output Channels | Nominal Voltage | Max Output Current | Dimensions | Weight |
|---|---|---|---|---|---|
| ADV551-P00/D5A00D | 8 | 24V DC | 500 mA per channel | 107.5 × 130 × 32.8 mm | 0.2 kg |
| ADV552-P00/D5A00D | 16 | 24V DC | 500 mA per channel | 107.5 × 130 × 32.8 mm | 0.3 kg |
| ADV550-P00/D5A00D | 4 | 24V DC | 500 mA per channel | 107.5 × 130 × 32.8 mm | 0.2 kg |
| ADV554-P00/D5A00D | 8 | 24V DC | 500 mA per channel | 107.5 × 130 × 32.8 mm | 0.2 kg |
| ADV556-P00/D5A00D | 12 | 24V DC | 500 mA per channel | 107.5 × 130 × 32.8 mm | 0.25 kg |
Popular Models from Yokogawa
| Model | Type | Channels | Signal Type | Voltage | Response Time | Weight |
|---|---|---|---|---|---|---|
| ADV551-P00 | Digital Output Module | 8 CH | Digital (24V DC Output) | 24V DC | 10 ms | 0.2 kg |
| ADV161-P50 | Analog Input Module | 16 CH | 1–5 V / 4–20 mA Input | 24V DC | < 100 ms | 0.2 kg |
| ADV159-P50 | Thermocouple Input Module | 8 CH | TC (K, J, T, etc.) | 24V DC | < 150 ms | 0.22 kg |
| ADV151-P03 | Analog Input Module | 8 CH | 4–20 mA Input | 24V DC | < 100 ms | 0.2 kg |
| ADV559-P00 | Digital Output Module | 16 CH | Digital (24V DC Output) | 24V DC | 10 ms | 0.3 kg |
Frequently Asked Questions (FAQs)
Q1: What is the purpose of the Yokogawa ADV551-P00/D5A00D module?
A1: This digital output module is used to provide reliable on/off output signals for industrial automation systems, controlling external devices like actuators, valves, and relays.
Q2: How many output channels does the ADV551-P00/D5A00D have?
A2: It has 8 output channels, providing sufficient control for various industrial applications.
Q3: Can this module be used in outdoor environments?
A3: Yes, the module can operate within a wide temperature range of –20°C to +60°C, making it suitable for both indoor and outdoor environments.
Q4: What is the response time of the module?
A4: The ADV551-P00/D5A00D has a fast response time of 10 ms, ensuring real-time control.
Q5: What is the nominal voltage for the ADV551-P00/D5A00D module?
A5: The nominal voltage for this module is 24V DC, which is compatible with most industrial control systems.
Q6: What is the power consumption of the ADV551-P00/D5A00D?
A6: The module consumes 2.5 W of power, which is efficient for industrial applications.
Q7: How is the ADV551-P00/D5A00D mounted?
A7: The module is designed to be mounted on standard DIN rails, making installation quick and simple.
Q8: What type of environmental protection does the ADV551-P00/D5A00D have?
A8: The module is rated IP20, providing basic protection against solid objects, but it should be used in environments where it is not exposed to harsh conditions.
Q9: What is the maximum output current for each channel?
A9: Each output channel can handle up to 500 mA of current, suitable for controlling various industrial devices.
Q10: Is the ADV551-P00/D5A00D module compatible with other Yokogawa systems?
A10: Yes, it is compatible with Yokogawa’s ADV550 series and can be seamlessly integrated into Yokogawa’s automation systems.
