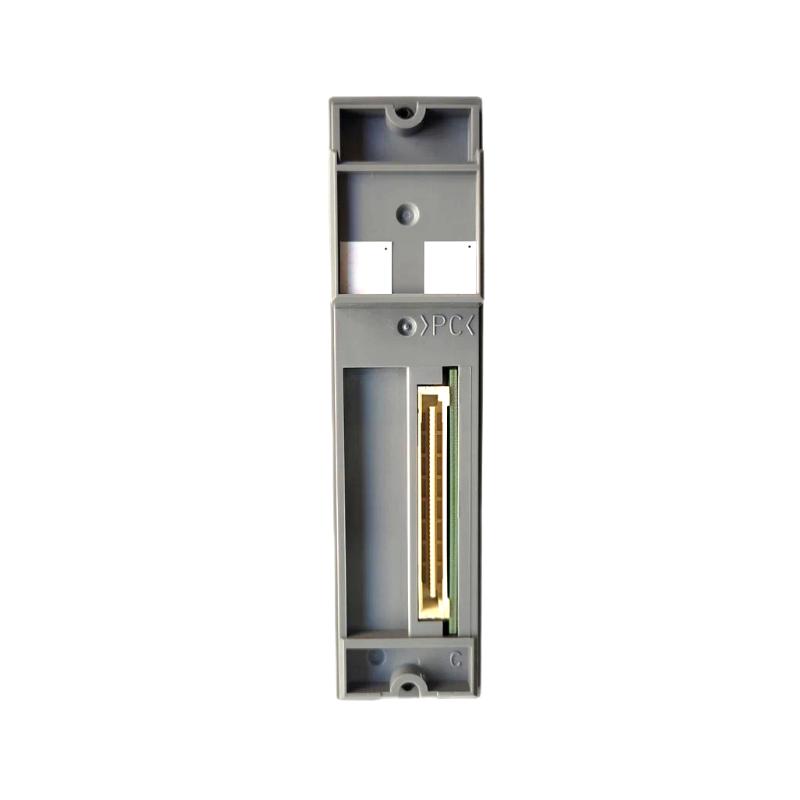

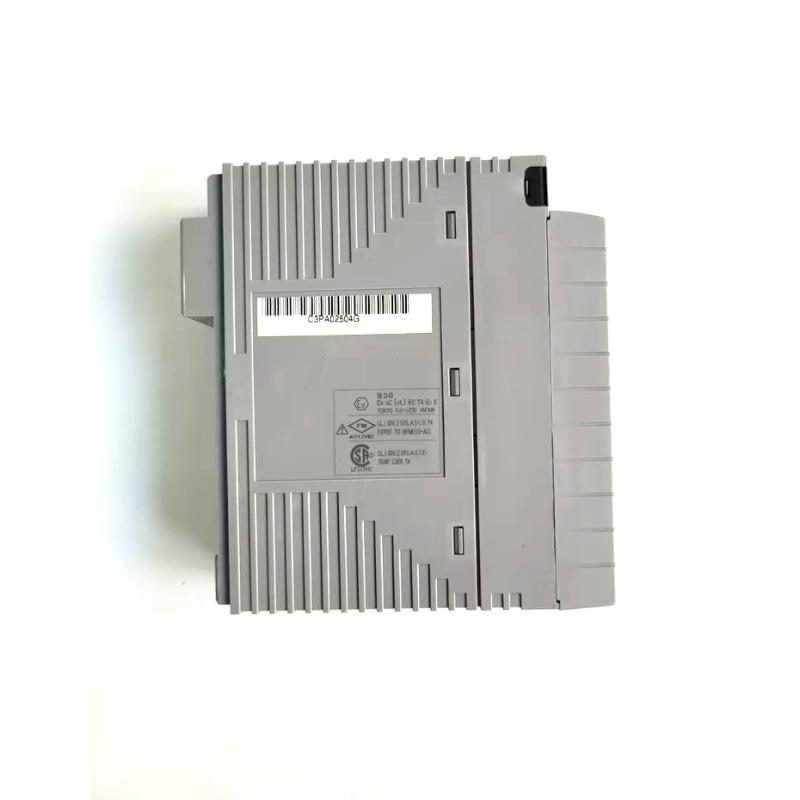

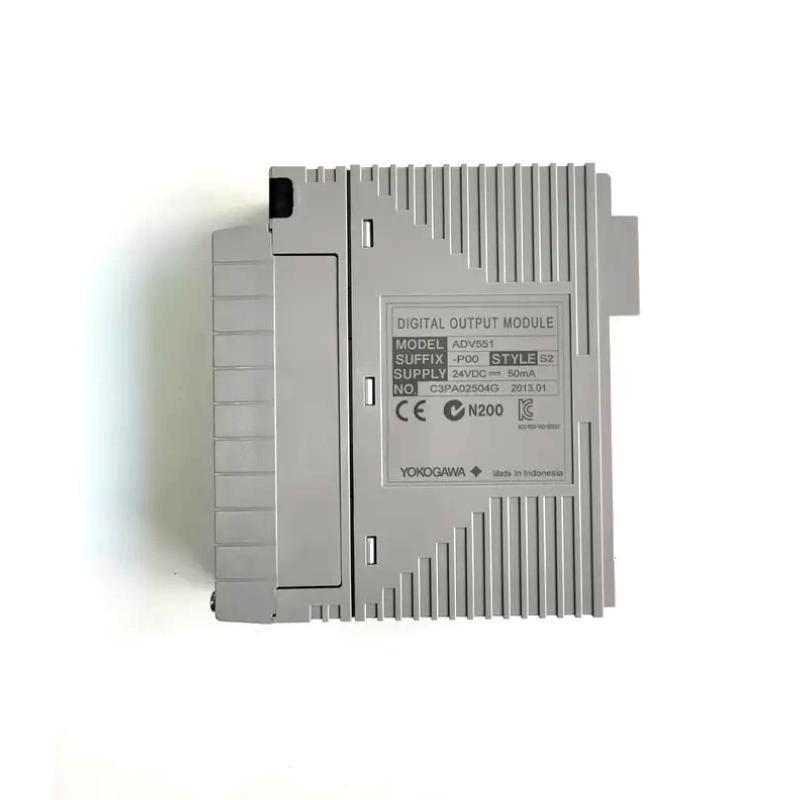

Product Model: Yokogawa ADV551‑P00/D5A00D

Brand: Yokogawa

Series: ADV551 Series – Digital Output Modules

Product Introduction

The ADV551‑P00/D5A00D is a 32‑channel digital output module designed for high‑density discrete output tasks in industrial control systems. This module is part of Yokogawa’s robust modular I/O family and is tailored for applications where many output points are required without sacrificing panel or rack space. The “P00” denotes the basic function version of the module (standard ON/OFF digital output) and the “/D5A00D” suffix refers to the option kit (for example a cable interface adapter or specified terminal block) integrated for field wiring convenience.

This module converts control system commands into 24 V DC current‑sink signals valued by field devices such as solenoids, actuators, relays and alarms. With 32 channels incorporated in a single compact module, system engineers can reduce number of modules, simplify field wiring, cut down on rack slots and minimize installation cost. It is designed with industrial‑grade robustness: strong electrical isolation, rapid response, and suitability for continuous operation in demanding ambient conditions.

Being part of the ADV551 series, the module is compatible with Yokogawa’s modular I/O base frames, backplanes and connection infrastructure. The plug‑in architecture allows easy installation, servicing and replacement in a standardized automation system environment.

Technical Specifications

Applications

• High‑channel density output systems in process plants (e.g., chemical, petrochemical, power generation) where many solenoids, valve drives, alarm indicators or actuators must be controlled.

• Manufacturing automation and assembly lines where multiple discrete outputs (motors, machine actuators, indicators) are present and efficient wiring/rack footprint is critical.

• Utilities and infrastructure automation (water/wastewater, pump stations, motor control centers) where many digital output points exist and robust modular output modules are desirable.

• I/O rack expansions or retrofits: when adding many output points to existing control cabinets with limited space, the ADV551‑P00/D5A00D delivers 32 outputs in one slot, reducing module count and wiring.

• Systems requiring fast and reliable output switching under industrial noise, vibration or EMI conditions, thanks to strong isolation and fast response capability.

Advantages

• High channel count in one module: 32 outputs consolidated into one module reduces number of modules needed, lowering wiring effort and panel/rack space.

• Reliable electrical performance: With 2 kV AC isolation between output signal and system and 500 V between commons, the unit is engineered for industrial robustness and signal integrity.

• Fast response times: Status outputs switch in ≤ 3 ms, enabling timely control actions in automation systems.

• Compact and lightweight: With approximate weight of 0.2 kg and compact profile (107.5 × 130 × 32.8 mm), installation and handling are simplified—even in dense racks.

• Platform compatibility: As part of the ADV551 series, the module plugs into the standard I/O backplane and uses the same infrastructure as other modules in the system, easing design, maintenance and spare‑parts management.

• Reduced installation cost: Fewer modules, less wiring, fewer terminal blocks and simplified connections reduce upfront and ongoing costs.

• Future‑ready flexibility: While the P00 variant delivers basic output functionality, the series supports variants with advanced output functions (pulse‑width/time‑proportioning), allowing future expansion without redesigning infrastructure.

• Industrial environment suitability: The module is capable of operating in wider ambient conditions, with robust field wiring connection options and designed for reliability in harsh settings.
