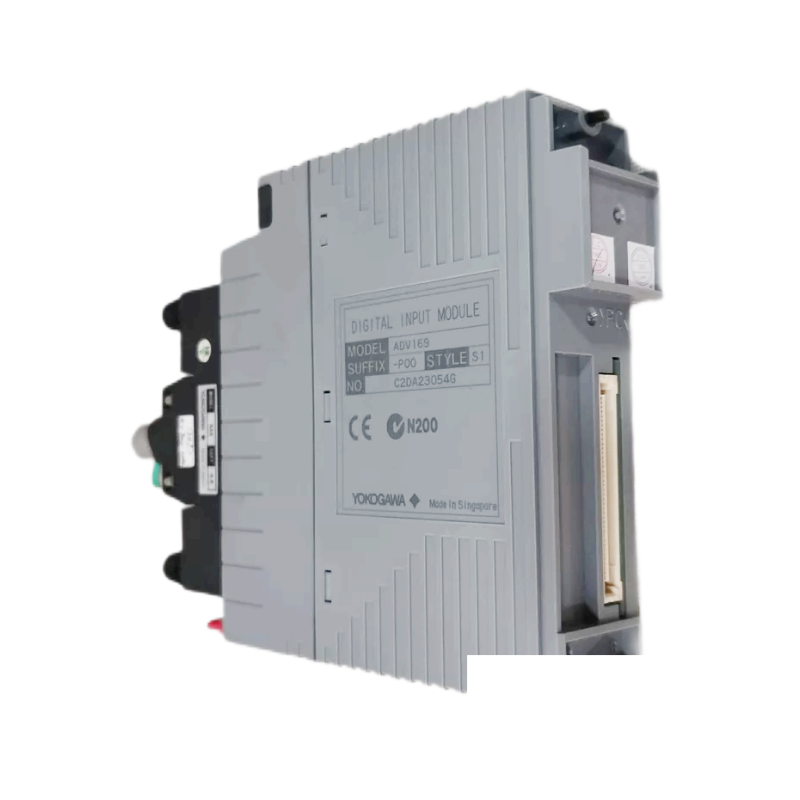

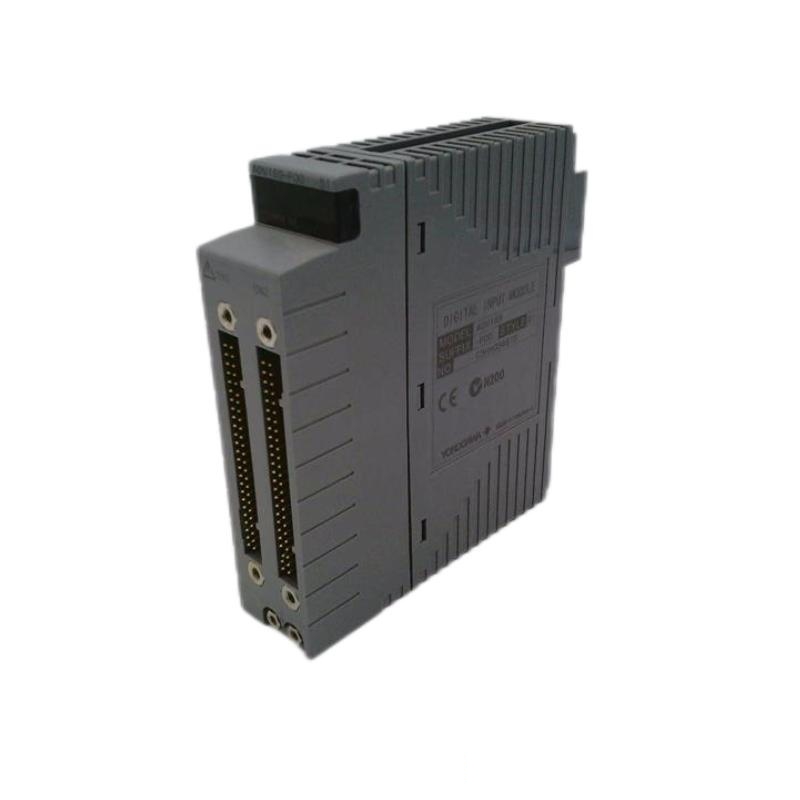

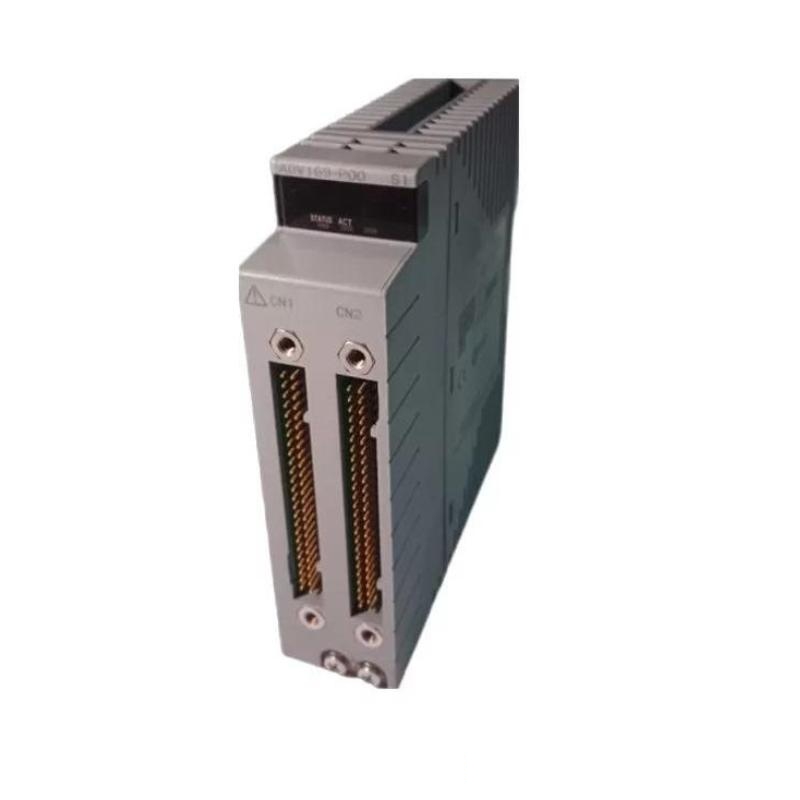

Yokogawa ADV169-P00 Digital Input Module — Detailed Overview
Brand and Product Introduction
Brand: Yokogawa
Model Number: ADV169-P00
Product Type: Digital Input Module
The Yokogawa ADV169-P00 is a high-performance digital input module, part of the Aviation & Process Automation (APA) series, known for its exceptional quality and reliability in industrial and process automation applications. This module is designed to receive discrete binary signals (on/off) from field devices, such as sensors, switches, and other binary output equipment, and then transmit this data to the system’s controller for processing.
The ADV169-P00 module is engineered to meet the needs of industries that require high-precision monitoring and control. It provides a fast, reliable, and efficient means of collecting digital inputs from a wide variety of devices in environments ranging from manufacturing plants to oil and gas operations.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | ADV169-P00 |
| Module Type | Digital Input Module |
| Dimensions (W × H × D) | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
| Operating Voltage | 24 VDC |
| Input Channels | 16 Inputs |
| Input Type | 24 VDC (Dry Contact) |
| Response Time | 10 ms |
| Operating Temperature | –20°C to +60°C |
| Mounting Type | DIN Rail Mount |
| Compatibility | Yokogawa CENTUM CS, STARDOM |
Product Applications
The Yokogawa ADV169-P00 digital input module is ideal for industrial control systems, where it is used to capture binary signals from field devices. Key applications include:
-
Manufacturing Automation: It collects signals from sensors and control switches in automated production environments.
-
Oil & Gas: The module is used to interface with sensors that monitor pressure, temperature, and flow in pipelines and refineries.
-
Energy and Power Generation: It facilitates the monitoring of critical systems, such as valve positions and alarm conditions.
-
Water Treatment: Collects signals from water flow meters, pressure sensors, and other monitoring devices.
-
Building Automation: Used for gathering data from motion sensors, door switches, and other building management devices.
This module ensures that control systems receive timely and accurate signals, which are essential for maintaining optimal performance in diverse industrial settings.
Product Advantages
-
High-Speed Signal Processing: The ADV169-P00 delivers fast, accurate signal acquisition with a response time of just 10 ms, ensuring minimal delay in data transmission.
-
Wide Temperature Range: With an operating temperature range of –20°C to +60°C, it is suitable for a variety of environments, including extreme conditions.
-
Compact and Efficient: The module’s compact dimensions (130 x 127.2 x 32.8 mm) and lightweight design (0.3 kg) make it easy to integrate into control panels, saving space and simplifying installation.
-
Reliability: Built to withstand harsh industrial environments, the ADV169-P00 is a dependable component for critical control applications.
-
Seamless Integration: It is fully compatible with Yokogawa’s CENTUM CS and STARDOM distributed control systems, ensuring smooth communication and scalability across control systems.
Recommended Models from Yokogawa
| Model Number | Description | Key Parameters |
|---|---|---|
| ADV160-P00 | Analog Input Module | 8 Inputs, 4-20 mA, 12-bit Resolution |
| ADV170-P00 | Temperature Input Module | 8 Inputs (RTD & Thermocouple) |
| ADV151-P60 | Digital Output Module | 16 Outputs, 24 VDC |
| ADV159-P00 | Digital Input Module | 16 Inputs, 24 VDC |
| ADV157-S00 | Relay Output Module | 8 Outputs, 24 VDC |
Popular Yokogawa Models
| Model Number | Description | Input/Output Channels | Response Time | Operating Voltage | Weight | Dimensions (W × H × D) |
|---|---|---|---|---|---|---|
| ADV151-P60 | Digital Output Module | 16 Outputs | 10 ms | 24 VDC | 0.5 kg | 127 × 130 × 32.8 mm |
| ADV161-P50 | Digital Input Module | 16 Inputs | 10 ms | 24 VDC | 0.45 kg | 127 × 130 × 32.8 mm |
| ADV159-P01 | Digital Input Module | 16 Inputs | 10 ms | 24 VDC | 0.4 kg | 127 × 130 × 32.8 mm |
| ADV160-P00 | Analog Input Module | 8 Inputs | 20 ms | 24 VDC | 0.4 kg | 127 × 130 × 32.8 mm |
| ADV170-P00 | Temperature Input Module | 8 Inputs (RTD, TC) | 20 ms | 24 VDC | 0.45 kg | 127 × 130 × 32.8 mm |
FAQ — Questions and Answers
Q1: What is the operating voltage for the ADV169-P00 module?
A1: The operating voltage is 24 VDC.
Q2: How many input channels does the ADV169-P00 have?
A2: It has 16 input channels.
Q3: What is the response time of the ADV169-P00?
A3: The response time is 10 ms.
Q4: What is the temperature range for the ADV169-P00?
A4: The module operates within a temperature range of –20°C to +60°C.
Q5: How is the ADV169-P00 mounted?
A5: It can be mounted on a DIN rail.
Q6: What is the weight of the ADV169-P00?
A6: The weight of the module is 0.3 kg.
Q7: Is the ADV169-P00 compatible with Yokogawa’s control systems?
A7: Yes, it is fully compatible with Yokogawa’s CENTUM CS and STARDOM control systems.
Q8: What type of inputs does the ADV169-P00 support?
A8: It supports 24 VDC dry contact inputs.
Q9: What industries can benefit from the ADV169-P00 module?
A9: It is ideal for industries such as manufacturing, oil & gas, power generation, water treatment, and building automation.
Q10: Can the ADV169-P00 module handle high-speed data inputs?
A10: Yes, it processes signals with a quick 10 ms response time, ensuring high-speed data handling.
