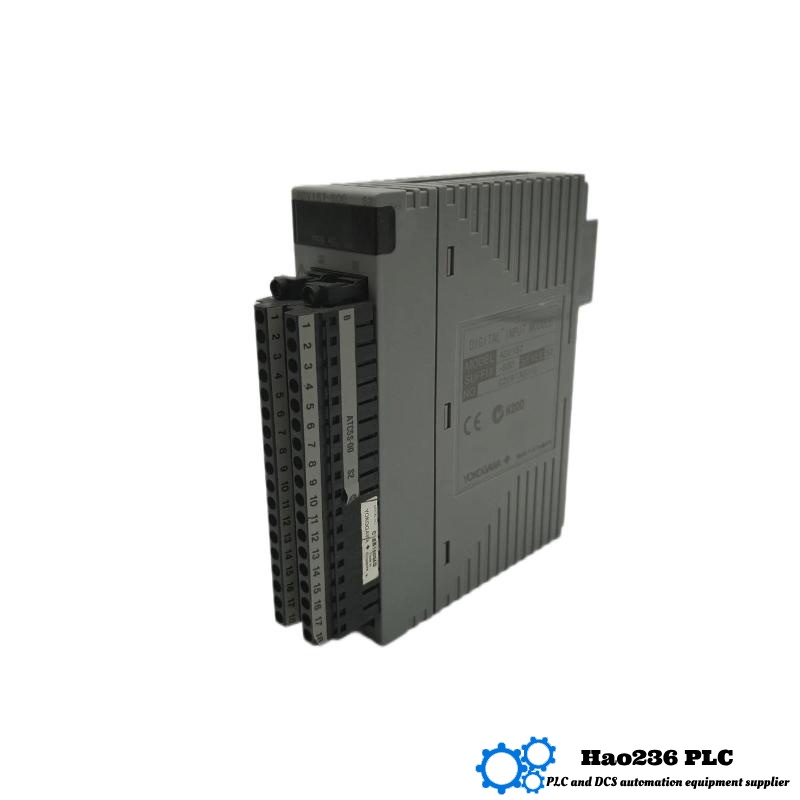

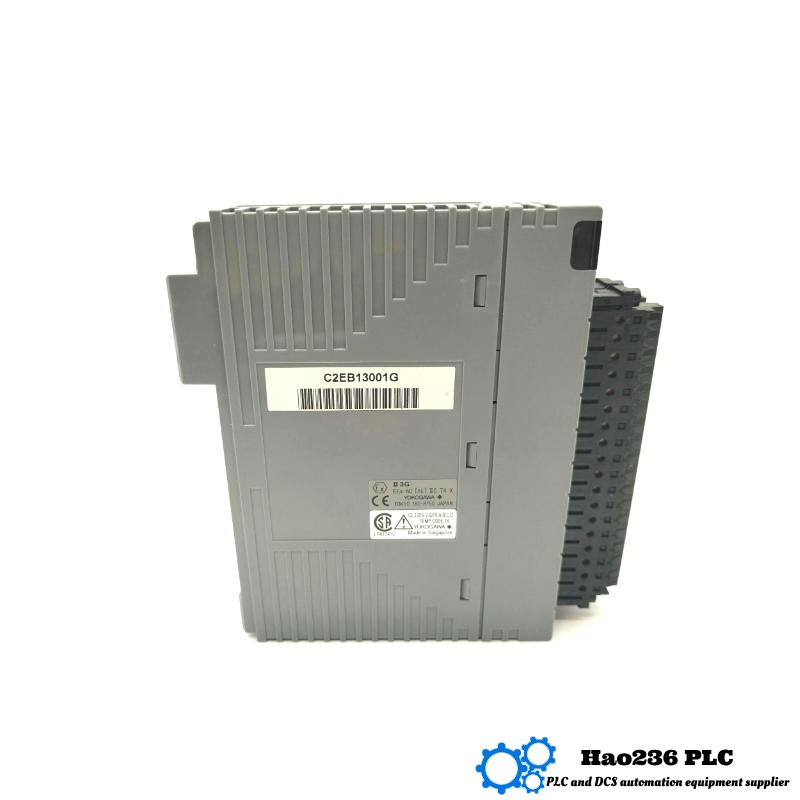

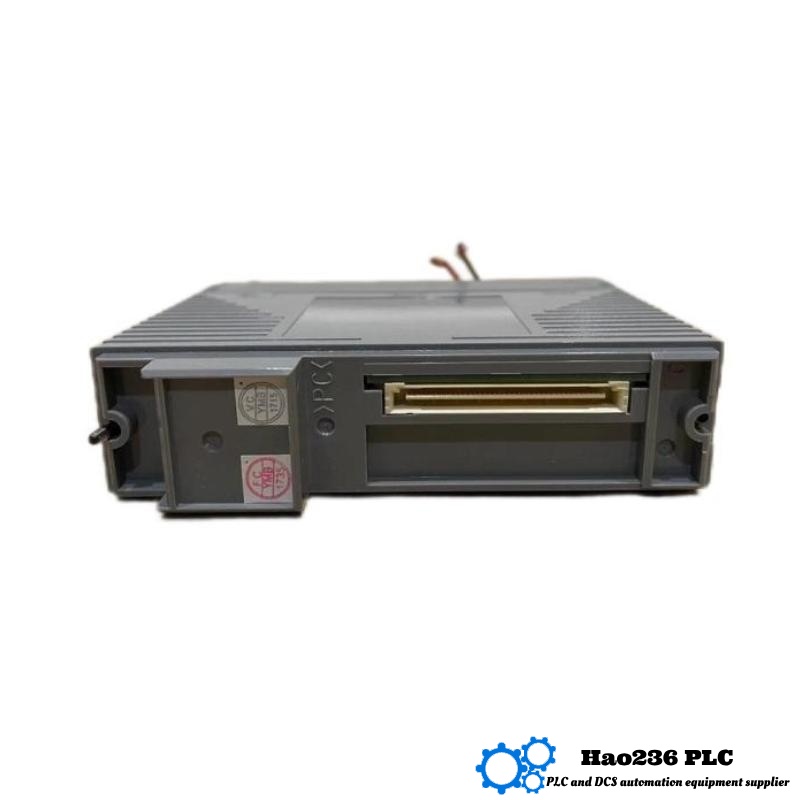

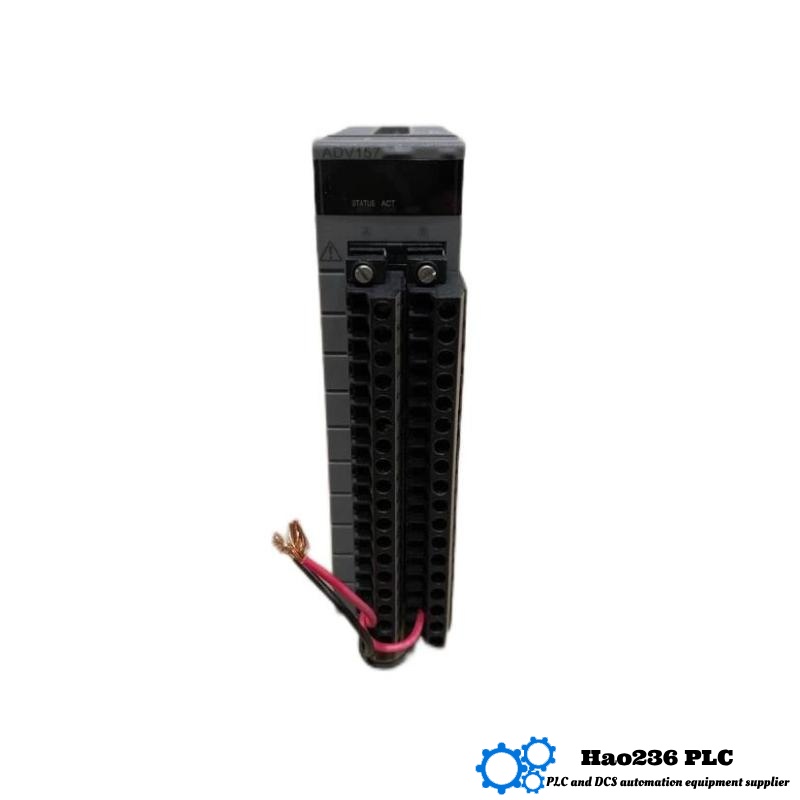

Yokogawa ADV157 Digital Input Module
Product Introduction
The Yokogawa ADV157 is a high-performance digital input module designed for advanced industrial automation systems and distributed control systems (DCS). This module is engineered to acquire digital signals from field devices such as switches, sensors, and contactors with high accuracy and fast response times.
With rugged construction and excellent noise immunity, the ADV157 ensures reliable signal acquisition in harsh industrial environments. It is widely used in process industries including oil & gas, chemical, power generation, and manufacturing, helping operators maintain precise and efficient control over complex systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | ADV157 |
| Module Type | Digital Input Module |
| Number of Channels | 16 |
| Input Signal Type | 24 V DC, Dry Contact |
| Input Voltage Range | 24 V DC nominal |
| Response Time | Less than 10 milliseconds |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature | –10 to 55 °C |
| Storage Temperature | –25 to 70 °C |
| Humidity Range | 5 to 95% (non-condensing) |
| Communication Interface | Backplane Bus |
| Mounting Type | DIN Rail |
| Dimensions (W×H×D) | 130.9 × 130 × 32.8 mm |
| Weight | 0.4 kg |
Product Applications
-
Digital signal acquisition for process control systems in oil & gas, petrochemical, and power plants
-
Integration with Yokogawa CENTUM, ProSafe-RS, and other DCS platforms
-
Monitoring field devices such as switches, proximity sensors, and push buttons
-
Alarm and safety system digital input handling
-
Factory automation and manufacturing process digital input
-
Remote control and monitoring of critical infrastructure
Product Advantages
-
High Reliability: Provides 1500 Vrms isolation to protect control systems from electrical noise and surges.
-
Fast Response Time: Under 10 milliseconds response ensures real-time process control.
-
Durable Design: Built for continuous operation in industrial environments with temperature tolerance from –10 to 55 °C.
-
Compact Size: Though slightly larger than other modules, it remains space-efficient at 130.9 × 130 × 32.8 mm.
-
Seamless Integration: Fully compatible with Yokogawa’s DCS and PLC systems for straightforward installation.
-
User-Friendly Installation: DIN rail mounting simplifies setup and maintenance.
-
Long Service Life: Designed to maintain performance in demanding and harsh environments.
Brand Information
Yokogawa Electric Corporation, established in 1915, is a pioneer in the industrial automation industry. Known worldwide for its quality and innovation, Yokogawa offers solutions that enhance safety, reliability, and efficiency. The ADV series modules reflect Yokogawa’s commitment to durable and precise process control components used globally.
Related Models in the Same Series or Similar Types
| Model Number | Type | Channels | Input Voltage | Dimensions (mm) | Weight | Notes |
|---|---|---|---|---|---|---|
| ADV151-P60 | Digital Input Module | 16 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg | Standard 16-channel digital input |
| ADV157 | Digital Input Module | 16 | 24 V DC | 130.9 × 130 × 32.8 | 0.4 kg | Larger module with similar specs |
| ADV151-P80 | Digital Input Module | 32 | 24 V DC | 107.5 × 160 × 32.8 | 0.35 kg | High-density 32-channel input |
| ADV151-P40 | Digital Input Module | 16 | 12 V DC | 107.5 × 130 × 32.8 | 0.3 kg | Low voltage input |
| ADV161 | Digital Input Module | 16 | 24 V DC | 130.9 × 130 × 32.8 | 0.4 kg | Advanced input module with enhanced isolation |
Popular Yokogawa Digital I/O Modules (Different Series)
| Model Number | Type | Channels | Signal Type | Dimensions (mm) | Weight | Description |
|---|---|---|---|---|---|---|
| ADV151-P60 | Digital Input Module | 16 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg | Standard digital input module |
| AVD151 | Digital Output Module | 16 | 24 V DC Output | 107.5 × 130 × 32.8 | 0.32 kg | Digital output for actuator control |
| SAV144 | Relay Output Module | 32 | Relay Contact | 107.5 × 160 × 32.8 | 0.45 kg | Relay output with high isolation |
| SVD131 | Digital Input Module | 16 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg | Compact, fast digital input module |
| SVD181 | High-Speed Input | 16 | 24 V DC | 107.5 × 130 × 32.8 | 0.3 kg | High-speed digital input |
Frequently Asked Questions (FAQ)
Q1: What input signals does the ADV157 support?
A1: It supports 24 V DC digital signals and dry contact inputs.
Q2: What is the typical response time of the module?
A2: The response time is under 10 milliseconds.
Q3: How is the ADV157 mounted?
A3: It is designed for DIN rail mounting for easy installation.
Q4: What are the module’s physical dimensions and weight?
A4: Dimensions are 130.9 × 130 × 32.8 mm, and it weighs approximately 0.4 kg.
Q5: Can the module withstand noisy industrial environments?
A5: Yes, it offers 1500 Vrms electrical isolation to protect from noise.
Q6: Is the ADV157 compatible with Yokogawa’s CENTUM DCS?
A6: Yes, it is fully compatible with CENTUM and other Yokogawa control systems.
Q7: What temperature range can the module operate in?
A7: It operates reliably from –10 to 55 °C.
Q8: How many digital input channels are provided?
A8: It provides 16 digital input channels.
Q9: Does the module support hot-swapping?
A9: Hot-swapping support depends on the overall system setup but is generally supported.
Q10: What kind of maintenance is recommended?
A10: Regular inspection and terminal cleaning are recommended; the module is designed for long-term use.
