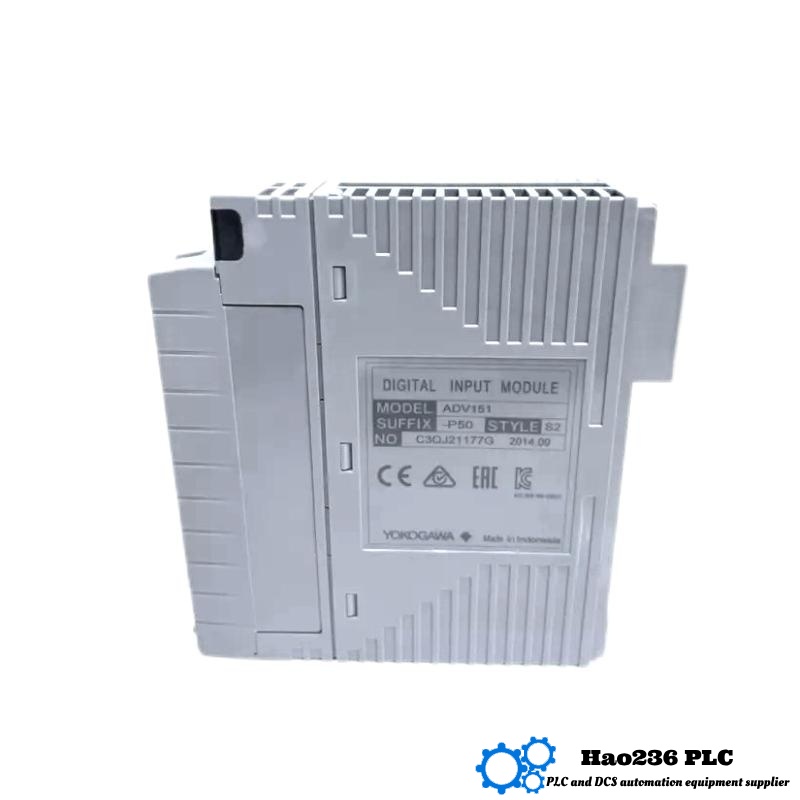

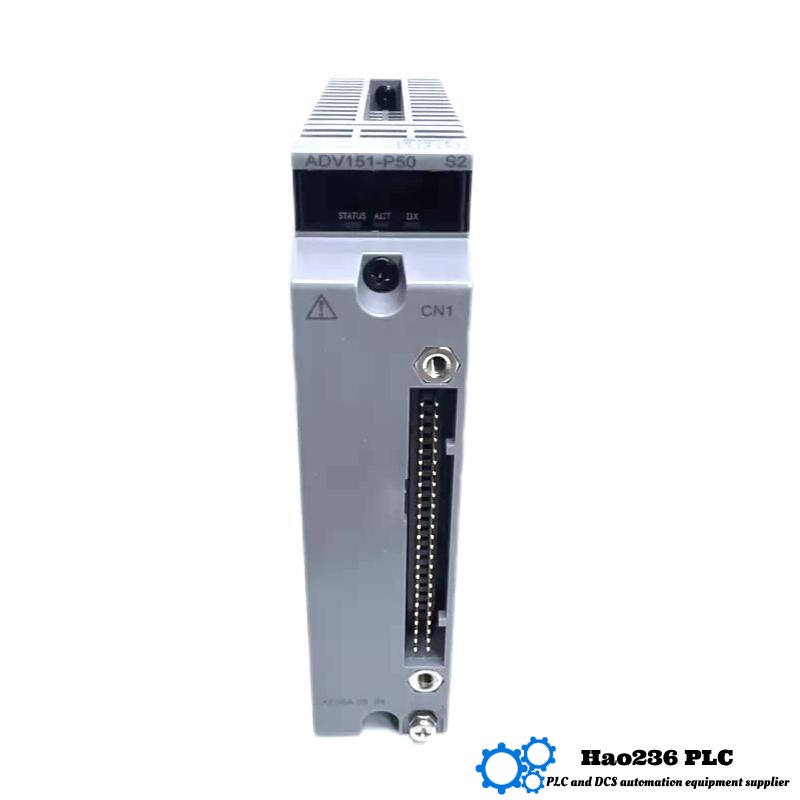

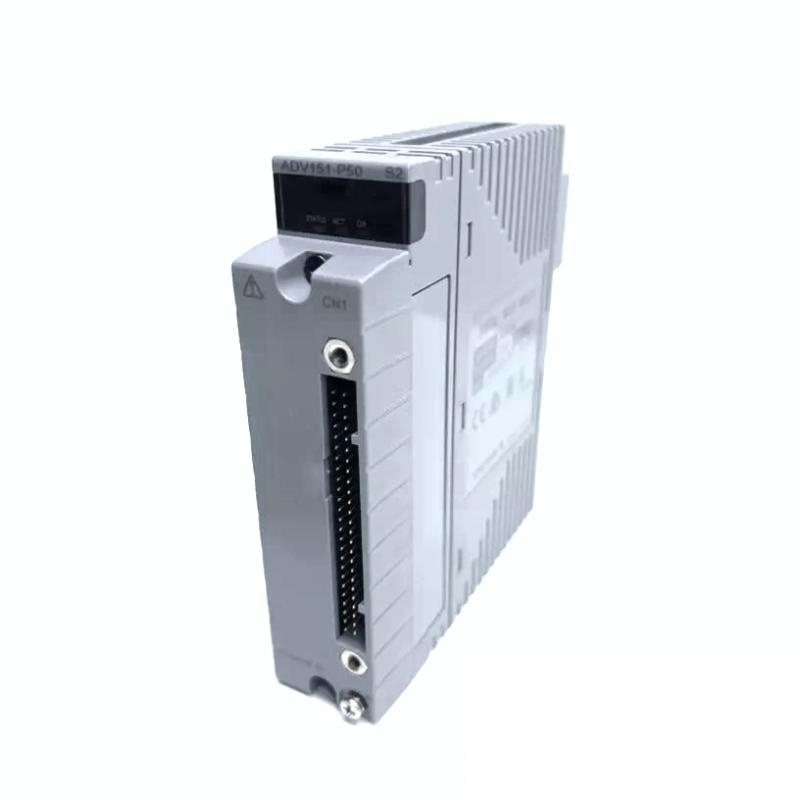

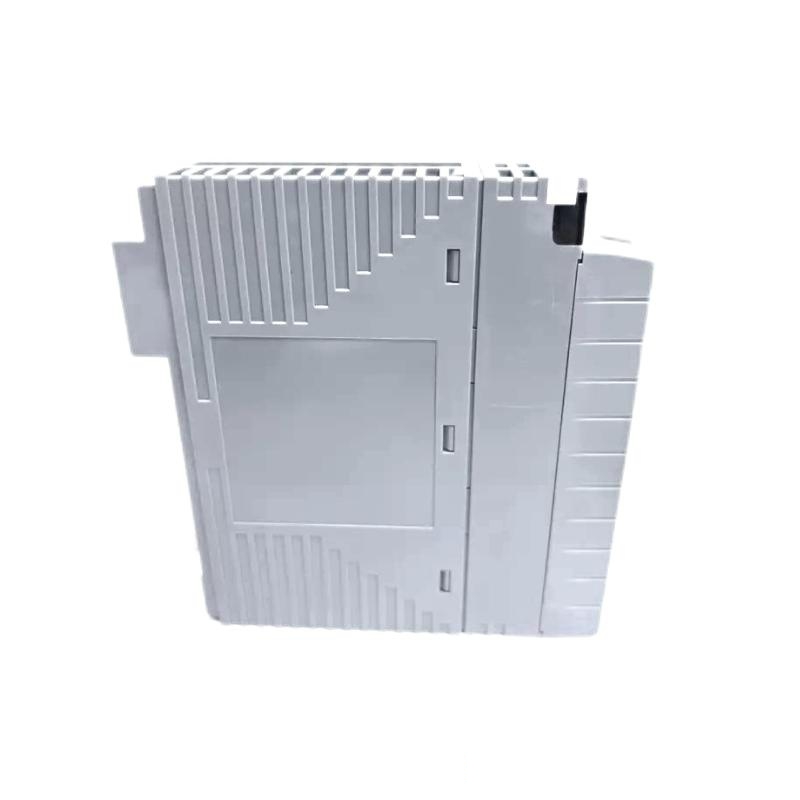

Yokogawa ADV151-P50/D5A00 Digital Input Module
Product Introduction
The Yokogawa ADV151-P50/D5A00 is a robust 16-channel digital input module engineered for high-speed, high-reliability signal acquisition in industrial control systems. Part of Yokogawa’s ADVANTAGE series, it seamlessly interfaces field devices—pushbuttons, limit switches, proximity sensors—with CENTUM and FAST/TOOLS platforms. Built with hardened opto-isolated inputs, this module prevents ground-loop interference and ensures up to 10 ms response time for mission-critical applications.
Brand
Yokogawa Electric Corporation is a world-leading supplier of industrial automation, process control instruments, and advanced digital solutions. With over 100 years of innovation, Yokogawa is synonymous with precision, reliability, and longevity.
Product Applications
It is widely used in:
-
Chemical & Petrochemical: Capturing status of safety interlocks, valve positions, and alarm conditions.
-
Power Generation: Monitoring breaker statuses, turbine trip signals, and emergency shutdown inputs.
-
Water & Wastewater: Supervising pump starts, level switch activations, and gate controls.
-
Pharmaceutical & Food Processing: Tracking machine safety doors, conveyor stops, and batch-process interlocks.
-
Building Automation: Integrating fire alarms, door contacts, and security system alerts into central SCADA.
Product Advantages
-
High Noise Immunity: Opto-isolated inputs protect against transients and EMI.
-
Fast Response: < 10 ms typical update time ensures timely control actions.
-
Compact & Lightweight: 107.5 × 130 × 32.8 mm footprint, 0.3 kg weight frees panel space.
-
Built-In Diagnostics: Detects wiring open-circuits and short-circuits per channel, displayed on system HMI.
-
Seamless Integration: Plug-and-play fit into Yokogawa’s DCS backplane; no external wiring harness needed.
-
Wide Temperature Range: Operates from –10 °C to +60 °C for indoor and mild outdoor enclosures.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | ADV151-P50/D5A00 |
| Type | 16-Channel Digital Input Module |
| Dimensions (W×H×D) | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Input Voltage | 24 V DC nominal |
| Channels | 16 discrete inputs |
| Response Time | < 10 ms |
| Isolation | Opto-isolated per channel |
| Operating Temperature | –10 °C to +60 °C |
| Communication Interface | Yokogawa DCS backplane |
| Diagnostics | Open-circuit, short-circuit detection |
Recommended Models (Same Series / Related)
| Model | Type | Channels | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ADV151-P40/S5A00 | Digital Input | 16 | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV151-P50/D5A01 | Digital Input | 16 | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV152-P50/D5A00 | Digital Output | 16 | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV153-P50/D5A00 | Analog Input | 8 | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV157-P50/S5A00 | Digital Output | 32 | 107.5 × 130 × 45 | 0.45 kg |
Popular Yokogawa Models (Other Types)
| Model | Type | Channels | Dimensions (mm) | Weight |
|---|---|---|---|---|
| ADV151-P63 | Digital Input | 16 | 107.5 × 130 × 32.8 | 0.3 kg |
| ADV159-P01 | Analog Output | 4 | 107.5 × 130 × 32.8 | 0.35 kg |
| ADV541-P10 | Analog Input | 8 | 107.5 × 130 × 45 | 0.4 kg |
| ADV157-P50 | Digital Output | 32 | 107.5 × 130 × 45 | 0.45 kg |
| ADV152-P50 | Digital Output | 16 | 107.5 × 130 × 32.8 | 0.3 kg |
FAQ (Q&A)
Q1: What input voltage range is supported?
A1: Nominal 24 V DC, with ±10% tolerance.
Q2: How many channels does ADV151-P50/D5A00 offer?
A2: Sixteen discrete digital inputs.
Q3: What is the typical response time?
A3: Less than 10 milliseconds.
Q4: How does the module detect wiring faults?
A4: Built-in diagnostics flag open-circuit and short-circuit conditions per channel.
Q5: Can this module withstand electrical noise?
A5: Yes—each input is opto-isolated for high noise immunity.
Q6: What are its physical dimensions?
A6: 107.5 × 130 × 32.8 mm.
Q7: What operating temperature range is specified?
A7: –10 °C to +60 °C.
Q8: Is it compatible with Yokogawa’s CENTUM and FAST/TOOLS?
A8: Yes, it plugs into the ADVANTAGE backplane used by both systems.
Q9: How much does the module weigh?
A9: Approximately 0.3 kg.
Q10: What maintenance is required?
A10: Periodic visual checks of LED diagnostics; no routine calibration needed.
