Product Introduction

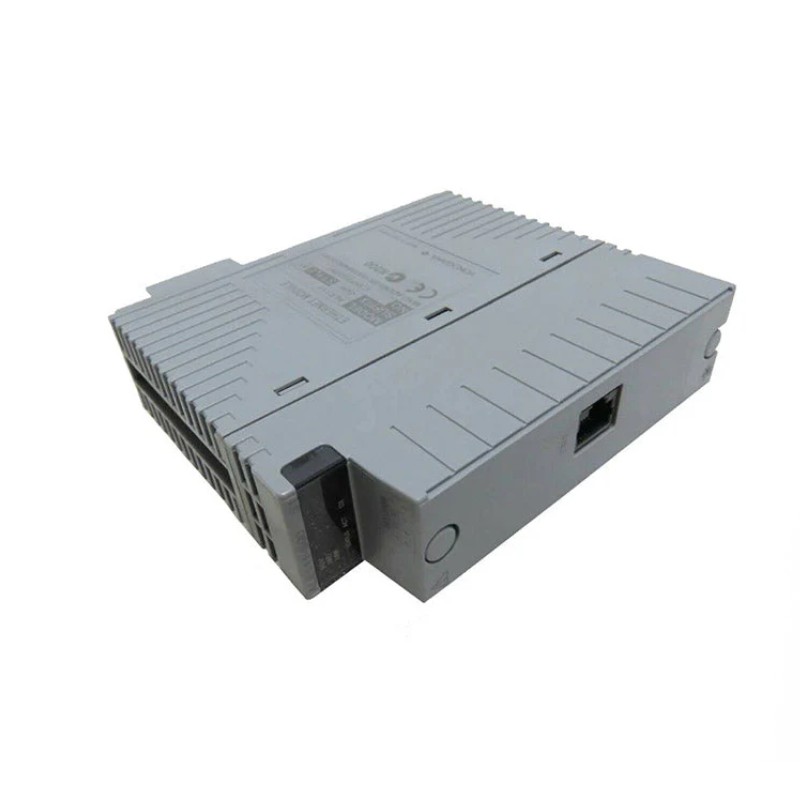

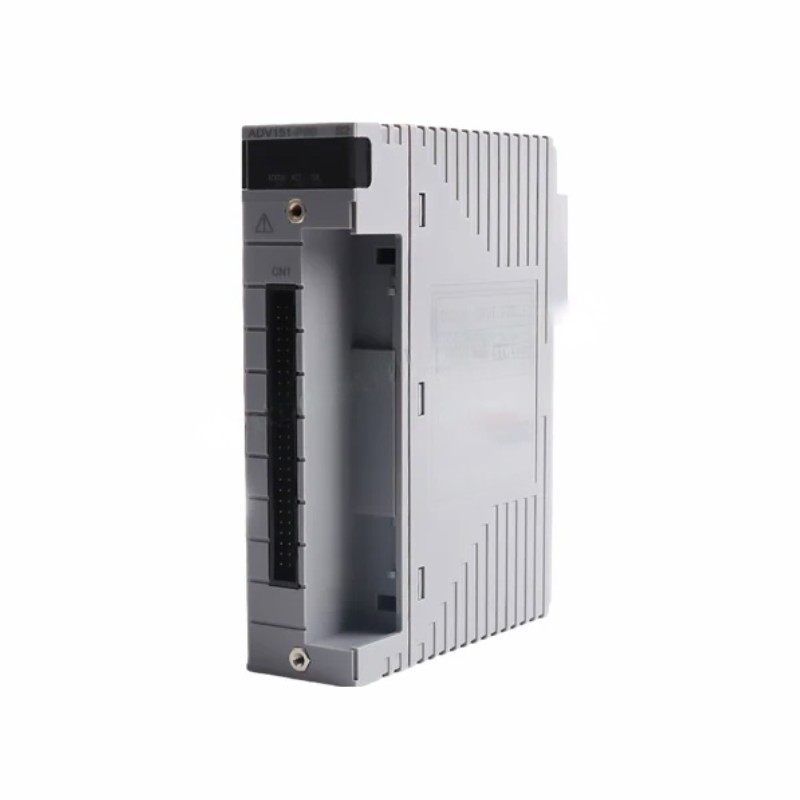

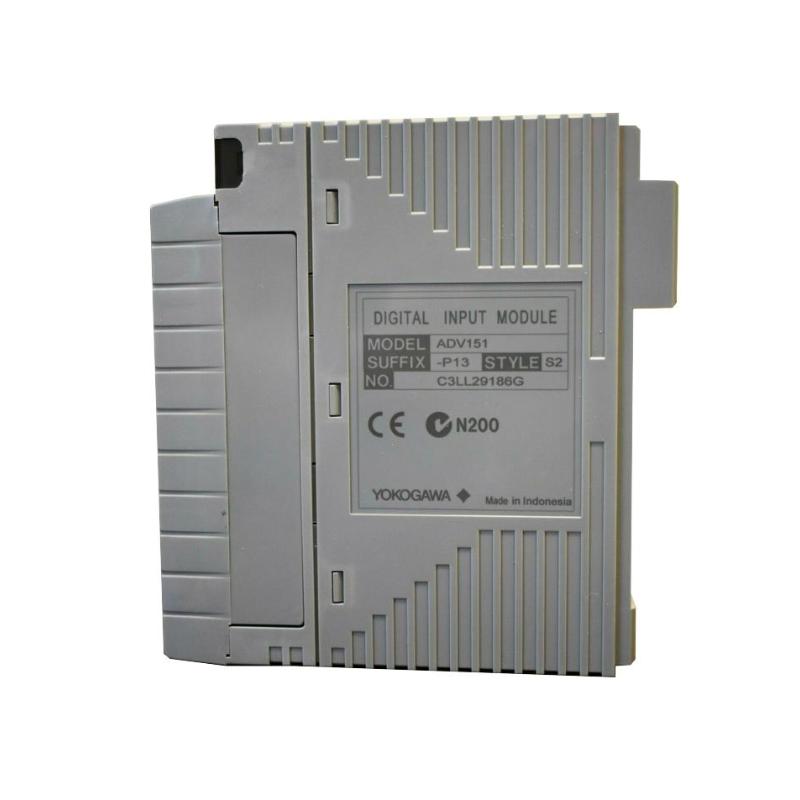

The Yokogawa ADV151‑P13 is a digital input module belonging to the ADV151 series from the Yokogawa brand. It is designed for industrial automation and process‑control systems to collect discrete (ON/OFF) input signals from field devices—such as limit switches, proximity sensors, dry contacts or 24 V DC sensors—and to transmit them into the control system logic with high integrity.
This variant (“P13”) describes a certain feature set within the series, enabling 16 or 32 channel input (depending on vendor listing) with 24 V DC input capability, isolation between channels and system, and compact form factor for rack‑mount installation. It is well suited for process plants, manufacturing automation, utilities and other environments where reliable digital input acquisition is required.
By offering reliable signal acquisition, isolation protection, and integration into the Yokogawa field I/O ecosystem, the ADV151‑P13 module helps ensure that field devices’ signals are captured accurately, so that the control system can act on them reliably.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | ADV151‑P13 |
| Series | ADV151 Digital Input Module Series |
| Brand | Yokogawa |
| Number of Input Channels | 16 channels (some sources list 16) |
| Input Signal Type | Dry contact or DC voltage input |
| Rated Input Voltage | 24 V DC (nominal) |
| Input Voltage Range | 0 V to 30 V DC |
| Input Current per Channel | ~6 mA at 24 V DC |
| Withstanding Voltage (Isolation) | ~1 500 V AC (1 minute) |
| Response Time | ≤ 10 ms |
| Input Impedance | ~4.7 kΩ |
| Power Consumption | ~3 W (typical) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity Range | 10 % to 90 % RH (non‑condensing) |
| Dimensions | Approx. 110 mm × 30 mm × 130 mm |
| Weight | Approx. 0.20 kg |
| Special Features | Compact size, isolated input channels, dry‑contact or voltage input acceptance |
Applications
-
In distributed control systems (DCS) and field I/O racks, this module serves as the interface capturing discrete digital signals (from push‑buttons, limit switches, sensor contacts) and forwarding them to the control logic.
-
In process industries such as petrochemical, power generation, water & wastewater, manufacturing automation, where many field digital input points need to be handled reliably and integrated into the control network.
-
In cabinets or panels in automation networks, where the compact size of the ADV151‑P13 allows it to fit in tight spaces while still offering high signal integrity.
-
In systems needing isolation between field wiring and control system to protect against electrical noise, ground loops or interference.
-
In expansions or retrofits, where the module can replace older analog or discrete I/O cards, offering compatibility with 24 V signals and standardized interface across the Yokogawa field I/O ecosystem.
-
In monitoring and safety systems, where discrete inputs (e.g., alarms, safety interlocks, operator push‑buttons) must be collected reliably and routed to safety or control logic.
Advantages
-
Compact and lightweight design – The module’s small footprint (approx. 110 × 30 × 130 mm) and light weight (~0.20 kg) make it easy to install and maintain in dense I/O racks.
-
Reliable signal acquisition – Input channel design with dry‑contact or voltage input, plus defined response time (≤10 ms) ensures timely capture of digital events.
-
Electrical isolation – Withstanding isolation voltage (~1.5 kV AC), the module provides protection between field wiring and system electronics, improving robustness in noisy environments.
-
Standard 24 V DC interface compatibility – Accepts typical 24 V DC signals, making it widely applicable across many industrial installations.
-
Brand and ecosystem compatibility – As part of the Yokogawa ADV151 series, the module integrates into a broad field‑I/O platform with long life‑cycle support, reducing risk for system upgrade or expansion.
-
Ease of wiring and deployment – Designed for typical field installations with dry contact or voltage input, reducing need for specialized wiring or signal conditioning when replacing legacy inputs.
-
Suitable for diverse industries – From manufacturing automation to process plants to utilities, the ADV151‑P13 adapts to many environments.
-
Cost‑effective solution for discrete input channels – By offering modest channel count with good specifications, the module provides an economical path for discrete input expansion.
Brand & Series
-
Brand: Yokogawa
-
Series: ADV151 Digital Input Module Series
-
Category: Digital Input Modules (24 V DC, isolated, discrete input)
-
Placement: The ADV151 series is designed for field I/O racks or distributed control system I/O nodes, providing standardized modules for digital input, digital output, analog input/output, event capture, etc. The ADV151‑P13 is one variant in the digital input subset of this series.
Recommended Related Models (Same Series or Family)
Here are five additional modules within the same series or closely related, which you may consider:
| Model | Description / Notes | Key Parameters |
|---|---|---|
| ADV151‑P10 | 32‑channel digital input module (higher channel count variant) | 32 ch, 24 V DC input, ~0.30 kg |
| ADV151‑P00 | Basic digital input module variant (standard channel count) | 32 ch, 24 V DC, ≤8 ms response |
| ADV151‑P03 | Module variant supporting push‑button input detection / edge counting | 32 ch, push‑button capability |
| ADV151‑P50 | Module variant with enhanced features / status display | 32 ch, status display |
| ADV151‑P60 | Extended environment version (temperature, vibration) of input module | 32 ch, extended temp range |
Popular Models from the Same Brand
Below are five popular modules from the same brand (Yokogawa) but spanning other I/O types:
| Model | Type / Channels | Main Parameters |
|---|---|---|
| ADV551‑P50 | Digital Output Module, 32 channels | 24 V DC DO, isolated outputs |
| ADV551‑P63 | Digital Output Module, extended temperature spec | 24 V DC DO, –20 °C to +70 °C |
| ADV161‑P50 | Digital Input Module, 64 channels (higher density) | 64 ch, 24 V DC input |
| AAI543‑H10 | Analog Input Module, 8 channels | 4‑20 mA or 1‑5 V inputs |
| ADR541 | Relay Output Module, 16 channels | AC/DC relay outputs for field devices |
FAQ (Frequently Asked Questions)
Q1: What is the channel count of the ADV151‑P13 module?
A1: According to listings, the module is specified with 16 input channels.
Q2: What type of input signals does it accept?
A2: It accepts dry‑contact inputs or DC voltage inputs (nominal 24 V DC).
Q3: What is the operating input voltage range?
A3: The input voltage can range from 0 to 30 V DC, with 24 V DC nominal.
Q4: What is the typical response time of the module?
A4: The response time is ≤ 10 ms for discrete input status.
Q5: What are the physical dimensions and weight of the module?
A5: Approximate dimensions are 110 mm × 30 mm × 130 mm, and weight is around 0.20 kg.
Q6: Does the module provide isolation between field wiring and system electronics?
A6: Yes — it offers an isolation withstand voltage of about 1 500 V AC for 1 minute, providing protection in noisy environments.
Q7: Can this module be used in a redundant I/O configuration?
A7: While this module integrates into the ADV151 series ecosystem that supports redundant architectures, you must verify system‑specific compatibility for dual‑redundant usage.
Q8: In what industries is this module typically used?
A8: It is used in industries such as petrochemical, power generation, manufacturing automation, water/wastewater, and utilities—where reliable discrete input acquisition is required.
Q9: Is the module suitable for retrofitting older systems?
A9: Yes — because it supports standard 24 V discrete input signals and offers a compact form factor, it is well suited for retrofit in existing I/O racks.
Q10: If I require higher channel count or additional features (such as push‑button edge detection), what should I do?
A10: You should consider other variants in the ADV151 series (for example the P10, P03, P50 variants) which provide higher channel count or additional input features.
