Product Overview

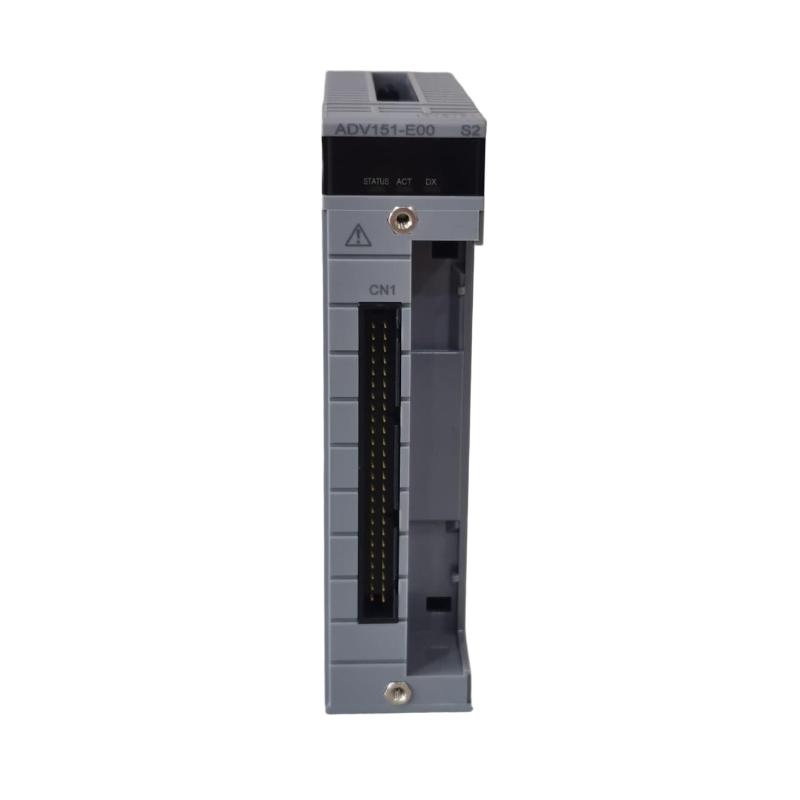

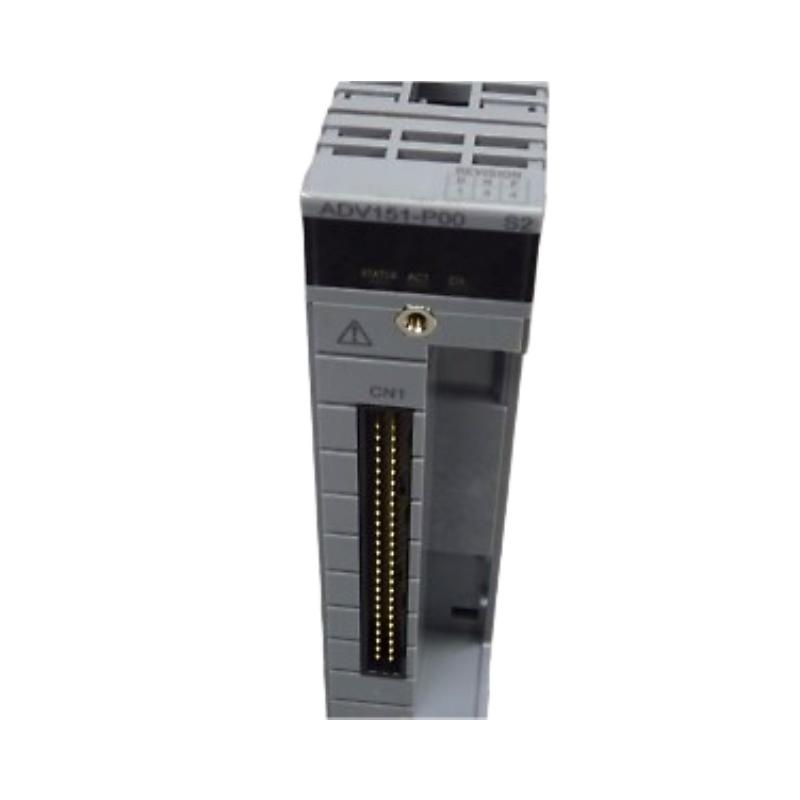

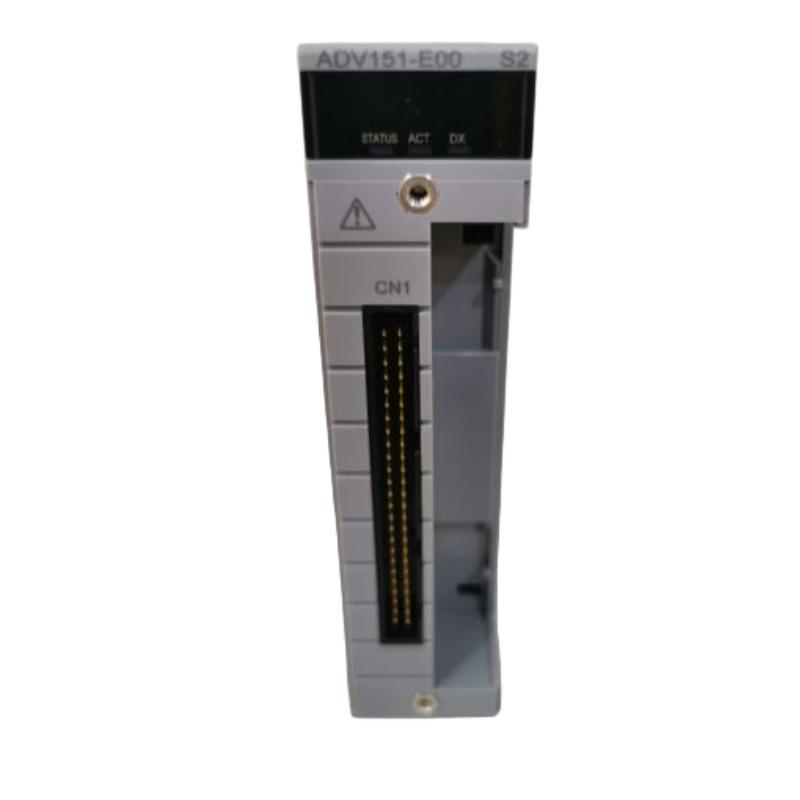

The Yokogawa ADV151-P10 S2 is a 32-channel digital input module designed for use in industrial process automation and distributed control systems (DCS). It belongs to the ADV151 series of digital input I/O modules from the Yokogawa brand.
This module accepts 24 V DC discrete (ON/OFF) input signals from field devices—such as limit switches, pressure switches, relays, operator push-buttons—and converts them into logic signals for the automation/control system. The “P10” suffix indicates a specific variant of the ADV151 family—offering digital input capabilities, status/push-button detection, isolation, and compatibility with the S2 style bus node. The module is designed to provide high channel density, robust electrical isolation, rapid response, and reliability for demanding industrial environments.
Typical deployment scenarios include control panels, I/O racks, remote field cabinets, where many discrete input signals must be reliably captured, sometimes in redundant architectures or harsh conditions.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | ADV151-P10 S2 |
| Series | ADV151 Digital Input Module Series |
| Brand | Yokogawa |
| Function | 32-channel 24 V DC digital input module |
| Number of Input Channels | 32 channels |
| Rated Input Voltage | 24 V DC (sink/source compatible) |
| Input ON Voltage Range | 18.0 V to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current per Channel | Approx. 4.1 mA ±20 % at 24 V DC |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Input Response Time (Status Input) | ≤ 8 ms |
| Minimum ON Detection Time (Push-Button Input) | ≥ 20 ms |
| Maximum ON/OFF Cycle (Push-Button Mode) | 25 Hz |
| Withstanding Voltage (Isolation) | 2 kV AC between input signal and system (1 min); 500 V AC between commons (per 16 channels) and system (1 min) |
| Power Consumption | Maximum approx. 500 mA at 5 V DC |
| External Connection / Wiring Interface | Pressure clamp terminal block, dedicated cable, MIL connector (varies) |
| Operating Temperature Range | –20 °C to +60 °C (variant) |
| Storage Temperature Range | –20 °C to +70 °C |
| Humidity Range | 5 % to 95 % RH (non-condensing) |
| Dimensions (L × W × H) | Approx. 10.7 cm × 13.0 cm × 3.2 cm |
| Weight | Approx. 0.30 kg |
| Special Features | Supports status input, push-button edge counting, sequence-of-events (SOE) capture variant; high channel density; isolation; compact footprint |
Applications
-
In distributed control systems, the module collects digital ON/OFF signals from field devices—such as limit switches, proximity sensors, pump run/status contacts, push-buttons—and transfers them into the control system logic.
-
In manufacturing and automation environments: monitoring of machine interlocks, emergency stop buttons, conveyor run status, operator panel switches.
-
In power generation, utilities, oil & gas and process plants: capture state of breakers, relays, valve limit switches, alarm contacts under harsh electrical and environmental conditions.
-
In water/waste-water treatment: detecting level switches, pump status, equipment fault signals with high reliability.
-
For systems requiring sequence-of-events (SOE) logging: push-button and status detection enable time-critical event capture and traceability.
-
In redundant I/O architectures: the module supports use in dual-redundant configurations, enabling continuous operation in mission-critical systems.
Advantages
-
High channel density – 32 discrete inputs in one module reduce panel space, wiring and cost.
-
Fast response and accurate detection – input response time ≤ 8 ms ensures timely acquisition of critical digital events.
-
Robust electrical isolation – 2 kV AC isolation between input and system minimizes interference, enhances reliability.
-
Push-button & status input support – supports push-button edge detection and minimum ON time for operator inputs.
-
Compact and lightweight design – approx. 0.30 kg weight, small form factor simplifies installation and maintenance.
-
Flexible connection options – supports various wiring interfaces (terminal block, dedicated cable, MIL connector) to suit field installation.
-
Redundancy-ready architecture – supports dual-redundant I/O configurations for high availability systems.
-
Trusted ecosystem – part of the Yokogawa ADV151 series, compatible with established control system architectures and supported over long life cycles.
Brand & Series
-
Brand: Yokogawa
-
Series: ADV151 Digital Input Module Series
-
Category: 24 V DC isolated digital input modules (32-channel type)
-
Positioning: The ADV151-P10 S2 represents a mature, field-proven digital input card built for industrial I/O racks in process automation, offering high density and reliability.
Recommended Related Models (Same Series / Family)
| Model | Description / Notes | Key Parameters |
|---|---|---|
| ADV151-P00 S2 | Base 32-channel DI module (no push-button/SOE support) | 32 channels, 24 V DC, ≤ 8 ms response, ~0.30 kg |
| ADV151-P03 S2 | 32-channel DI module with push-button input support | 32 channels, 24 V DC, push‐button mode, ~0.30 kg |
| ADV151-P50 S2 | Enhanced 32-channel DI with LED status, high environment spec | 32 channels, 24 V DC, LED per channel, ~0.30 kg |
| ADV151-P60 S2 | 32-channel DI with extended temperature and ruggedness | 32 channels, 24 V DC, –20 °C to +70 °C, ~0.30 kg |
| ADV151-PE0 S2 | 32-channel DI module with SOE (Sequence-of-Events) capture support | 32 channels, 24 V DC, SOE support, ~0.30 kg |
Popular Models from the Same Brand
| Model | Type / Channels | Main Parameters |
|---|---|---|
| ADV551-P50 | 32-channel Digital Output (DO) Module | 24 V DC DO, sink/source output, ~0.35 kg |
| ADV551-P63 | 32-channel DO with extended temperature range | 24 V DC output, –20 °C to +70 °C, ~0.35 kg |
| ADV161-P50 | 64-channel Digital Input Module | 64 channels, 24 V DC input, high density, ~0.45 kg |
| AAI543-H10 | 8-channel Analog Input Module | 8 AI, supports multiple signal types (4–20 mA, 1–5 V), ~0.40 kg |
| ADR541 | 16-channel Relay Output Module | 16 relay channels, AC/DC switching capability, ~0.55 kg |
FAQ (Frequently Asked Questions)
Q1: What is the channel count of the ADV151-P10 S2?
A1: This module provides 32 discrete digital input channels.
Q2: What is the rated input voltage for the module?
A2: It is rated for 24 V DC (sink or source type) input signals.
Q3: What is the typical input response time?
A3: The response time for status-type inputs is 8 ms or less.
Q4: Does the module support push-button input detection?
A4: Yes—along with status input detection, push-button edge detection and minimum ON time (20 ms) are supported in appropriate variants.
Q5: What is the isolation reliability like in noisy environments?
A5: The module offers robust electrical isolation: 2 kV AC between signal and system and 500 V AC between commons and system for one minute, helping maintain signal integrity under interference.
Q6: What are the physical size and weight of the module?
A6: Approximate dimensions are 10.7 cm × 13.0 cm × 3.2 cm; weight is about 0.30 kg.
Q7: Can this module be used in a redundant I/O system?
A7: Yes—this module is compatible with dual-redundant I/O architectures, making it suitable for mission-critical installations requiring high availability.
Q8: What wiring interfaces are supported for field connections?
A8: Field connections may use pressure‐clamp terminal blocks, dedicated cables, MIL connector cables, depending on configuration—offering flexibility for installation.
Q9: What environmental ranges does this module support?
A9: Standard operating ambient is –20 °C to +60 °C with non‐condensing humidity. For extended environments, other variants with improved specs are available.
Q10: If I have high-speed ON/OFF switching signals, will this module handle them?
A10: For push-button mode, the module is rated for a maximum ON/OFF cycle of about 25 Hz and a minimum ON detection time of 20 ms. If signals switch much faster (hundreds of Hz), a dedicated high-speed input module should be considered.
