Product Overview

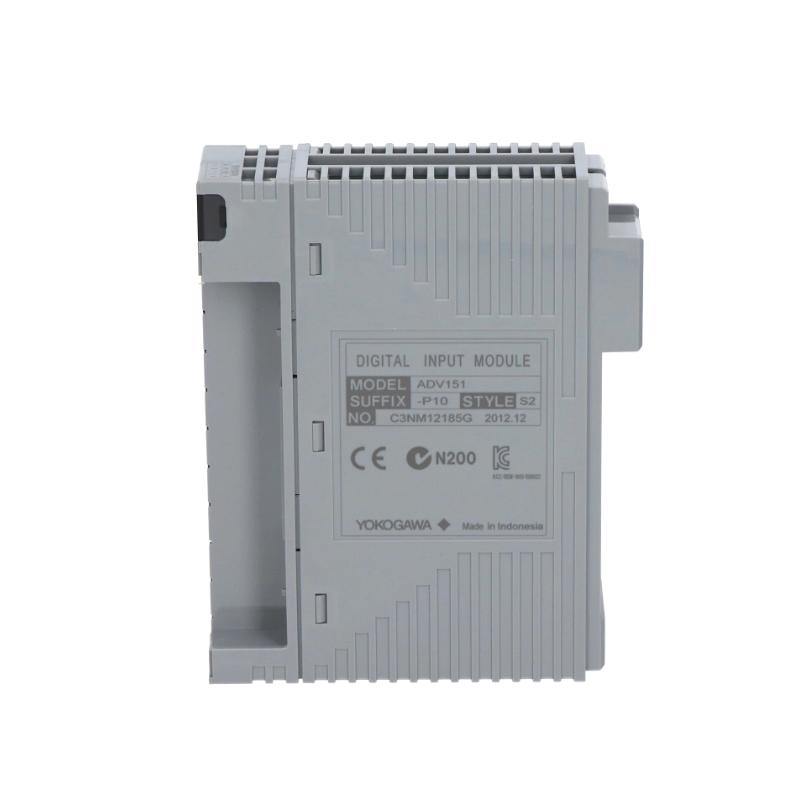

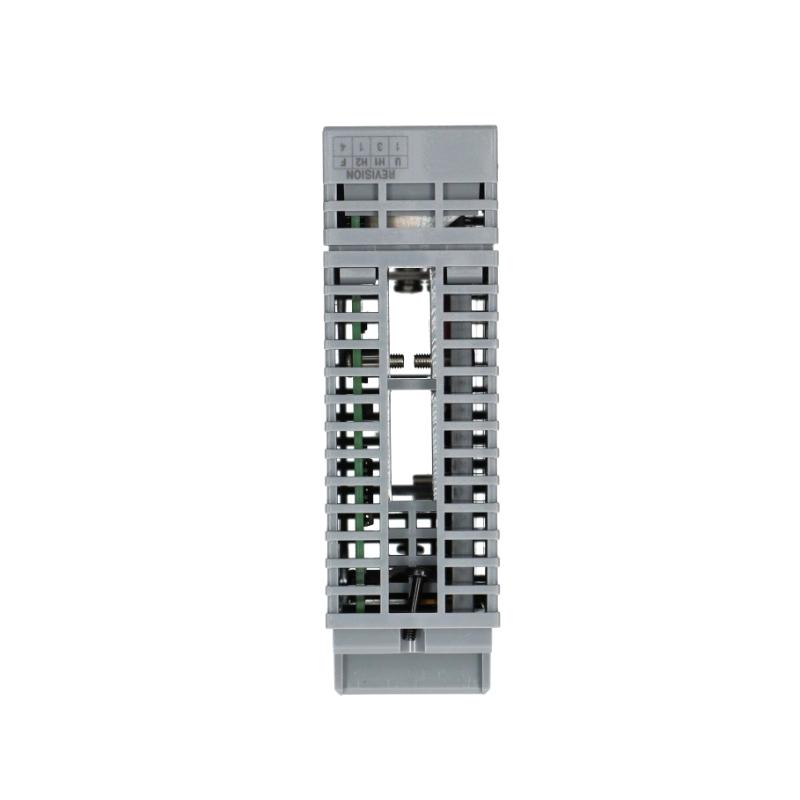

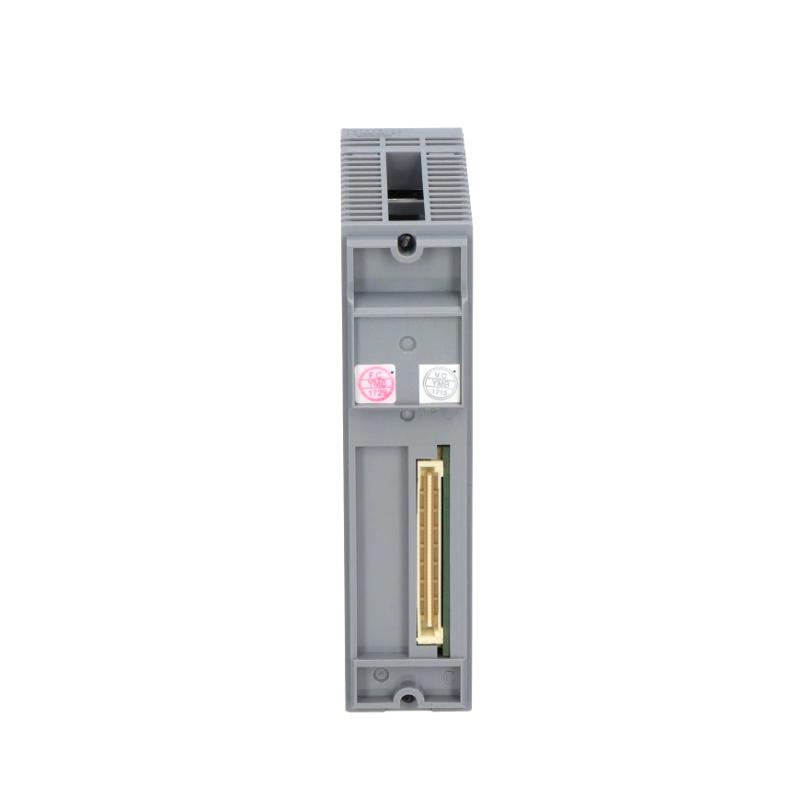

The ADV151‑P10/D5A00 is a 32‑channel digital input module designed for industrial automation and process control systems. It is part of the ADV151 series of digital input I/O modules from the Yokogawa brand.
This module receives 24 V DC discrete (ON/OFF) input signals from field devices—such as limit switches, pressure switches, relays, and push‑buttons—and converts them into logic inputs for the control system. The suffix “P10” indicates a standard digital input variant within the series, and the option code “/D5A00” designates that the module includes a KS cable interface adapter (model ATD5A‑00) for 32‑channel digital input wiring.
Engineered for reliability, high isolation, fast response and dense channel count, the ADV151‑P10/D5A00 is suitable for demanding industrial environments and large field‑I/O racks, including redundant architectures and process‑control systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | ADV151‑P10/D5A00 |
| Series | ADV151 Digital Input Module Series |
| Brand | Yokogawa |
| Function | 32‑channel 24 V DC digital input module |
| Number of Input Channels | 32 channels |
| Rated Input Voltage | 24 V DC (sink/source compatible) |
| Input ON Voltage Range | 18.0 V to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current per Channel (at rated voltage) | Approx. 4.1 mA ±20% |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Input Response Time (status input) | ≤ 8 ms |
| Minimum ON Detection Time (push‑button mode) | ≥ 20 ms |
| Maximum ON/OFF Cycle (push‑button mode) | Approx. 25 Hz |
| Withstanding Voltage (Isolation) | 2 kV AC between input signal and system (1 minute); 500 V AC between every 16‑channel common and system (1 minute) |
| Power Consumption | Approx. 500 mA at 5 V DC |
| External Connection / Wiring Interface | KS Cable Interface Adapter (ATD5A‑00), pressure‑clamp terminal, MIL connector cable |
| Operating Temperature Range | 0 °C to +50 °C (standard) |
| Storage Temperature Range | –20 °C to +70 °C |
| Humidity Range | 5 % to 95 % RH (non‑condensing) |
| Dimensions (L × W × H) | Approx. 10.7 cm × 13.0 cm × 3.3 cm |
| Weight | Approx. 0.30 kg |
| Special Features | 32‑channel high density, optical isolation, push‑button input support, compatible with redundant I/O architectures |
Applications
-
In distributed control systems (DCS) and field‑I/O racks, the module captures discrete ON/OFF signals from field devices (such as limit switches, proximity sensors, relay contacts, push‑buttons), and conveys them reliably into the control logic.
-
In manufacturing automation, the module monitors machine status inputs, operator panel switches, conveyor interlocks, emergency stop inputs, and other digital state signals.
-
In process industries (oil & gas, petrochemical, power generation, water treatment), the module is used to collect large numbers of field digital input signals, with high reliability, isolation and minimal downtime.
-
In redundant/high‑availability architectures where dual‑channel or redundant I/O paths are required, the ADV151‑P10/D5A00 supports high‑availability system designs, ensuring continuous operation even in critical installations.
-
In harsh electrical noise or industrial environments, where many discrete field devices and control signals must be interface‑managed with strong isolation and fast detection.
Advantages
-
High channel density – With 32 discrete digital inputs in one module, panel space and wiring complexity are reduced significantly.
-
Fast response and accurate detection – With input response times of ≤ 8 ms and push‑button detection capability, the module delivers timely and dependable signal acquisition.
-
Robust electrical isolation – Withstand voltages of 2 kV AC between input and system and 500 V AC between channel commons and system help ensure noise immunity and signal integrity.
-
Flexible wiring interface – The inclusion of the KS cable interface adapter (D5A00) plus support for other wiring options simplifies field installation and adaptation to various wiring scenarios.
-
Compact & lightweight – Weight around 0.30 kg and compact form‑factor make it easier to install, maintain and replace in tight cabinet spaces.
-
Redundancy‑capable design – Suitable for use in systems that require redundant I/O channels for continuous operation and fail‑safe design.
-
Proven brand and ecosystem – As part of a well‑established module series, it integrates seamlessly within the Yokogawa field I/O environment, offering long‑term maintainability and compatibility.
Brand & Series
-
Brand: Yokogawa
-
Series: ADV151 Digital Input Module Series
-
Category: 24 V DC isolated digital input modules (32‑channel type)
-
Positioning: The ADV151‑P10/D5A00 forms part of the digital input I/O card family used in field‑I/O systems for process control, offering high density, reliability and modularity.
Recommended Related Models (Same Series or Family)
| Model | Description / Notes | Key Parameters |
|---|---|---|
| ADV151‑P00/D5A00 | Basic 32‑channel digital input module (no push‑button support) | 32 channels, 24 V DC input, ≤ 8 ms response, ~0.30 kg |
| ADV151‑P03/D5A00 | 32‑channel DI module with push‑button input support (edge detection) | 32 channels, 24 V DC, push‑button mode, ~0.30 kg |
| ADV151‑P50/D5A00 | Enhanced DI module variant with status display and improved isolation | 32 channels, 24 V DC, status LED display, ~0.30 kg |
| ADV151‑P60/D5A00 | DI module with extended environmental specification (‑20 °C to +70 °C) | 32 channels, 24 V DC, extended temperature, ~0.30 kg |
| ADV151‑PE0/D5A00 | DI module variant with sequence‑of‑events (SOE) capture capability | 32 channels, 24 V DC, event logging, ~0.30 kg |
Popular Models from the Same Brand
| Model | Type / Channels | Main Parameters |
|---|---|---|
| ADV551‑P50/D5A00 | 32‑channel Digital Output Module | 24 V DC output, isolated outputs, ~0.35 kg |
| ADV551‑P63/D5A00 | 32‑channel DO module with extended temperature range | 24 V DC output, –20 °C to +70 °C, ~0.35 kg |
| ADV161‑P50 | 64‑channel Digital Input Module | 24 V DC input, 64 channels, high density, ~0.45 kg |
| AAI543‑H10 | 8‑channel Analog Input Module | Supports 4–20 mA / 1–5 V signals, isolated, ~0.40 kg |
| ADR541 | 16‑channel Relay Output Module | Switching outputs for field devices, isolated, ~0.55 kg |
FAQ (Frequently Asked Questions)
Q1: What is the channel count for the ADV151‑P10/D5A00?
A1: It provides 32 discrete digital input channels in one module.
Q2: What voltage signals does it accept?
A2: It is designed for 24 V DC discrete inputs (sink or source compatible).
Q3: What is its response time for input changes?
A3: For status‑type inputs, the response time is up to 8 milliseconds or better.
Q4: What does the suffix “/D5A00” mean?
A4: The “/D5A00” indicates the module is equipped with a KS cable interface adapter (part number ATD5A‑00) for 32‑channel digital input wiring.
Q5: What is its isolation capability?
A5: It offers 2 kV AC isolation between input signals and system for 1 minute, and 500 V AC between every 16‑channel common and system for 1 minute.
Q6: What are the physical dimensions and weight?
A6: Dimensions are approximately 10.7 cm × 13.0 cm × 3.3 cm; weight is approximately 0.30 kg.
Q7: Can it be used in a redundant I/O architecture?
A7: Yes, it is compatible with redundant field‑I/O architectures and supports high‑availability system integration.
Q8: What wiring interface is supported by the module?
A8: The module supports the KS cable adapter (ATD5A‑00), pressure‑clamp terminal blocks, and MIL connector style cables, providing installation flexibility.
Q9: Is the module suitable for harsh industrial environments?
A9: Yes, the high isolation, 24 V standard interface, dense channel count and industrial design make it suitable for typical industrial environments, though for extended temperature or explosion‑proof conditions variants should be selected.
Q10: If I need higher temperature range or explosion protection, what should I choose?
A10: For wider temperature range or explosion‑proof variants, you should consider models with suffixes such as “‑P60” (extended temp) or explosion‑protected variants within the ADV151 series.
