Product Overview

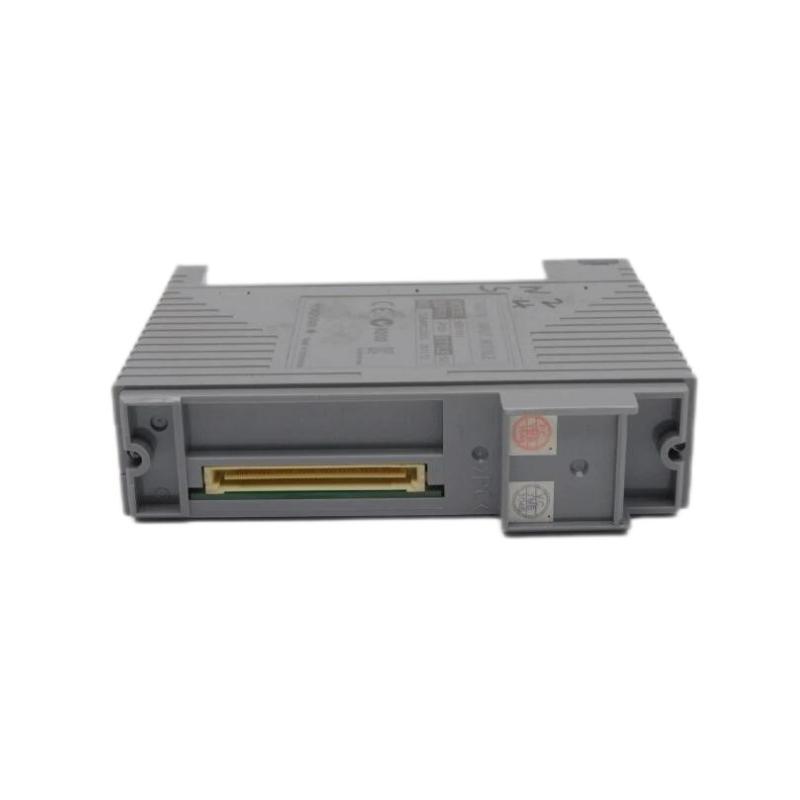

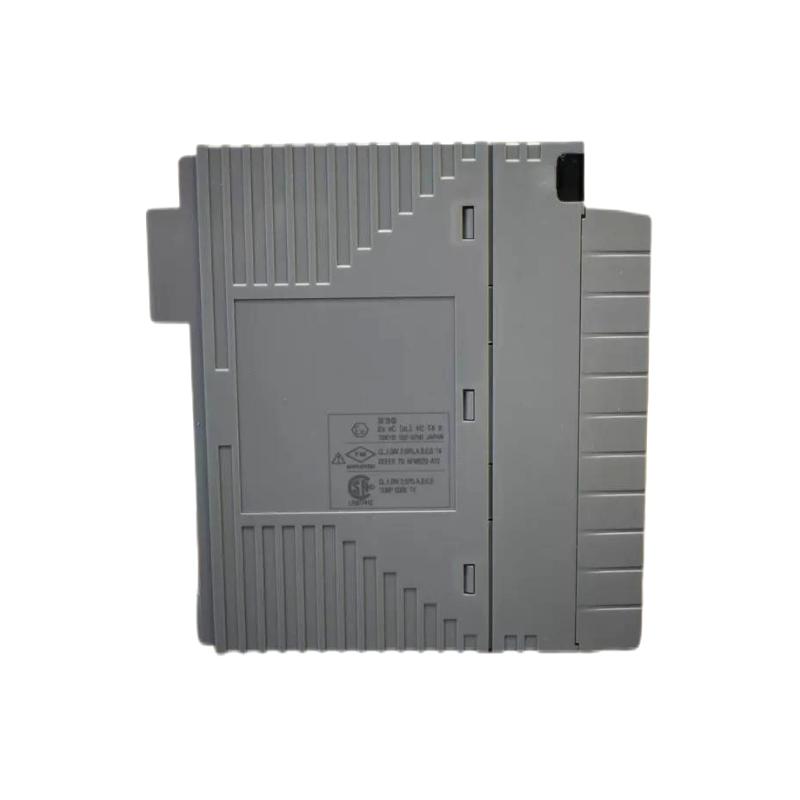

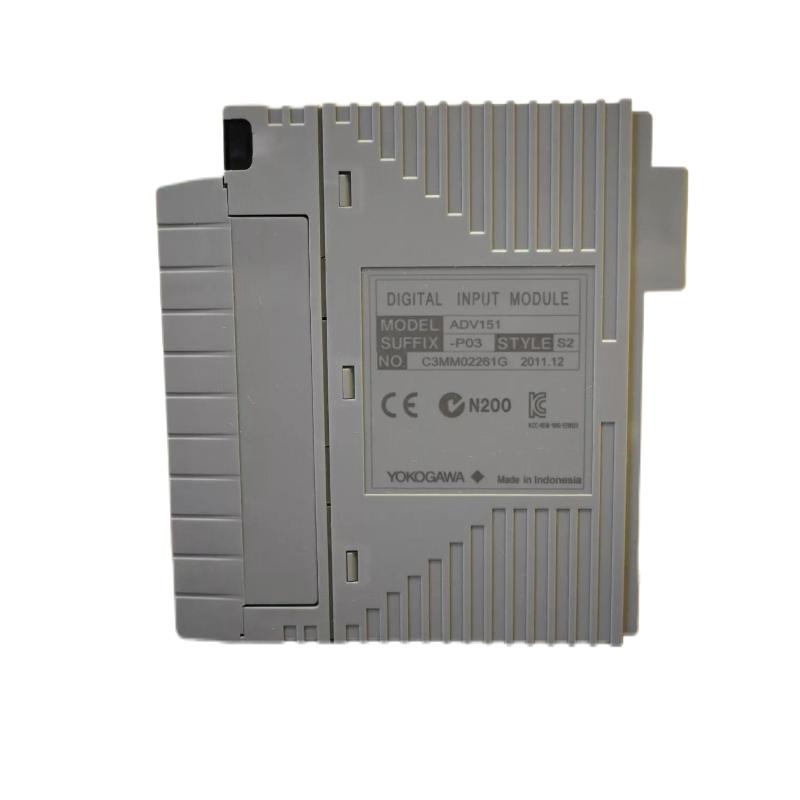

The Yokogawa ADV151-P03 is a digital input module belonging to the ADV151 series. It is designed for industrial process-control and automation systems, specifically accepting 24 V DC ON/OFF signals from field devices (such as push-buttons, limit switches, proximity sensors) and delivering them into the control system with high integrity. The “P03” suffix indicates inclusion of the “push-button input” capability, and optionally enhanced environmental specifications. The module supports 32 isolated digital input channels, making it suitable for large I/O applications in process industries. It also integrates into redundant configurations for high availability.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | ADV151-P03 |
| Series | ADV151 Digital Input Module Series |
| Brand | Yokogawa |
| Number of Input Channels | 32 channels |
| Rated Input Voltage | 24 V DC (sink/source compatible) |
| Input ON Voltage Range | 18.0 V to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Input Current per Channel (at 24 V) | Approx. 4.1 mA ±20% |
| Input Response Time (status input) | ≤ 8 ms |
| Minimum ON Detection Time (push-button mode) | 20 ms |
| Maximum ON/OFF Cycle Frequency (push-button mode) | 25 Hz |
| Withstanding Voltage (Isolation) | Between input signal and system: 2 kV AC (1 min) / Between commons (per 16 channels) and system: 500 V AC (1 min) |
| Maximum Current Consumption | Approx. 500 mA at 5 V DC |
| External Connection / Interface | Pressure clamp terminal, dedicated cable (AKB331) or MIL connector cable |
| Dimensions (L × W × H) | Approx. 10.7 cm × 13.0 cm × 3.3 cm |
| Weight | Approx. 0.30 kg |
| Special Features | Push-button input function; supports status input detection; isolated inputs; suitable for redundant configuration |
Applications
-
Use in distributed control systems (DCS) for capturing digital ON/OFF signals from field devices (limit switches, proximity sensors, push‐buttons) and feeding these to the controller.
-
Industrial automation in manufacturing plants, process plants, utilities, water/waste-water, oil & gas, where many digital input points must be acquired reliably.
-
Systems requiring redundancy or high availability: this module integrates into redundant I/O architectures to ensure uninterrupted operation.
-
Applications where push-button or momentary contact inputs must be counted or monitored (e.g., operator consoles, manual override switches).
-
Harsh environments requiring good isolation and noise immunity, where field wiring may be subject to electrical interference.
Advantages
-
High channel density: With 32 discrete inputs in a single module, the ADV151-P03 reduces cabinet space and wiring complexity.
-
Fast response and accurate detection: Input response time ≤ 8 ms ensures timely detection of digital changes; push-button detection capabilities are included.
-
Robust isolation: Withstanding voltages of 2 kV AC between field signal and system, and 500 V AC between commons and system, improves reliability in electrically noisy environments.
-
Flexible connectivity: Supports multiple field connection options (pressure-clamp terminals, dedicated cables, MIL connectors) which simplifies installation and adaptation to existing wiring.
-
Redundancy capability: Compatible with redundant system designs, supporting mission-critical applications where downtime is unacceptable.
-
Compact size and lightweight: At about 0.30 kg, it is easy to handle, install and replace without excessive weight or bulk.
-
Push-button monitoring: In addition to standard status inputs, it supports push-button input mode (edge counting, minimum ON detection) which adds functionality for operator inputs.
-
Proven brand / ecosystem: Part of the ADV151 series, which is broadly supported in Yokogawa installations; integration is straightforward in existing systems.
Brand & Series
-
Brand: Yokogawa
-
Series: ADV151 Digital Input Module Series
-
Category: 24 V DC digital input modules, isolated type, typically 32-channel modules for field I/O systems.
-
Positioning: The ADV151-P03 sits in the ADV151 family as a 32-channel digital input with push-button capability and is intended for process automation, DCS and large scale industrial I/O applications.
Recommended Related Models (Same Series / Family)
| Model | Description / Notes | Key Parameters |
|---|---|---|
| ADV151-P00 | Basic 32-channel digital input module (no push-button input) | 24 V DC, 32 channels, ≤ 8 ms responsetime, approx 0.30 kg |
| ADV151-P10 | 32-channel module, “P10” variant (digital input) | 24 V DC, 32 ch, isolated, approx 0.30 kg |
| ADV151-P50 | 32-channel module with added features (push-button input) | 24 V DC, 32 ch, push-button mode, approx 0.30 kg |
| ADV151-P53 | 32-channel module with extended environmental spec (e.g. ISA G3, –20°C to +70°C) | 24 V DC, 32 ch, high-temp spec |
| ADV151-P63 | 32-channel module with status display and optional temperature/ISA G3 spec | 24 V DC, 32 ch, with LED status display, approx 0.30 kg |
Popular Models from the Same Brand
| Model | Type / Channels | Main Parameters |
|---|---|---|
| ADV551-P50 | 32-channel Digital Output Module | 24 V DC output, 32 channels, isolated outputs |
| ADV551-P63 | 32-channel DO with extended temperature range | 24 V DC, 32 ch, –20°C to +70°C operational range |
| ADV161-P50 | 64-channel Digital Input Module | 24 V DC input, 64 channels, isolated design |
| AAI543-H10 | 8-channel Analog Input Module | 8 AI, multiple signal types (4-20 mA, 1-5 V), high-speed response |
| ADR541 | 16-channel Relay Output Module | 16 relay outputs, switching AC/DC loads, isolated channels |
FAQs (Frequently Asked Questions)
Q1: What is the number of input channels supported by the ADV151-P03?
A1: It supports 32 discrete digital input channels.
Q2: What input voltage does the module expect?
A2: The rated input voltage is 24 V DC (sink or source compatible).
Q3: What is the input response time?
A3: The response time for status-type input is 8 ms or less.
Q4: Does the ADV151-P03 support push-button or momentary input detection?
A4: Yes — the P03 suffix indicates that push-button input (edge counting) functionality is included.
Q5: What about isolation and noise protection?
A5: The module provides galvanic isolation: withstands 2 kV AC between input signal and system, and 500 V AC between commons and system (per specification).
Q6: What are the physical dimensions and weight?
A6: Dimension is approximately 10.7 cm × 13.0 cm × 3.3 cm; weight is approximately 0.30 kg.
Q7: Is the module suitable for redundant system configurations?
A7: Yes — the ADV151 family supports dual-redundant configuration, making it suitable for high availability installations.
Q8: What connection interfaces are supported for field wiring?
A8: Field connection options include pressure-clamp terminals, dedicated cables (e.g., AKB331), and MIL connector cables.
Q9: In harsh industrial or high-interference fields, will it hold up?
A9: Yes — the high isolation ratings and industrial-grade specification make it robust in noisy electrical environments.
Q10: If I have short pulses or high frequency ON/OFF signals, is this module adequate?
A10: The module supports push-button mode with minimum ON detection time of around 20 ms and ON/OFF cycle up to 25 Hz. For significantly higher frequency or specialized pulse capture you may need a dedicated high-speed module.
