Product Overview

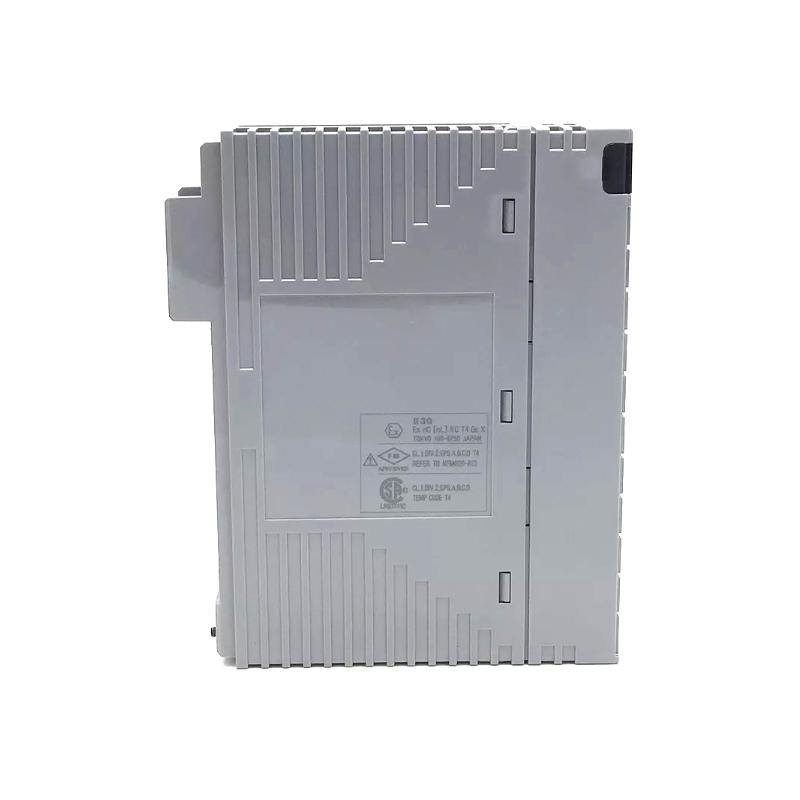

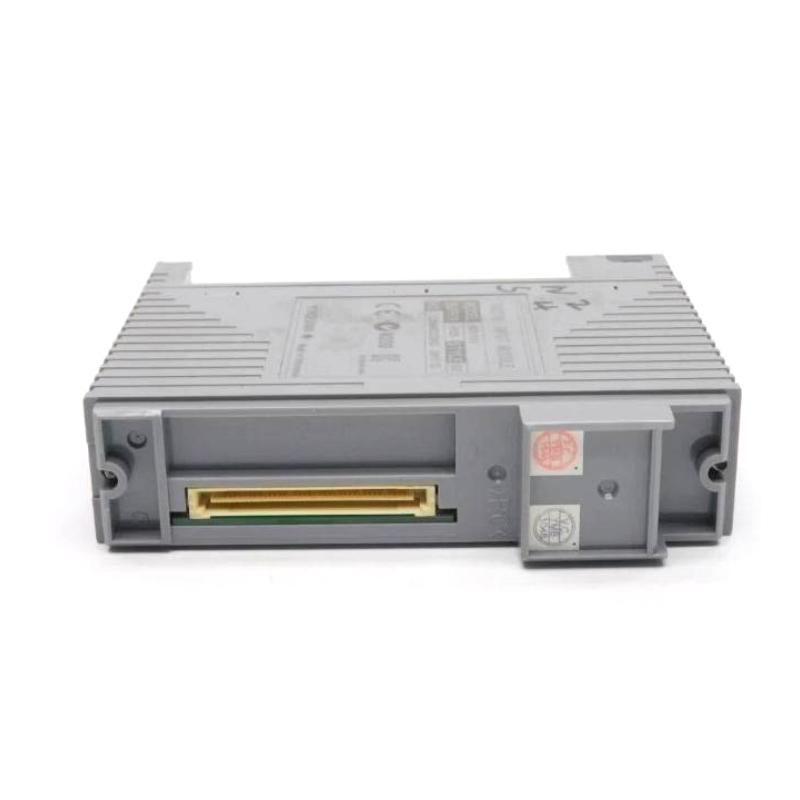

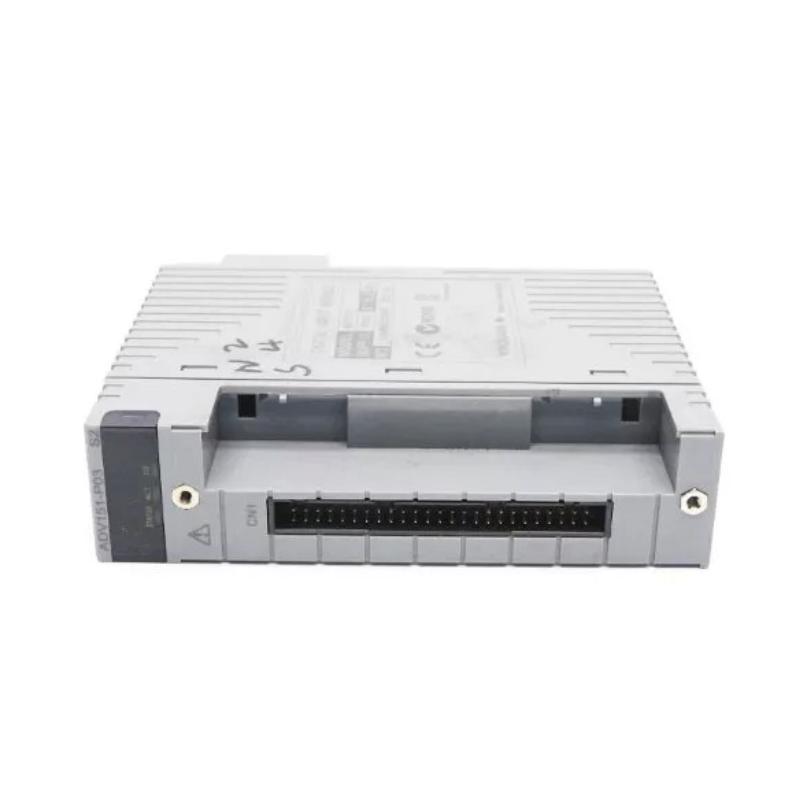

The Yokogawa ADV151-P03/D5A00 is a 32-channel Digital Input Module belonging to the ADV151 Series of field I/O modules. It is engineered for use within distributed control systems (DCS) and high-reliability process automation environments.
This module receives 24 V DC ON/OFF signals from field devices such as push buttons, limit switches, or sensors and converts them into logic signals for the system controller. The “P03” suffix designates push-button input capability, while “/D5A00” identifies a KS Cable Interface Adapter option for convenient field wiring.
Designed with robust isolation, redundancy compatibility, and rapid signal acquisition, the ADV151-P03/D5A00 ensures dependable data transmission in power plants, chemical facilities, manufacturing lines, and utility systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | ADV151-P03/D5A00 |
| Series | ADV151 Digital Input Module Series |
| Brand | Yokogawa |
| Function | 32-channel 24 V DC Digital Input Module |
| Number of Channels | 32 isolated input channels |
| Rated Input Voltage | 24 V DC (sink/source compatible) |
| Input ON Voltage Range | 18.0 V DC to 26.4 V DC |
| Input OFF Voltage | ≤ 5.0 V DC |
| Input Current per Channel | Approx. 4.1 mA ± 20 % at 24 V DC |
| Input Response Time (status input) | ≤ 8 ms |
| Push-Button Mode Minimum ON Time | ≥ 20 ms |
| Maximum ON/OFF Frequency | 25 Hz |
| Withstand Voltage (Isolation) | 2 kV AC (Signal ↔ System, 1 min); 500 V AC (Common ↔ System, 1 min) |
| Power Consumption | Approx. 500 mA at 5 V DC |
| Connection Type | KS Cable Interface Adapter (Option /D5A00) |
| Mounting Method | Plug-in type on baseplate |
| Isolation | Optical isolation for every 16 channels |
| Operating Temperature | 0 °C to +50 °C (standard) |
| Storage Temperature | –20 °C to +70 °C |
| Humidity Range | 5 % to 95 % RH (non-condensing) |
| Dimensions (L × W × H) | Approx. 10.7 cm × 13.0 cm × 3.3 cm |
| Weight | Approx. 0.30 kg |
| Special Features | Push-button input detection, high noise immunity, redundancy-ready, optical isolation |
Applications
-
Process Control Systems (DCS): Captures digital ON/OFF signals from switches, sensors, or limit contacts and delivers them to the controller for logic processing.
-
Manufacturing Automation: Used for monitoring conveyor systems, robotic interlocks, emergency stop buttons, and status indicators.
-
Oil & Gas / Petrochemical Plants: Ensures safe and reliable detection of valve states, pump feedbacks, and alarm contacts under harsh conditions.
-
Power Generation and Utilities: Monitors circuit breaker and relay positions, status alarms, and safety interlocks.
-
Water & Wastewater Treatment: Collects digital signals from level switches, flow alarms, and equipment status outputs.
-
Safety and Event Recording: The module’s push-button detection mode allows it to work with Sequence-of-Events (SOE) logging when time-critical events need to be captured.
Product Advantages
-
High Channel Density — 32 inputs in one compact module, reducing panel space and installation cost.
-
Fast and Reliable Response — Input response time of ≤ 8 ms provides accurate real-time signal detection.
-
Excellent Electrical Isolation — 2 kV AC isolation between signal and system, ensuring superior noise resistance.
-
Push-Button Input Functionality — Supports edge detection and pulse capture, ideal for manual control panels.
-
Compact and Lightweight Design — With a weight of only 0.30 kg, it simplifies installation and maintenance.
-
Flexible Field Wiring — Compatible with KS Cable Interface Adapters, simplifying connection to field devices.
-
Redundancy Support — Suitable for dual-redundant control system configurations, ensuring zero downtime.
-
Proven Industrial Reliability — Designed for operation under variable industrial temperature and humidity conditions.
Brand and Series
-
Brand: Yokogawa
-
Series: ADV151 Digital Input Module Series
-
Category: 24 V DC Isolated Input Modules
-
Positioning: High-density, high-reliability digital input module for DCS and process automation systems.
Recommended Related Models (Same Series)
| Model | Description / Notes | Key Parameters |
|---|---|---|
| ADV151-P00/D5A00 | Basic 32-channel DI module without push-button input | 24 V DC input, 32 ch, ≤ 8 ms response, 0.30 kg |
| ADV151-P10/D5A00 | Standard DI module with enhanced isolation | 24 V DC input, 32 ch, 4.1 mA/ch, 0.30 kg |
| ADV151-P50/D5A00 | DI module with LED status indication and push-button support | 24 V DC input, 32 ch, LED display, 0.32 kg |
| ADV151-P53/D5A00 | Extended temperature version (ISA G3 rated) | 24 V DC input, 32 ch, –20 °C to +70 °C, 0.30 kg |
| ADV151-PE0/D5A00 | DI module with Sequence-of-Events capture function | 24 V DC input, 32 ch, high-speed event logging, 0.30 kg |
Popular Models from the Same Brand
| Model | Type / Channels | Main Parameters |
|---|---|---|
| ADV551-P50/D5A00 | 32-channel Digital Output Module | 24 V DC output, sink/source config, 0.35 kg |
| ADV551-P63/D5A00 | DO module with extended temperature range | 24 V DC output, 32 ch, –20 °C to +70 °C, 0.35 kg |
| ADV161-P50 | 64-channel Digital Input Module | 24 V DC input, 64 ch, 2.5 mA/ch, 0.45 kg |
| AAI543-H10 | 8-channel Analog Input Module | 8 AI, 4–20 mA/1–5 V inputs, 0.40 kg |
| ADR541 | 16-channel Relay Output Module | 16 relays, AC/DC switching, 0.55 kg |
FAQ (Frequently Asked Questions)
Q1: What does the ADV151-P03/D5A00 module do?
A1: It receives 24 V DC digital ON/OFF signals from field devices and transmits them to the control system as logic inputs.
Q2: How many input channels does it have?
A2: The module provides 32 isolated digital input channels.
Q3: What voltage range can the inputs handle?
A3: Inputs operate reliably within 18 V DC to 26.4 V DC.
Q4: How fast does it respond to input changes?
A4: Input response time is ≤ 8 milliseconds, ensuring real-time performance.
Q5: What special features does the “P03” model have?
A5: It supports push-button input detection, suitable for edge counting or pulse inputs.
Q6: What does the “/D5A00” suffix mean?
A6: It indicates that the module is equipped with a KS Cable Interface Adapter for convenient field wiring.
Q7: Can this module be used in redundant configurations?
A7: Yes, it is designed to function within dual-redundant architectures for critical systems.
Q8: How is the module protected from electrical noise?
A8: It provides optical isolation (2 kV AC signal-to-system) and robust noise immunity.
Q9: What are its size and weight?
A9: Dimensions are approximately 10.7 cm × 13.0 cm × 3.3 cm, with a weight of about 0.30 kg.
Q10: In what environments can it operate?
A10: Standard operating temperature is 0 °C to +50 °C, with extended variants supporting –20 °C to +70 °C.
