Product Overview
Brand: Yokogawa
Series: ADV151 Series – Digital Input Modules
Model: ADV151‑P00

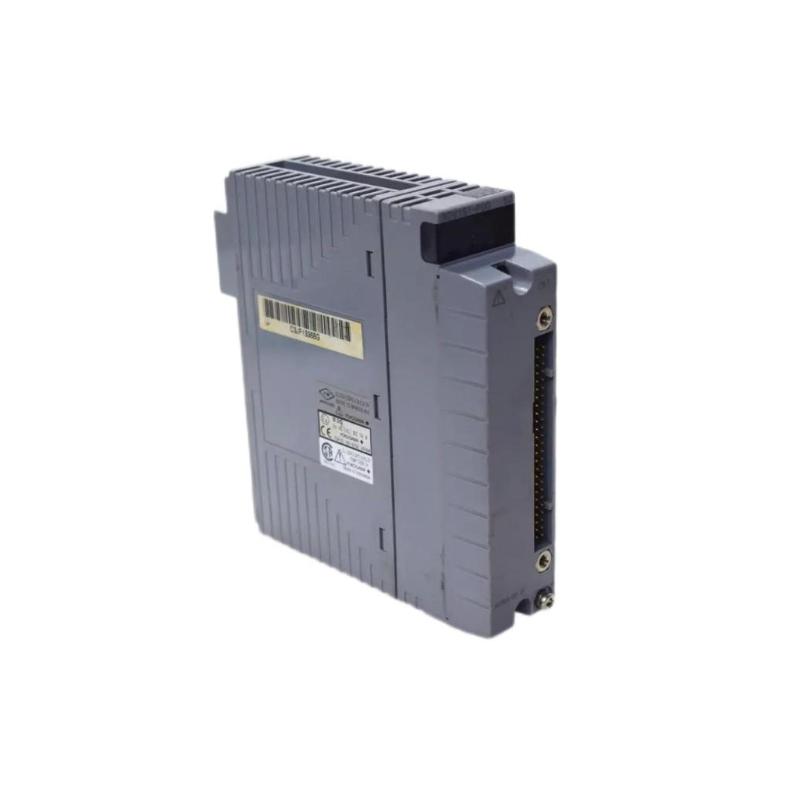

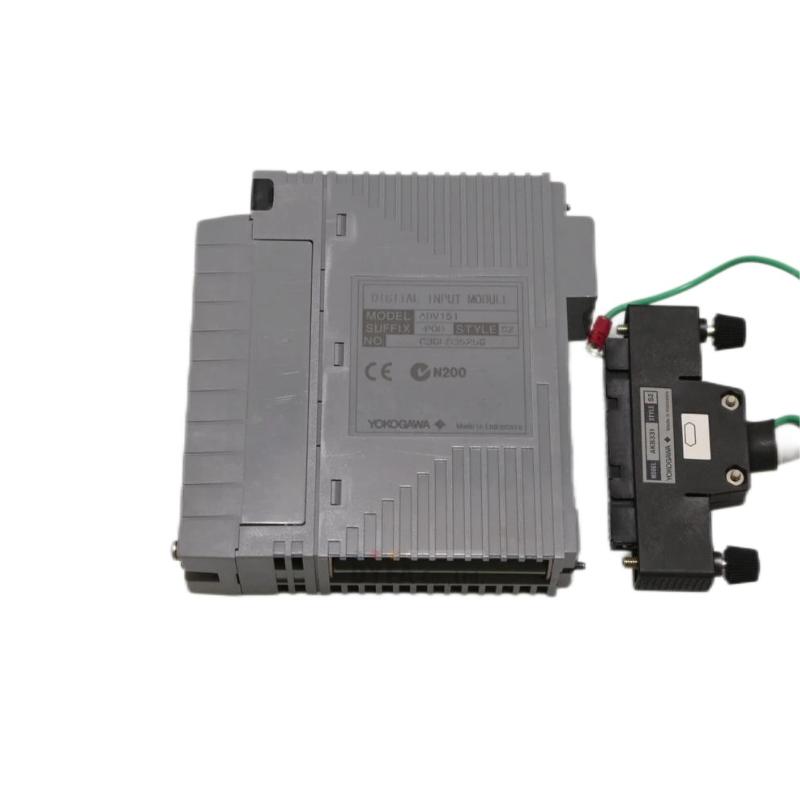

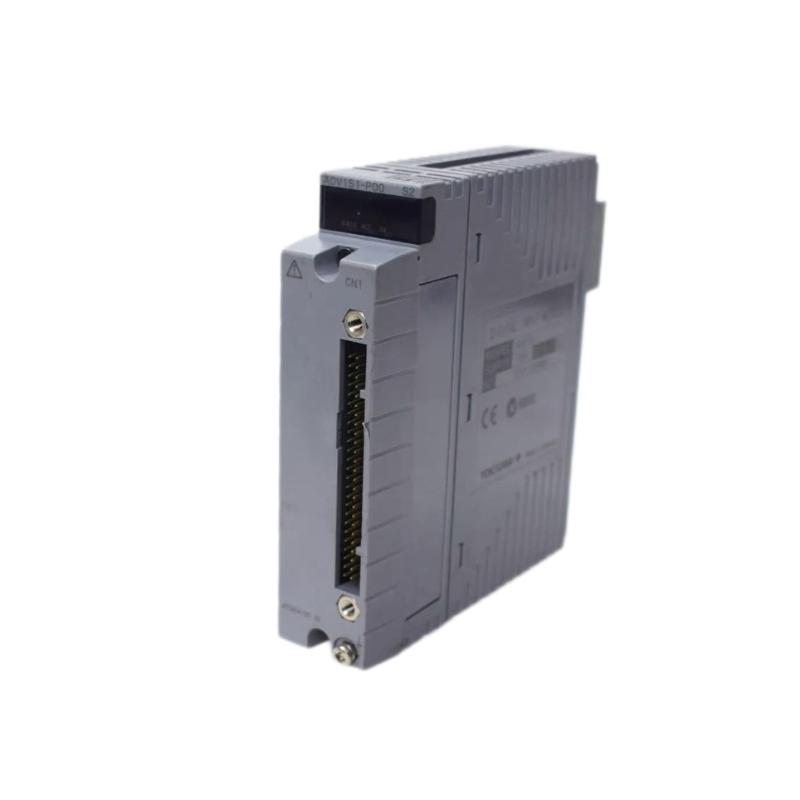

The ADV151‑P00 is a 32-channel digital input module designed for industrial automation systems. It is intended for collecting discrete ON/OFF signals from field devices such as push-buttons, switches, and sensors, and sending them to a modular control system. The module is optimized for high-density I/O applications, reliable operation in industrial environments, and push-button detection capabilities for operator panels.
It is suitable for modular racks or backplanes and offers robust electrical isolation, compact dimensions, and easy integration into Yokogawa control systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Number of Input Channels | 32 channels |
| Rated Input Voltage | 24 V DC |
| Input ON Voltage Range | 18–26 V DC |
| Input OFF Voltage Threshold | ≤ 5 V DC |
| Typical Input Current per Channel | ~4 mA |
| Maximum Allowable Input Voltage | 30 V DC |
| Isolation (Input ↔ System) | 2 kV AC for 1 minute |
| Isolation Between Commons (per 16 channels) | 500 V AC for 1 minute |
| Input Response Time (status) | ≤ 8 ms |
| Minimum ON Detection (push-button) | ~20 ms |
| Maximum ON/OFF Cycle Rate (push-button) | ~25 Hz |
| Dimensions (W × H × D) | 107 mm × 130 mm × 33 mm |
| Weight | 0.30 kg |
| Operating Ambient Temperature | –20 °C to +70 °C |
Applications
-
Industrial automation and process control systems
-
Capturing signals from push-buttons, limit switches, and sensors
-
Distributed Control Systems (DCS) and modular I/O racks
-
Factory automation, utilities, chemical/petrochemical plants
-
Building automation and monitoring discrete status inputs
-
Retrofit or expansion of existing control systems
Advantages
-
High channel density: 32 channels per module reduce space and wiring.
-
Push-button support: Detects edge transitions for operator inputs.
-
Robust isolation: 2 kV AC input-to-system, 500 V between commons ensures reliability.
-
Fast response: ≤ 8 ms status detection, suitable for fast control applications.
-
Compact & lightweight: Easy to install and maintain.
-
Modular integration: Compatible with Yokogawa ADV151 series backplanes.
-
Wide temperature tolerance: –20 °C to +70 °C supports harsh environments.
-
Trusted brand: Part of a reliable series widely used in industrial systems.
Recommended Related Models (Same Series or Related)
| Model | Description |
|---|---|
| ADV151-P10 | 32-channel digital input module with push-button detection variant. |
| ADV151-E00 | Standard 32-channel input module with basic ON/OFF input support. |
| ADV151-P/32-ch | 32-channel push-button module with optional status features. |
| ADV151-E10 | Standard 32-channel digital input module, compact and modular. |
| ADV161-P00 | 64-channel digital input module, higher density version in related series. |
Recommended Popular Models (Same Brand)
| Model | Description |
|---|---|
| ADV551 | 32-channel digital output module for industrial automation. |
| ADV559-P00 | Variant digital output module, widely used in same systems. |
| ADV151-P00 S2 | Revision S2 of the same P00 model, popular in installations. |
| ADV151-P10 | Another 32-channel push-button input module variant. |
| ADV151-E10 | Standard 32-channel digital input module, popular replacement module. |
FAQ (10 Questions & Answers)
Q1: What voltage does the module accept?
A1: 24 V DC ON/OFF signals.
Q2: How many channels?
A2: 32 independent digital input channels.
Q3: What are its dimensions and weight?
A3: 107 mm × 130 mm × 33 mm, weight 0.30 kg.
Q4: Does it support push-button edge detection?
A4: Yes, it supports push-button input mode for edge detection.
Q5: What isolation does it provide?
A5: 2 kV AC between input and system, 500 V AC between commons per 16 channels.
Q6: Input response time?
A6: ≤ 8 ms; push-button mode min ON ~20 ms, max cycle rate 25 Hz.
Q7: Can it be used in redundant I/O racks?
A7: Yes, it is modular and supports redundant architectures.
Q8: Is it suitable for harsh environments?
A8: Yes, operating range –20 °C to +70 °C.
Q9: How is field wiring done?
A9: Via pressure clamp terminals or modular backplane connectors.
Q10: Can it replace older input modules?
A10: Yes, compatible with ADV151 series racks/backplanes.
