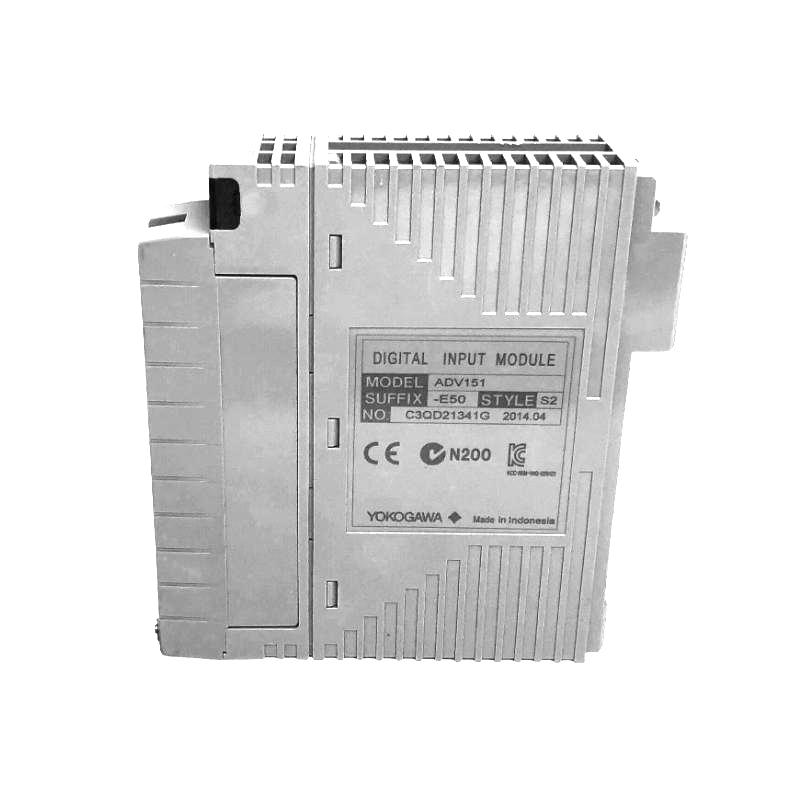

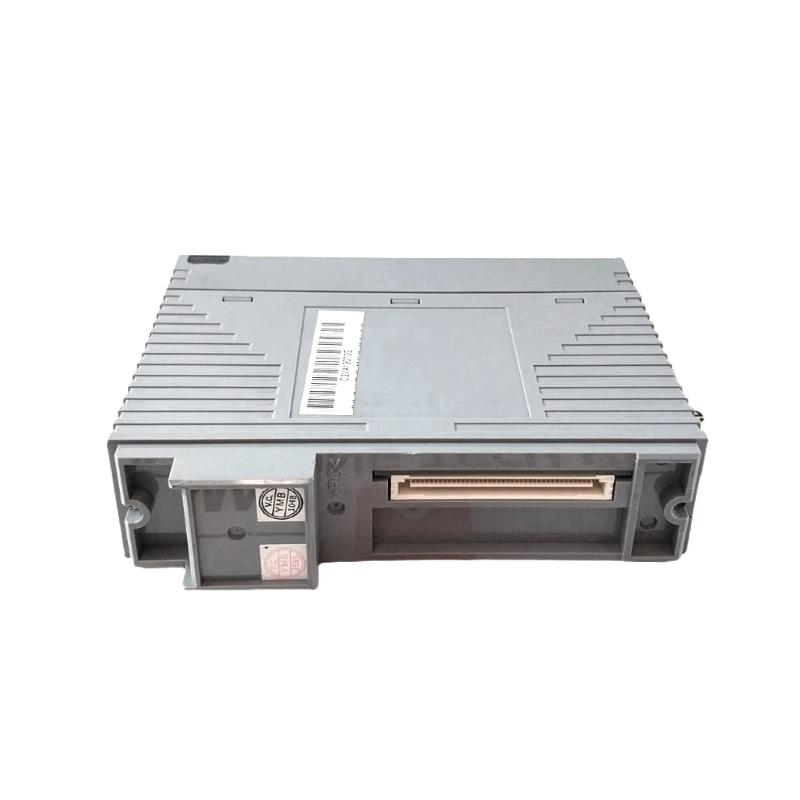

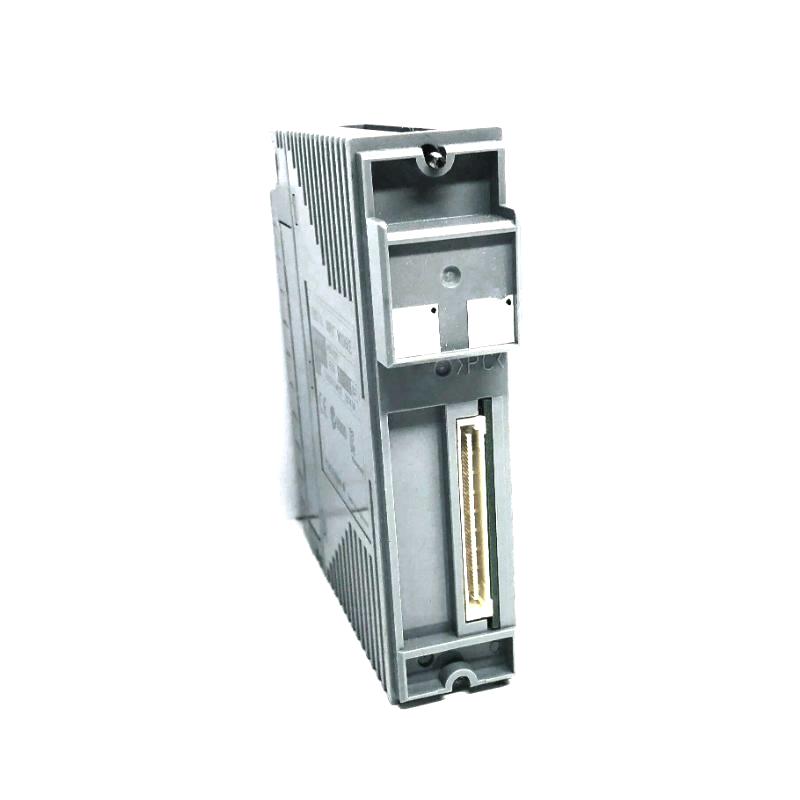

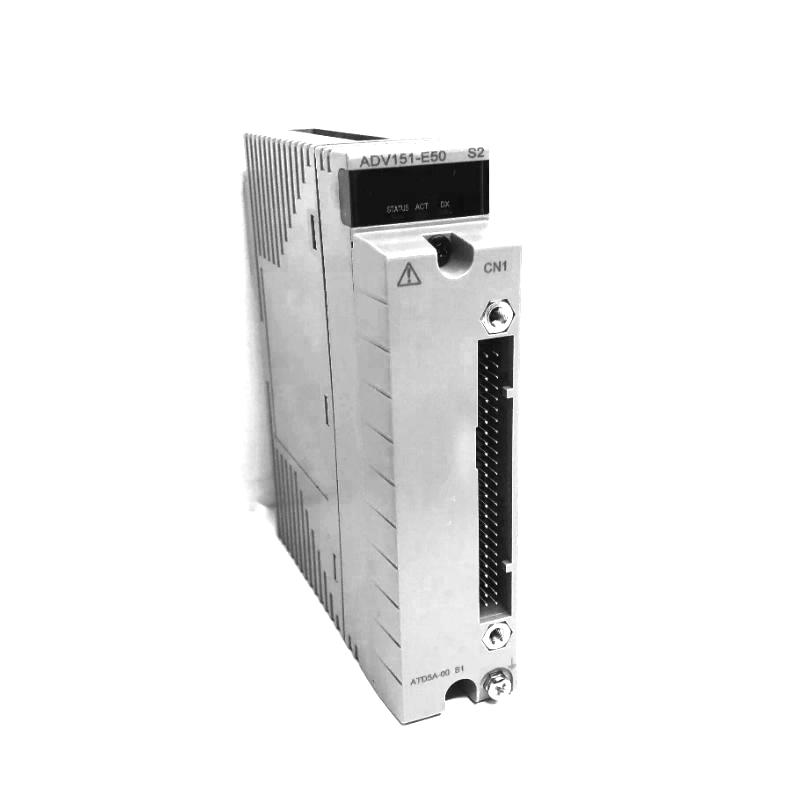

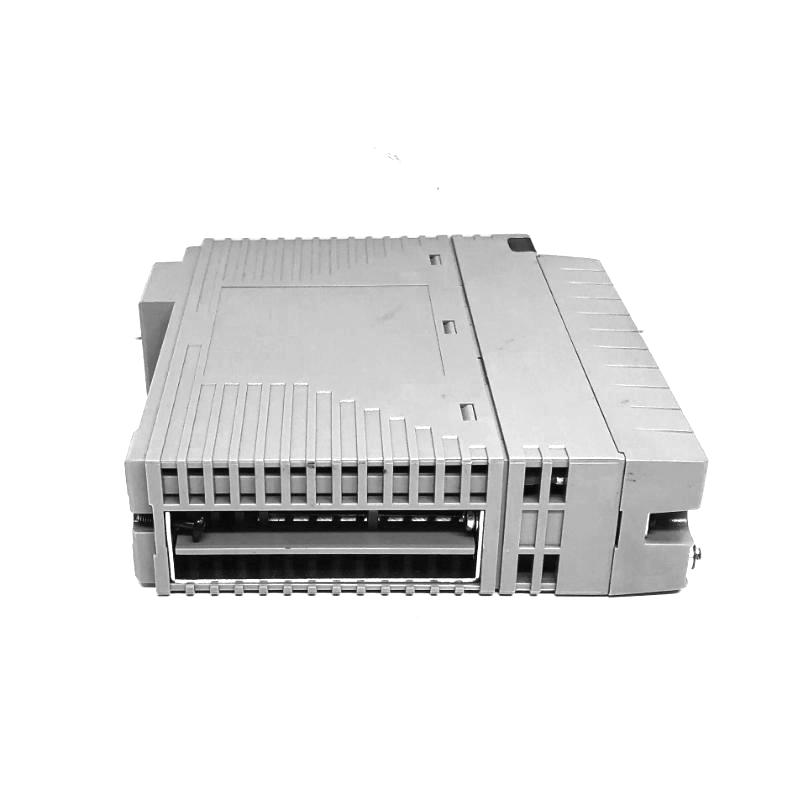

Product Overview
Brand: Yokogawa
Series: ADV151 Series – Digital Input Modules (24 V DC domain)
Model: ADV151‑E50/D5A00
The ADV151‑E50/D5A00 is a high‑density & high‑performance digital input module designed for industrial automation and process‑control systems. It belongs to the ADV151 family, which supports 24 V DC discrete input signals, with isolation and modular integration in back‑plane I/O racks. The suffix “E50” denotes a variant with SOE capture (Sequence‑of‑Events logging) built in, enabling detailed logging of discrete input transitions for diagnostic or event‑analysis purposes. The option code “/D5A00” refers to the module being supplied with the KS Cable Interface Adapter (ATD5A‑00) which simplifies connection of 32‑channel digital input wiring.
This module provides 32 separate channels for 24 V DC ON/OFF signals, isolated input circuitry, fast response, and rugged industrial footprint. It is ideal for large‑scale control systems, manufacturing automation, utilities, process plants and where discrete input logging and diagnostics are needed.
Technical Specifications
| Parameter | Description |
|---|---|
| Number of input channels | 32 channels |
| Rated input voltage | 24 V DC (sink or source compatible) |
| Input ON voltage range | 18 V to 26.4 V DC |
| Input OFF voltage threshold | ≤ 5.0 V DC |
| Typical input current per channel | ≈ 4.1 mA ±20% |
| Maximum allowable input voltage | 30.0 V DC |
| Withstanding voltage (input ↔ system) | 2 kV AC for 1 minute |
| Withstanding voltage (between commons – each 16 channels) | 500 V AC for 1 minute |
| Input response time (status input) | ≤ 8 ms |
| Minimum ON detection time (pushbutton mode) | ≈ 20 ms |
| Maximum ON/OFF cycle (pushbutton input) | Up to 25 Hz |
| Dimensions (W × H × D) | Approx. 12.7 cm × 2.5 cm × 12.7 cm (typical form‑factor) |
| Weight | Approx. 0.30 kg |
| Operating ambient temperature range | Typically –20 °C to +70 °C (variant‑dependent) |
| Field wiring interface | Supplied KS Cable Interface Adapter (ATD5A‑00) for 32‑channel input (per “/D5A00” option) |
Applications
-
Collecting and processing 24 V DC discrete ON/OFF signals from field devices such as limit switches, selector switches, proximity sensors, and push‑buttons in manufacturing automation systems.
-
Integration into distributed control systems (DCS) or large modular I/O racks in process industries such as chemical, petrochemical, power generation, water/wastewater treatment, where high‑channel discrete input modules are required.
-
Use in redundant I/O rack/back‑plane configurations for high‑availability installations (e.g., safety systems, continuous process control) where uninterrupted discrete signal acquisition and logging are essential.
-
Monitoring machine interlocks, conveyor endpoints, operator panel buttons, safety door sensors and other discrete status points in automated production lines.
-
Facility and infrastructure automation: capturing discrete signals from electrical switchgear, alarms, lighting/HVAC panels, and integrating them into centralized control logic.
-
Retrofit or system expansion projects: replacing older discrete‑input modules with a modern high‑density module, retaining field wiring while enhancing diagnostics (SOE) and reducing rack footprint.
Advantages
-
High channel density: 32 discrete input channels in one module reduces rack space and wiring complexity – cost‑efficient for large point counts.
-
SOE capture capability: The “E50” variant supports sequence‑of‑events logging of discrete input transitions, improving diagnostics and event analysis in control systems.
-
Robust electrical isolation & noise immunity: With stand‑off voltages of 2 kV AC (input to system) and 500 V AC (between common groups) the module is built for industrial environments with high electrical noise.
-
Fast response time: With input response ≤ 8 ms and push‑button detection capability ~20 ms, the module supports both status monitoring and fast discrete logic.
-
Compact and lightweight: At ~0.30 kg and modest module dimensions, it simplifies installation and reduces system cabinet footprint.
-
Modular system integration: Designed to plug into back‑plane I/O racks, supporting system expansion, replacement and redundancy with minimal wiring changes.
-
Reliable brand ecosystem: Being part of the Yokogawa ADV15x series ensures long‑term support, spare availability and compatibility with other system modules.
-
Flexible wiring option: Supplied with a KS cable interface adapter per “/D5A00” option — simplifies field wiring and reduces installation time and error risk.
Brand & Series Information
-
Brand: Yokogawa
-
Series: ADV151 – Digital Input Modules (32‑channel, 24 V DC discrete input)
-
Category: Digital Input Module (Discrete DC signals)
The ADV151 family includes a variety of variants (e.g., status‑input, push‑button input, SOE capture, wide‑temperature, explosion‑protected) for 24 V DC discrete signals. The ADV151‑E50/D5A00 is one such variant offering SOE capture and a specific wiring adapter option.
Recommended Related Models (Same Series or Adjacent)
| Model | Description |
|---|---|
| ADV151‑P50/D5A00 | 32‑channel 24 V DC digital input module, variant with push‑button input support and KS cable adapter. |
| ADV151‑P53/D5A00 | 32‑channel 24 V DC digital input module, variant with push‑button input + wide‑temperature/ISA G3 option. |
| ADV151‑E50/D5A00 | (Current model) 32‑channel 24 V DC digital input module with SOE capture and KS cable interface adapter. |
| ADV151‑E00/D5A00 | 32‑channel 24 V DC digital input module, basic status‑input version without push‑button or SOE features. |
| ADV161‑P50/D5A00 | 64‑channel 24 V DC digital input module (higher channel‑count version) with push‑button support and KS cable adapter. |
Recommended Popular Models (Same Brand)
| Model | Description |
|---|---|
| ADR541‑P50/D5A00 | 16‑channel relay output module (24 V DC / 100‑240 V AC) for discrete output switching in automation systems. |
| ADV551‑P53/D5A00 | 32‑channel digital output module (24 V DC outputs) for actuator/driver control applications. |
| ADV157‑S50 | 32‑channel 24 V DC digital input module (compact terminal‑type wiring version) for typical discrete input tasks. |
| AAI141‑S50 | Analog input module (4–20 mA signal acquisition) for process variable measurement and monitoring in the same brand ecosystem. |
| AAV142‑S50 | Mixed analog I/O module (multi‑channel analog input/output) for large‑scale process control I/O expansions. |
FAQ (10 Questions & Answers)
Q1: What input voltage range does the ADV151‑E50/D5A00 support?
A1: It supports nominal 24 V DC input signals (sink or source type) for its 32 channels.
Q2: How many discrete input channels does this module provide?
A2: It provides 32 independent digital input channels.
Q3: What are its approximate physical dimensions and weight?
A3: The module dimensions are approximately 12.7 cm × 2.5 cm × 12.7 cm and the weight is about 0.30 kg.
Q4: Does this module support Sequence of Events (SOE) capture?
A4: Yes — the “E” suffix indicates SOE capture capability, enabling event‑timestamping of input transitions.
Q5: What does the “/D5A00” option signify?
A5: The “/D5A00” suffix indicates that the module is supplied with a KS Cable Interface Adapter (Model ATD5A‑00) for 32‑channel digital input wiring.
Q6: Can this module be used in redundant I/O rack/back‑plane systems?
A6: Yes — the ADV151 series supports redundant I/O rack/back‑plane installations, suitable for high‑availability systems.
Q7: What is the typical response time for input conversion?
A7: The status‑input detection response time is ≤ 8 ms; for push‑button edge detection (in supported variants) the minimum ON detection time is ≈ 20 ms and maximum ON/OFF cycle up to ~25 Hz.
Q8: What kind of isolation protection does the module provide?
A8: It provides 2 kV AC isolation between input signals and system circuits, and 500 V AC isolation between common groups of 16 channels for 1 minute.
Q9: Is the module suitable for harsh industrial ambient conditions (temperature, noise, wiring)?
A9: Yes — it is rated for industrial use, with ambient temperature range typically –20 °C to +70 °C (variant‑dependent) and designed for noisy wiring environments with robust isolation.
Q10: Can I upgrade or replace an older discrete‑input module with this one?
A10: Yes — provided your I/O rack/back‑plane architecture is compatible with the ADV151 series, the ADV151‑E50/D5A00 can serve as a modern replacement or upgrade module for 24 V DC discrete input applications.
