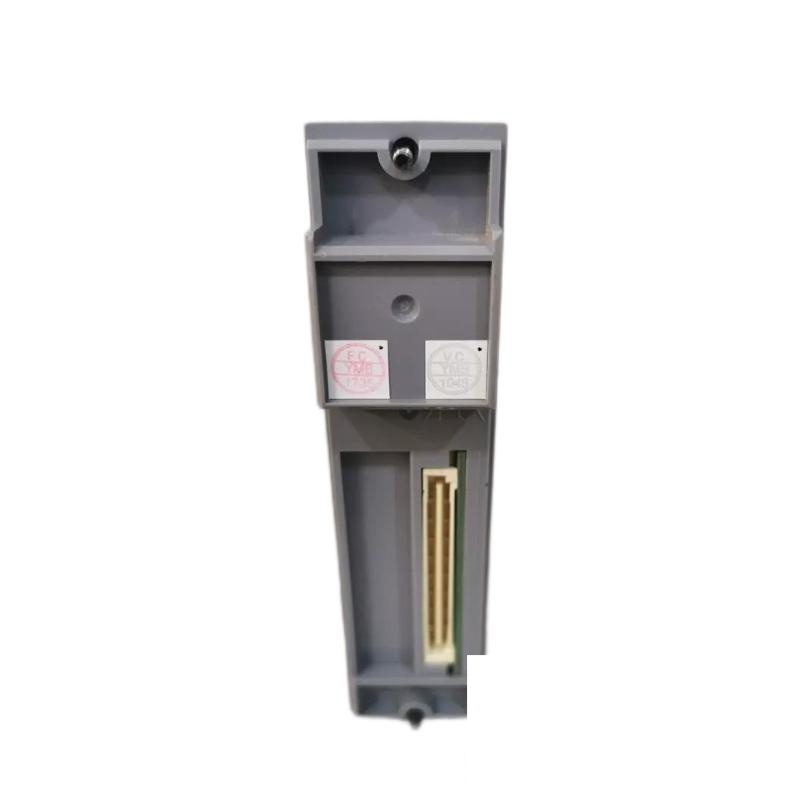

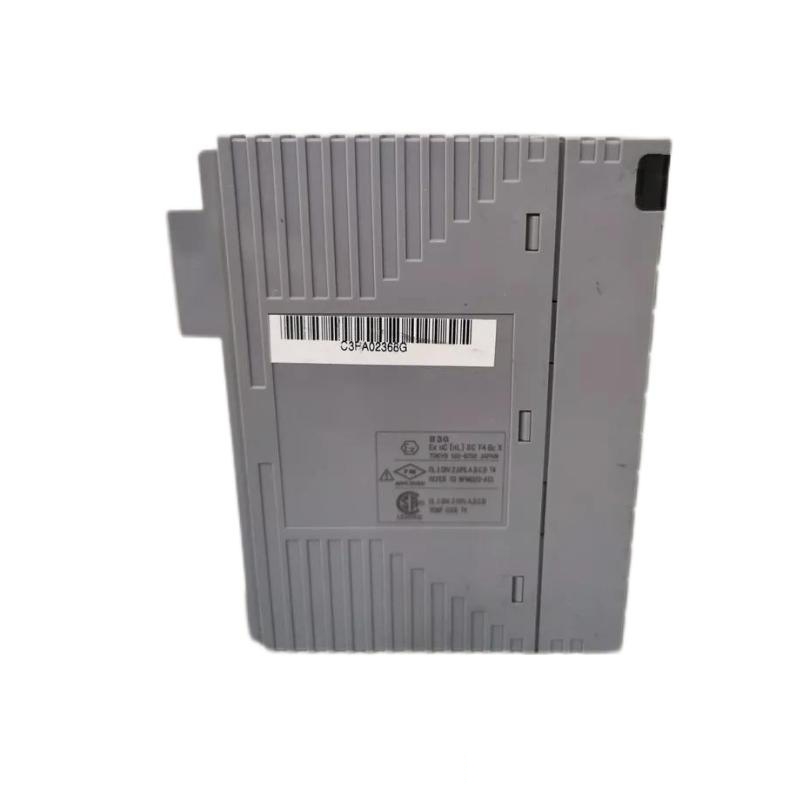

Yokogawa ADV151 Digital Input Module
Product Description
The Yokogawa ADV151 is a digital input module designed to interface with a wide range of industrial equipment, enabling the collection and transmission of digital signals to Yokogawa’s CENTUM and Vnet/IP control systems. This module is part of the ADVANT OIT series, which is well-regarded for its high-quality, reliable, and precise input/output solutions. The ADV151 module is engineered for applications that require accurate and fast digital signal processing for on/off type devices.
With dimensions of 107.5 × 130 × 32.8 mm and weighing just 0.3 kg, the ADV151 is compact and lightweight, allowing it to fit into tight control panel spaces without compromising on its performance or durability. Designed for industrial environments, this module offers 16 digital inputs with 24 VDC voltage support, ideal for applications such as limit switches, push buttons, and alarms.
The module supports high-speed data processing, providing near-instantaneous signal transmission, which is crucial for industrial applications requiring real-time monitoring and control. It is highly suitable for systems that rely on continuous operational monitoring, offering seamless integration into Yokogawa’s advanced control systems.
Product Specifications
| Specification | Details |
|---|---|
| Model Number | ADV151 |
| Module Type | Digital Input Module |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.3 kg |
| Input Voltage | 24 VDC (nominal) |
| Input Type | 16 digital inputs (voltage contact) |
| Response Time | < 10 ms (fast response time) |
| Signal Range | 0-24 VDC (for digital signals) |
| Mounting | DIN Rail / Panel Mount |
| Compatibility | CENTUM series, Vnet/IP systems |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
| Certifications | CE, UL certified |
Applications
The Yokogawa ADV151 digital input module is employed across a wide range of industries for applications that require precise digital signal acquisition. Its typical applications include:
-
Industrial Process Automation: Used to interface digital signals from field devices like limit switches, push buttons, and safety interlocks in manufacturing and processing plants.
-
Energy and Utilities: In power plants and substations, this module is essential for monitoring the status of electrical devices, such as circuit breakers and control panels.
-
Water and Wastewater Treatment: The ADV151 is used for the monitoring of on/off devices in water treatment plants, ensuring the proper functioning of equipment like pumps, valves, and alarms.
-
HVAC Systems: The module facilitates precise control of HVAC systems, providing data from on/off devices used in heating, ventilation, and air conditioning operations.
-
Safety and Security Systems: In safety-critical environments, the ADV151 can interface with emergency shutdown buttons, fire alarm systems, and other safety devices, ensuring quick action and monitoring.
Product Advantages
-
Compact and Space-Efficient: The ADV151 module is compact, with a size of 107.5 × 130 × 32.8 mm and weighing only 0.3 kg, making it ideal for space-constrained installations without sacrificing reliability.
-
High-Speed Response: With a response time of <10 ms, the module ensures rapid data transmission, providing near-instantaneous feedback for critical applications.
-
Reliable Input Signals: The ADV151 supports 16 digital inputs, providing robust handling of digital signals such as on/off switches, push buttons, and alarms.
-
Wide Temperature Range: The module operates efficiently in temperatures ranging from -20°C to +60°C, making it suitable for various environments, including harsh industrial conditions.
-
Easy Integration: It is designed for seamless integration with Yokogawa’s CENTUM and Vnet/IP control systems, making installation quick and hassle-free.
-
Environmental Protection: The IP20 protection rating ensures the module is protected against dust and moisture, enhancing its reliability and durability in industrial settings.
-
Versatile Mounting Options: The module can be mounted on a DIN rail or directly on a panel, offering flexibility in installation.
Brand Information
-
Brand: Yokogawa
-
Industry: Industrial Automation, Process Control, Measurement and Instrumentation
-
Reputation: Yokogawa is a global leader in industrial automation and measurement instrumentation. Known for their high-precision control systems, Yokogawa has been trusted for decades to provide high-performance solutions in industries like oil and gas, energy, chemical processing, and manufacturing.
Product Series
The Yokogawa ADV151 is part of the ADVANT OIT series, which is well-known for providing high-performance digital and analog I/O modules for use in Yokogawa’s CENTUM and Vnet/IP systems. This series is designed for industries requiring precision and reliability in real-time process control, enabling continuous monitoring of critical equipment and systems.
Recommended Models from the Same Series or Related
| Model | Key Specifications |
|---|---|
| ADV152 | Analog Input Module, 4-20mA inputs |
| ADV154 | Digital Output Module, 16 outputs |
| ADV147 | Universal Input/Output Module |
| ADV153 | High-speed Digital Input Module |
| ADV156 | Temperature Input Module (RTD, TC) |
Recommended Yokogawa Popular Models
| Model | Description | Input Voltage | Size (WxHxD) |
|---|---|---|---|
| ADM55-S4 | Advanced digital measurement module with high-speed data processing. | 24V DC | 180 x 140 x 55 mm |
| ADM55R-S2 | Compact and reliable digital input module with extended functionality. | 24V DC | 185 x 145 x 60 mm |
| ADM55R | High-performance measurement module designed for industrial automation. | 24V DC | 190 x 150 x 60 mm |
| ADM56-S4 | Multi-functional digital module with enhanced accuracy for industrial use. | 24V DC | 200 x 160 x 70 mm |
| ADM56R-S2 | Digital input/output module with superior precision and response time. | 24V DC | 195 x 155 x 65 mm |
Frequently Asked Questions (FAQs)
Q1: What is the primary function of the Yokogawa ADV151 module?
A1: The ADV151 is a digital input module that interfaces digital signals from field devices like limit switches and push buttons to Yokogawa control systems, enabling real-time data collection and process monitoring.
Q2: How many digital inputs does the ADV151 support?
A2: The module provides 16 digital inputs, making it suitable for interfacing a range of on/off devices.
Q3: What is the response time of this module?
A3: The ADV151 offers a fast response time of less than 10 ms, ensuring quick and accurate data transfer in real-time control applications.
Q4: What is the input voltage range for the ADV151 module?
A4: The module operates with a nominal input voltage of 24 VDC, making it compatible with standard industrial digital devices.
Q5: How is the ADV151 module mounted?
A5: The module can be mounted on a DIN rail or directly on a panel, providing flexibility for different installation setups.
Q6: What is the temperature range in which the ADV151 can operate?
A6: The ADV151 module operates in a temperature range from -20°C to +60°C, suitable for various industrial environments.
Q7: Is the ADV151 compatible with other Yokogawa systems?
A7: Yes, it is fully compatible with Yokogawa’s CENTUM series and Vnet/IP systems, ensuring seamless integration into your control infrastructure.
Q8: What kind of protection does the ADV151 module offer?
A8: The ADV151 has an IP20 protection rating, providing basic protection against dust and moisture.
Q9: In which industries is the ADV151 commonly used?
A9: The module is widely used in industrial process automation, energy systems, water treatment, HVAC systems, and safety applications.
Q10: Can the ADV151 handle high-vibration environments?
A10: Yes, the ADV151 module is designed to operate reliably in industrial environments, including those with high vibration and harsh conditions.
